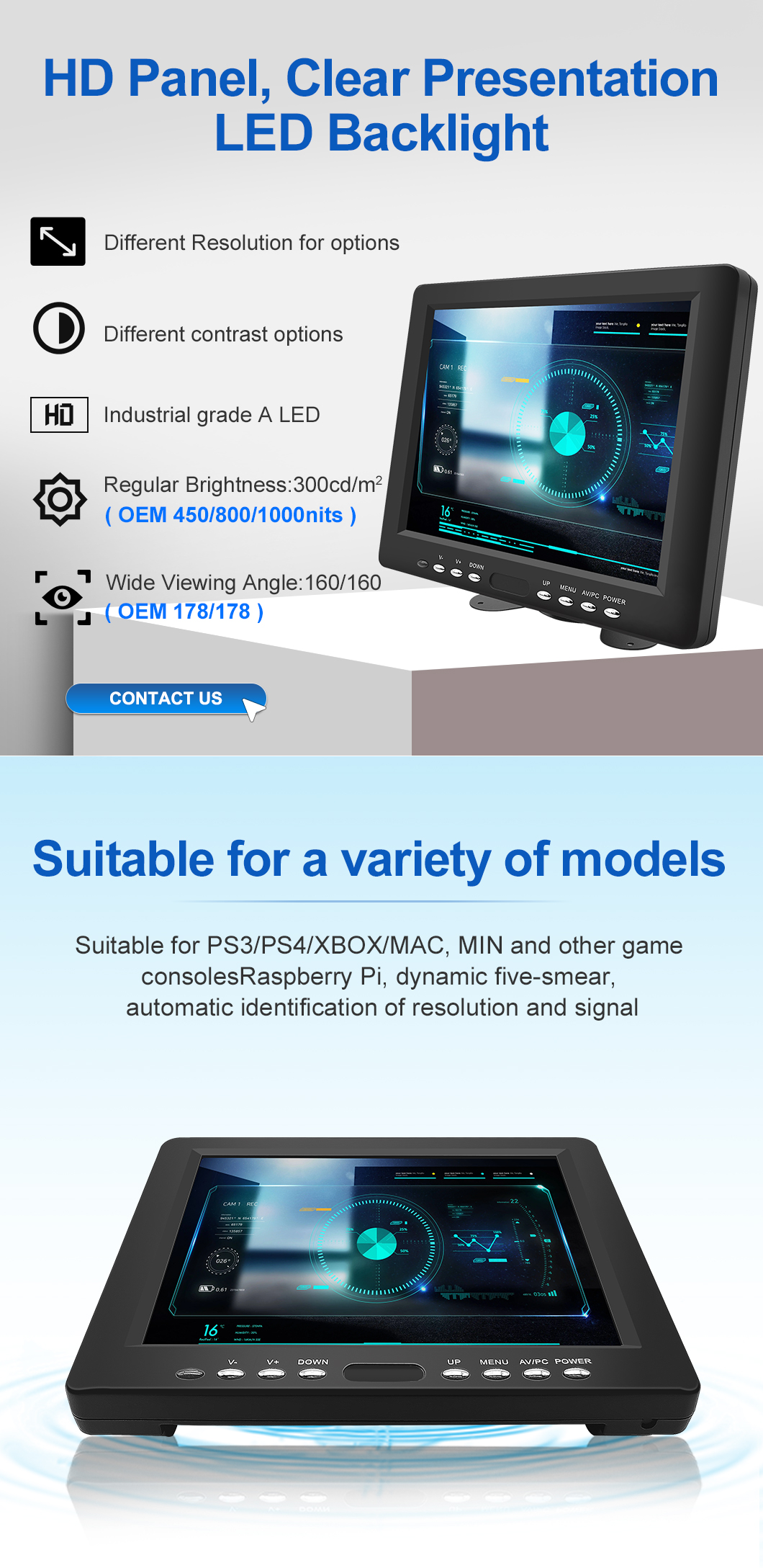

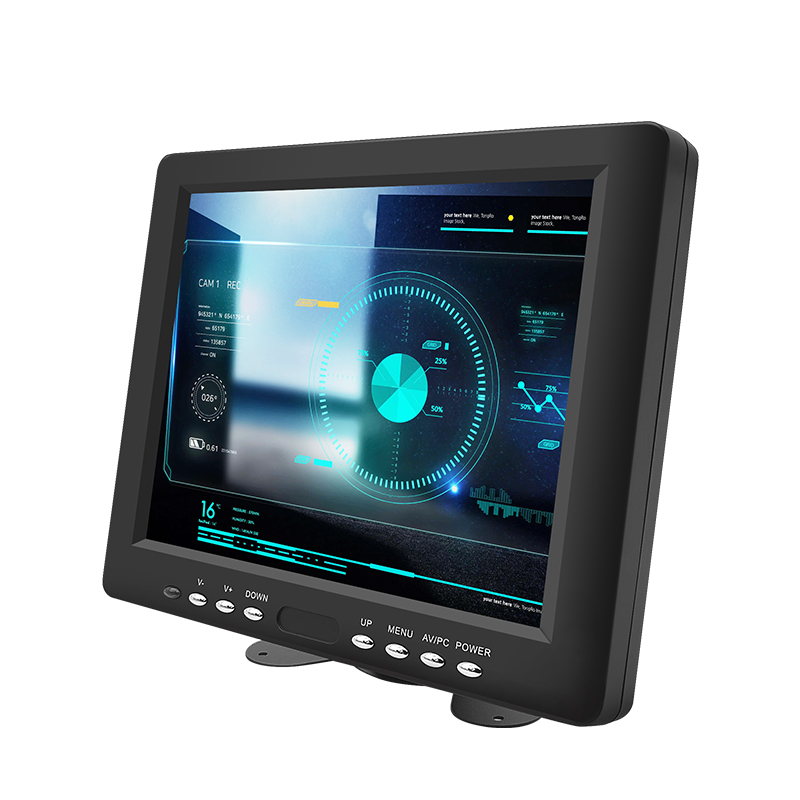

8 Inch IPS 1024*768 HDMI VGA AV BNC USB Resistive Touch Square Screen Plastic TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory POS CCTV Monitor
| Datasheet | |
| Model | B8010-T |
| Size | 8" |
| Active Area | 162*121.5 mm |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 15,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 500:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | -10~50ºC |
| Storage Temperature | -20~60ºC |

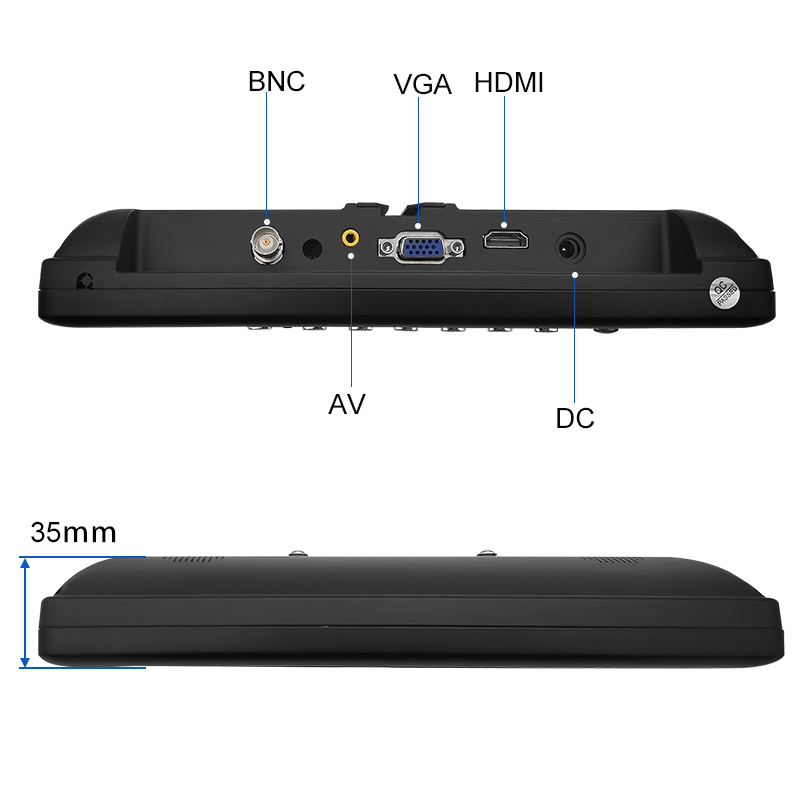

| Video Inputs/Outputs | VGA/HDMI/AV/BNC input*1 |
| Touch | 4-wire Resistive |
| Audio Inputs/Outputs | N/A |

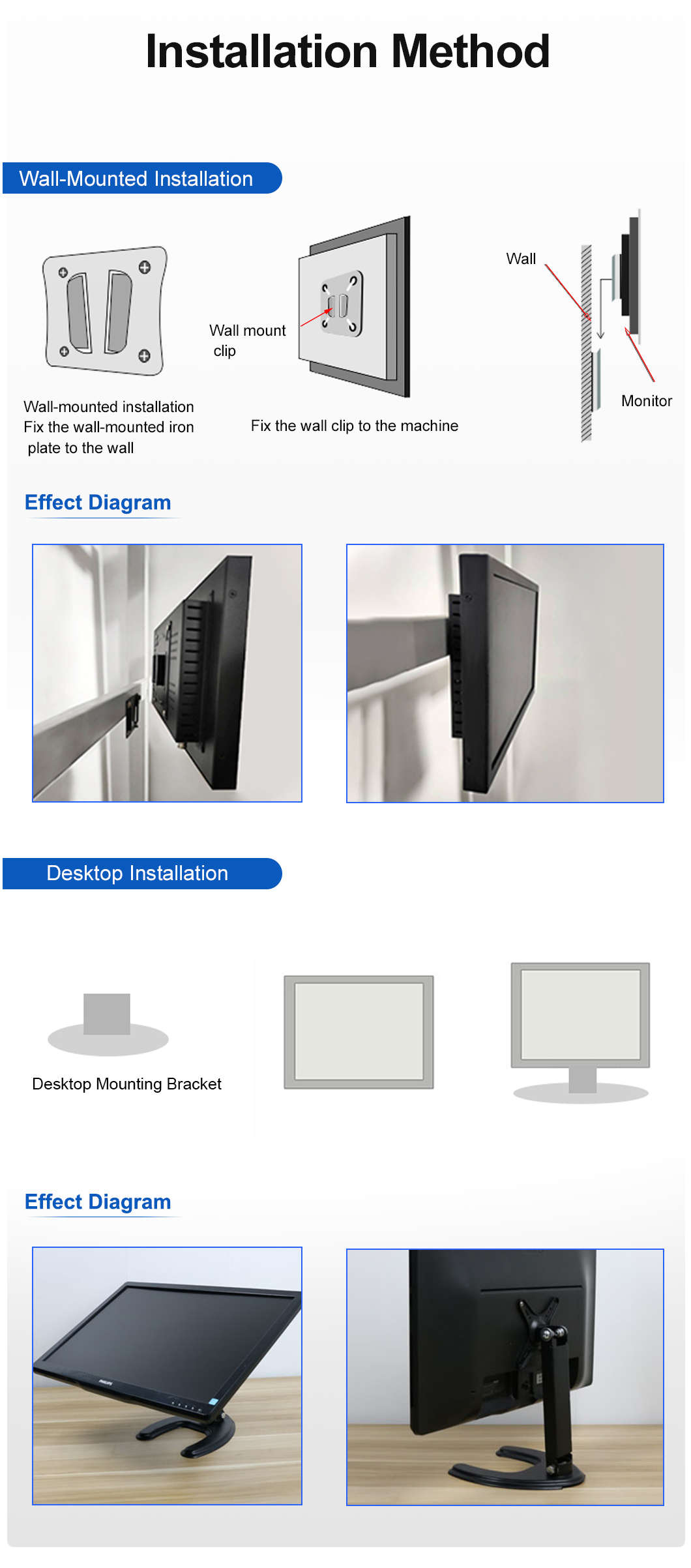

| Installation | Stand base |
| Power Requirement | DC 12V |

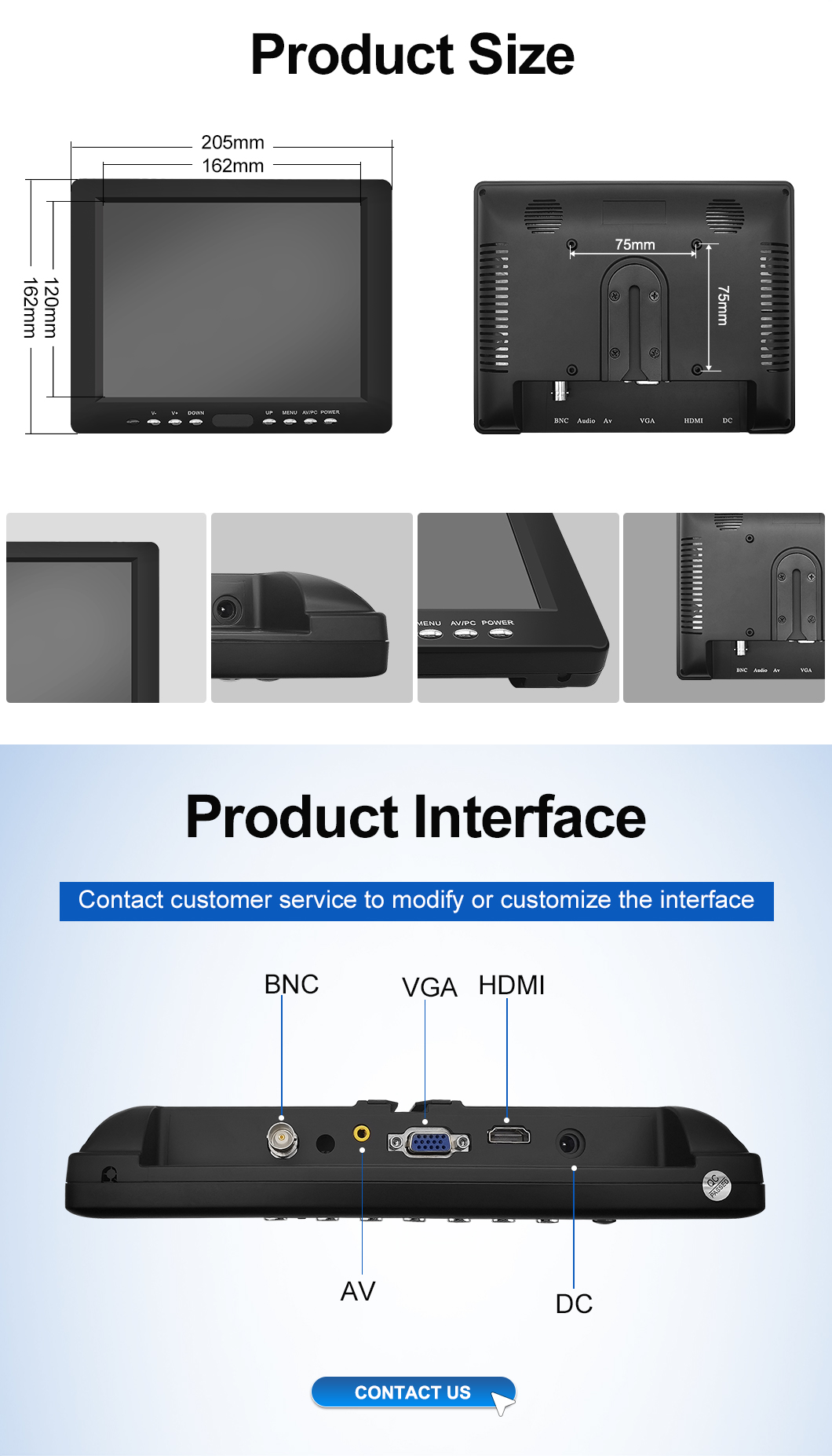

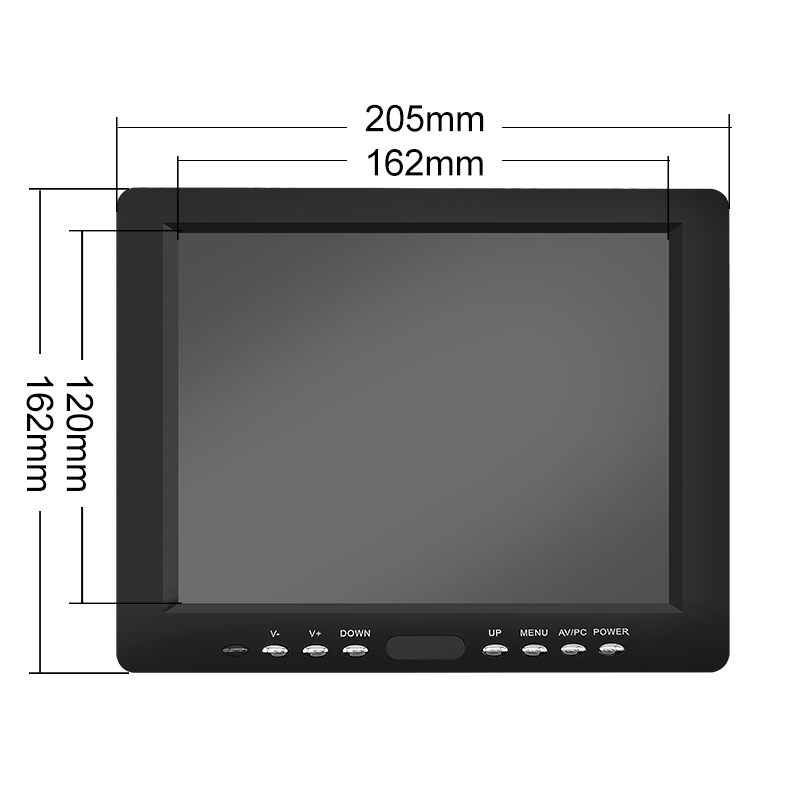

| Dimension (W*H*D) | 200*160*30 mm |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |

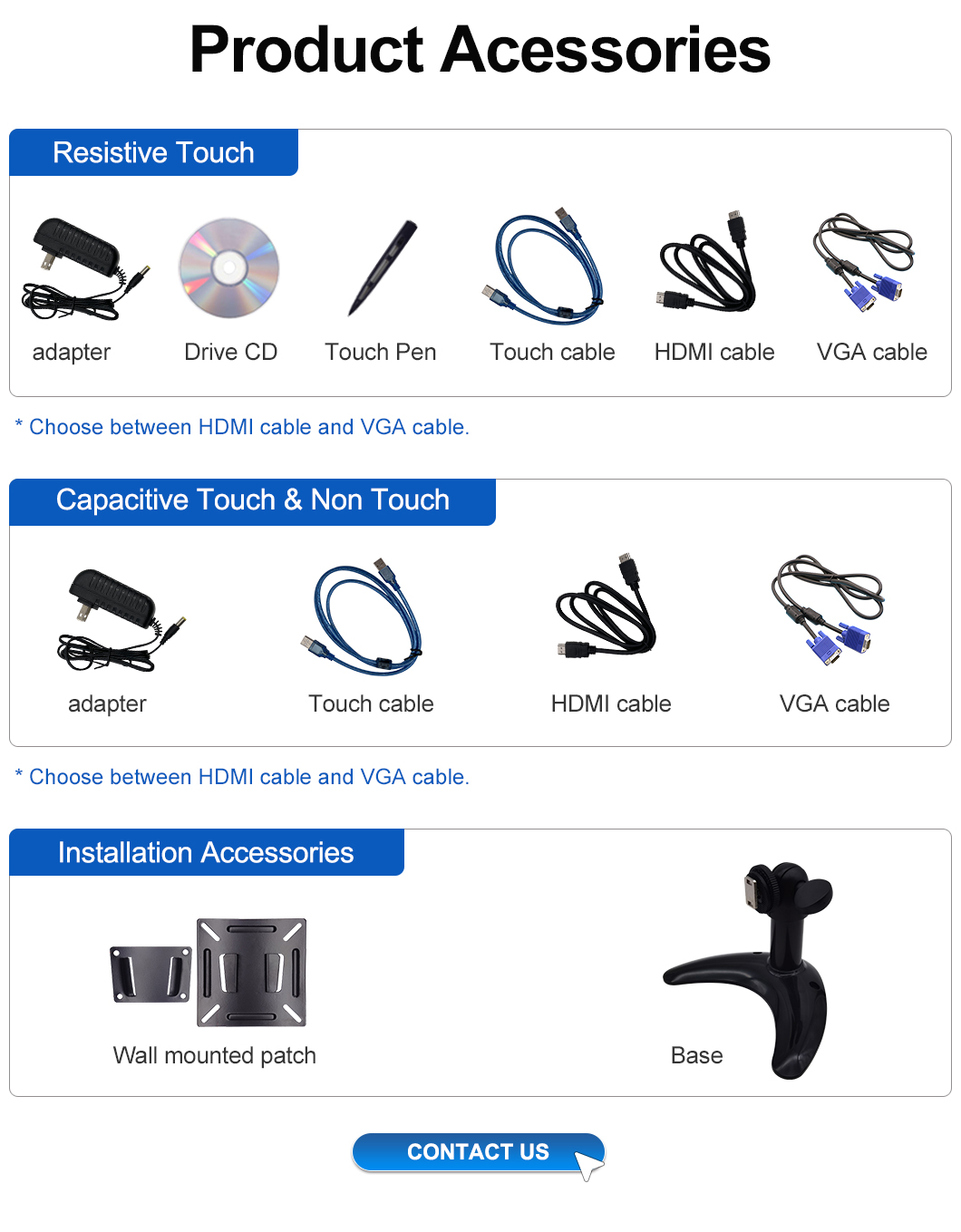

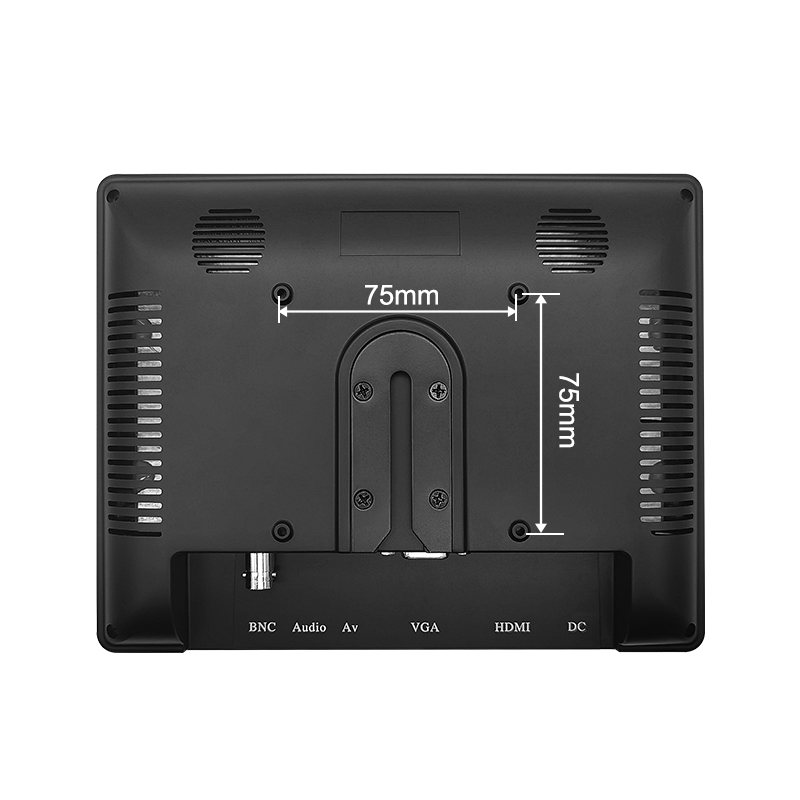

| Accessories: Plastic stand/ VESA wall mount kit , VGA,AV,BNC,HDMI,USBcable, touch pen, disk drive, power adapter, warranty card, , manual. | |
-
