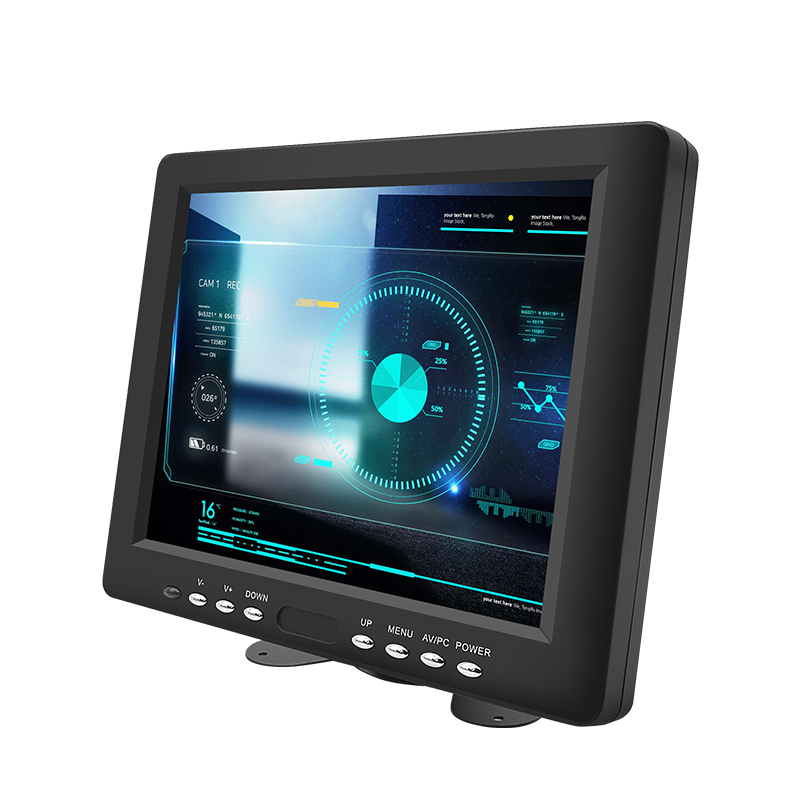

8 Inch IPS 1024*768 HDMI VGA AV BNC Non Touch Square Screen Plastic Case TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory LCD POS CCTV Monitor
| Datasheet | |
| Model | B8010 |
| Size | 8" |
| Active Area | 162*121.5 mm |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 500:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

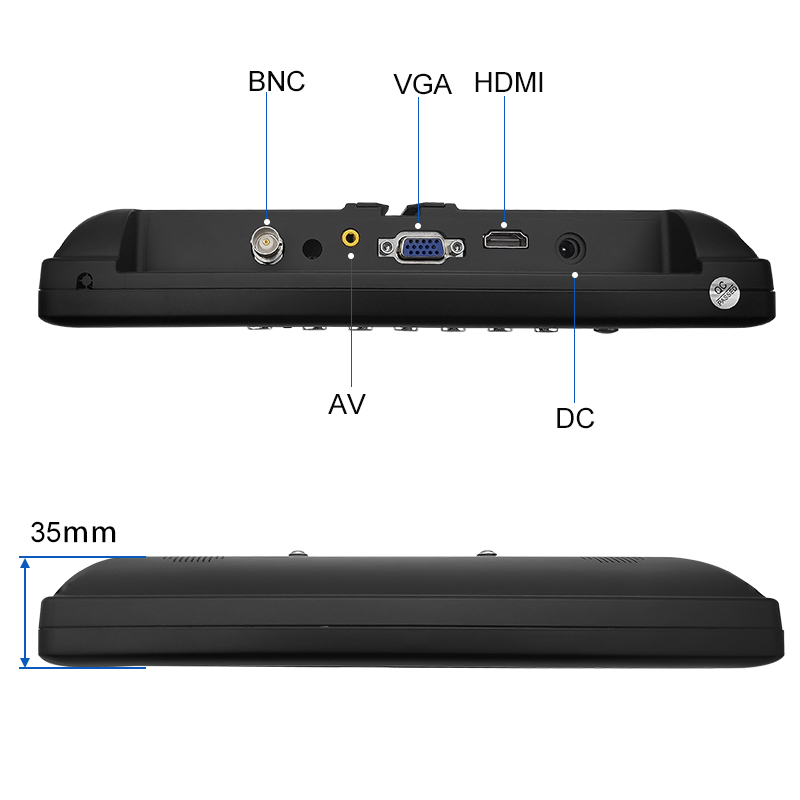

| Video Inputs/Outputs | HDMI/VGA/BNC/AV input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

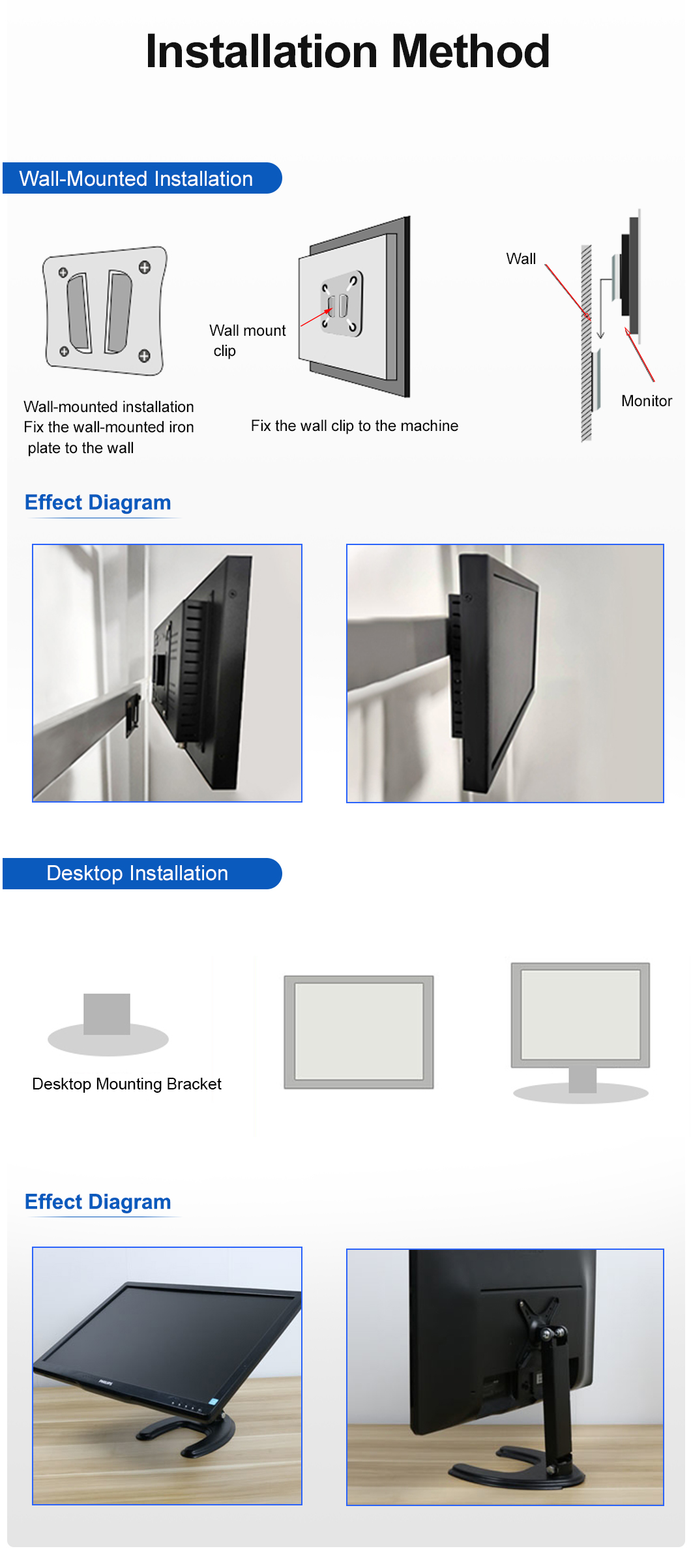

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

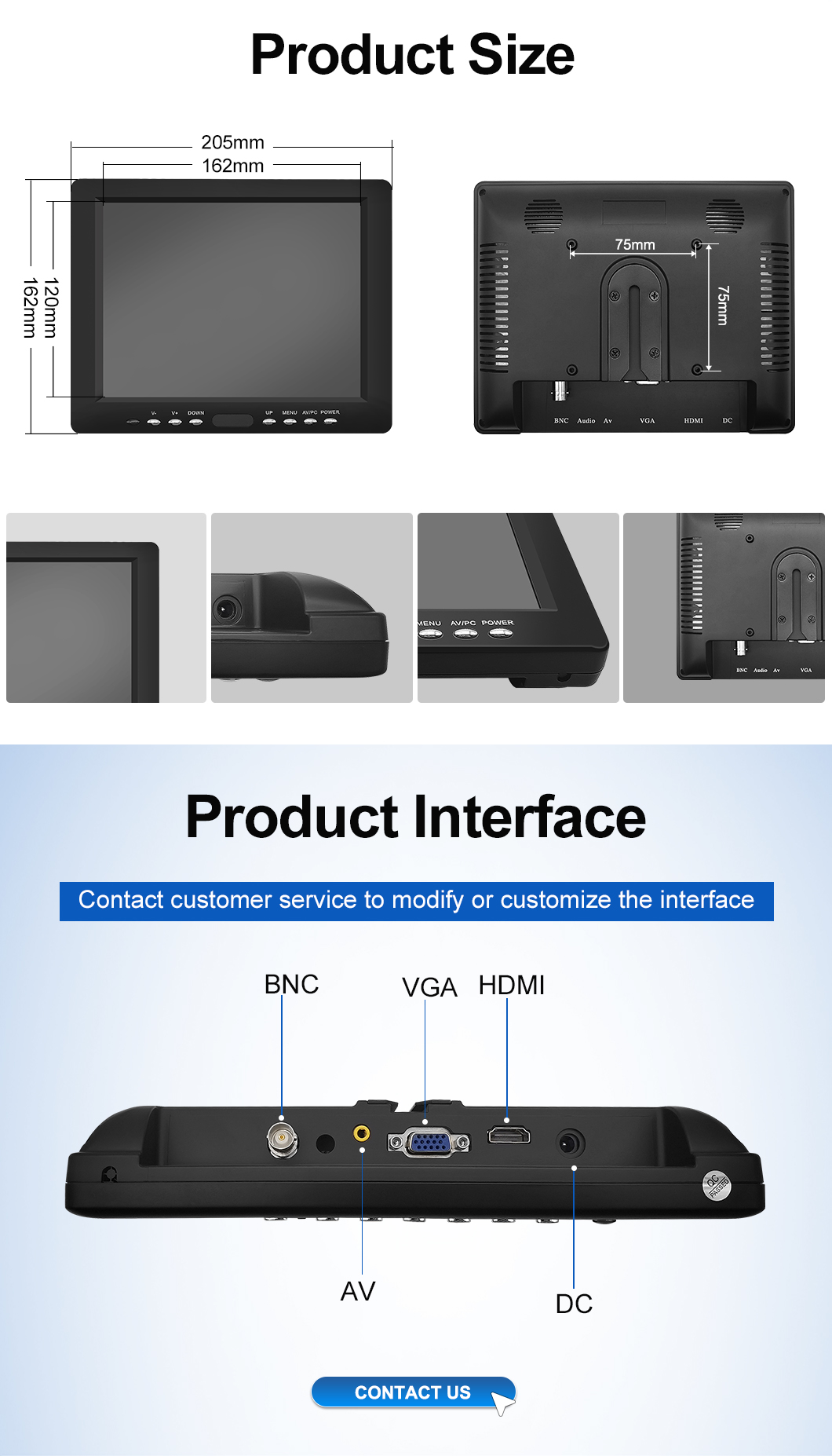

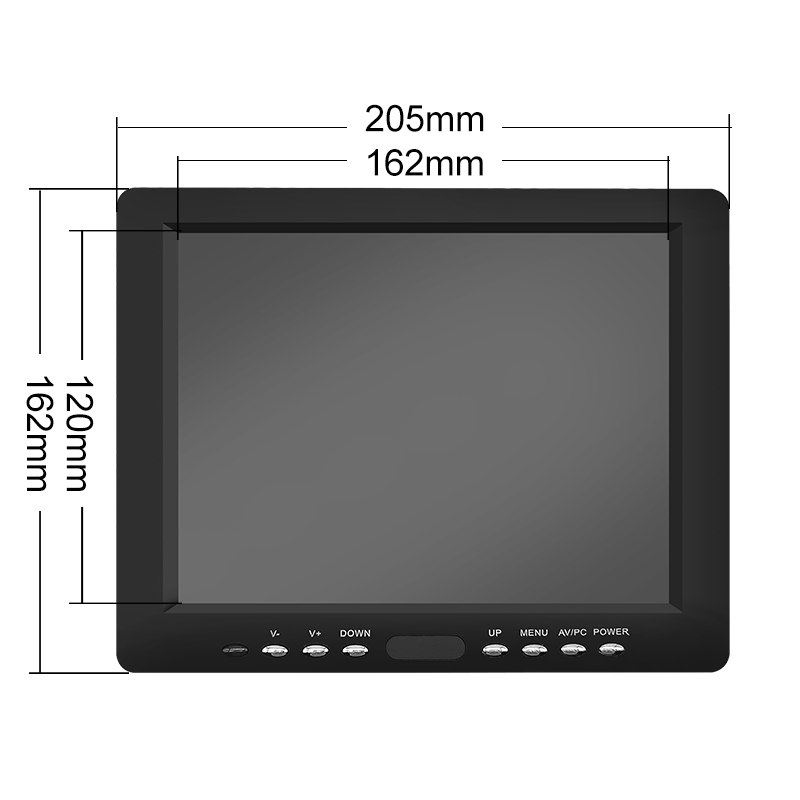

| Dimension (W*H*D) | 200*160*30 mm |
| Weight | 0.5 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |

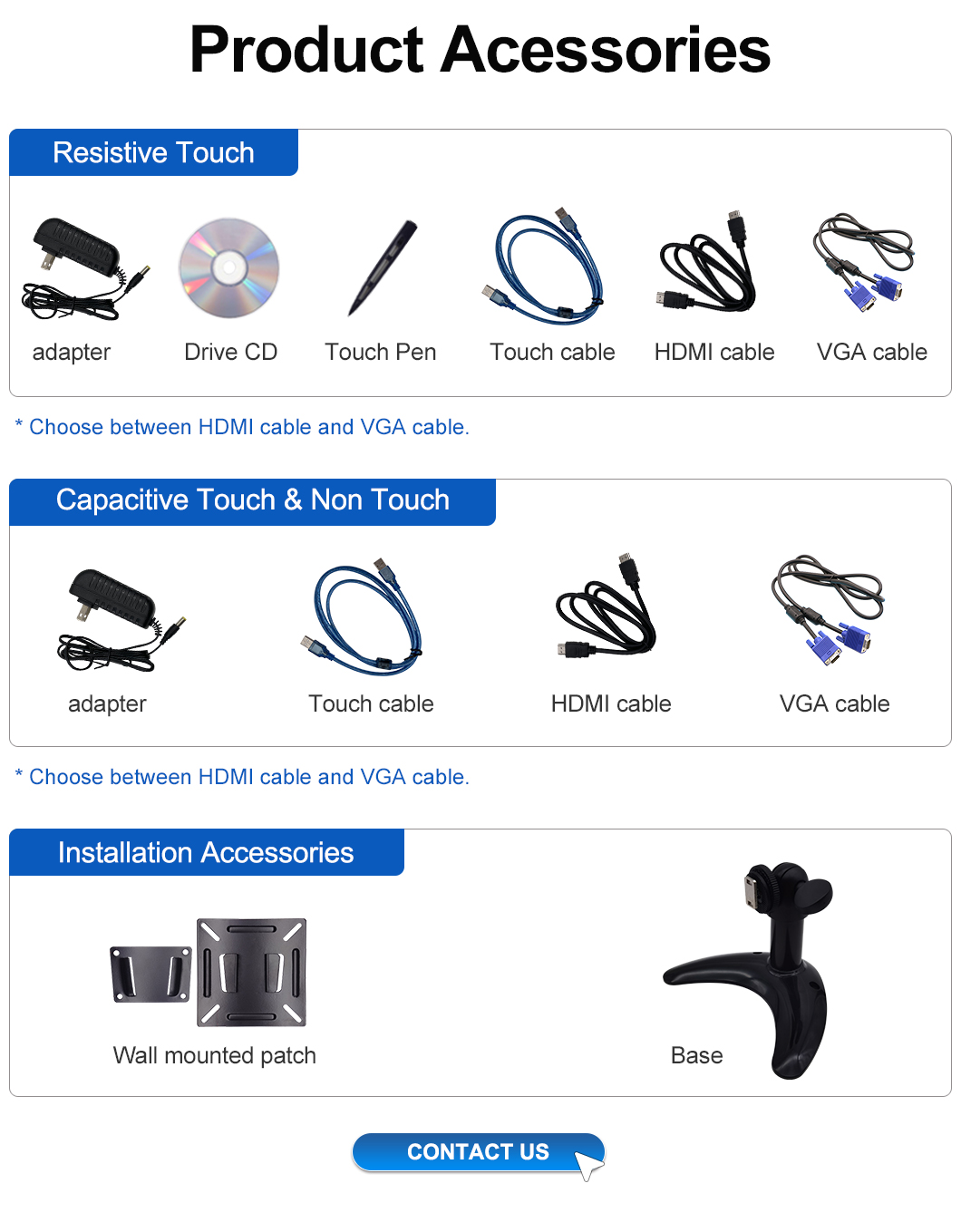

| Accessories : stand/ VESA mount kit, warranty card, VGA,AV,BNC,HDMI cable , power adapter, manual | |
-
