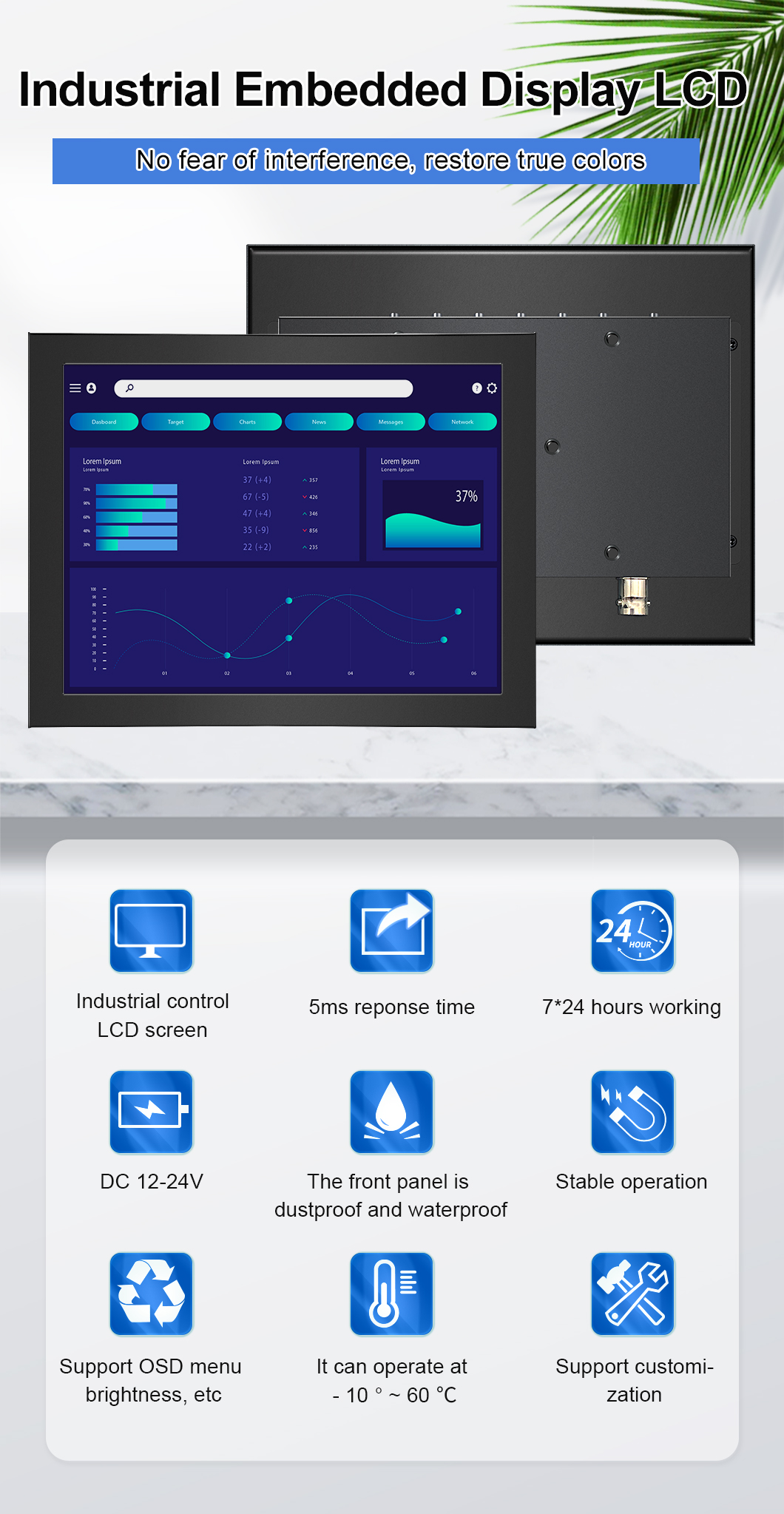

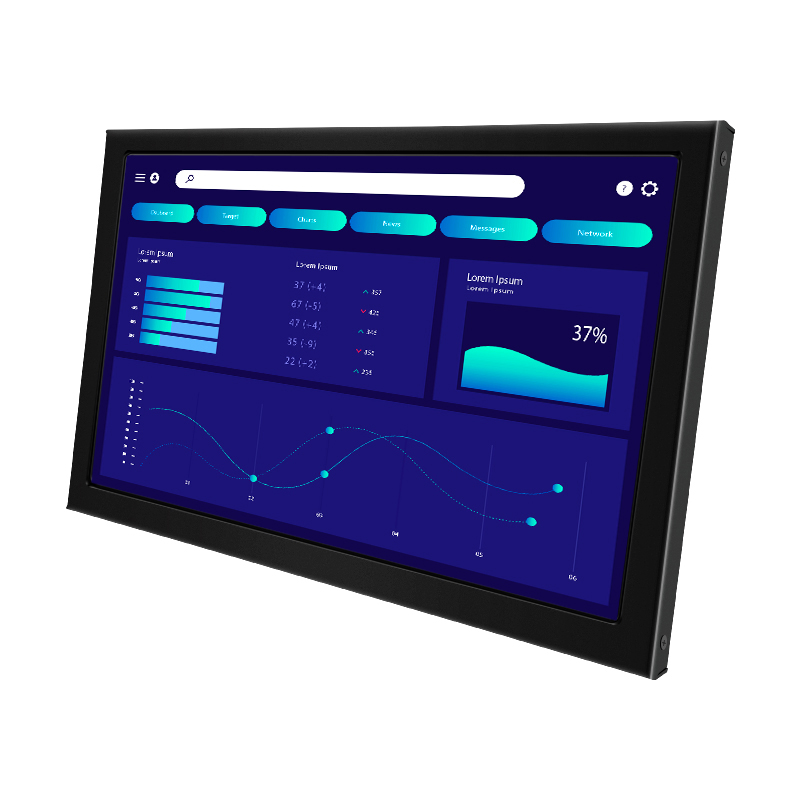

8 Inch 1024*768 & IPS 1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B8009-ZT & B8010-ZT
| Datasheet | |
| Mould | B8010-ZT & B8010-ZT |
| Size | 8" |
| Active Area | 162*121.5 mm |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1024x768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

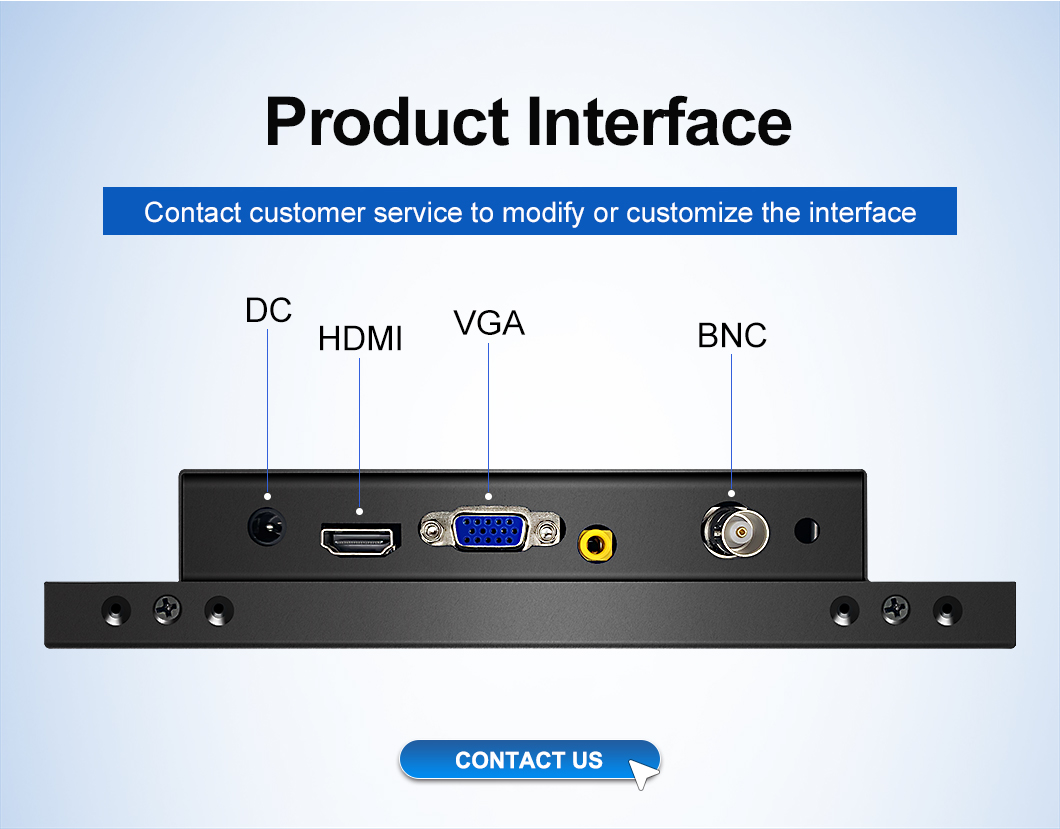

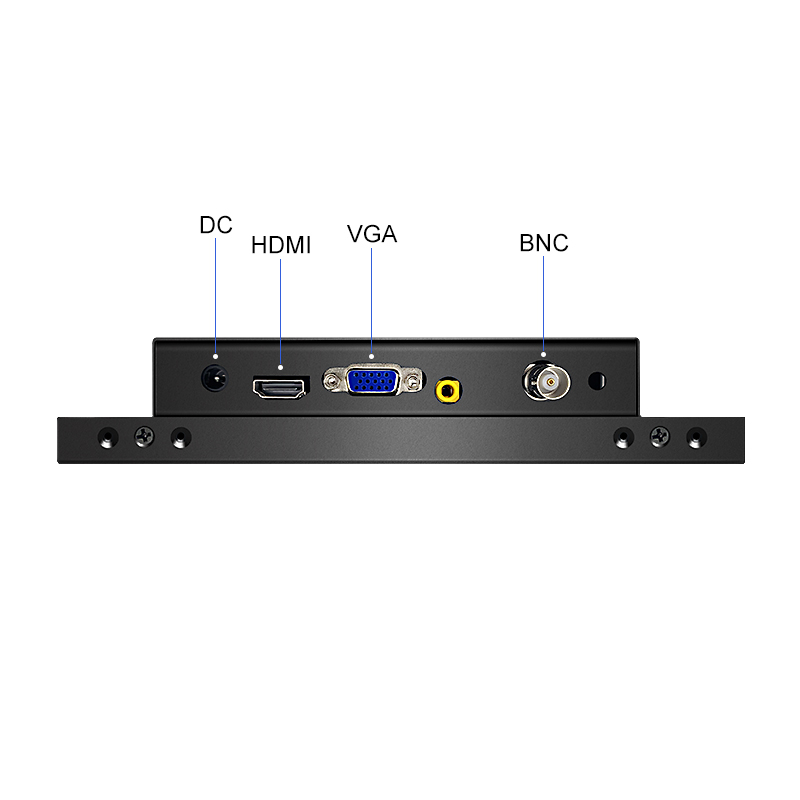

| Video Inputs/Outputs | PC+AV+BNC+HDMI |
| Touch | 4-wire Resistive |
| Audio Inputs/Outputs | Earphone Jack 35mm |

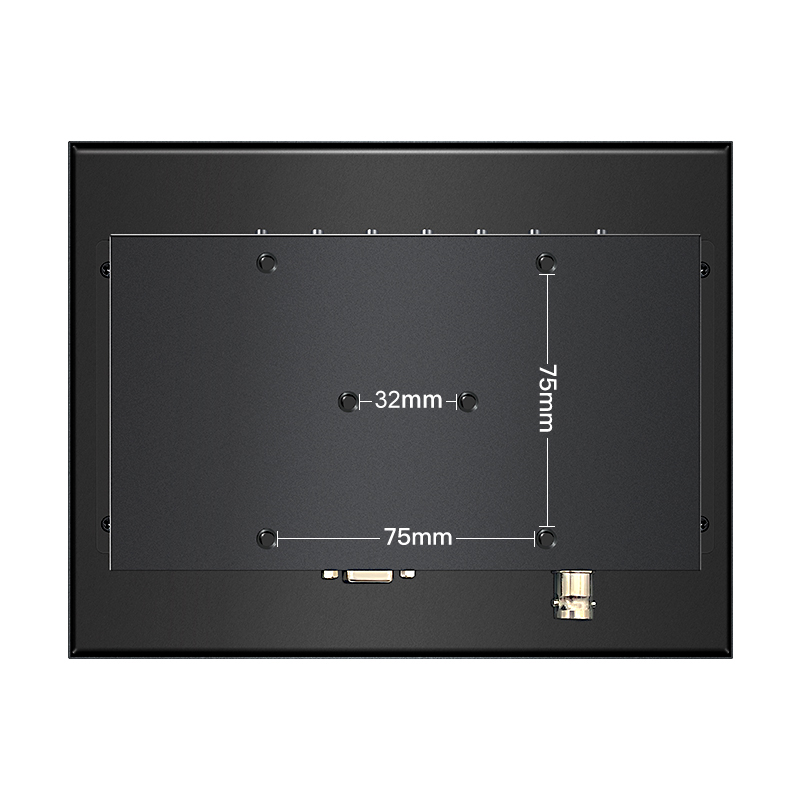

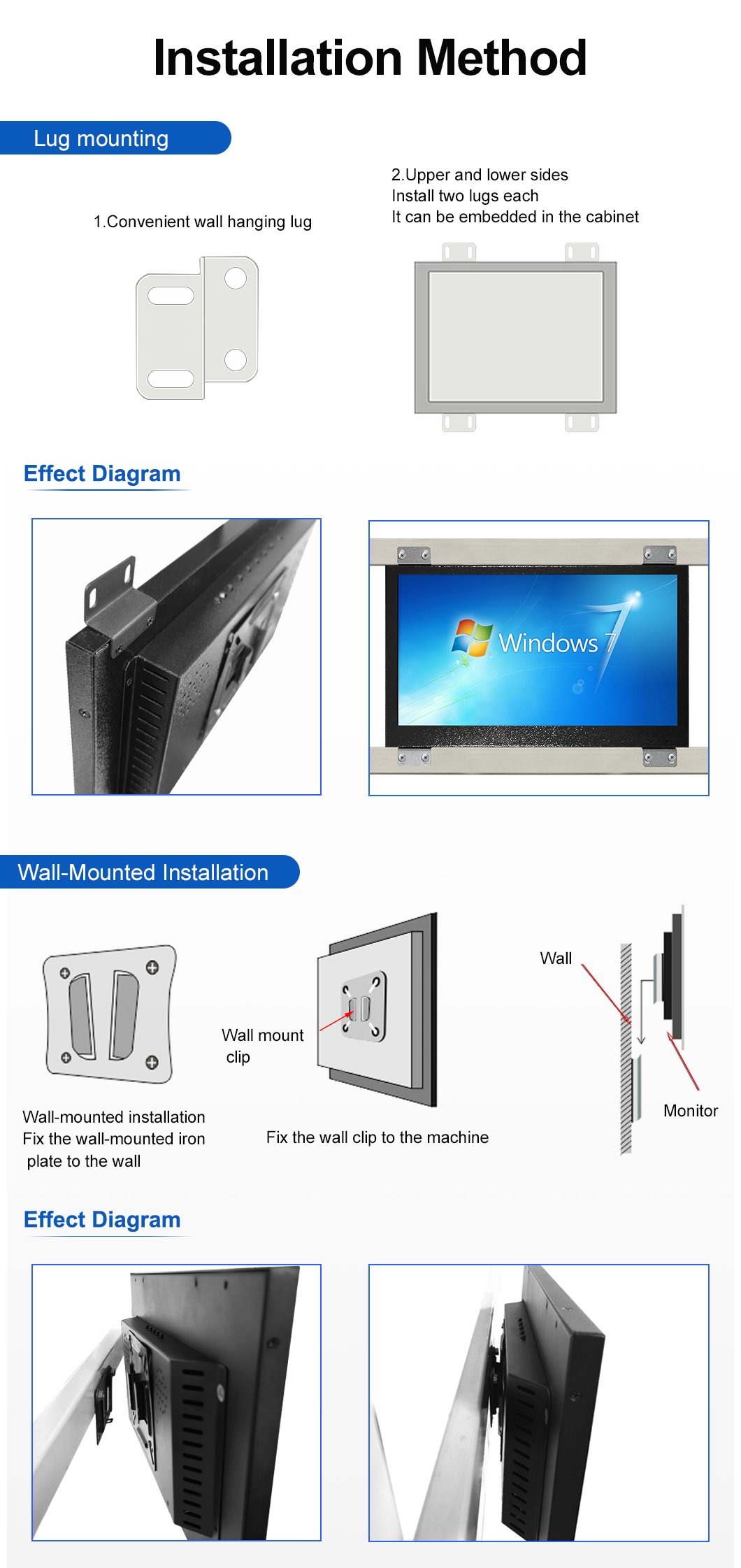

| Installation | VESA mount |
| Power Requirement | DC 12V |

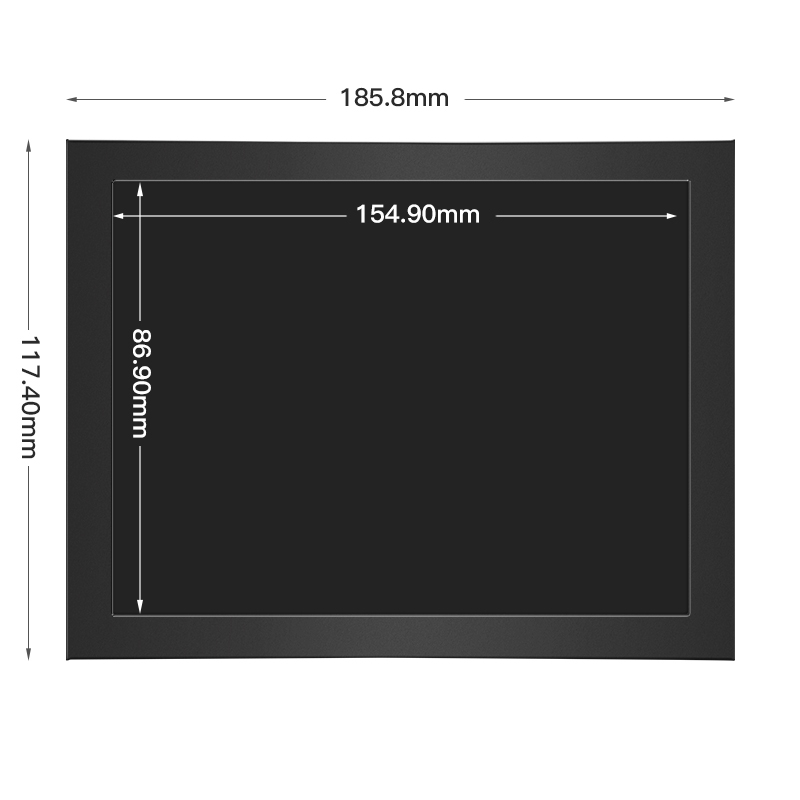

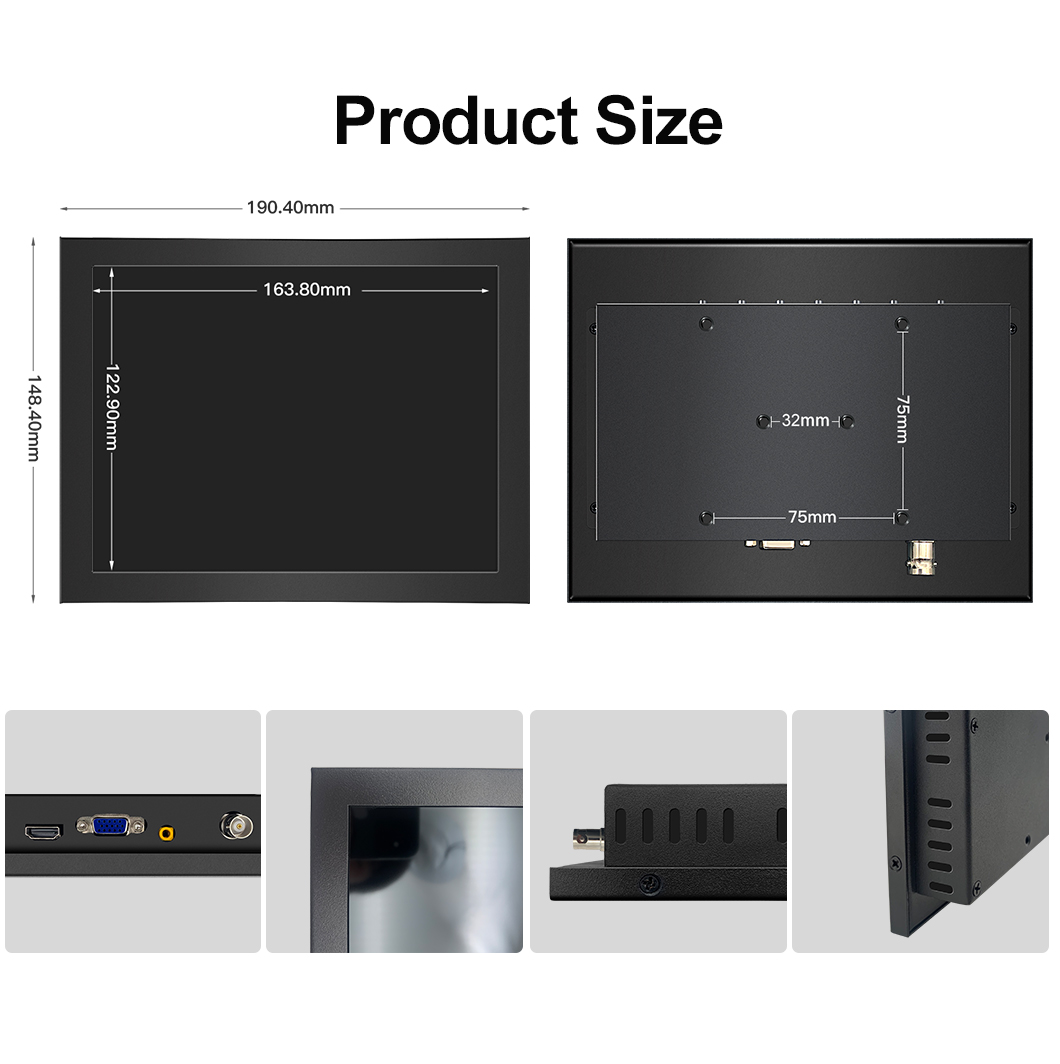

| Dimension (W*H*D) | 180*140*35 mm |
| Weight | 0.81 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |

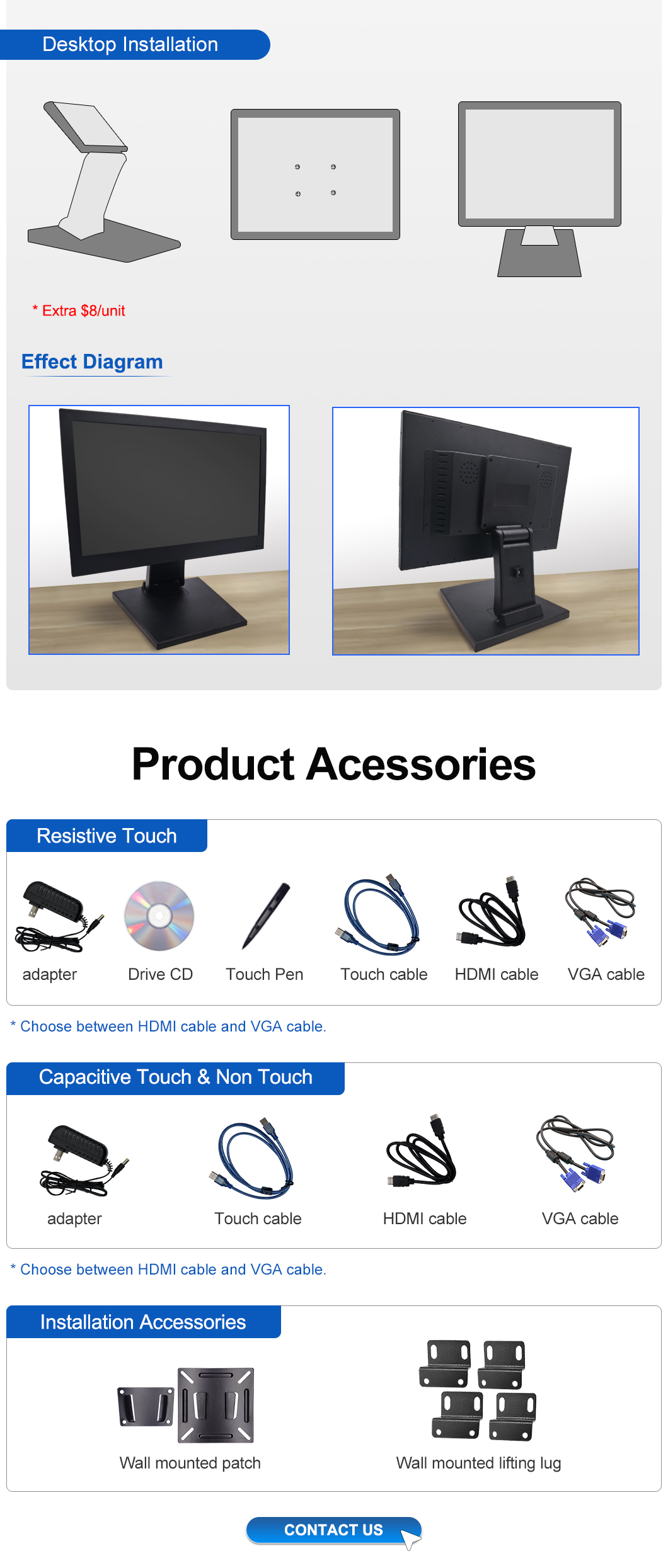

| Accessories: VESA wall mount kit/ Hanging ear / Stand , VGA cable/ HDMI cable , USB touch cable, Touch pen, Flash dirve, 12V DC 1A power adapter, Manual , Warranty card | |
-
