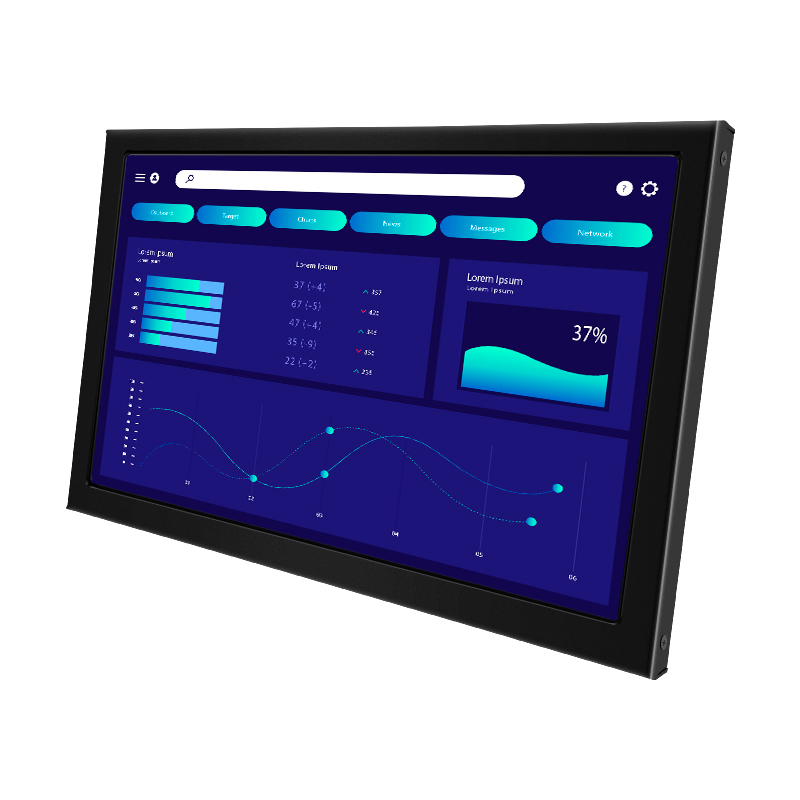

8 Inch 800*600 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B8007-ZT
| Datasheet | |
| Size | 8" |
| Active Area | 162*121.5 mm |
| Panel Type | TFT-LCD |

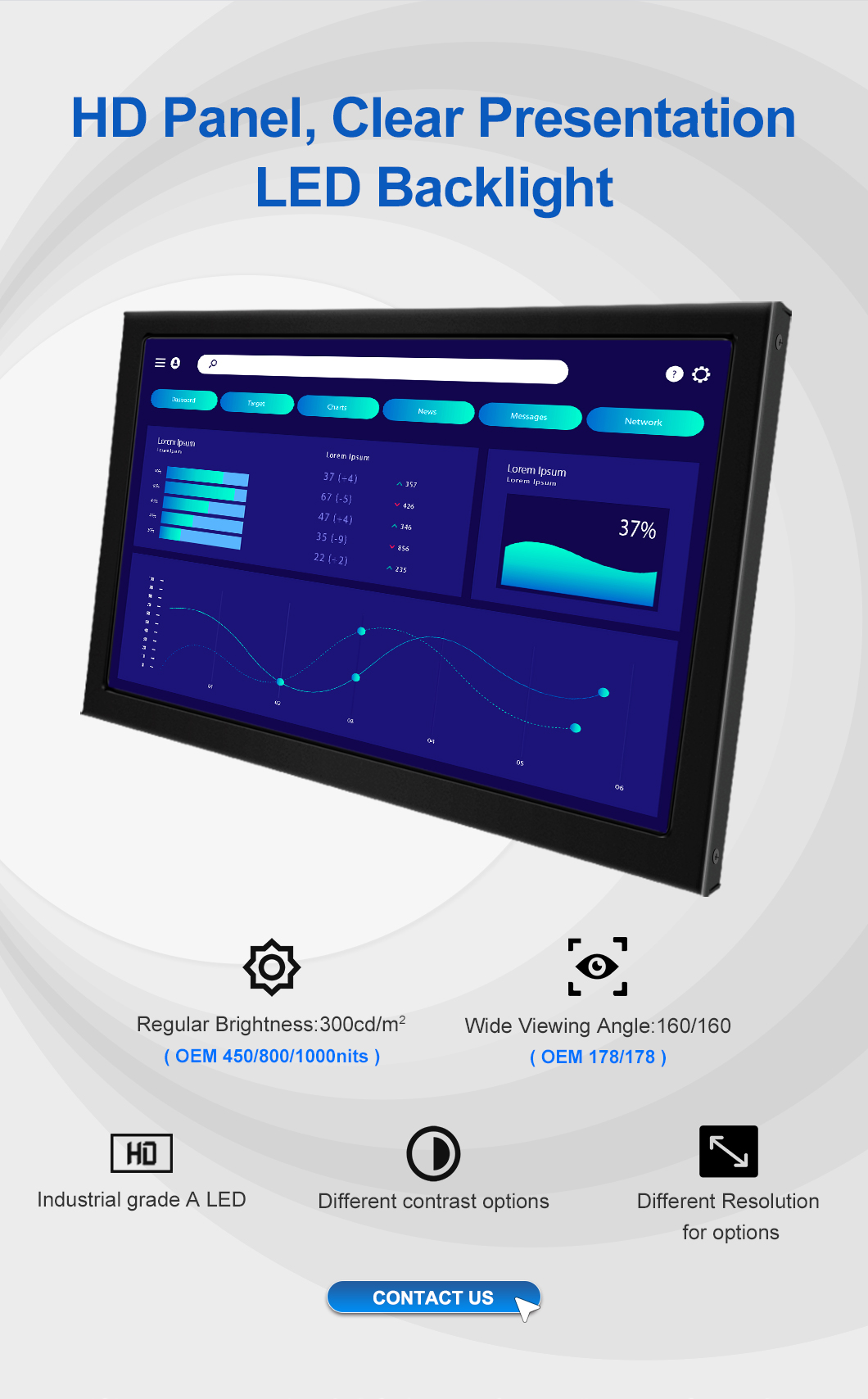

| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800*600 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

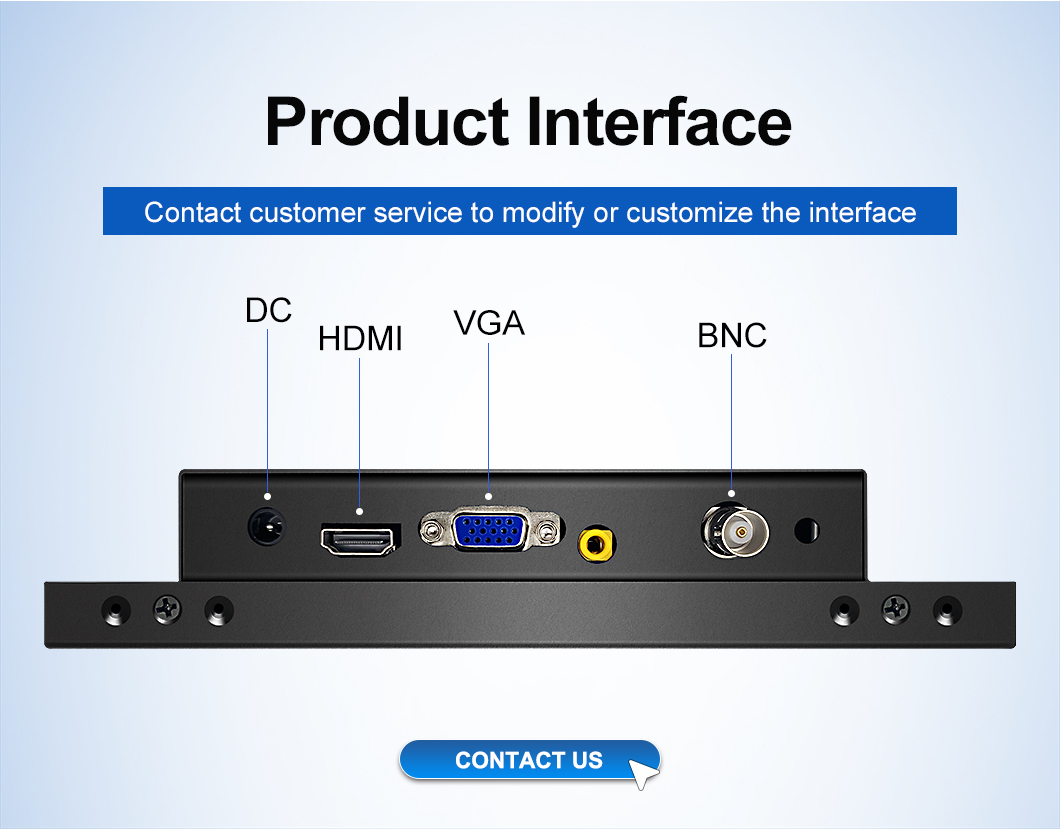

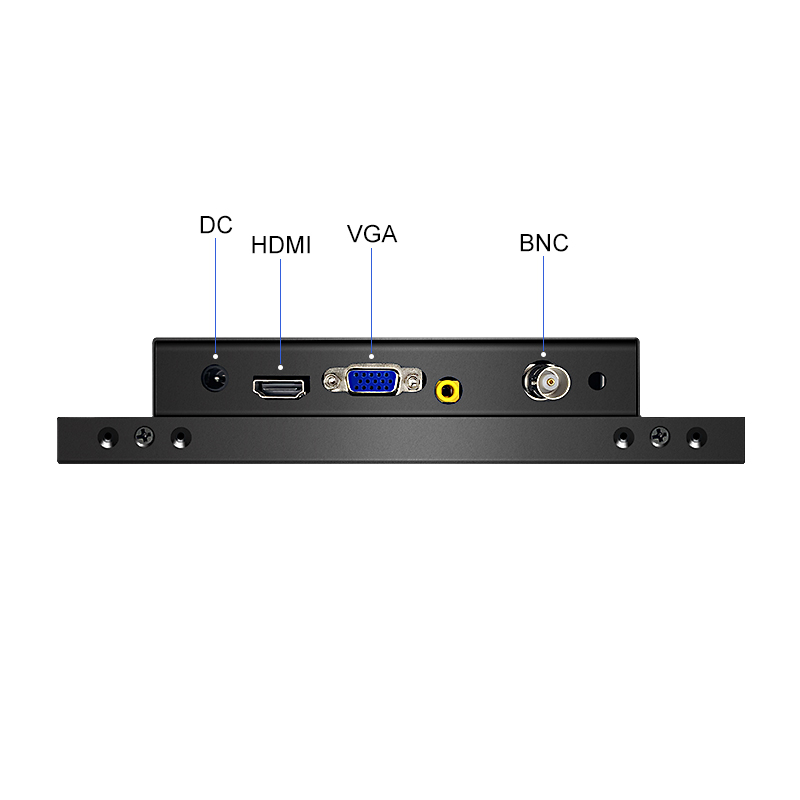

| Video Inputs/Outputs | PC+AV+BNC+HDMI |
| Audio Inputs/Outputs | Earphone Jack 35mm |

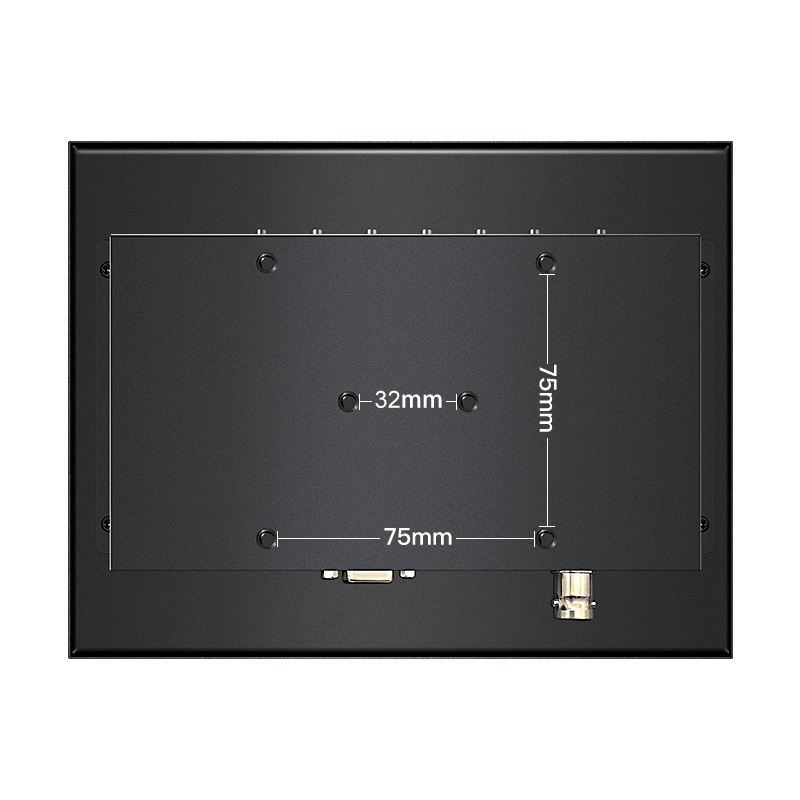

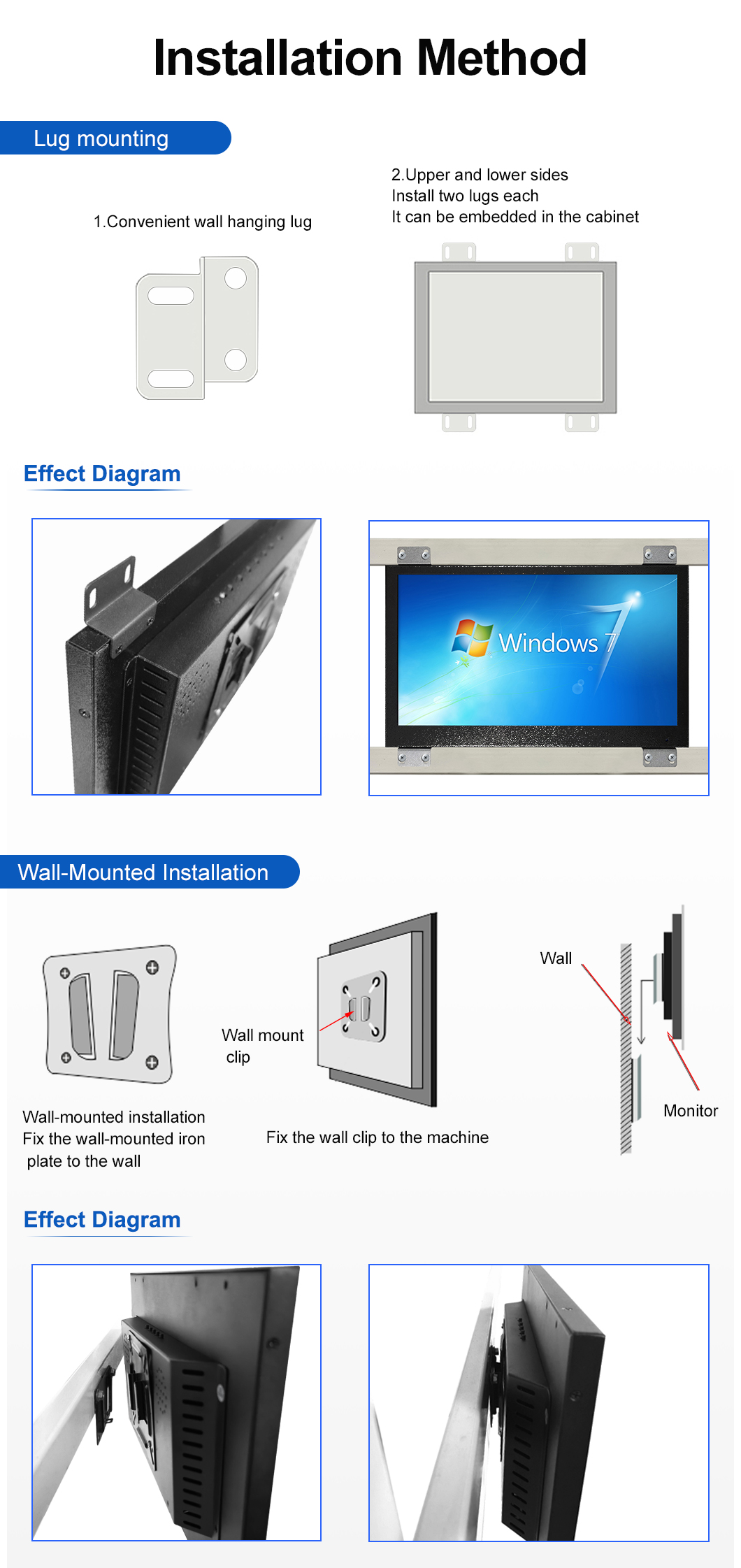

| Installation | VESA mount |
| Power Requirement | DC 12V |

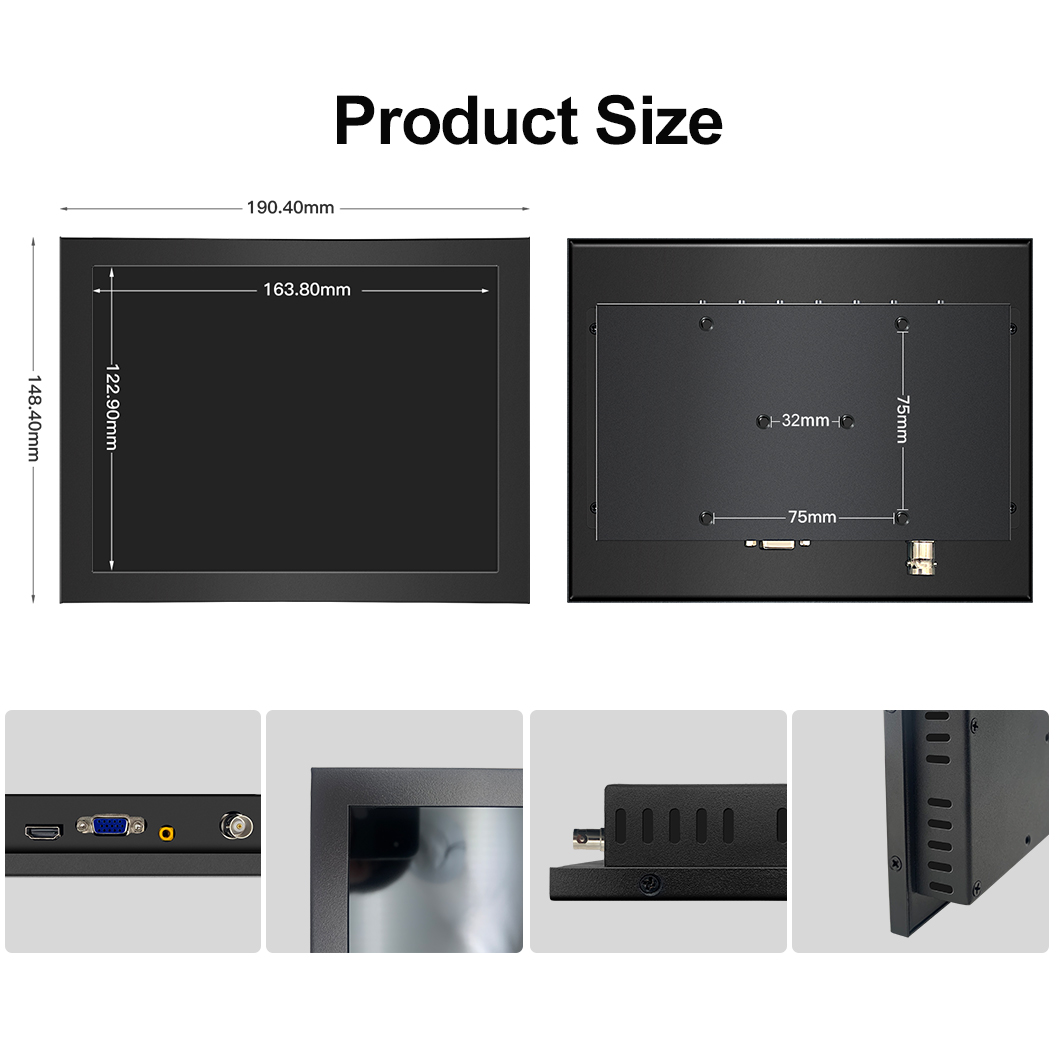

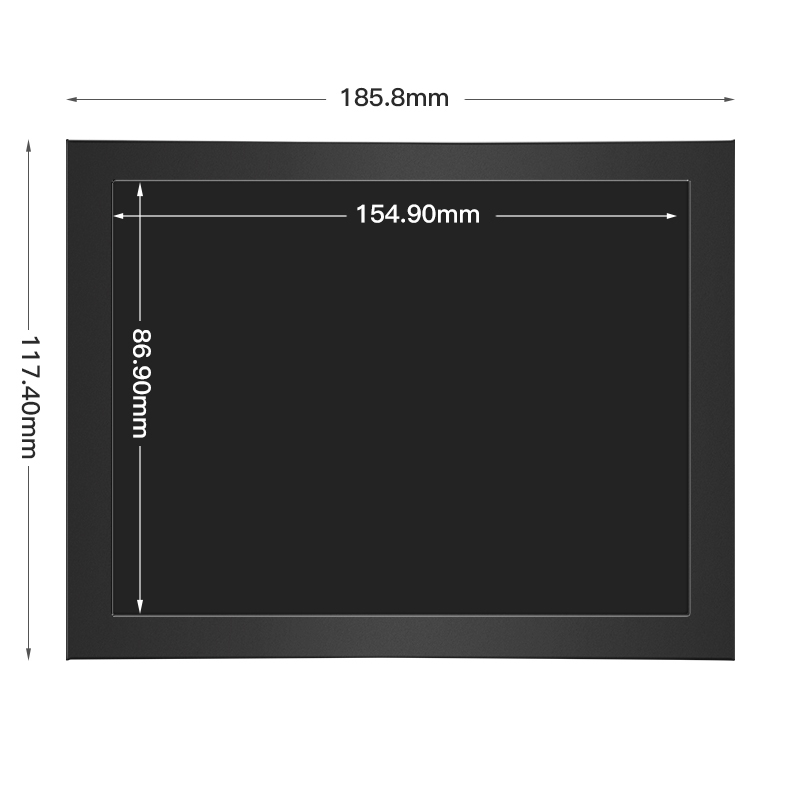

| Dimension (W*H*D) | 180*140*35 mm |
| Weight | 0.81 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
