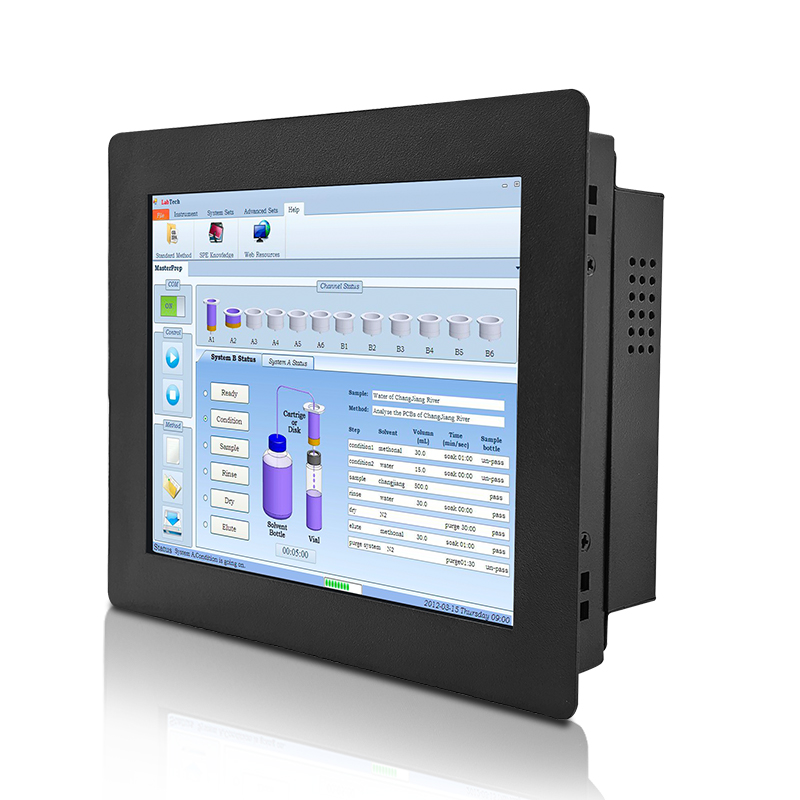

8 Inch 800*600 & 1024*768 & IPS1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B8007-QR-ZT & B8009-QR-ZT & B8010-QR-ZT
| Mould | B8007-QR-ZT & B8009-QR-ZT & B8010-QR-ZT |
| Size | 8" |
| Active Area | 163.6*122.9 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800*600 & 1024*768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

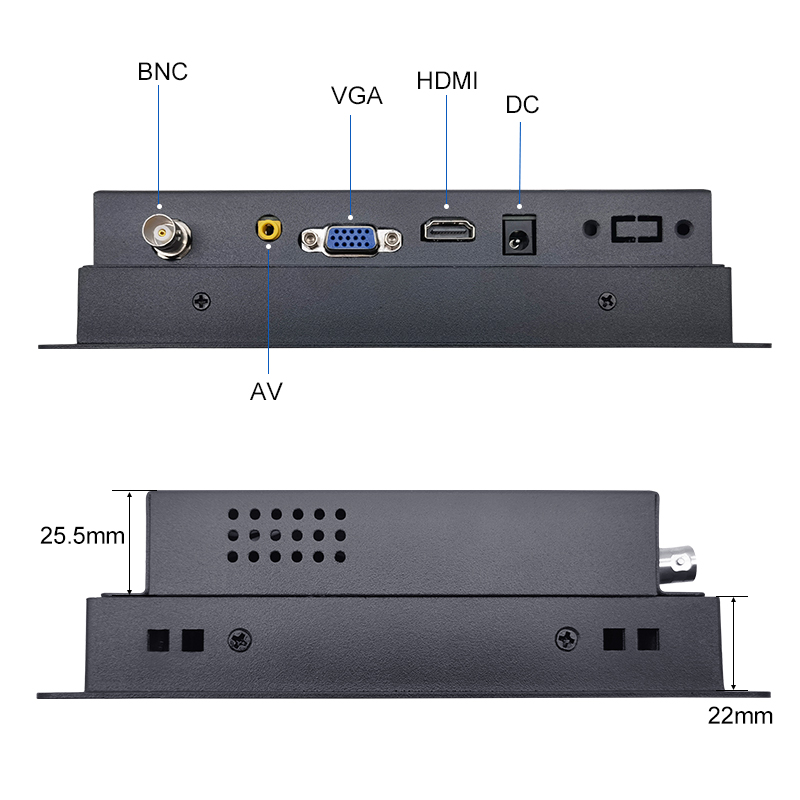

| Video Inputs/Outputs | DC+AV+BNC+HDMI+VGA |
| Touch | Resistive touch |
| Audio Inputs/Outputs | Earphone Jack 35mm |

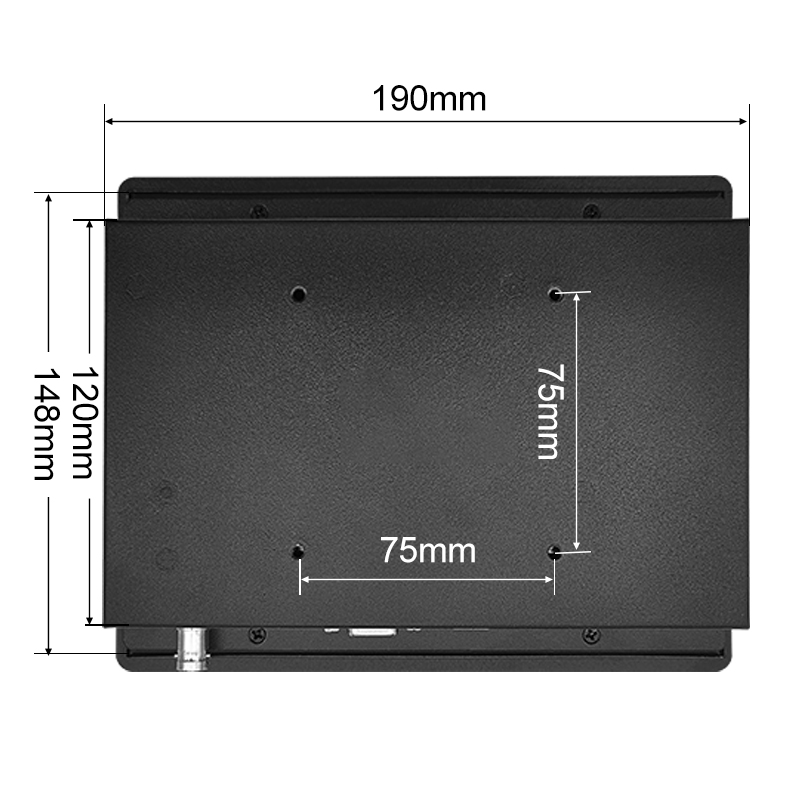

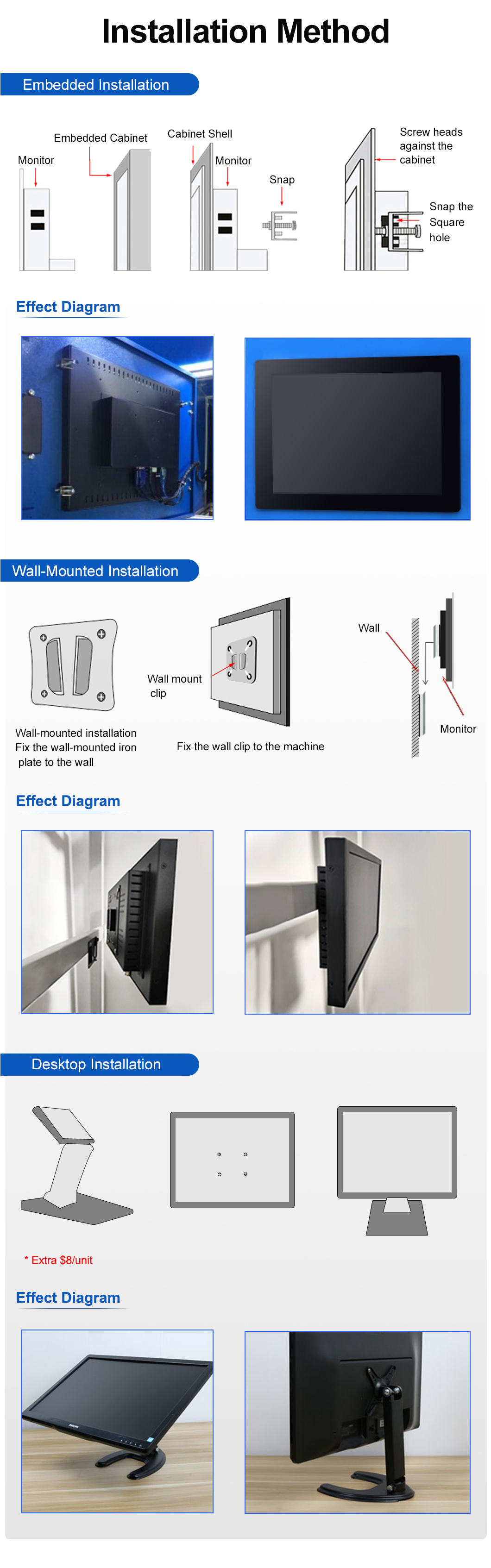

| Installation | VESA mount |
| Power Requirement | DC 12V |

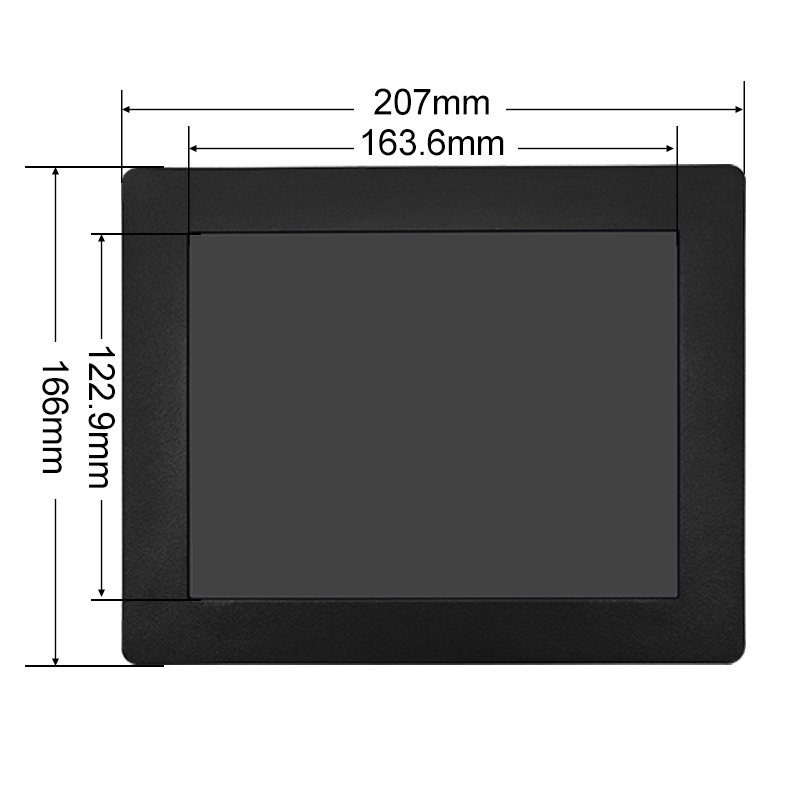

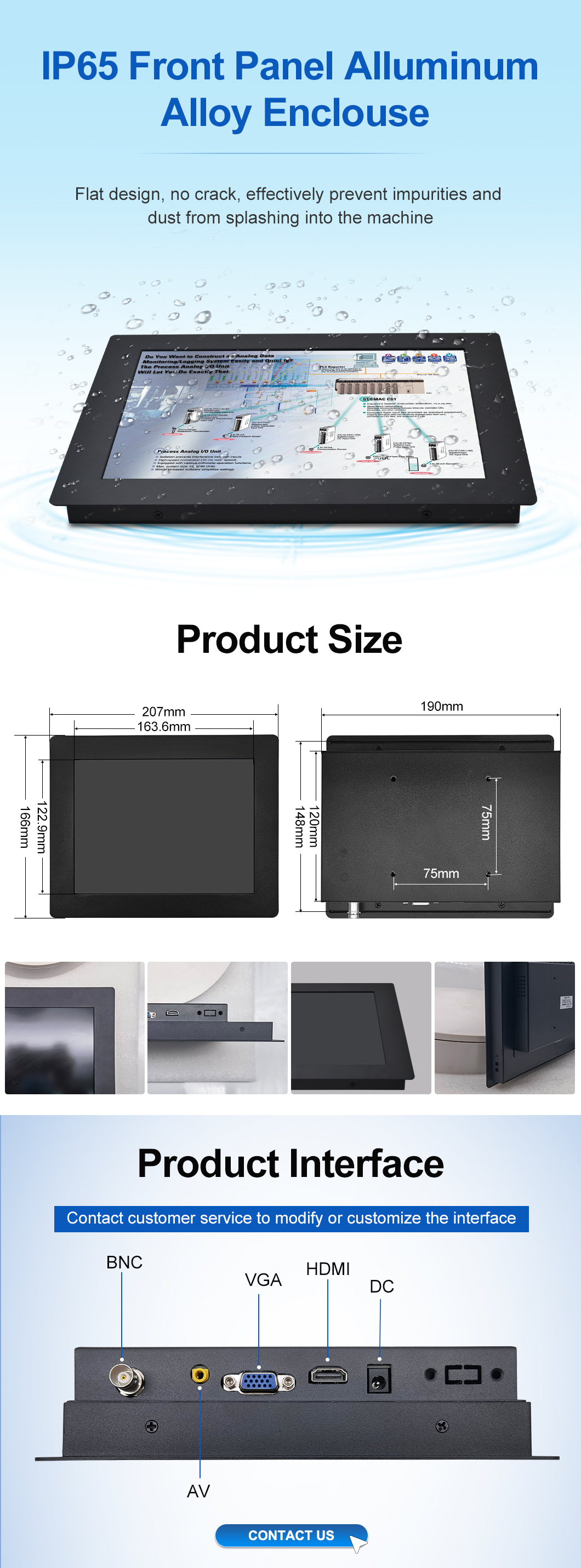

| Dimension (W*H*D) | 207*166*47.5 mm |
| Weight | 0.81 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount/ stand, VGA cable/HDMI cable/DVI cable, manual book and power adapter. | |
-
Model No :B8007-QR-ZT & B8009-QR-ZT & B8010-QR-ZT
8 Inch 800*600 & 1024*768 & IPS1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
-
Model No :B8007-QR & B8009-QR & B8010-QR
8 Inch 800*600 & 1024*768 & IPS1024*768 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
