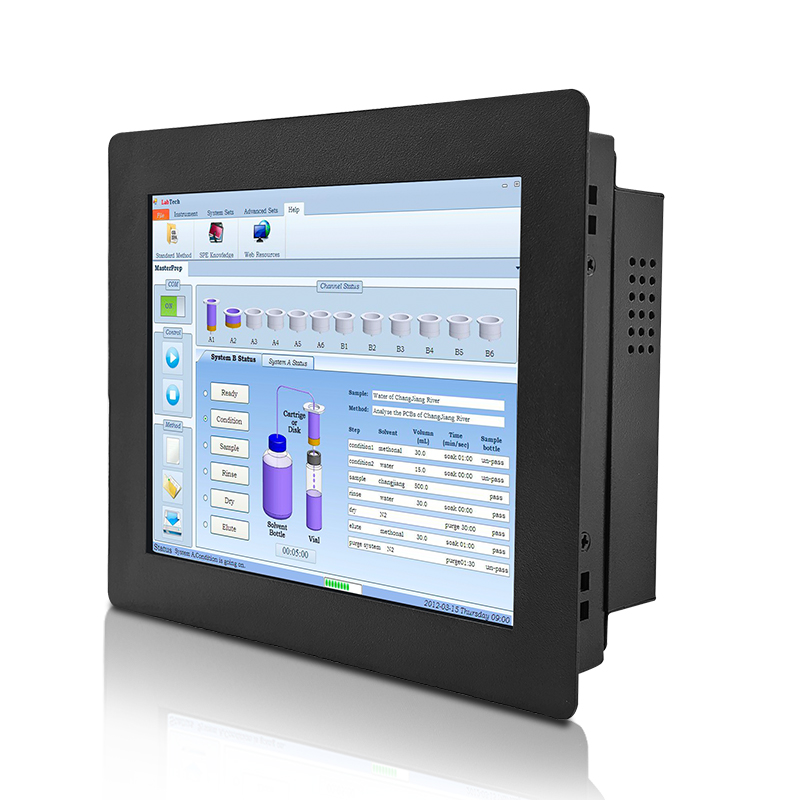

8 Inch 800*600 & 1024*768 & IPS1024*768 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B8007-QR & B8009-QR & B8010-QR
| Model | B8007-QR & B8009-QR & B8010-QR |
| Size | 8" |
| Active Area | 162*121.5 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 800*600 & 1024*768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 160/160 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

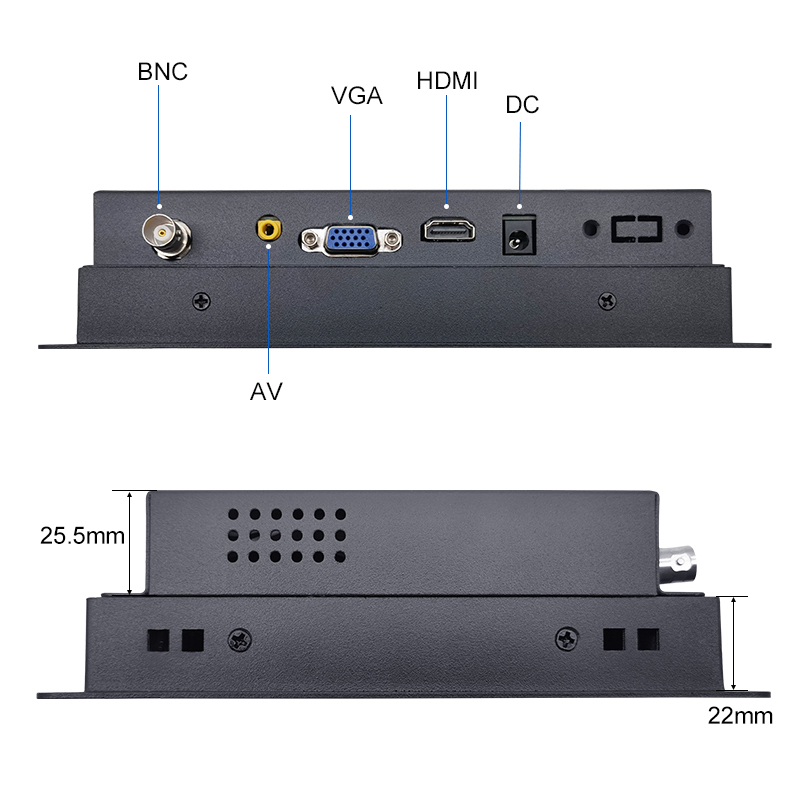

| Video Inputs/Outputs | AV×1,BNC×1,VGA×1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

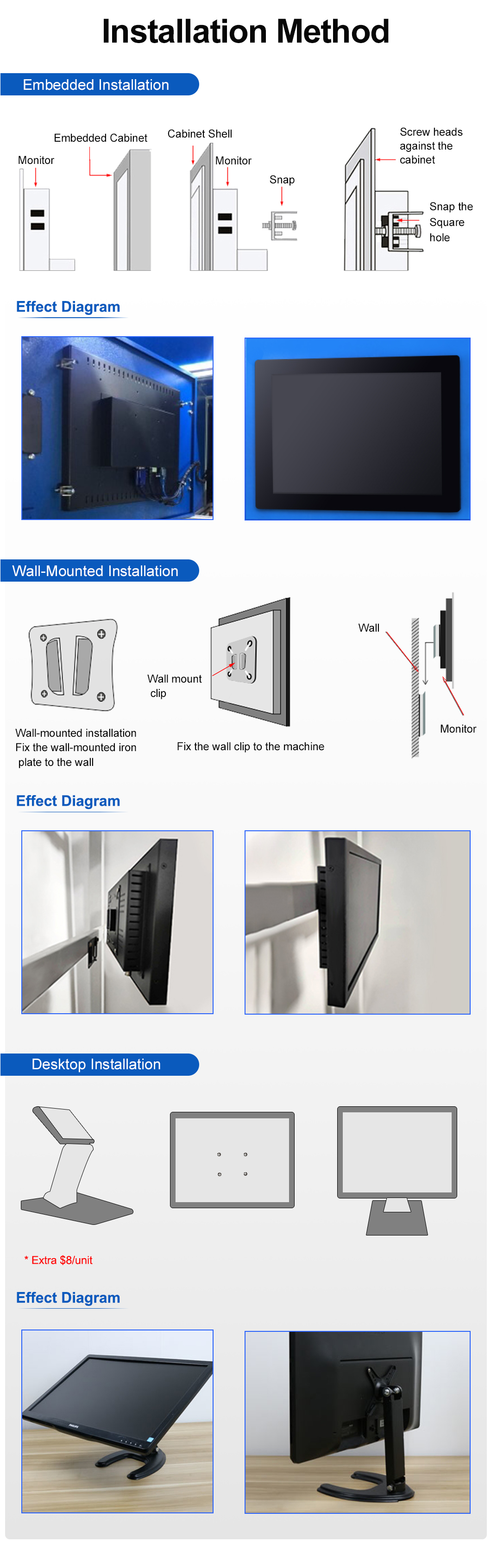

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

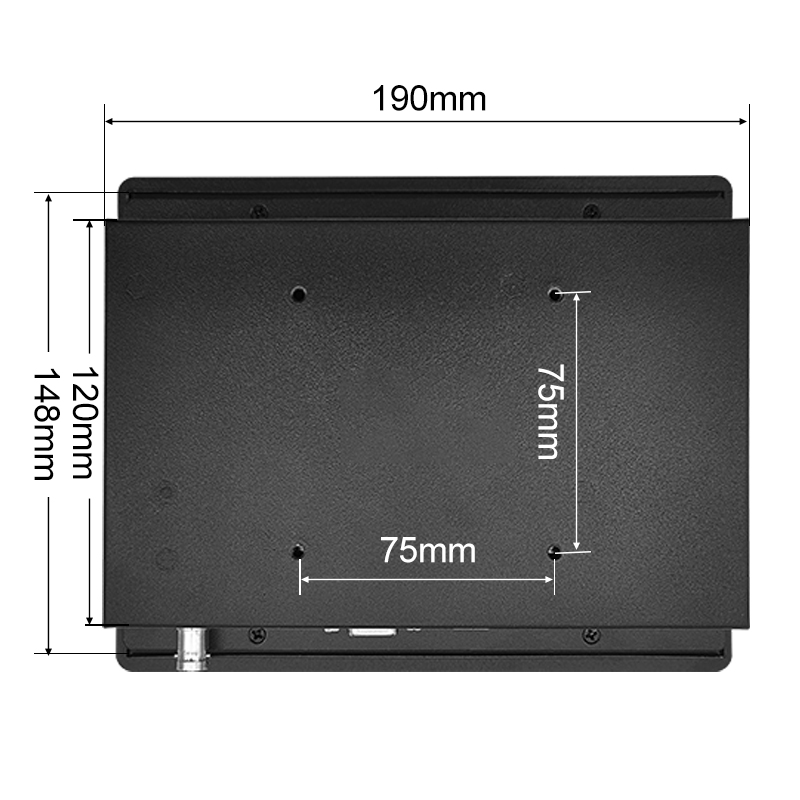

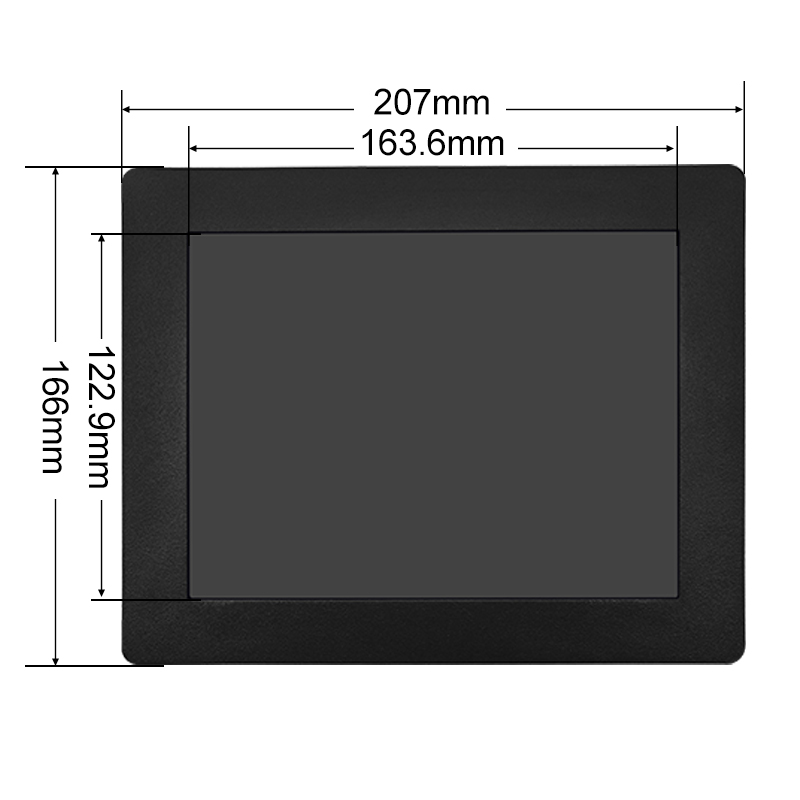

| Dimension (W*H*D) | 205×160×35mm |
| Weight | 0.5 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |
| Accessories : stand/ VESA mount kit, warranty card, VGA/HDMI cable , power adapter, manual | |
-
Model No :B8007-QR-ZT & B8009-QR-ZT & B8010-QR-ZT
8 Inch 800*600 & 1024*768 & IPS1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
-
