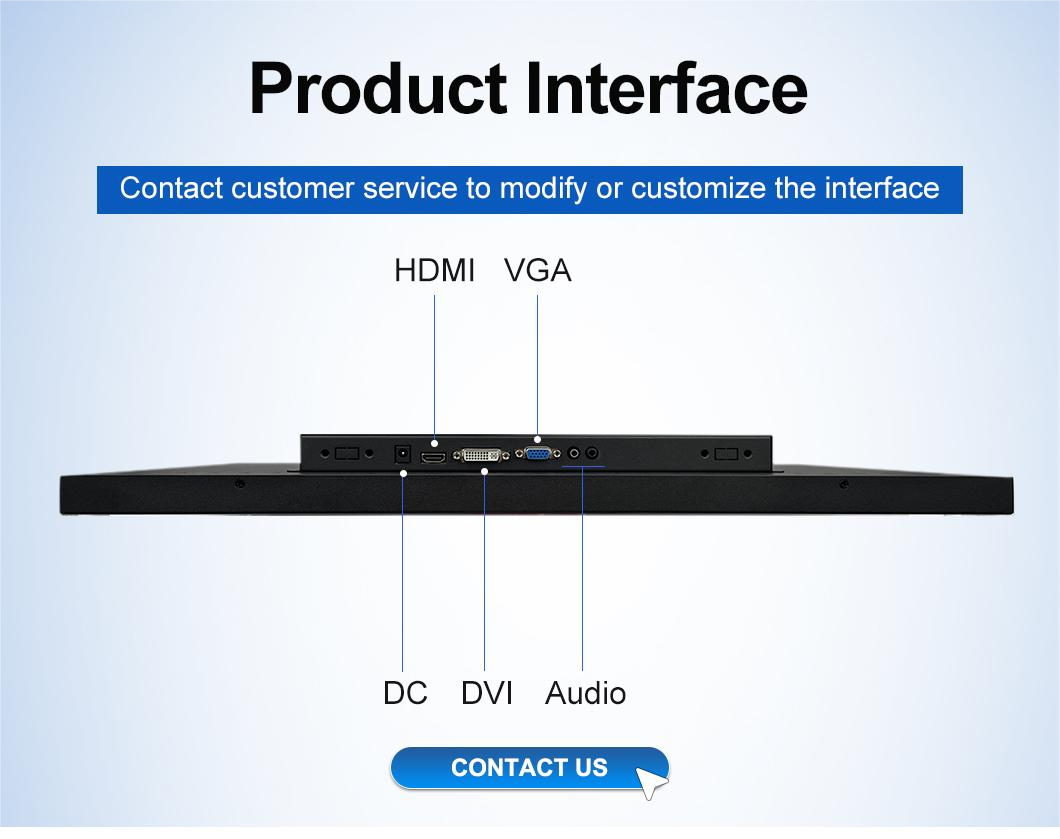

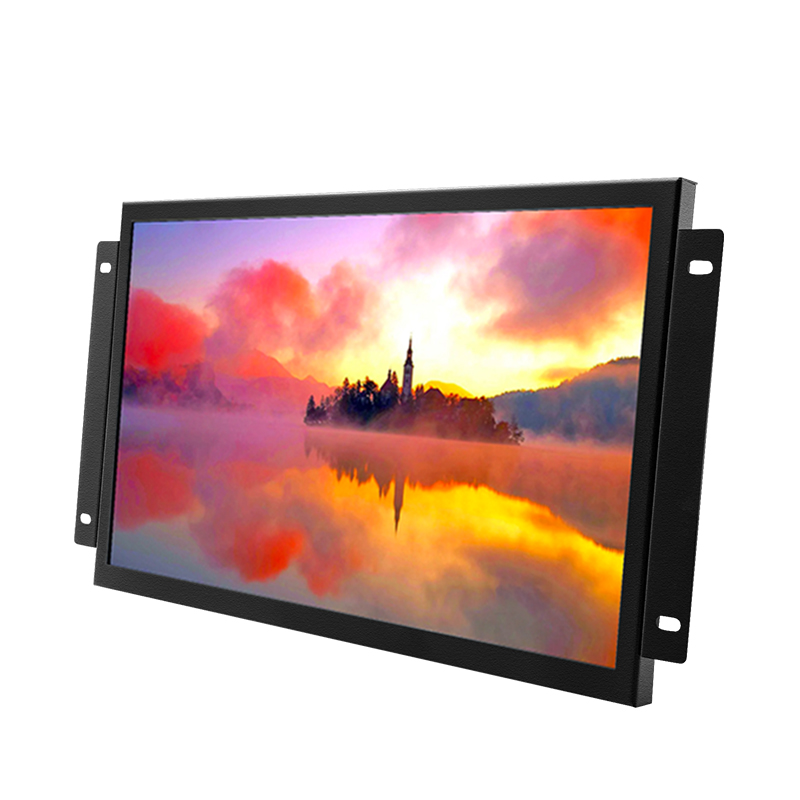

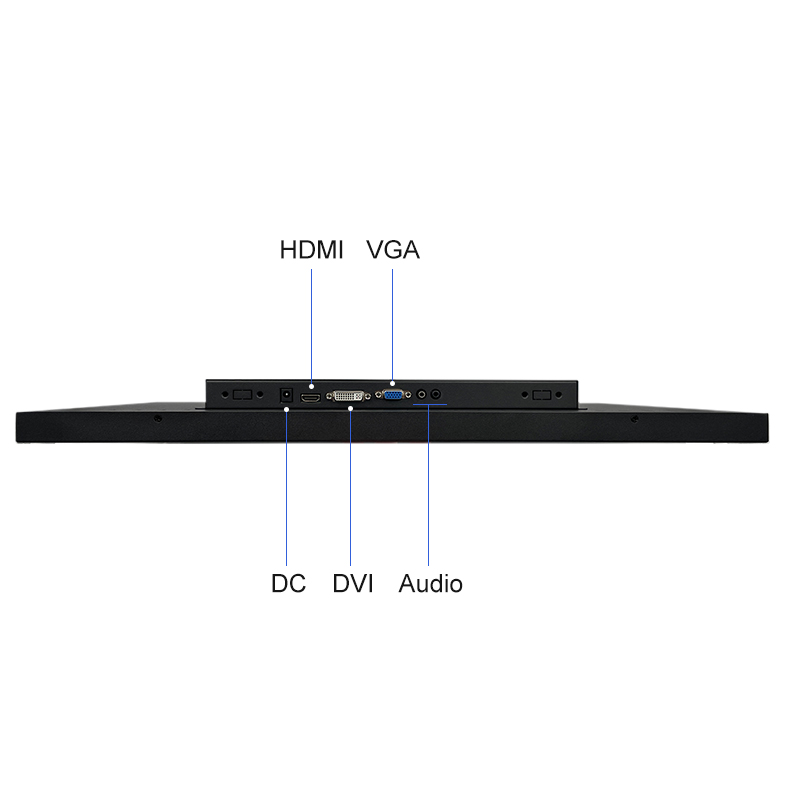

Industrial VESA wall mount 23.6 inch LCD Monitor with open frame Resistive touch Metal Case IPS HD-MI VGA DC cable
Model No :B236-JJS-ZT
| Datasheet | |
| Size | 23.6" metal touch |

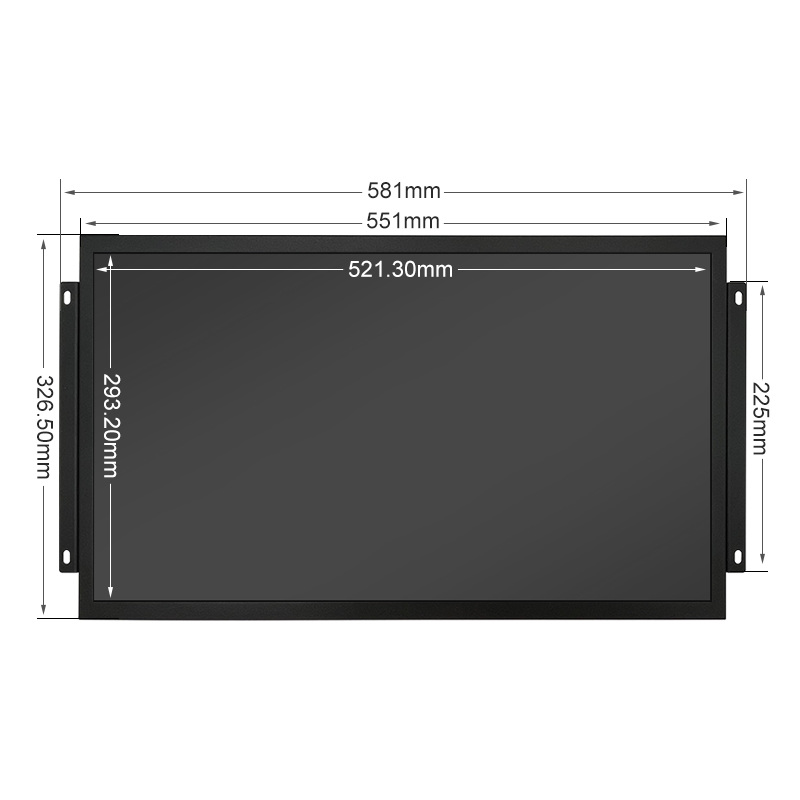

| Active Area | 521.28 × 293.22mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 14ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Touch | 4-wire Resistive |

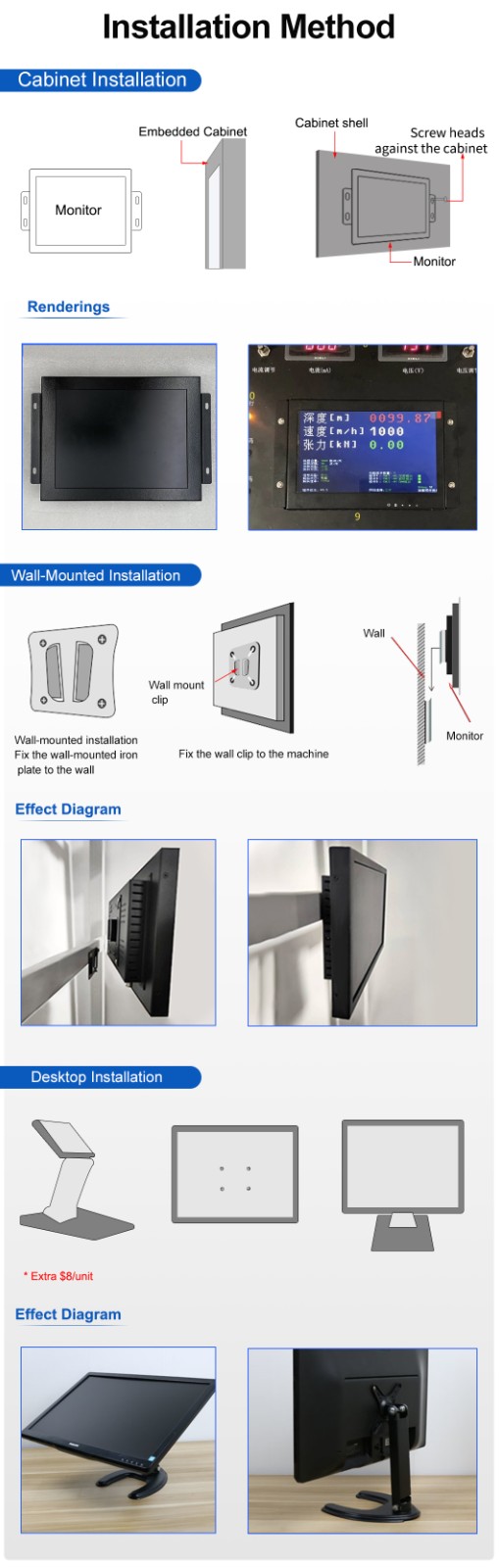

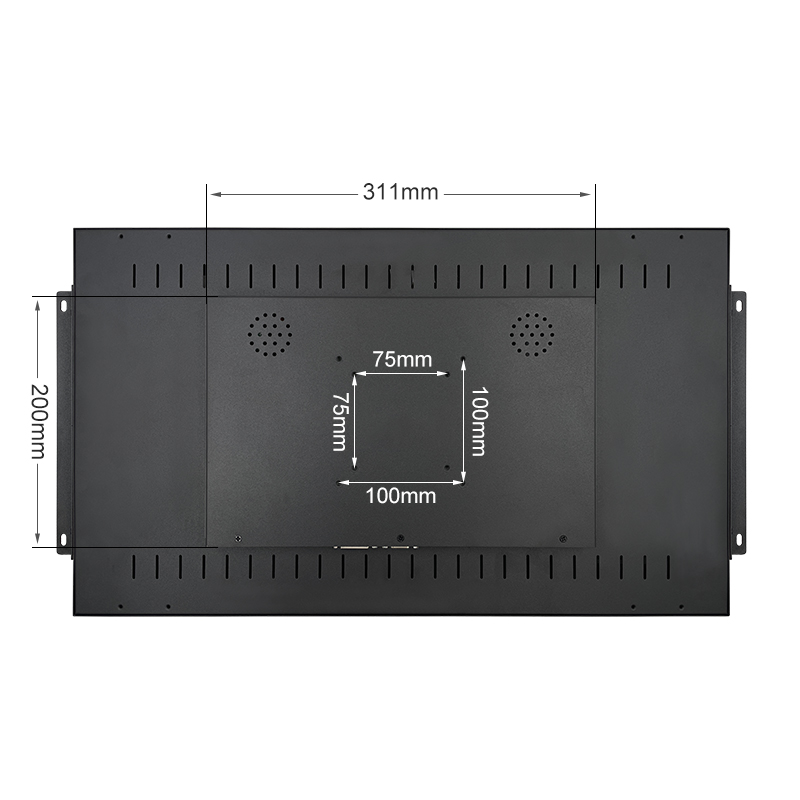

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
