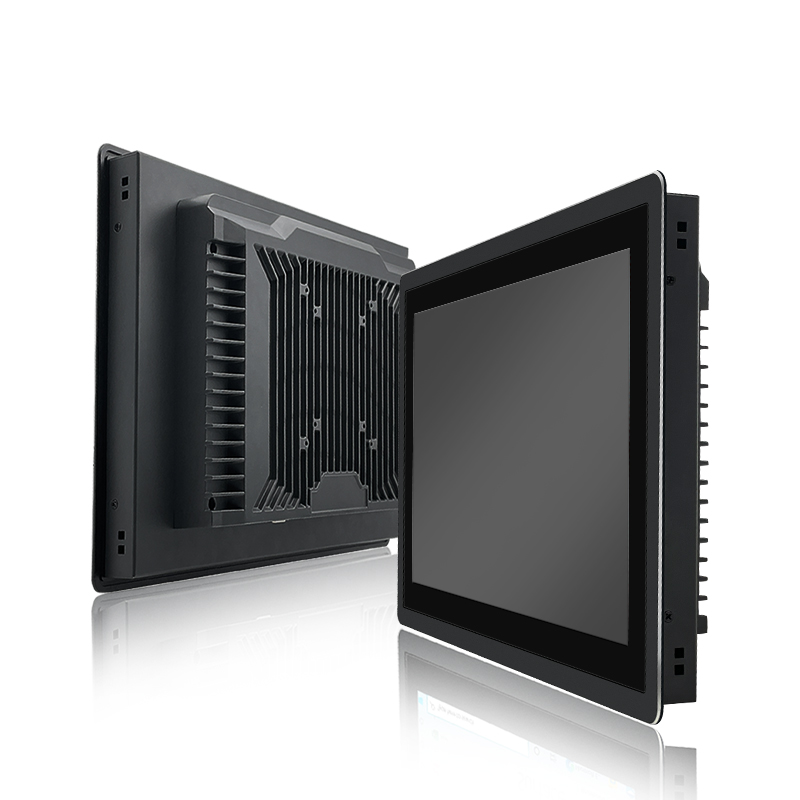

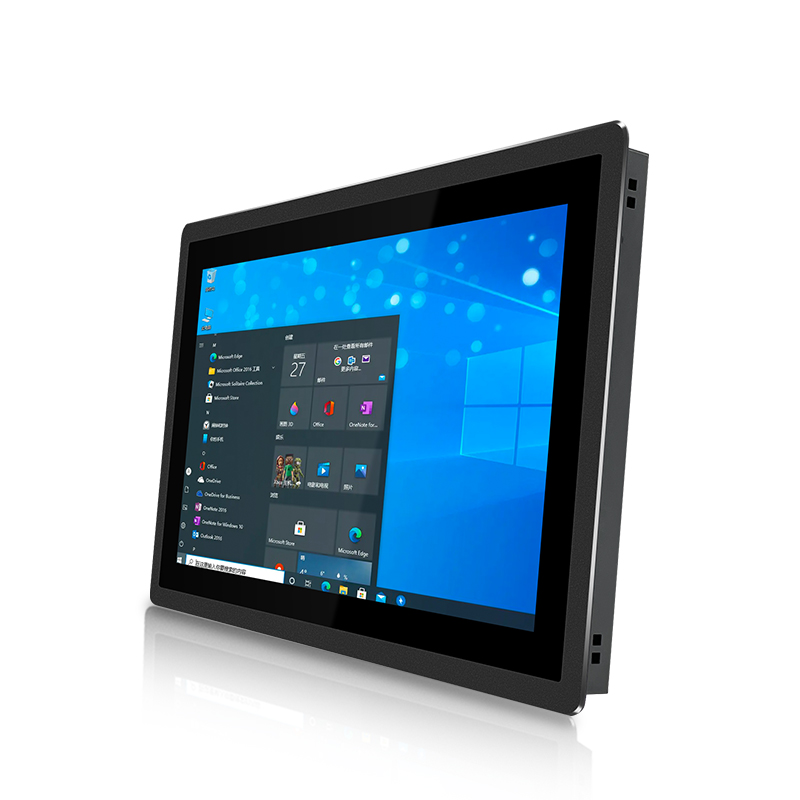

15.6 Inch IPS 1920*1080 HDMI VGA Capacitive Touch Screen Metal Aluminum TFT Embedded Pure Flat OEM ODM Industrial Panel PC
Model No :B156-QRL-RT-B
| Size | 15.6" |
| Touch Panel | G+G |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |

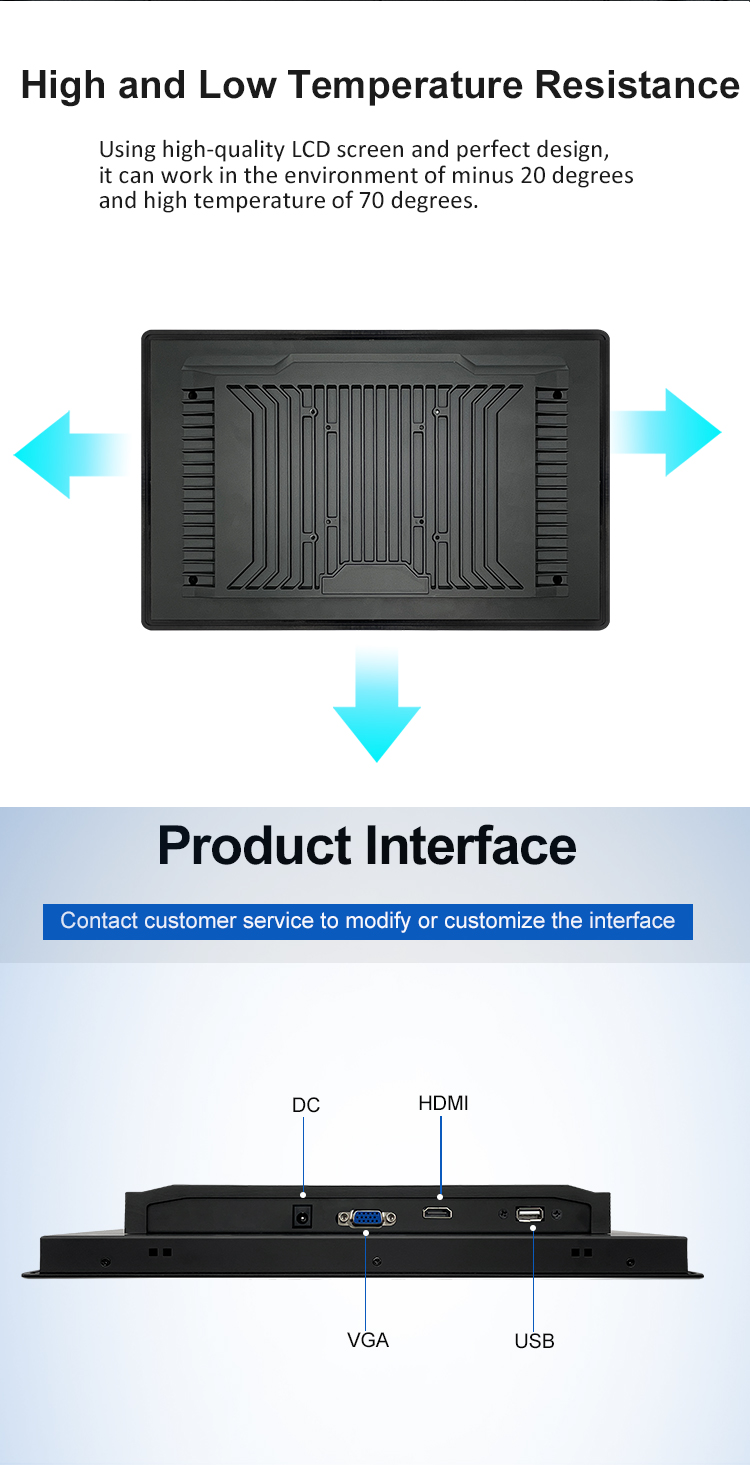

| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

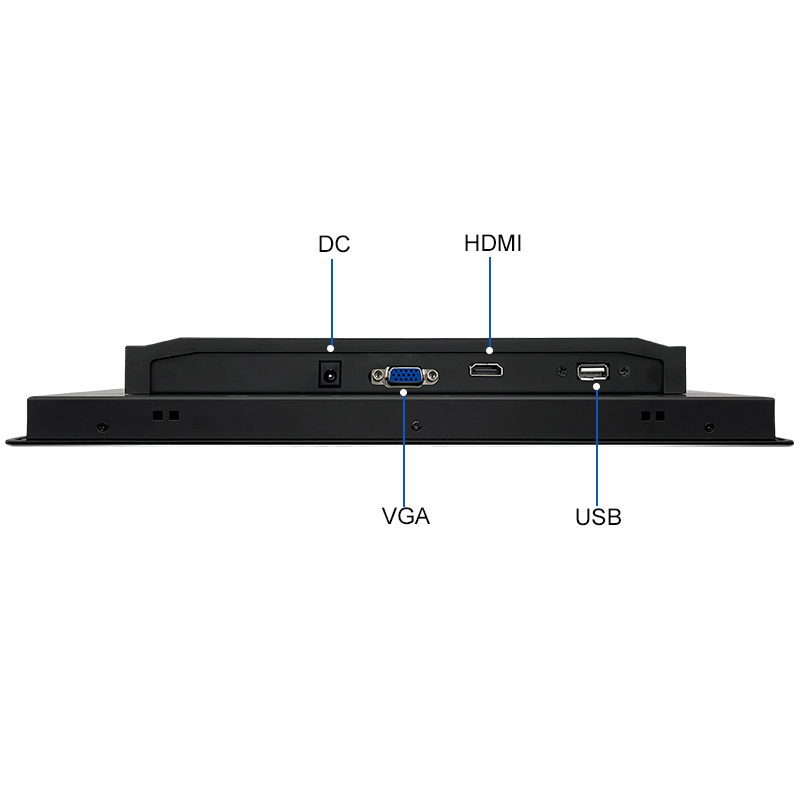

| Video Inputs/Outputs | VGA+HDMI+USB+DC 12V |
| Audio Inputs/Outputs | N/A |
| Touch | Capacitive Touch Screen |
| Touch Control | Industrial EETI Touch |

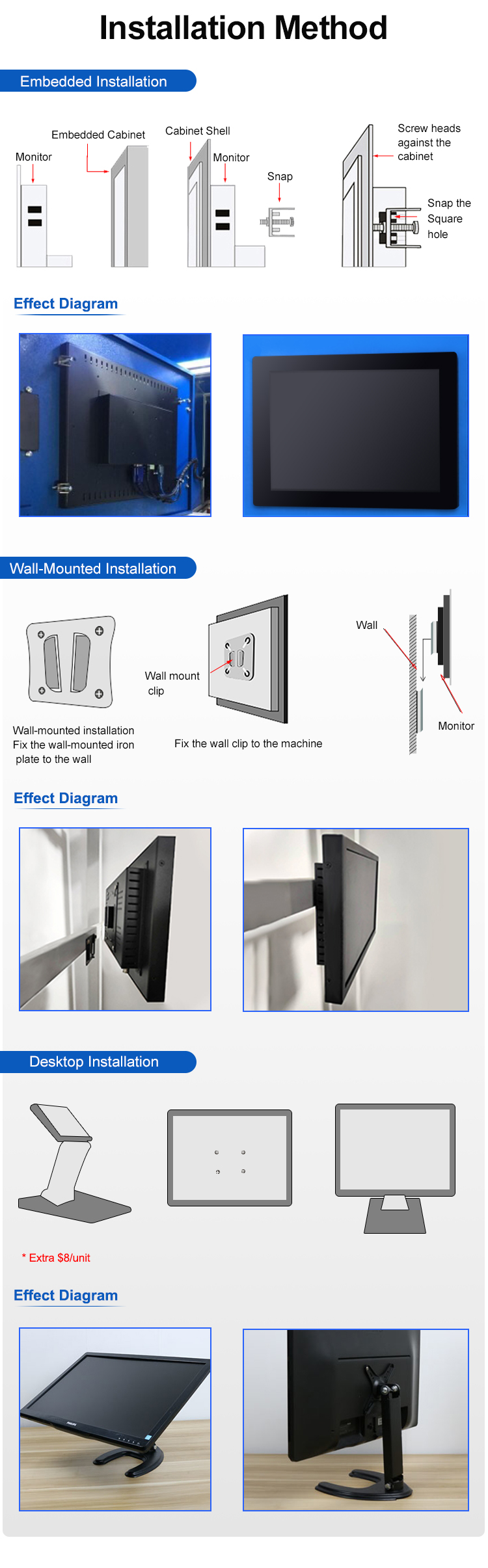

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |

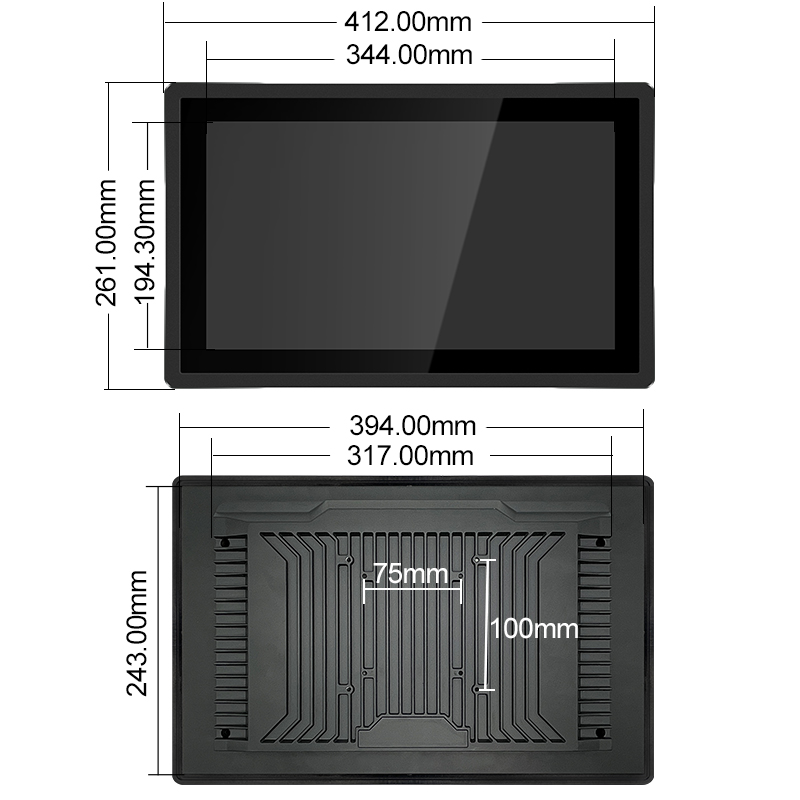

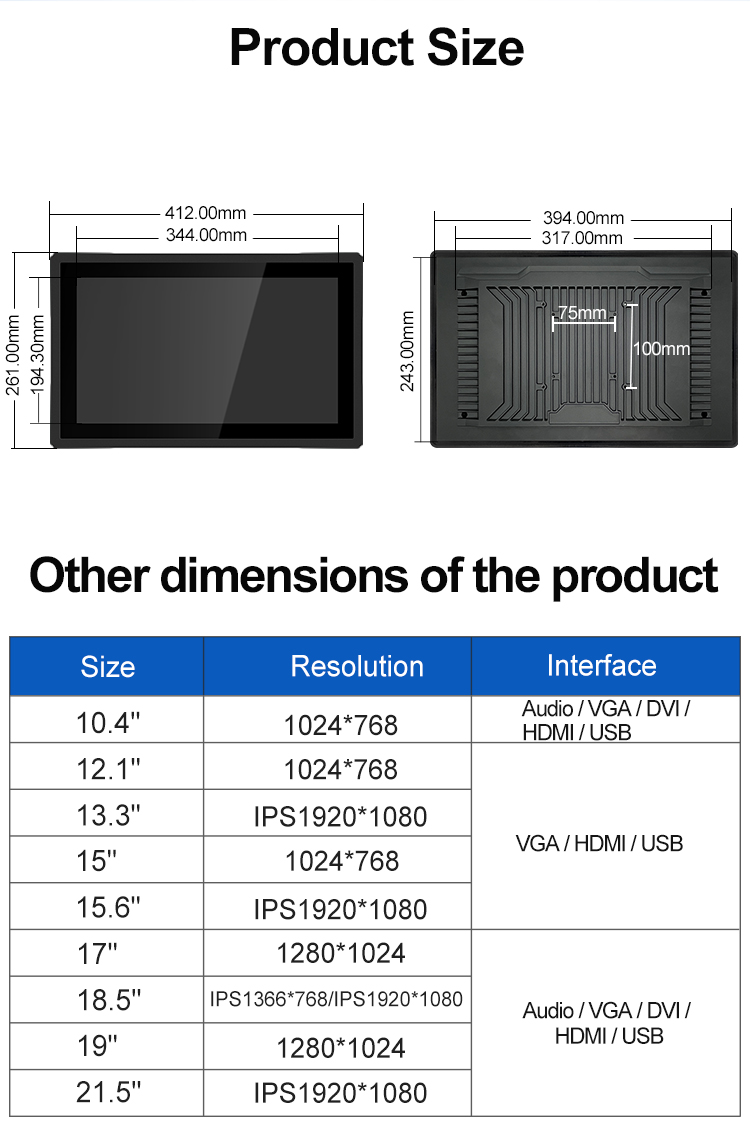

| Dimension (W*H*D) | 404*254*38 mm |
| Weight | 2.35 kgs |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, power adapter, warranty card and manual. | |
-
