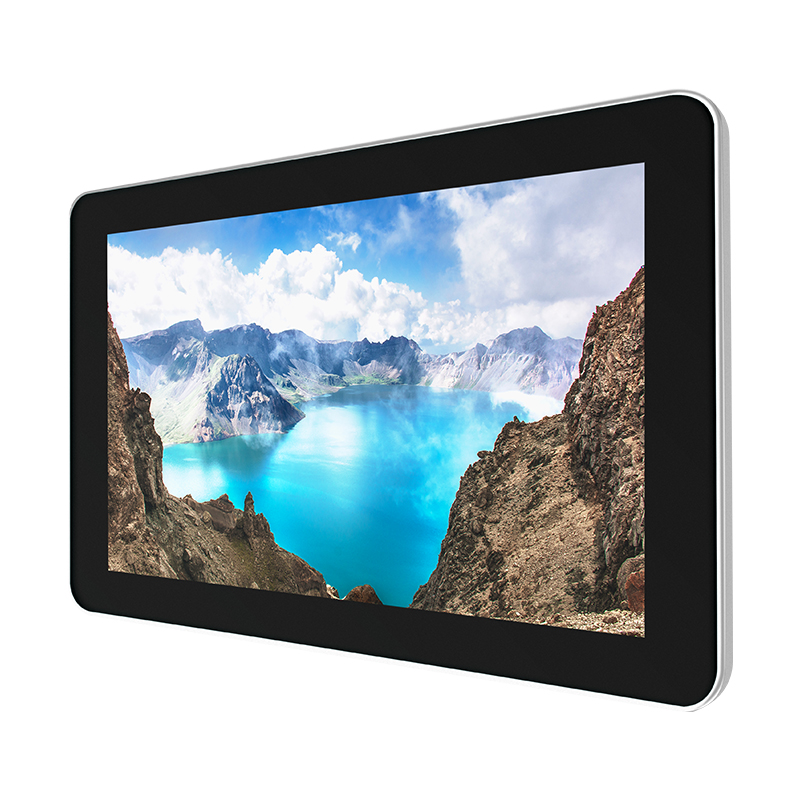

9.7 inch Fanless Industrial Mini PC Aluminum Frame Android all in one computers touch screen industrial pc with HD-MI/USB
Model No :B97-LART-A
| Datasheet | |
| Size | 9.7" |
| Touch Panel | G+G |
| Material | Aluminum alloy shell |
| Color | Black |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 500:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 8 ms |
| Display Color | 262K |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |

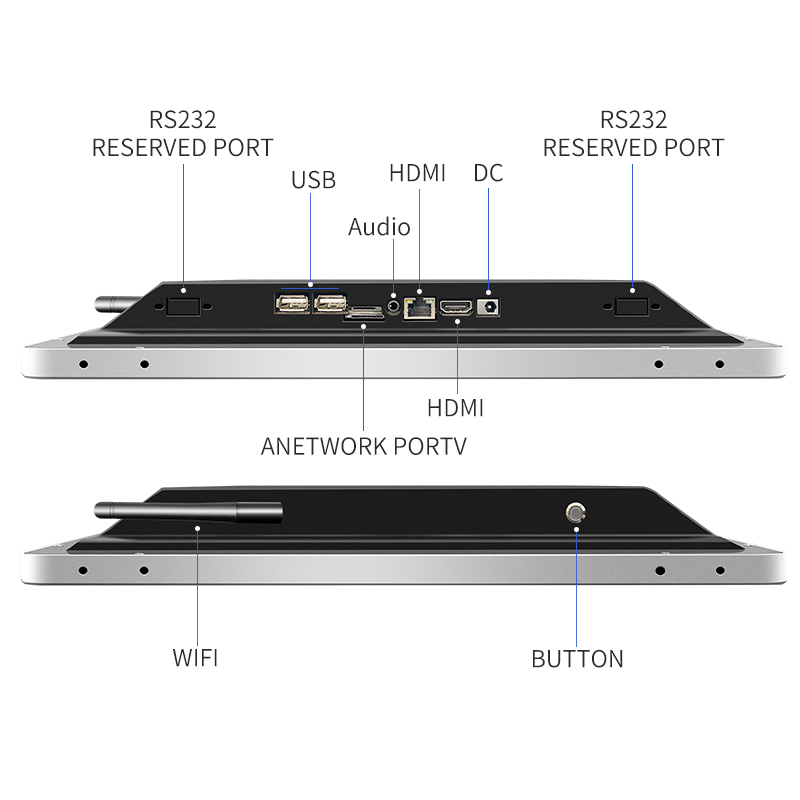

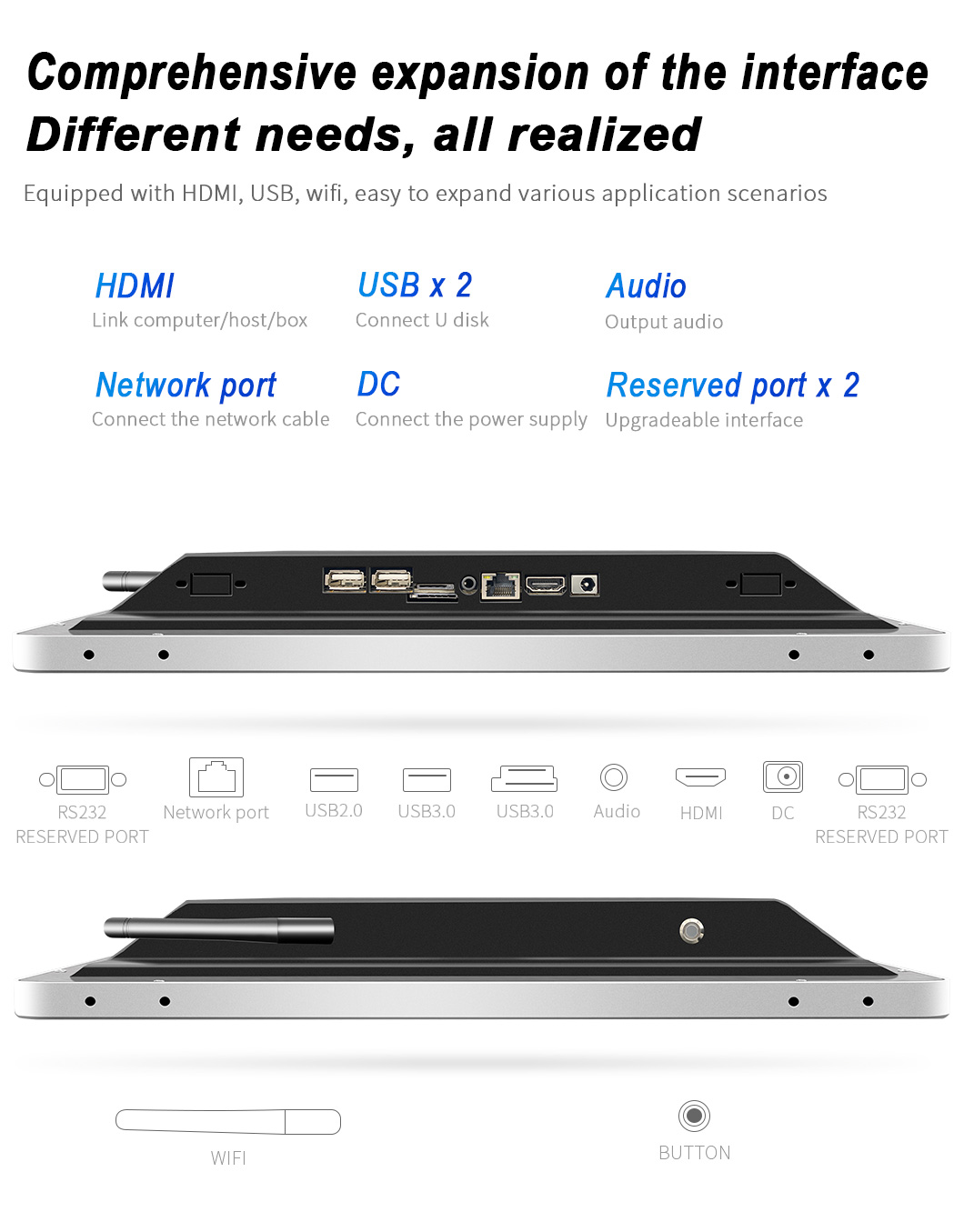

| Video Inputs/Outputs | USB 3.0 HOST Mini board *1;USB 2.0 HOST Mini board *1 ; SD card slot *1; RJ 45 NIC interface *1; Audio*1;DC 12V*1; COM *2 Serial port , default RS232 agreement |
| Audio Inputs/Outputs | N/A |
| Touch | Projected Capacitive |
| Configuration | A64 Cortex-A53 quad-core 1.5HZ Main board RAM: 1G DDR3 (Standard); ROM: 8G EMMC instore(Standard) |
| Wifi | 2.4 Gwifi (wifi aerial extra add ) |
| Ethernet port | 10/100M adaptive RJ45 port*1 |
| Input power | 110~240V 50HZ/60HZ |

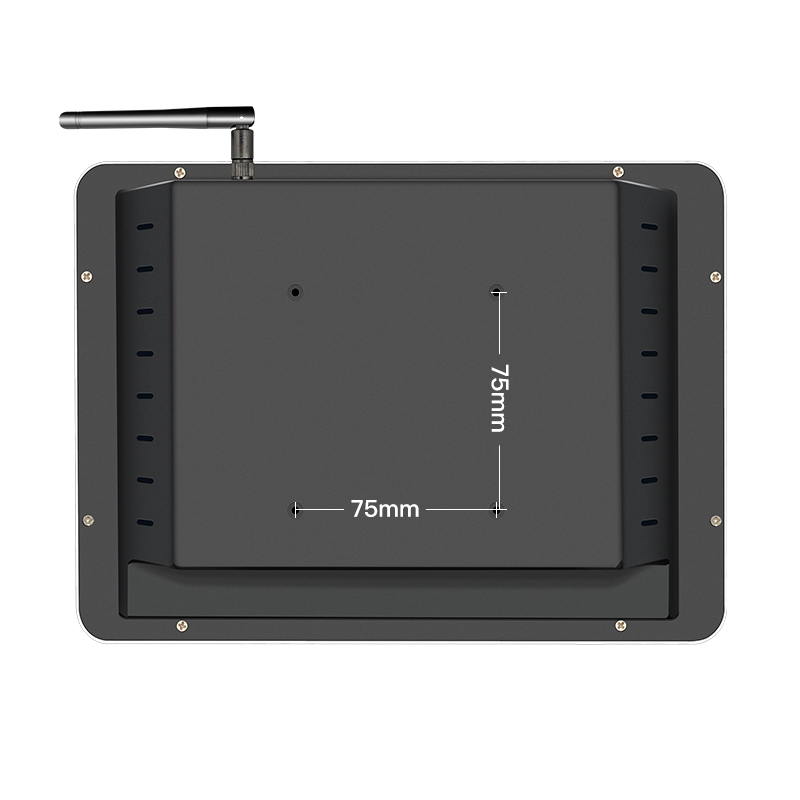

| Assembling | Bracket (Standard) / VESA kit |
| Max Touch Points | 10 |

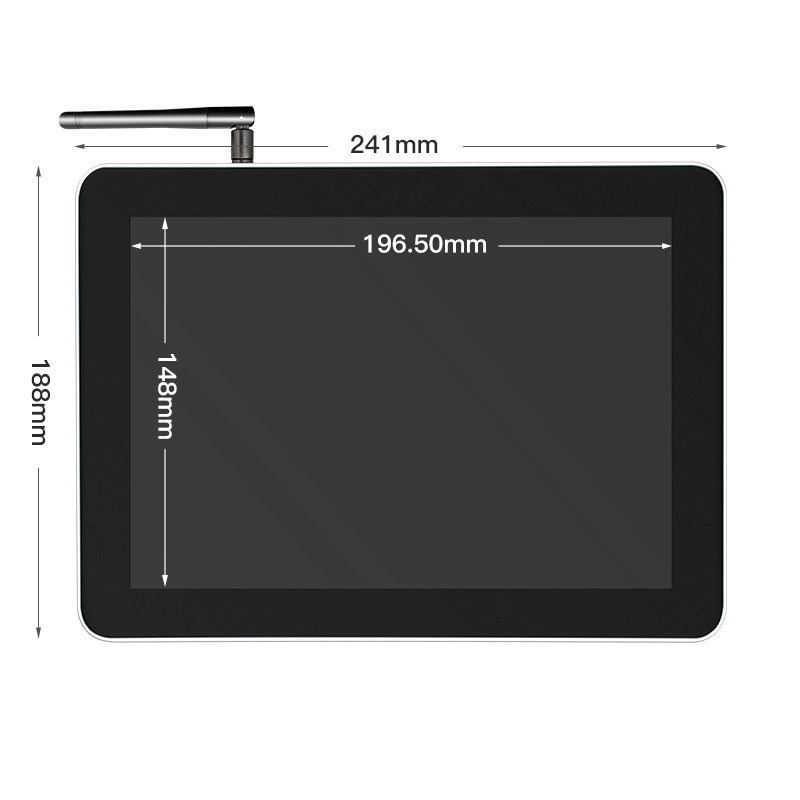

| Dimension (W*H*D) | 230*181*34 mm |
| Weight | 1.5 kg |
| Certificates | CE/FCC/ROHS/CCC |
| Accoriess | English manual , Warranty card, Power cable , Bracket/VESA mount kit/ Hanging ear |
| Applied to all industry and fields | Medical equipment Supermarket POS Factory automation Intelligent terminal Digital monitoring Commercial vending machine |
| Optional Mainboard | Option 1 : A64 Cortex-A53 quad-core 1.5HZ RAM: 2 GB DDR3 ROM: 8GB EMMC instore Option2: RK3288 Cortex-A17 quad-core 1.8HZ RAM: 2 GB DDR3 ROM: 16 GB EMMC instore Option3: RK 3288 Cortex-A17 quad-core 1.8HZ RAM: 4 GB DDR3 ROM: 16 GB EMMC instore Option 4: RK 3288 ortex-A72 doual-core 1.8HZ+Cortex-A53 quad-core RAM: 4 GB DDR3 ROM: 16 GB EMMC instore (8.1 system) |
| Other OEM | Provide SDK development Kit can be suppert research and develop APP 4G mould : 4G Wifi: 5Gwifi GPS position Assembling: VESA wall mount Serial port : RS232/RS485/RS422 Built-in high fidelity speaker（8Ω5W*2） Camera: 500W./800W pixel (Wide viewing angel) |
