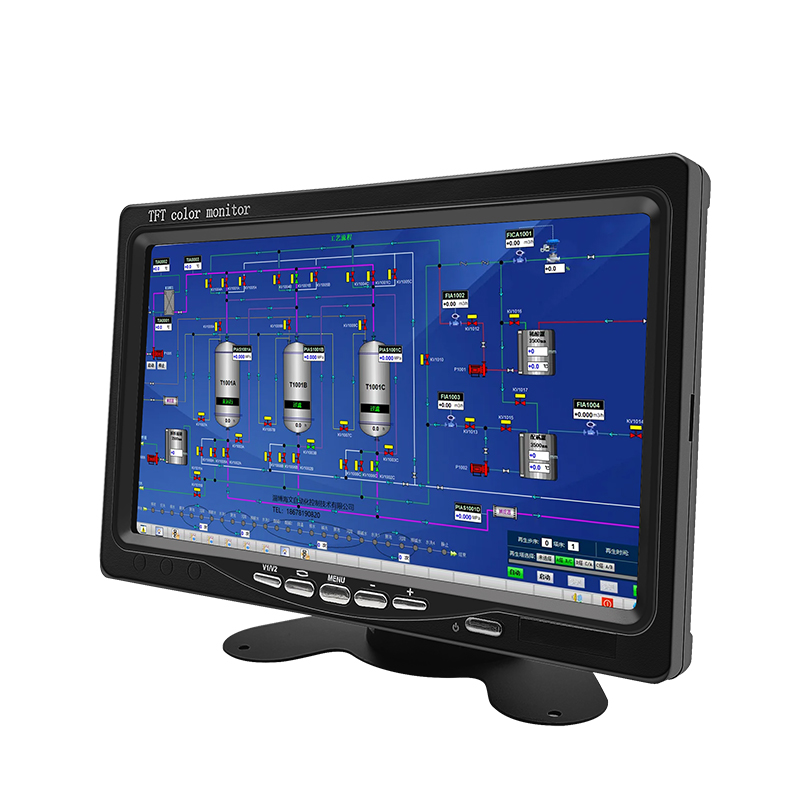

7 Inch 800*480 HDMI VGA AV Non Touch Wide Screen Plastic TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory POS CCTV Monitor
Model No :B700-GM
| Datasheet | |
| Model | B700-GM |
| Size | 7" |
| Active Area | 152.4*91.44 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 15,000 hrs |
| Resolution | 800*480 |
| Acpect Ratio | 16:10 |
| Contrast | 500:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 100/100 |
| Response Time | 30 ms |
| Display Color | 262K |
| Operating Temperature | -10~50ºC |
| Storage Temperature | -20~60ºC |

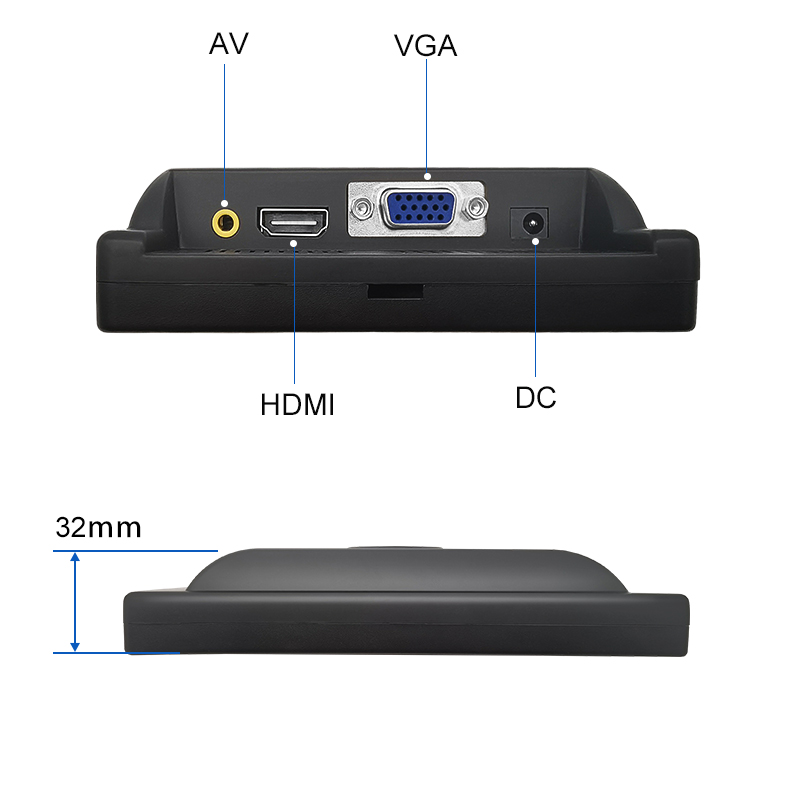

| Video Inputs/Outputs | VGA/AV input*1 USB port |
| Touch | 4-wire Resistive |
| Audio Inputs/Outputs | N/A |

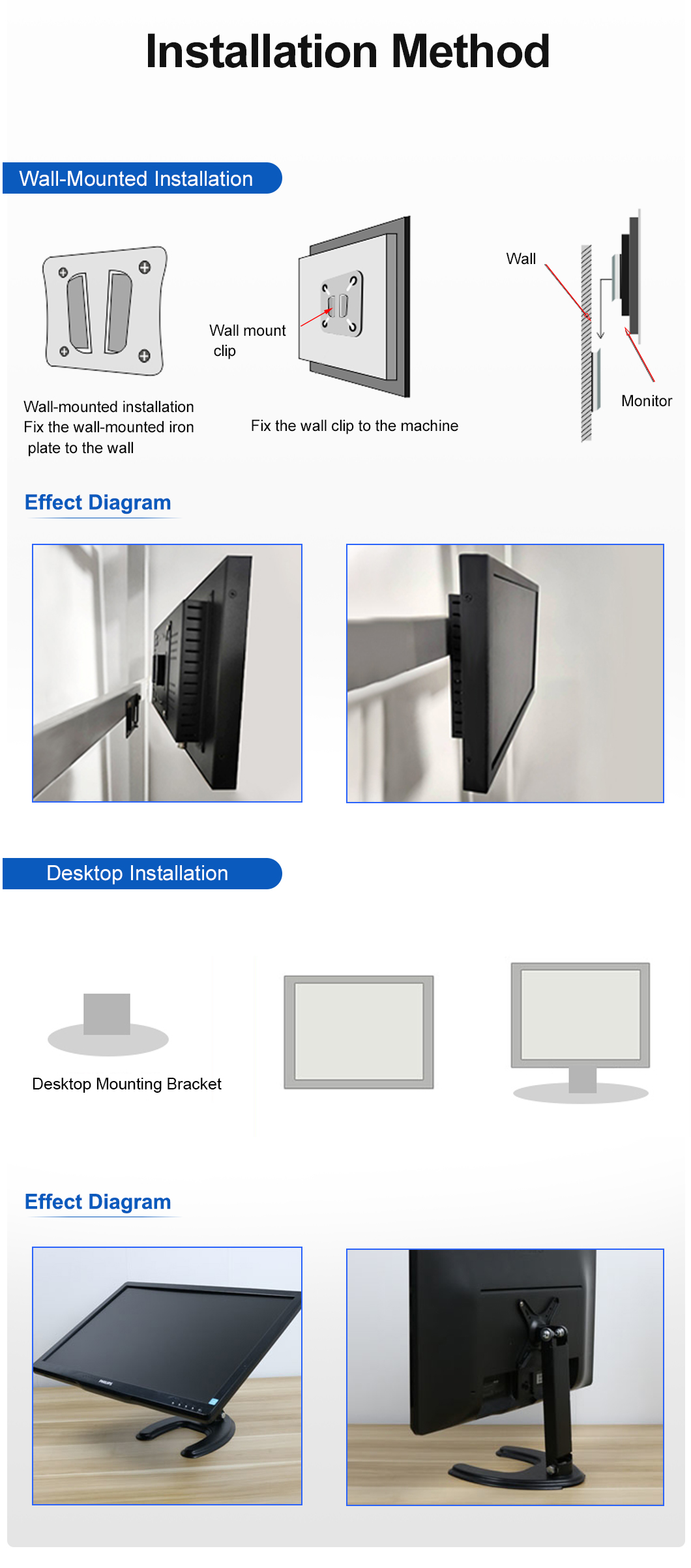

| Installation | Stand base |
| Power Requirement | DC 12V |

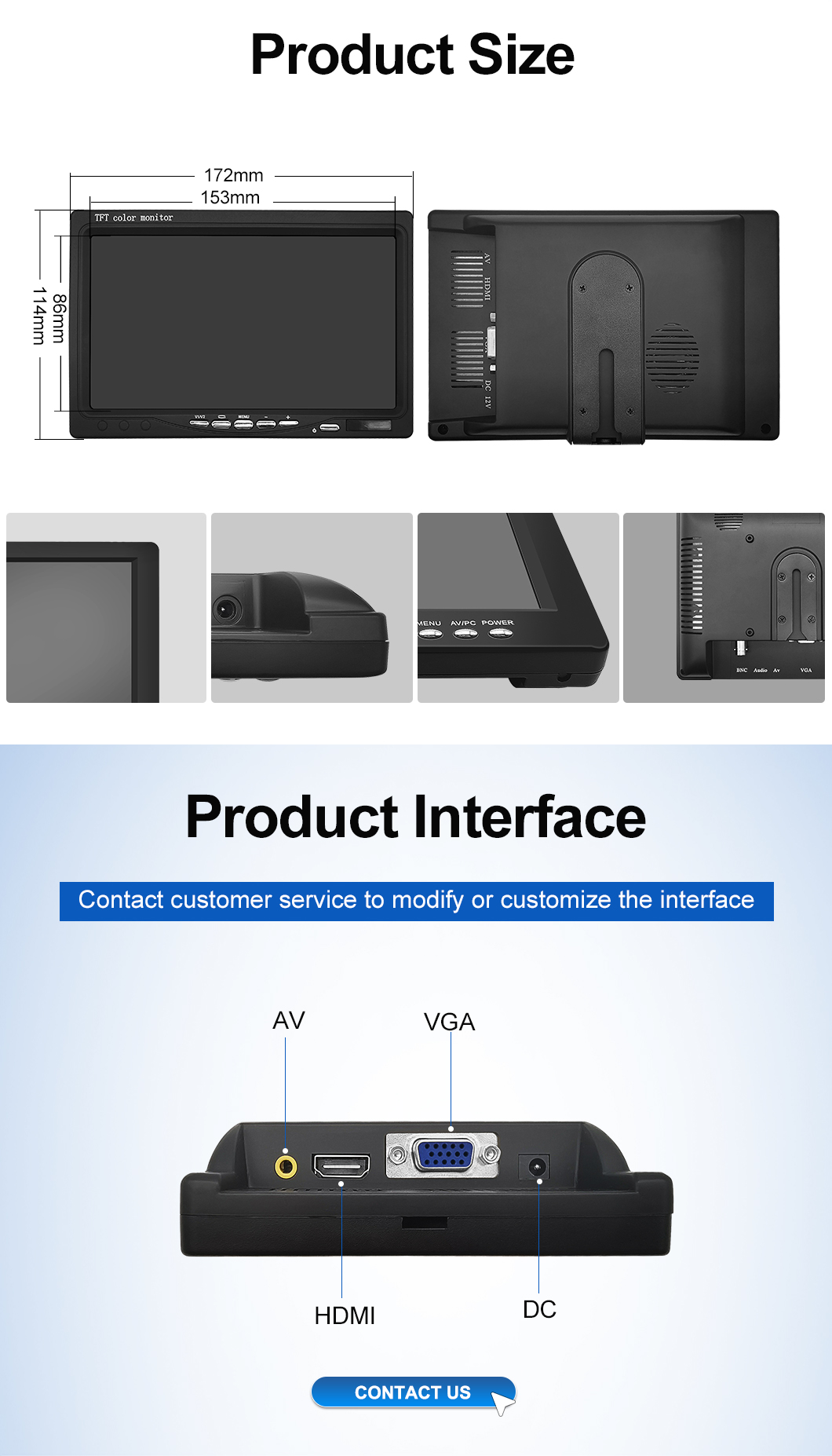

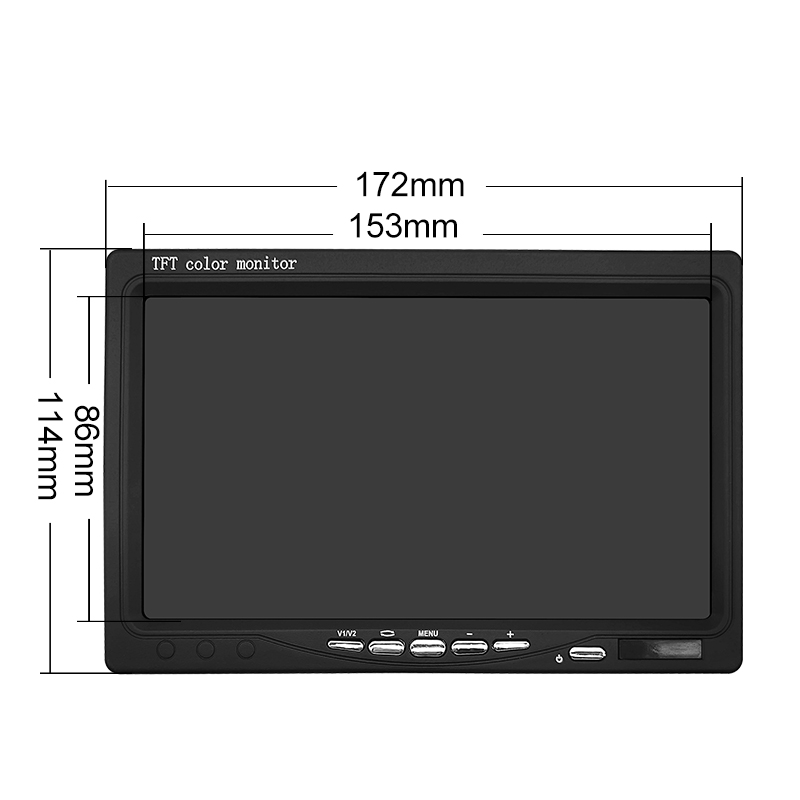

| Dimension (W*H*D) | 194*121*34 mm |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |

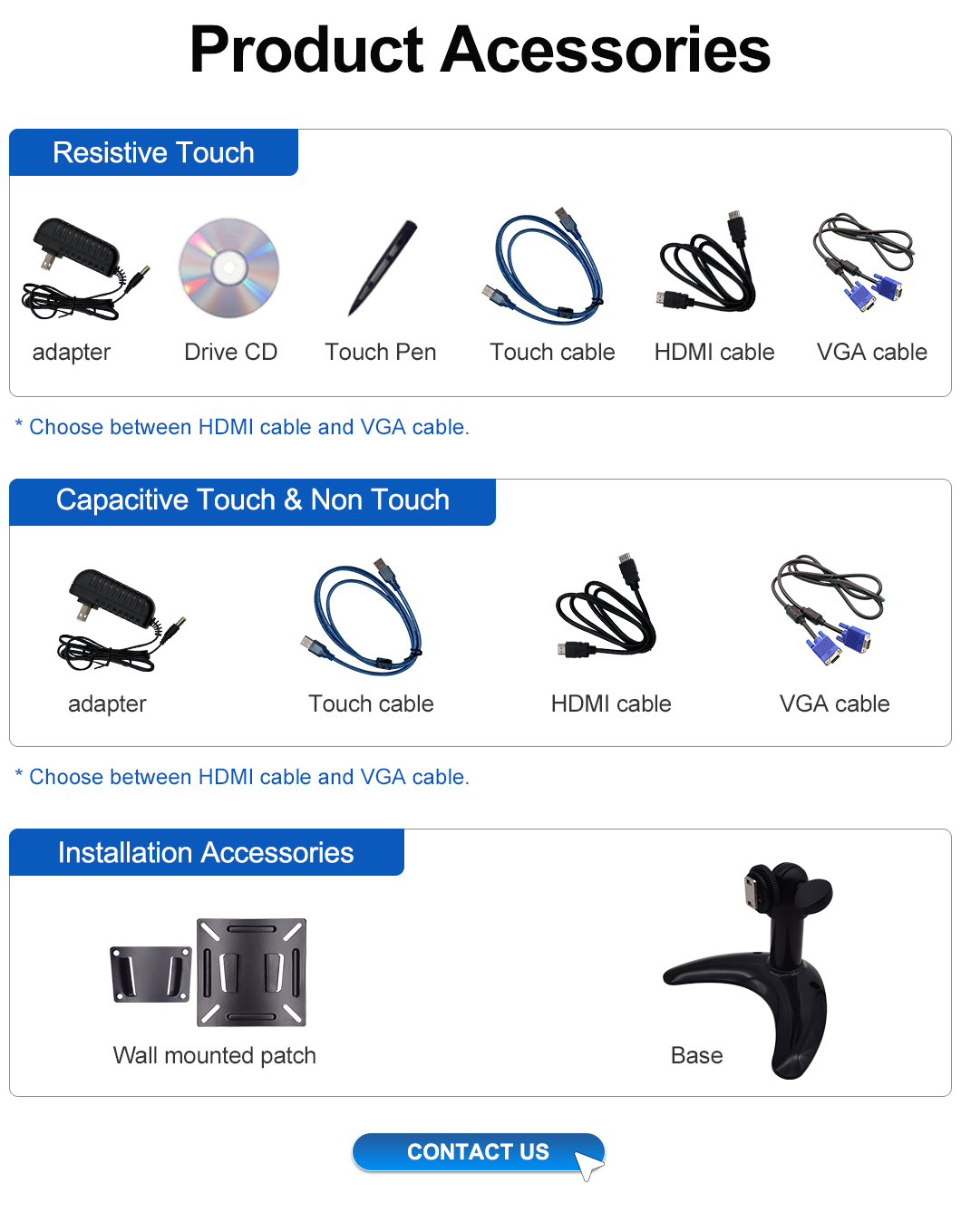

| Accessories: Plastic stand/ VESA wall mount kit , VGA,AV,HDMI cable, touch pen, disk drive, power adapter, warranty card, , manual. | |
-
