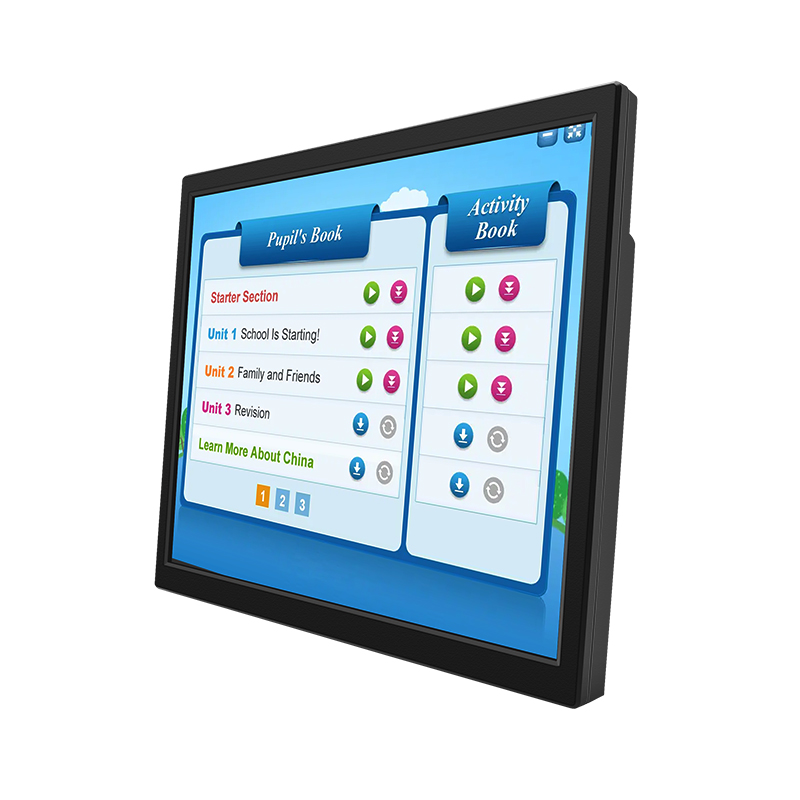

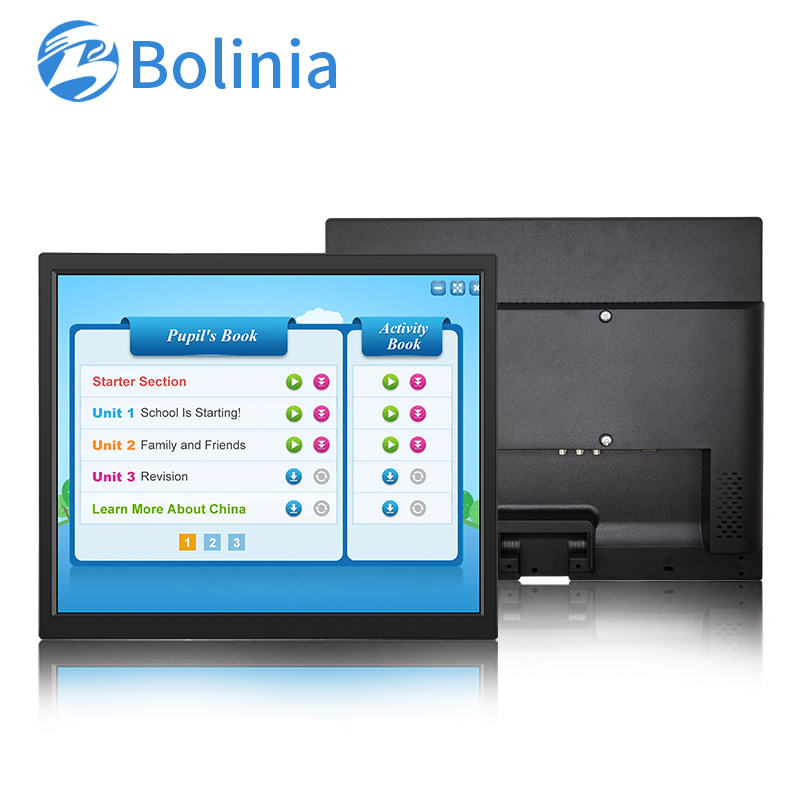

17 Inch 1280*1024 HDMI VGA AV BNC USB Resistive Touch Square Screen Plastic TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory POS CCTV Monitor
Model No :B170-T
| Datasheet | |

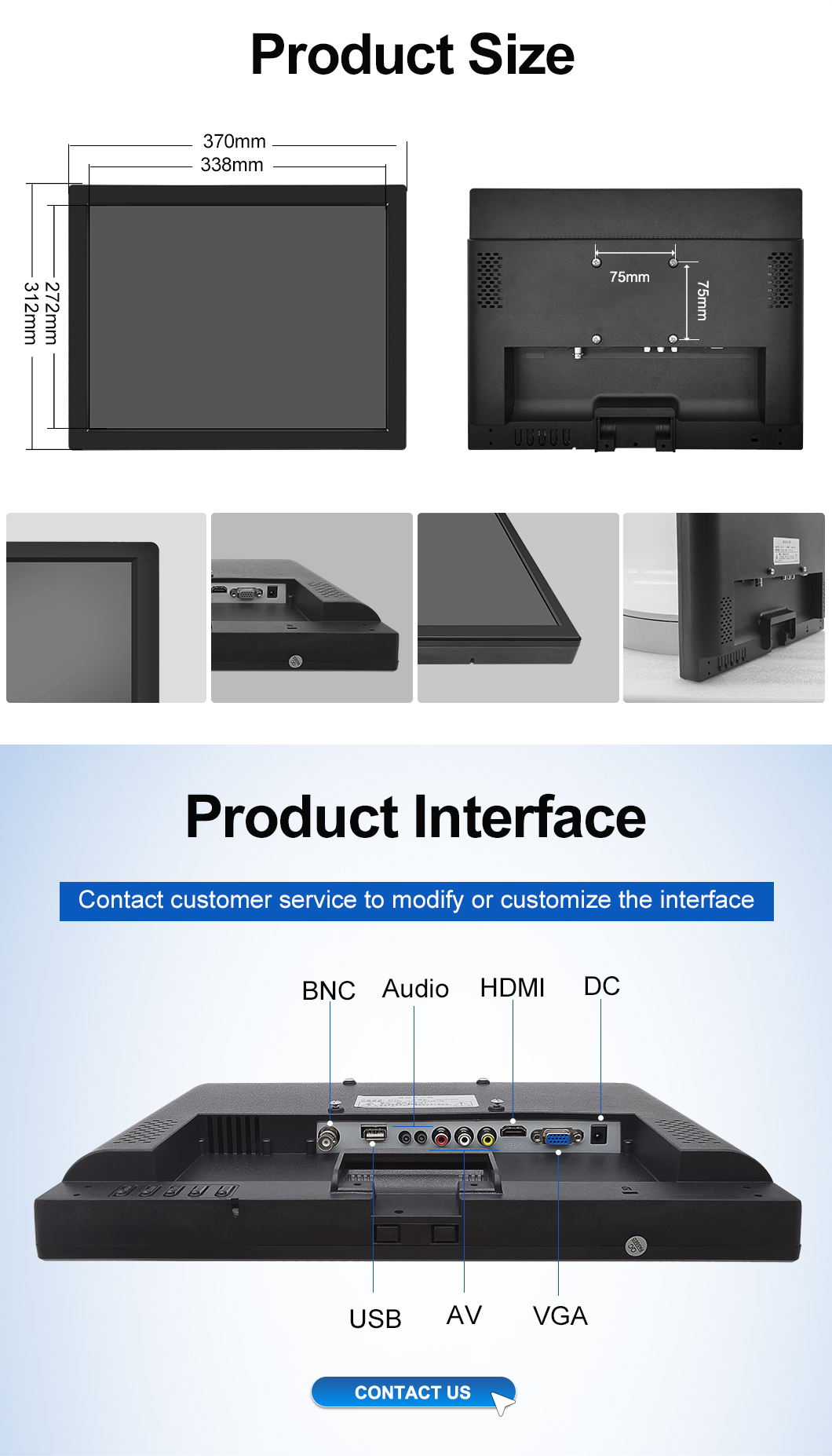

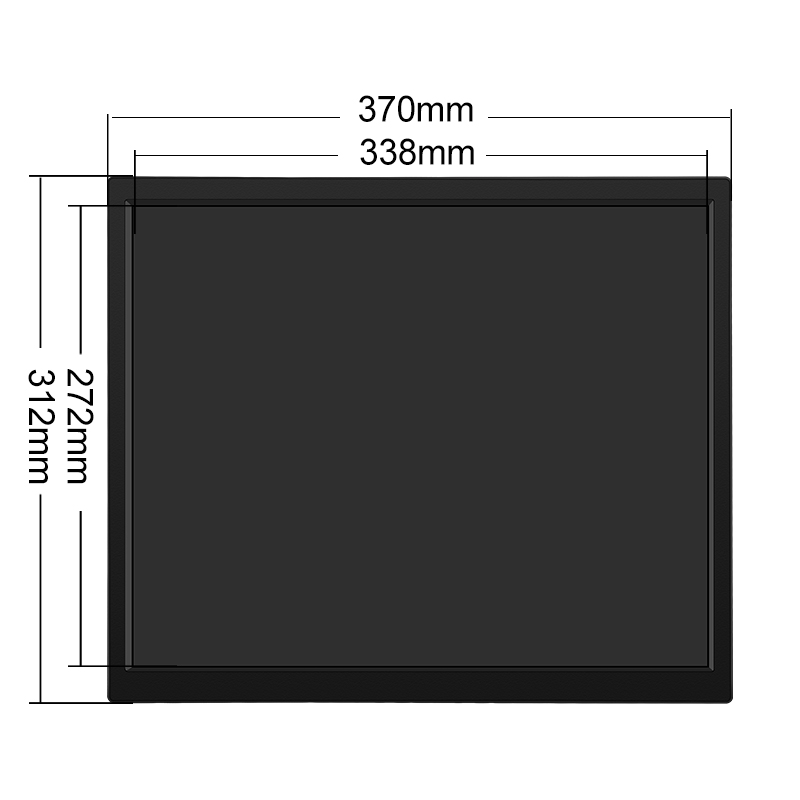

| Size | 17" |
| Active Area | 337.92*270.33 mm |
| Panel Type | TFT-LCD |

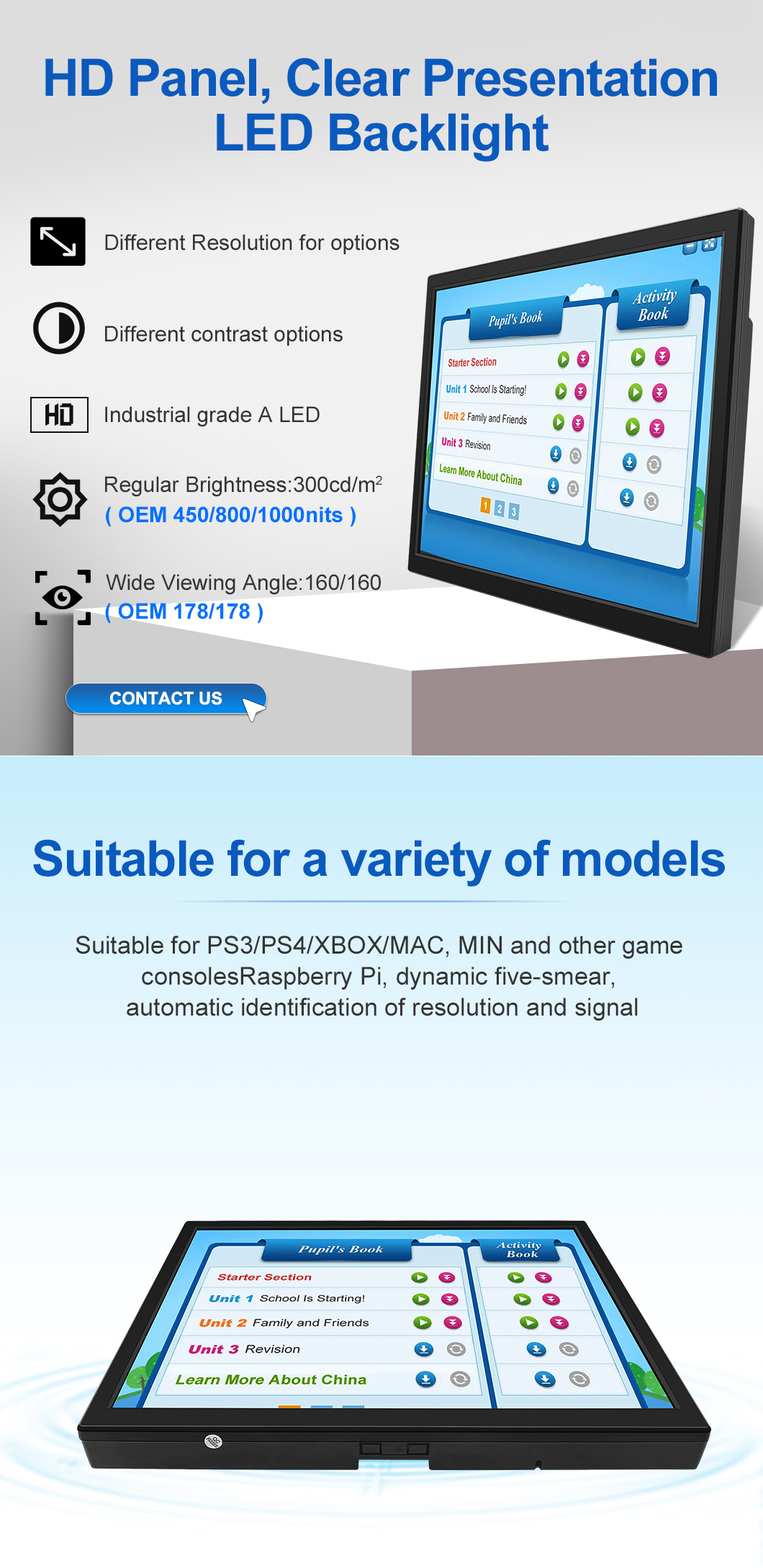

| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1280*1024 |
| Acpect Ratio | 5:4 |
| Contrast | 1000:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 5 ms |
| Display Color | 16.2M |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

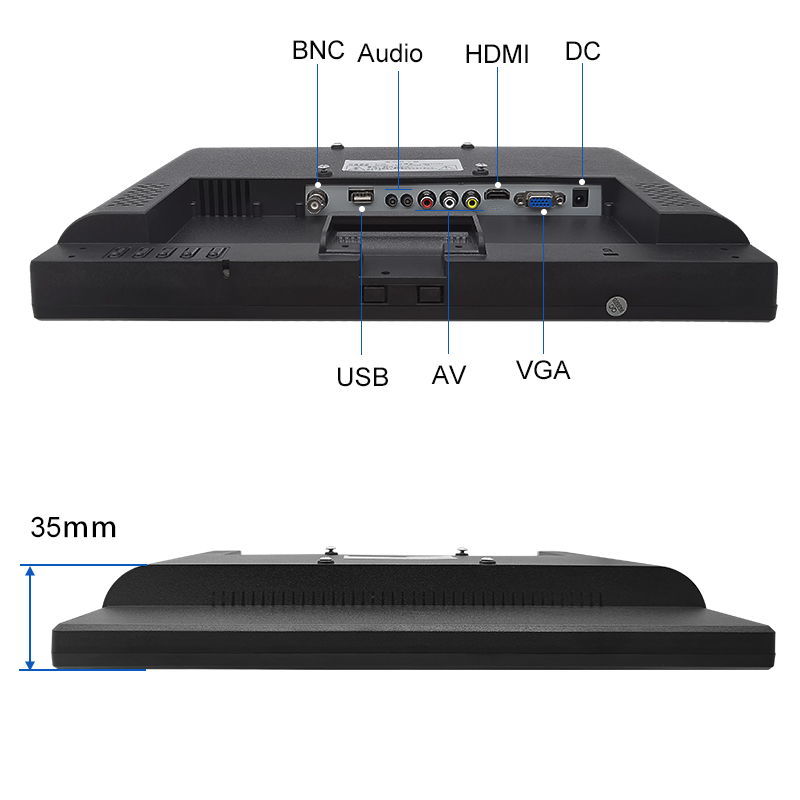

| Video Inputs/Outputs | VGA+HDMI |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

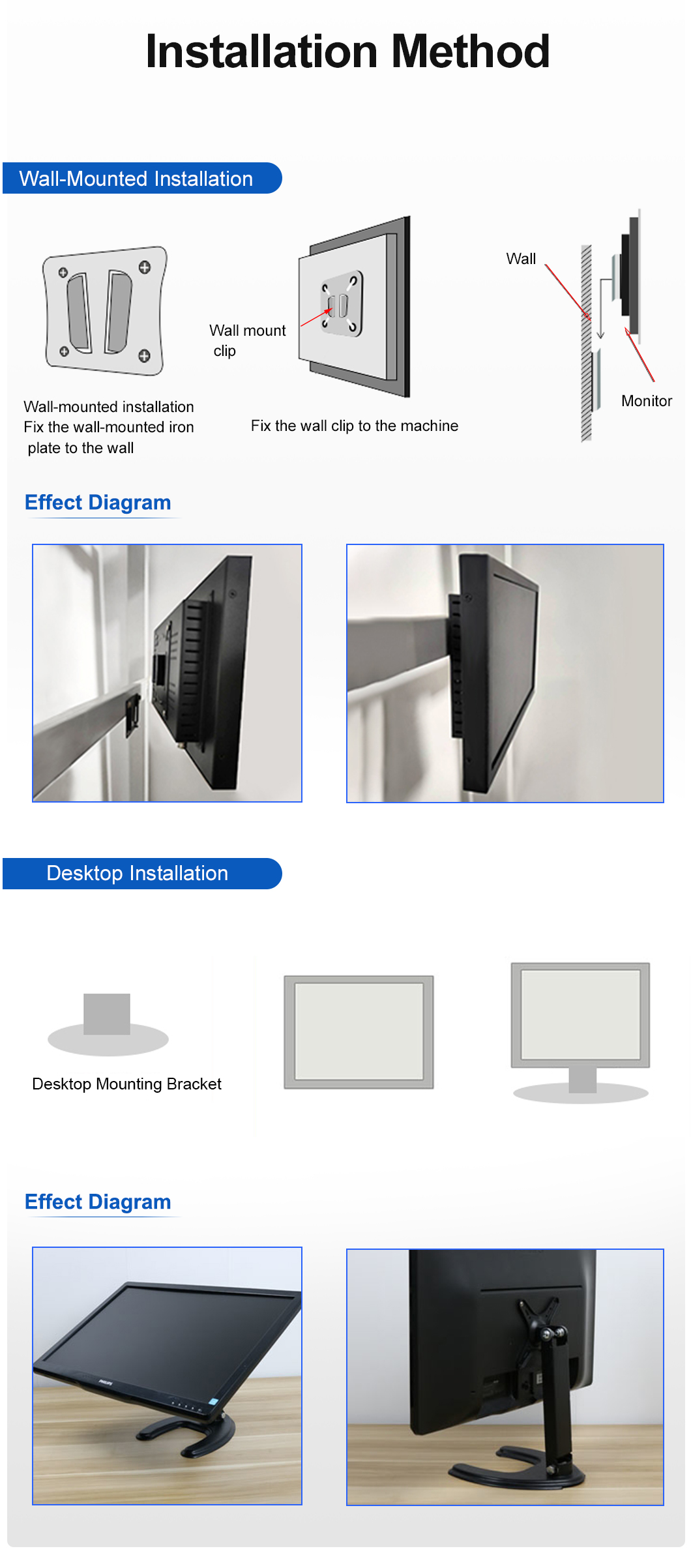

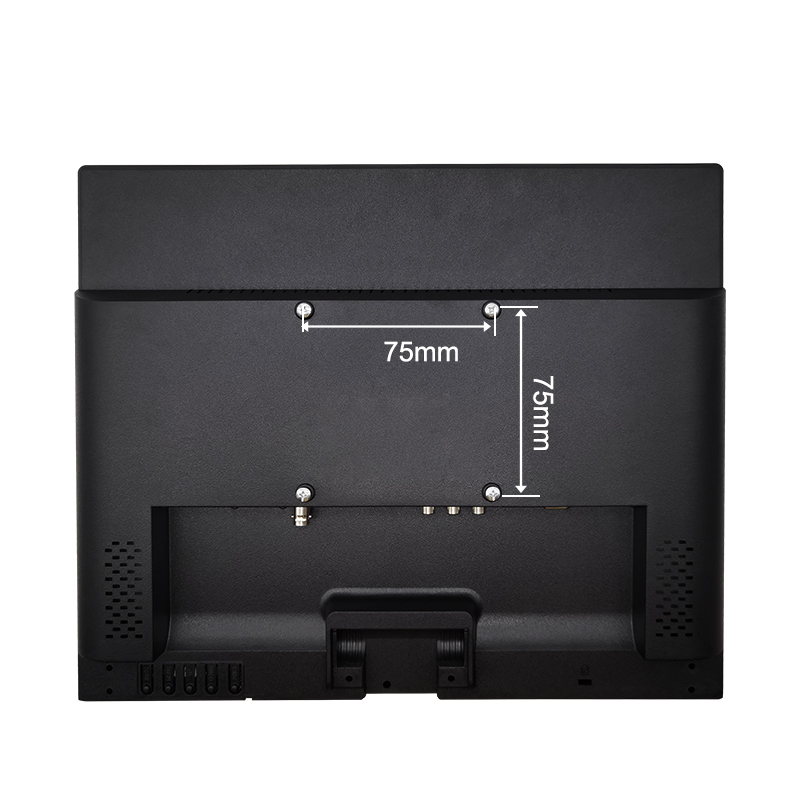

| Installation | Stand base |
| Power Requirement | DC 12V |
| Weight | 2.20 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |

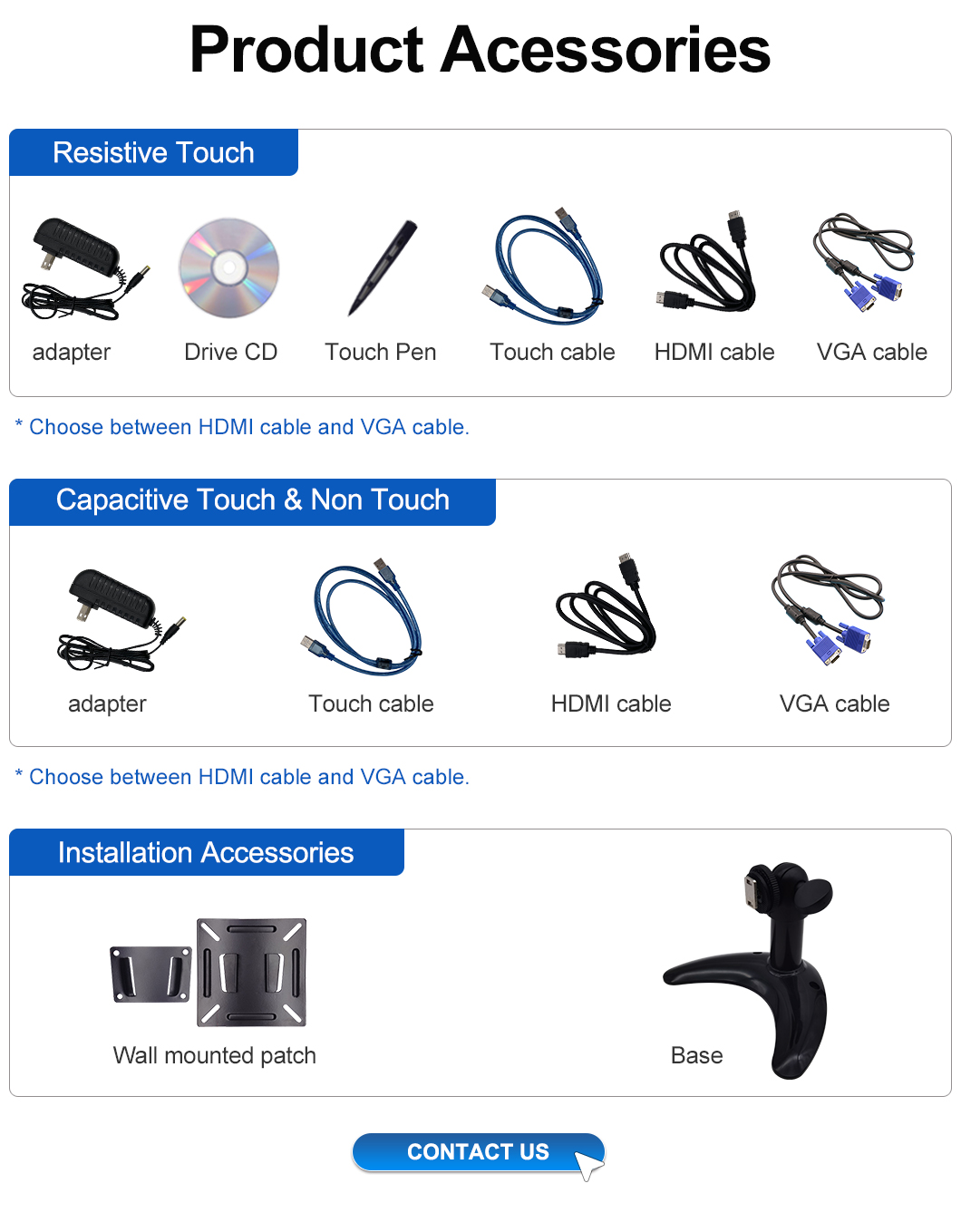

| Accessories:Plastic stand/ VESA wall mount kit , VGA,AV,BNC,HDMI,USB cable, touch pen, disk drive, power adapter, warranty card, , manual. | |
-
