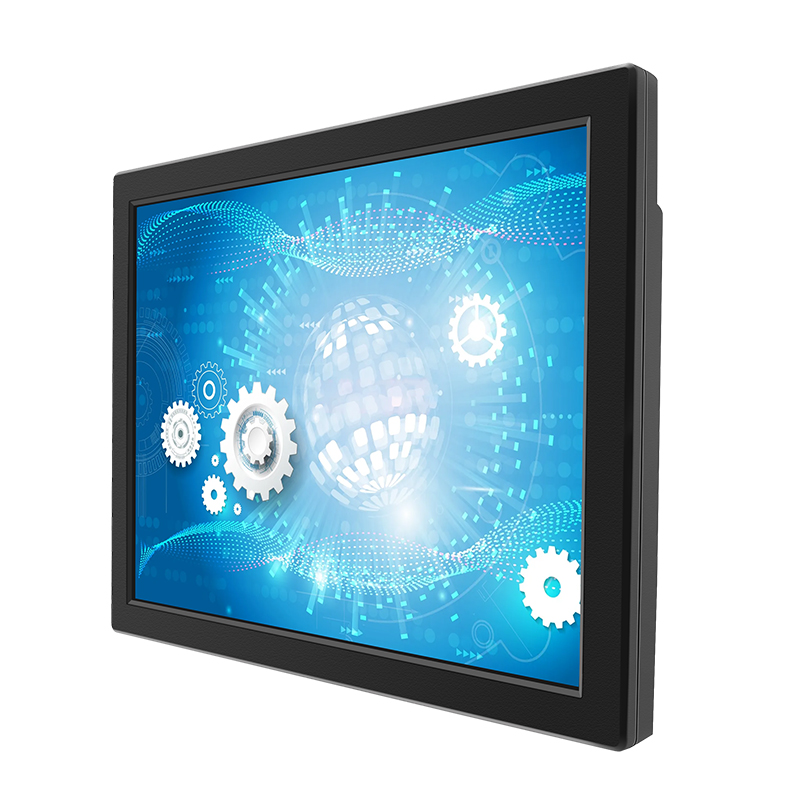

15 Inch 1024*768 HDMI VGA AV BNC USB Non Touch Square Screen Plastic Case TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory LCD POS CCTV Monitor
Model No :B150
| Datasheet | |
| Model | B150 |
| Size | 15" |
| Active Area | 304.1*228.1 mm |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 350:1 |
| Brightness | 260 cd/m |
| Viewing Angle (H/V) | 135/140 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

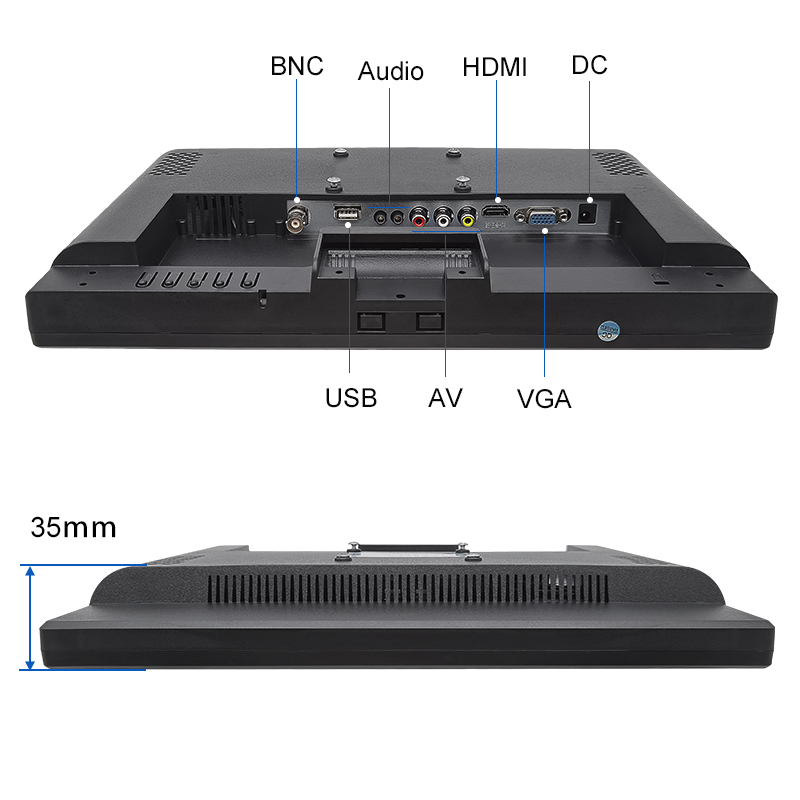

| Video Inputs/Outputs | VGA/HDMI/BNC/USB/AUDIO/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

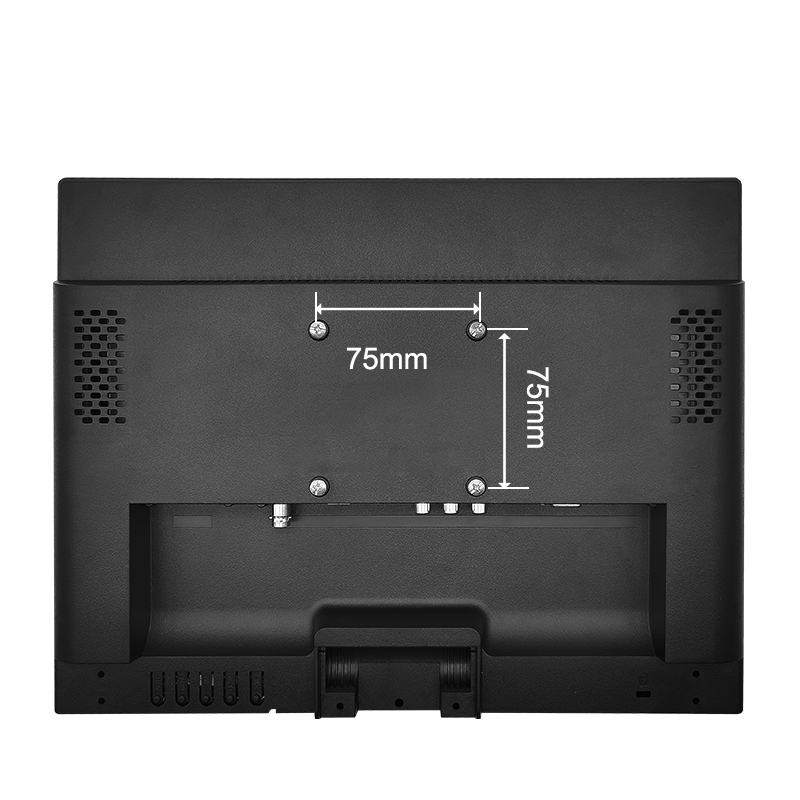

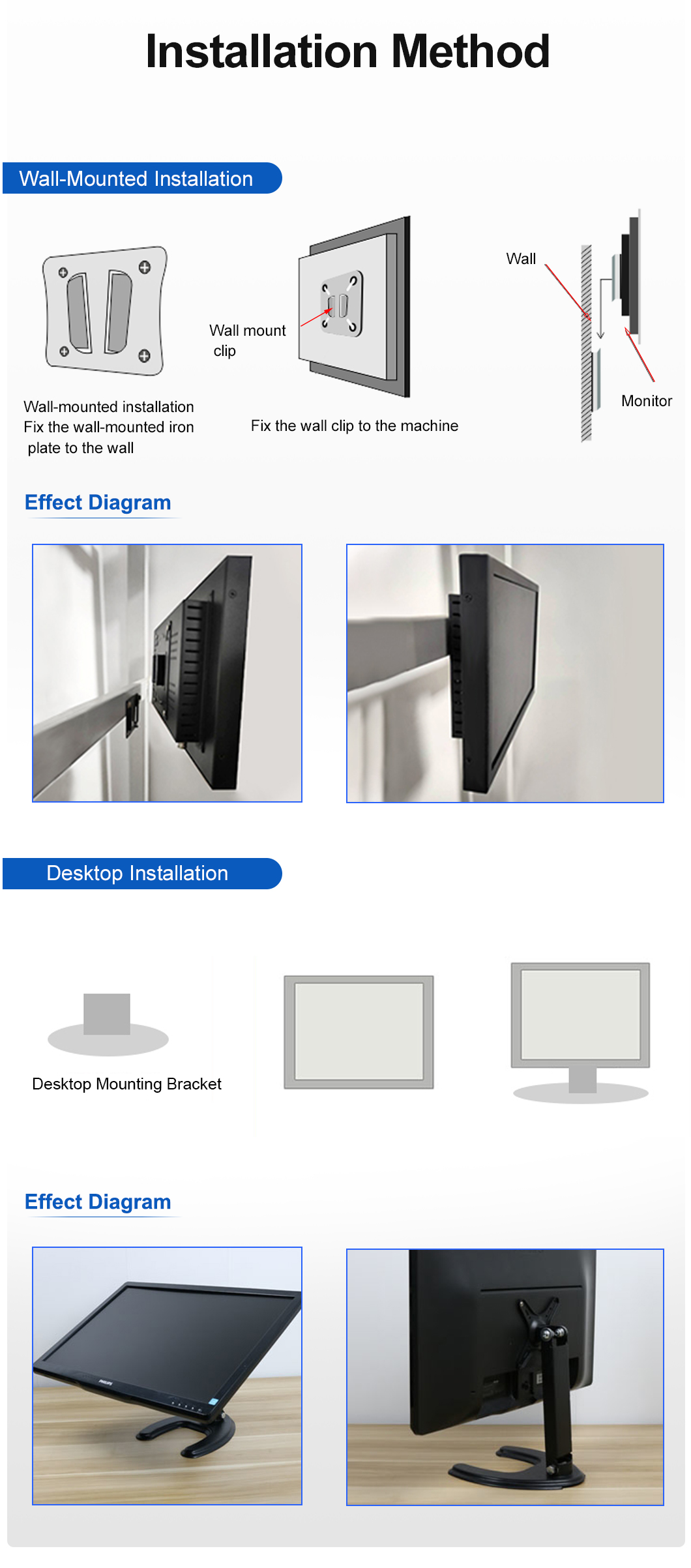

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

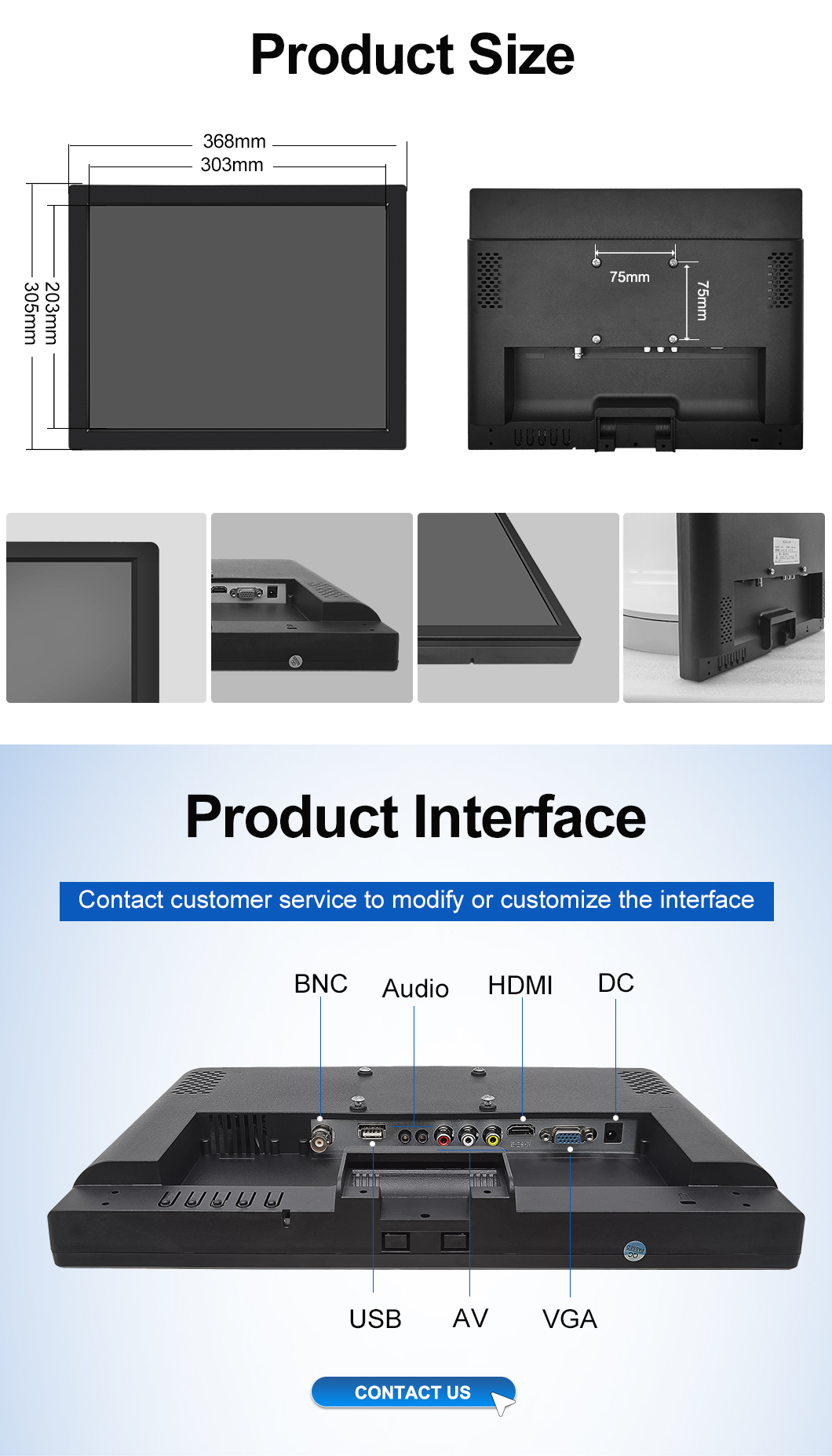

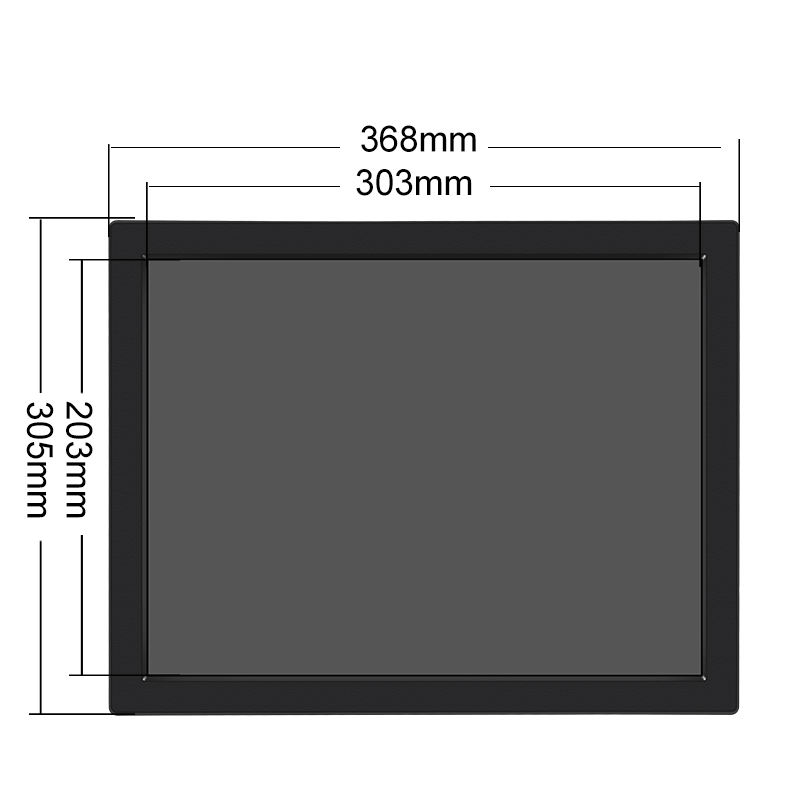

| Dimension (W*H*D) | 349*276*47 mm |
| Weight | 1.88 kg |
| Control | OSD Control |

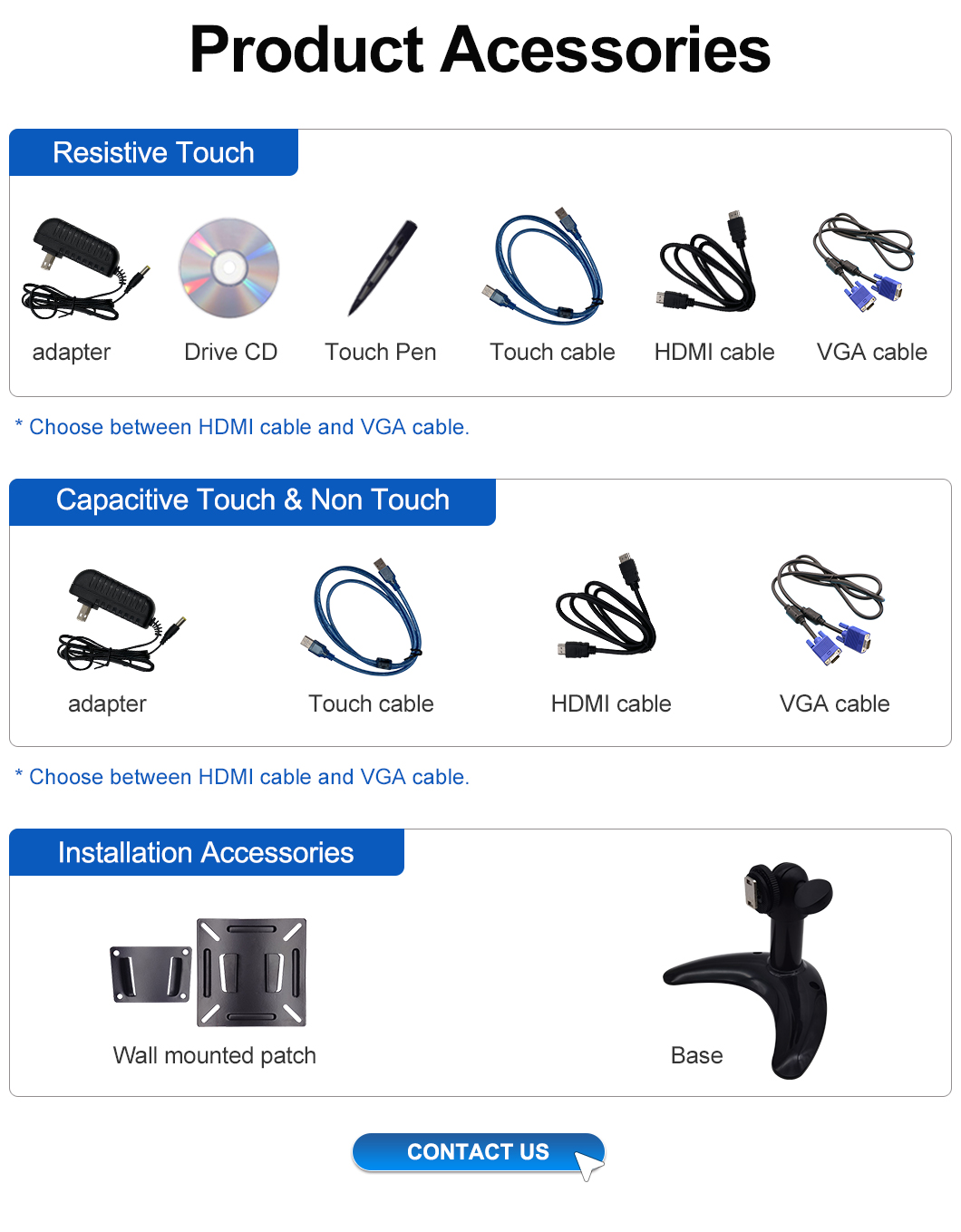

| Accessories | Power Adatper/VGA cable |
| Certificates | CE/FCC/ROHS |
-
