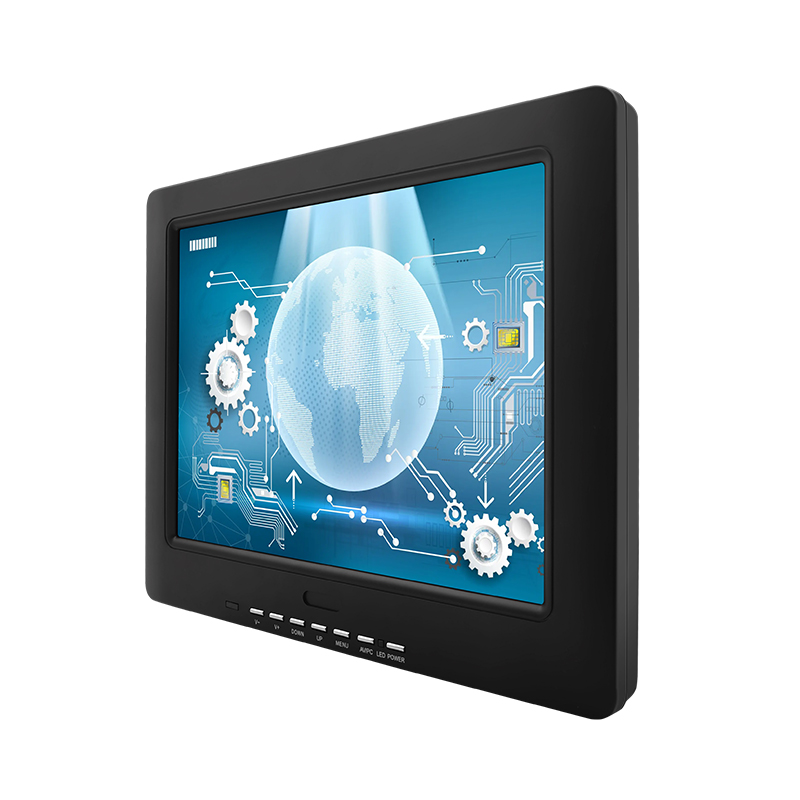

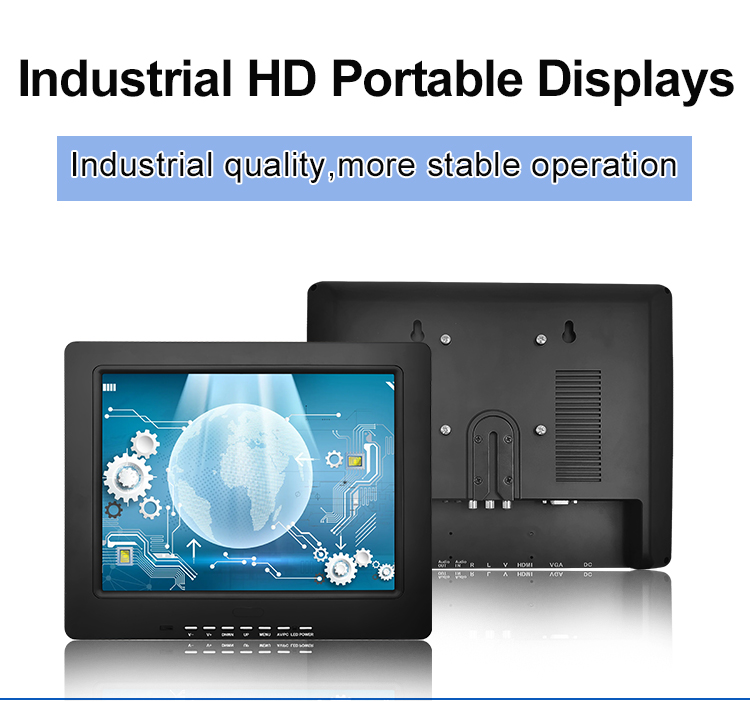

12 Inch 800*600 HDMI VGA AV BNC USB Non Touch Square Screen Plastic Case TFT Vesa Wall Mounted Desktop Stand OEM ODM Industrial Factory LCD POS CCTV Monitor
Model No :B120
| Datasheet | |
| Model | B120 |
| Size | 12" |
| Active Area | 246*184.5 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 800x600 |
| Acpect Ratio | 4:3 |
| Contrast | 450:1 |
| Brightness | 330 cd/m |
| Viewing Angle (H/V) | 140/110 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

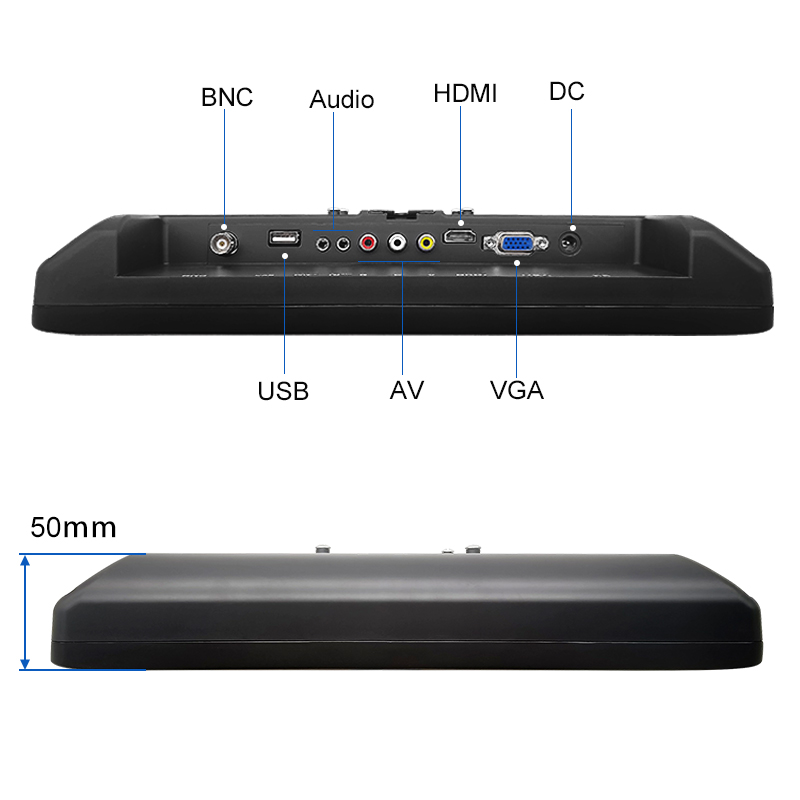

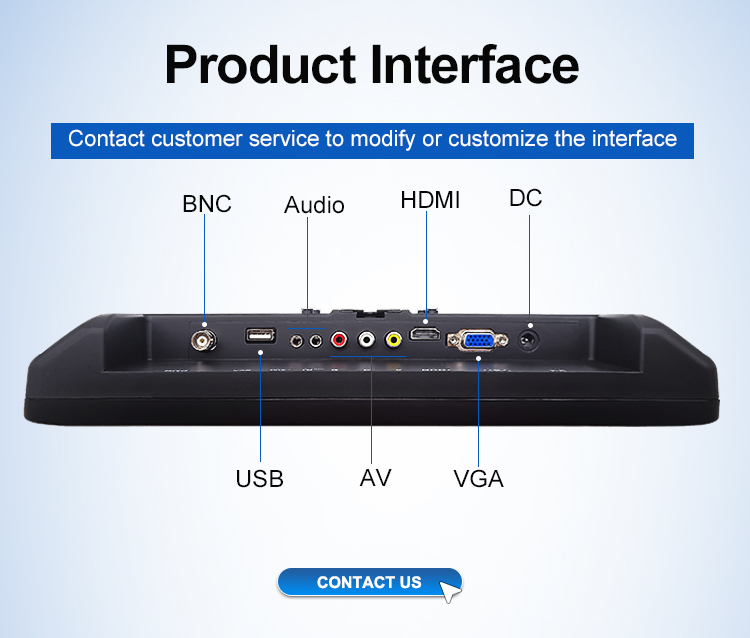

| Video Inputs/Outputs | VGA/HDMI/BNC/RLV/USB/AUDIO input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

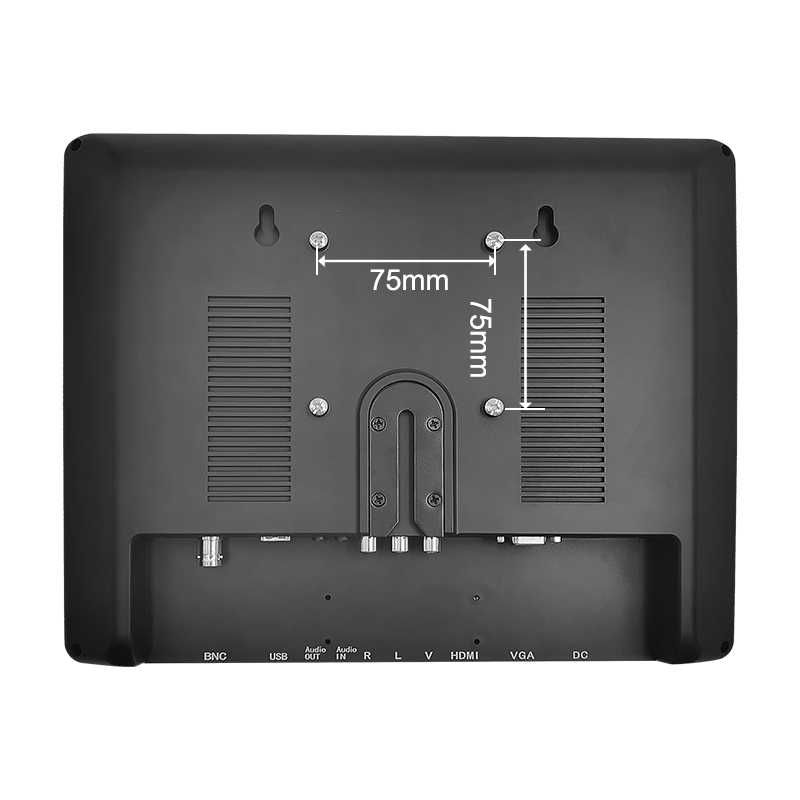

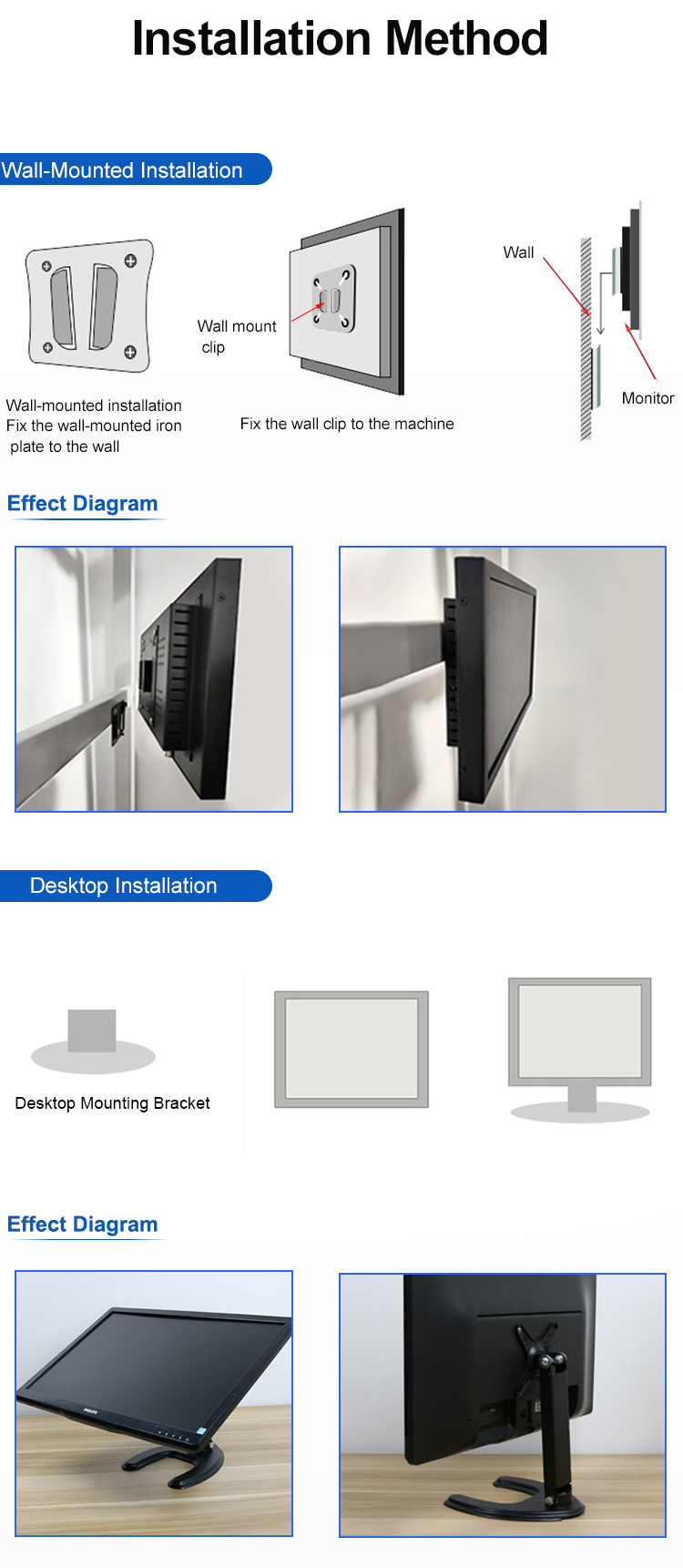

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

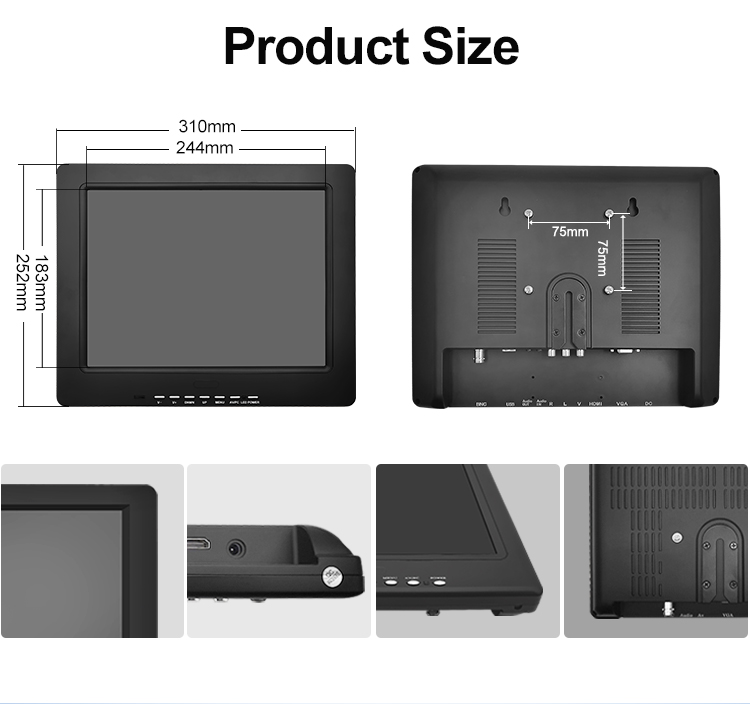

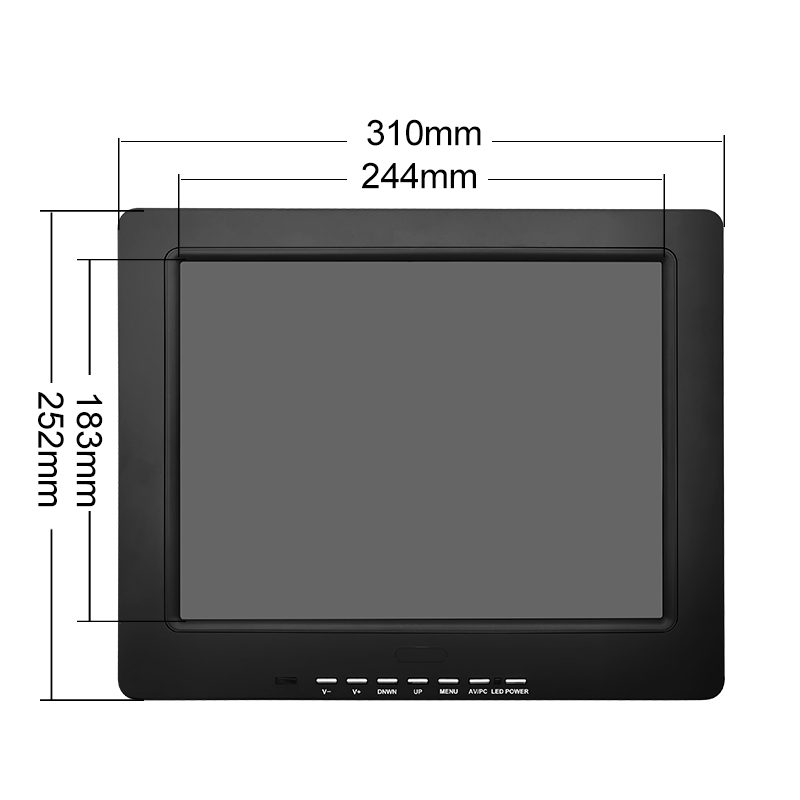

| Dimension (W*H*D) | 298*241*40 mm |
| Weight | 1.8 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |

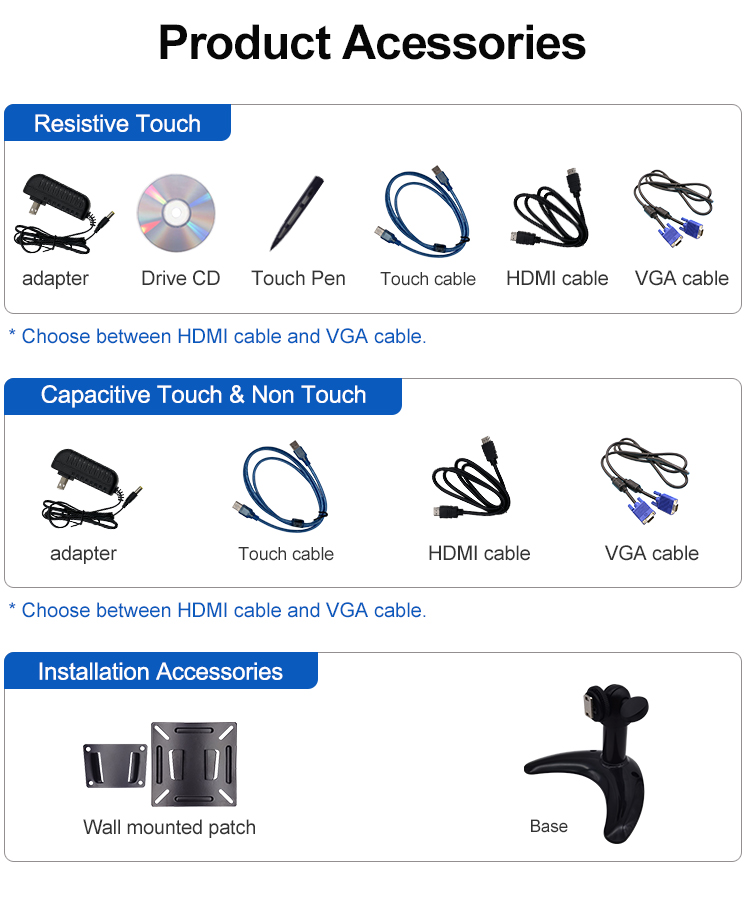

| Accessories:Plastic stand/ VESA wall mount kit , VGA,AV,BNC,HDMI,USB cable, touch pen, disk drive, power adapter, warranty card,manual. | |
-
