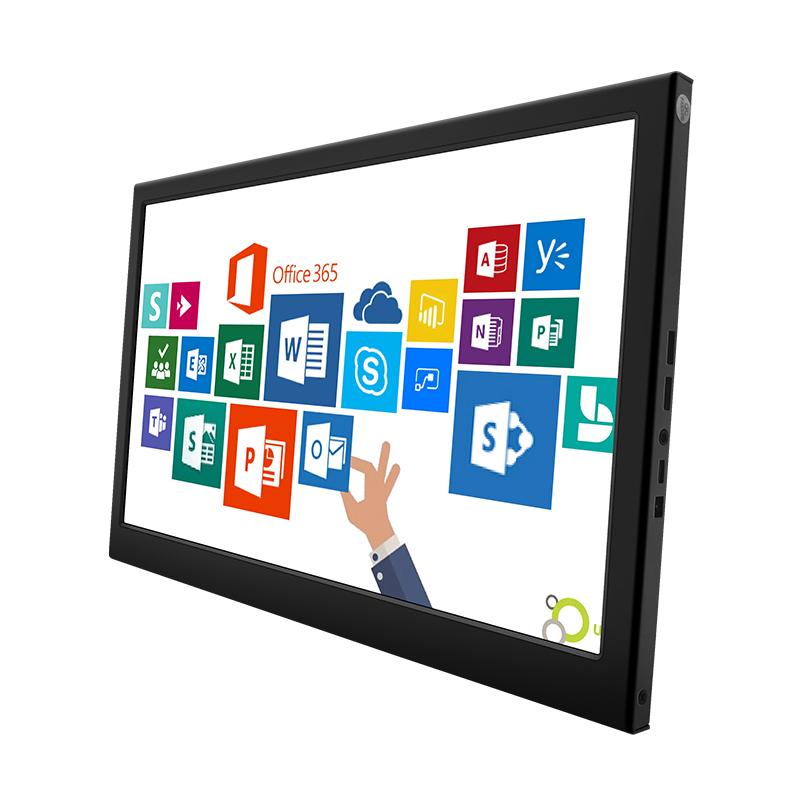

15.6 Inch IPS1920*1080 HD Audio Output HDMI Aluminum Alloy for Industrial Equipment Metal Case Portable Panel PC
Model No :B156-BX-A
| Datasheet | |
| Size | 15.6" metal Non-touch |
| Active Area | 344.16*193.59 mm |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 800:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |

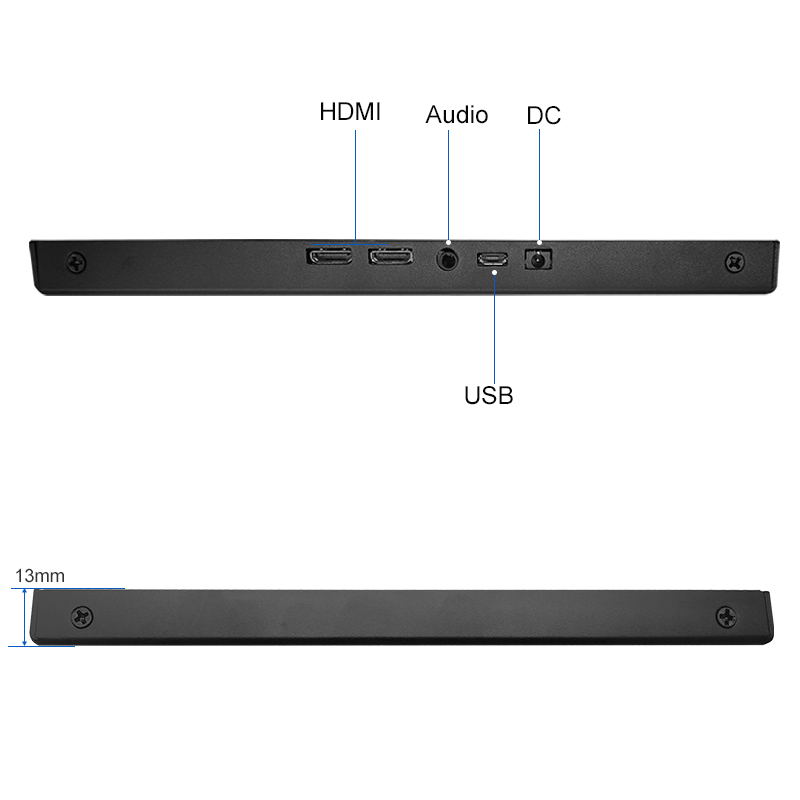

| Video Inputs/Outputs | HDMI*2, USB*1（OTG）, Audio Output*1 |
| Casing Material | Aluminum alloy |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

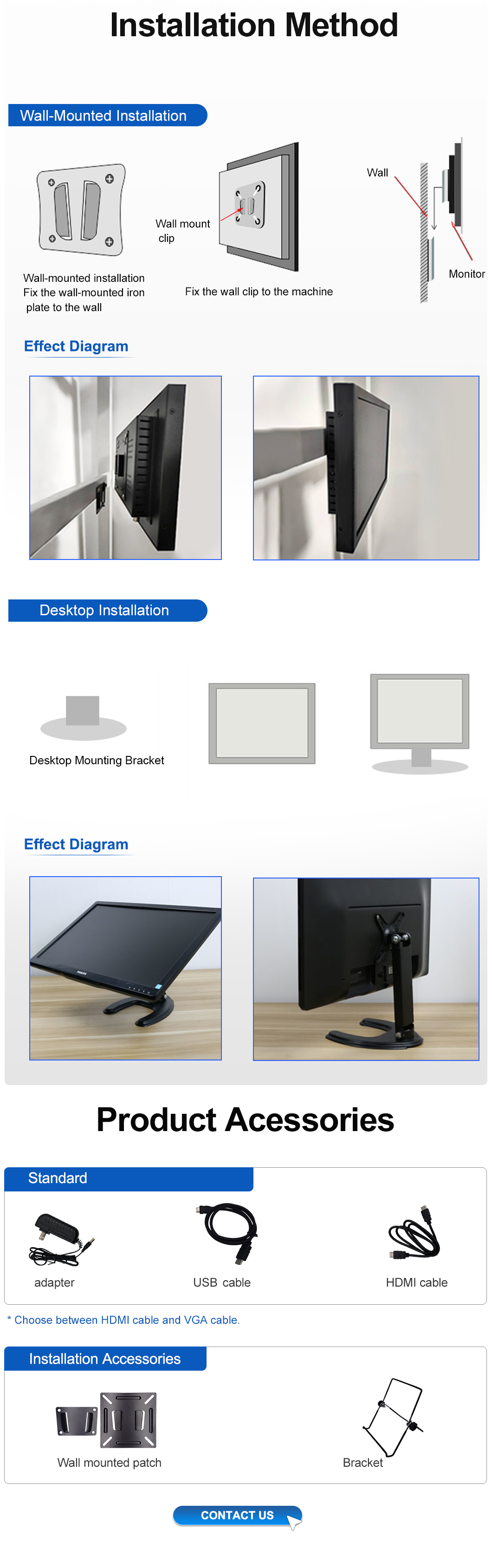

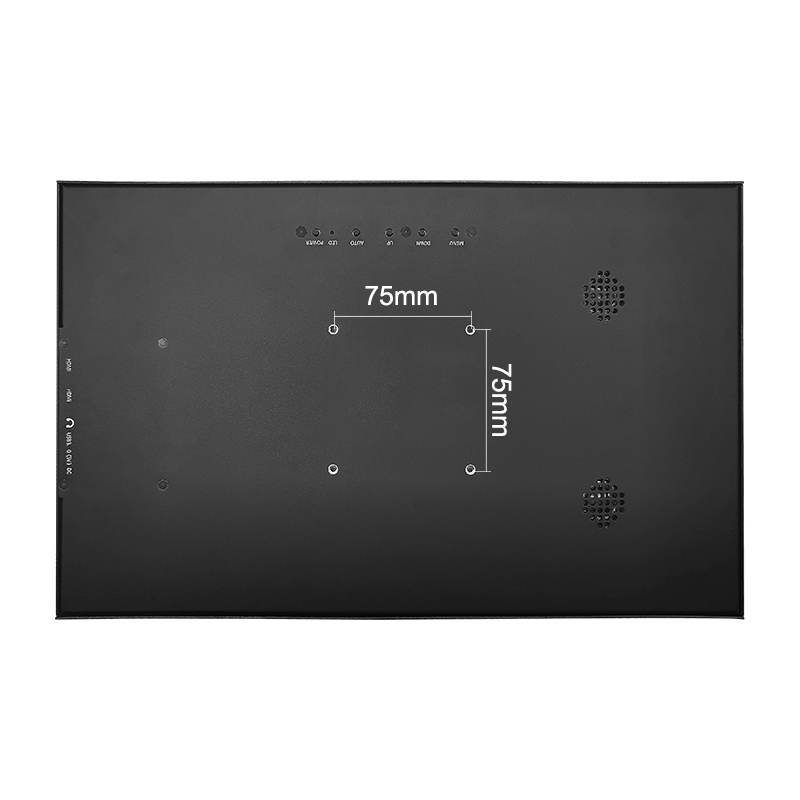

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

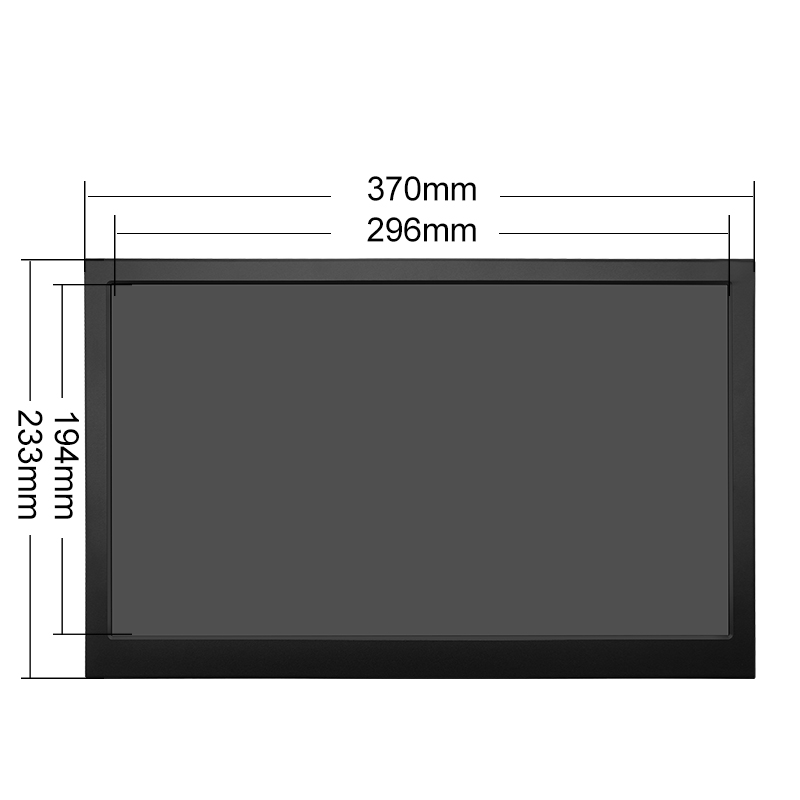

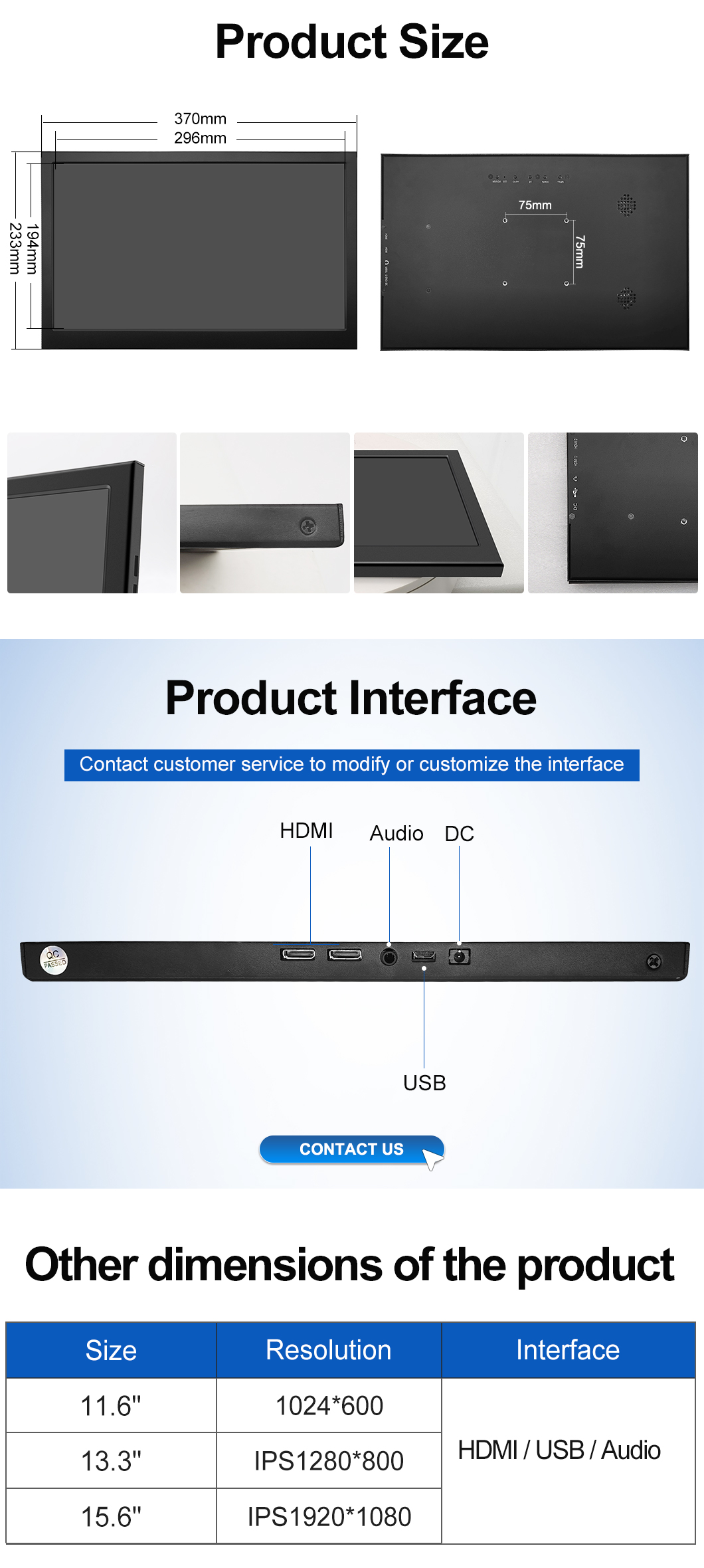

| Product Size | 370*233*13mm |
| Net Weight | 1.16 KGS |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: Stand, HDMI cable and power adapter,warranty card, manual. | |
