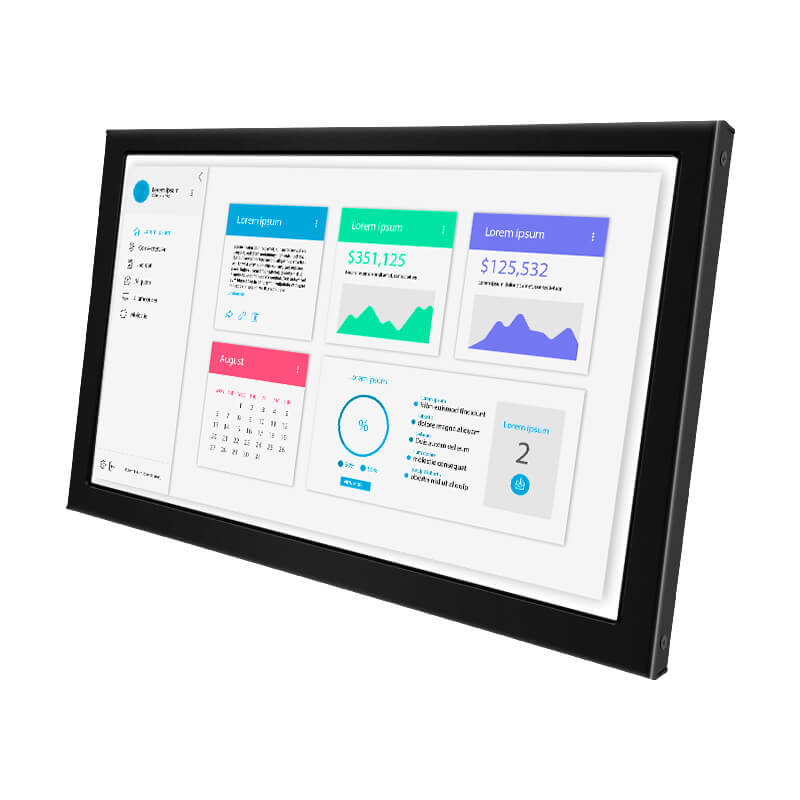

13.3 Inch IPS 1920*1080 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B133-ZT
| Datasheet | |
| Mould | B133-ZT |
| Size | 13.3 inch |
| Active Area | 296(H) × 163.7(V) |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | -10~50ºC |
| Storage Temperature | -20~60ºC |

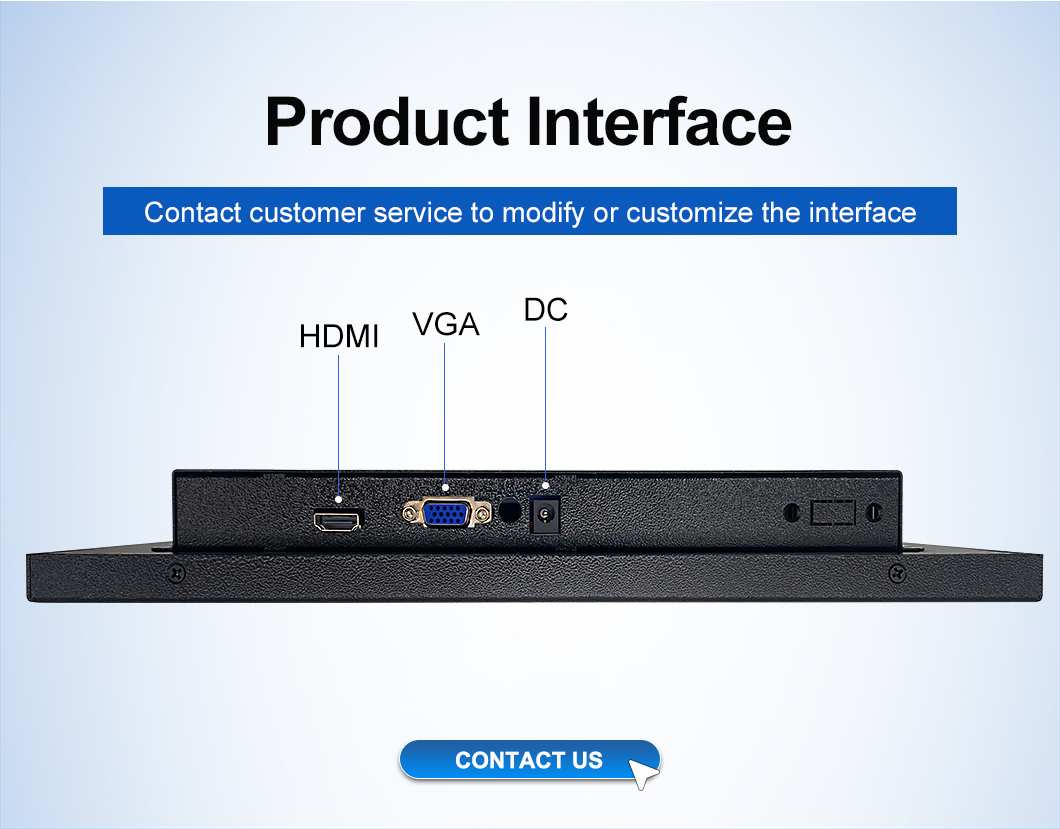

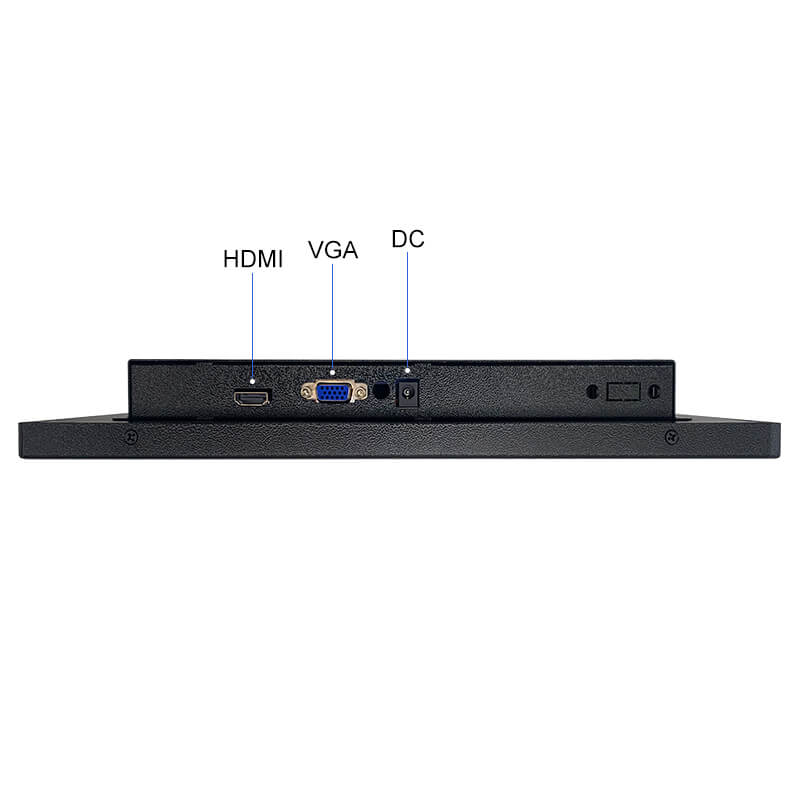

| Video Inputs/Outputs | VGA+ HDMI+Audio+DC |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

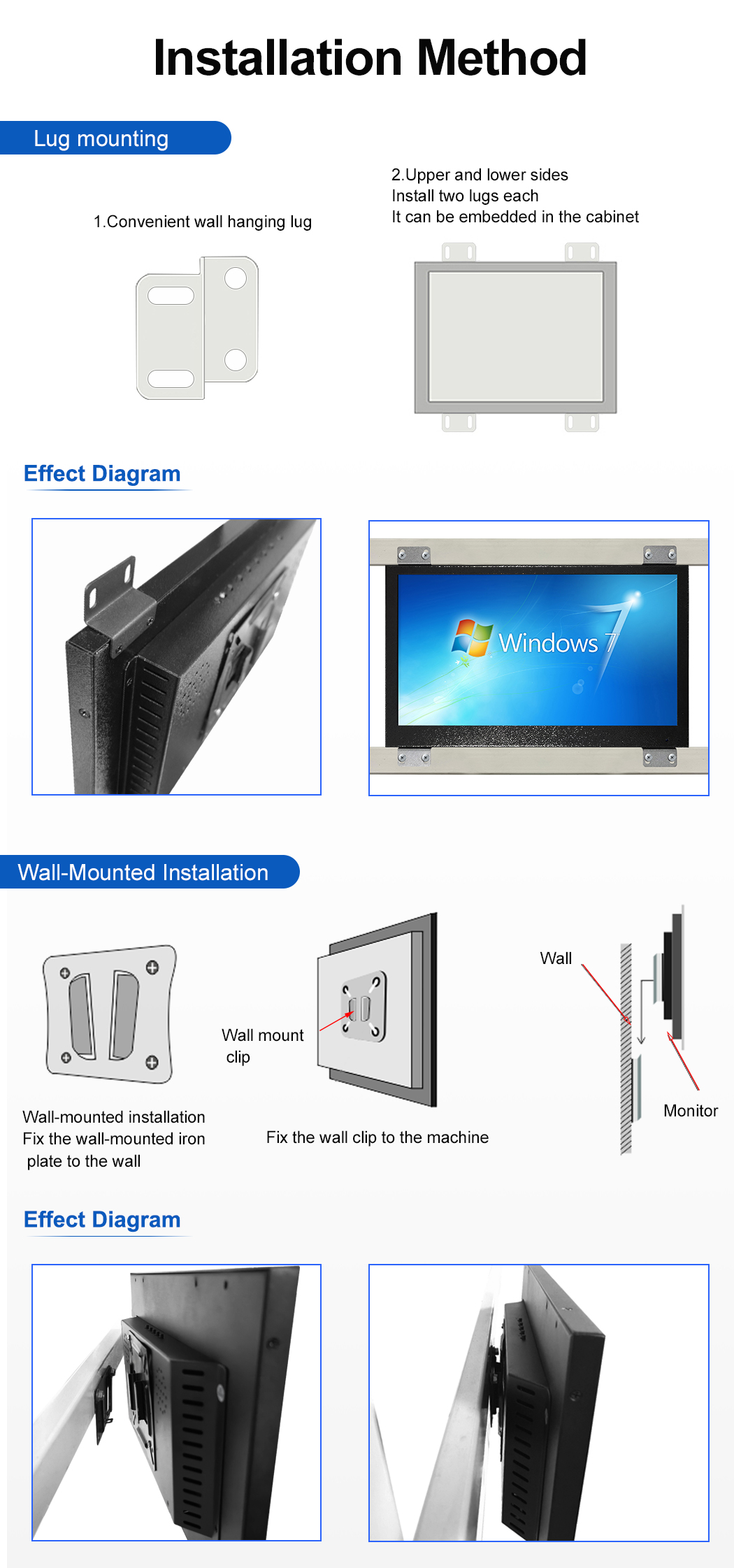

| Installation | Stand base |
| Power Requirement | DC 12V |

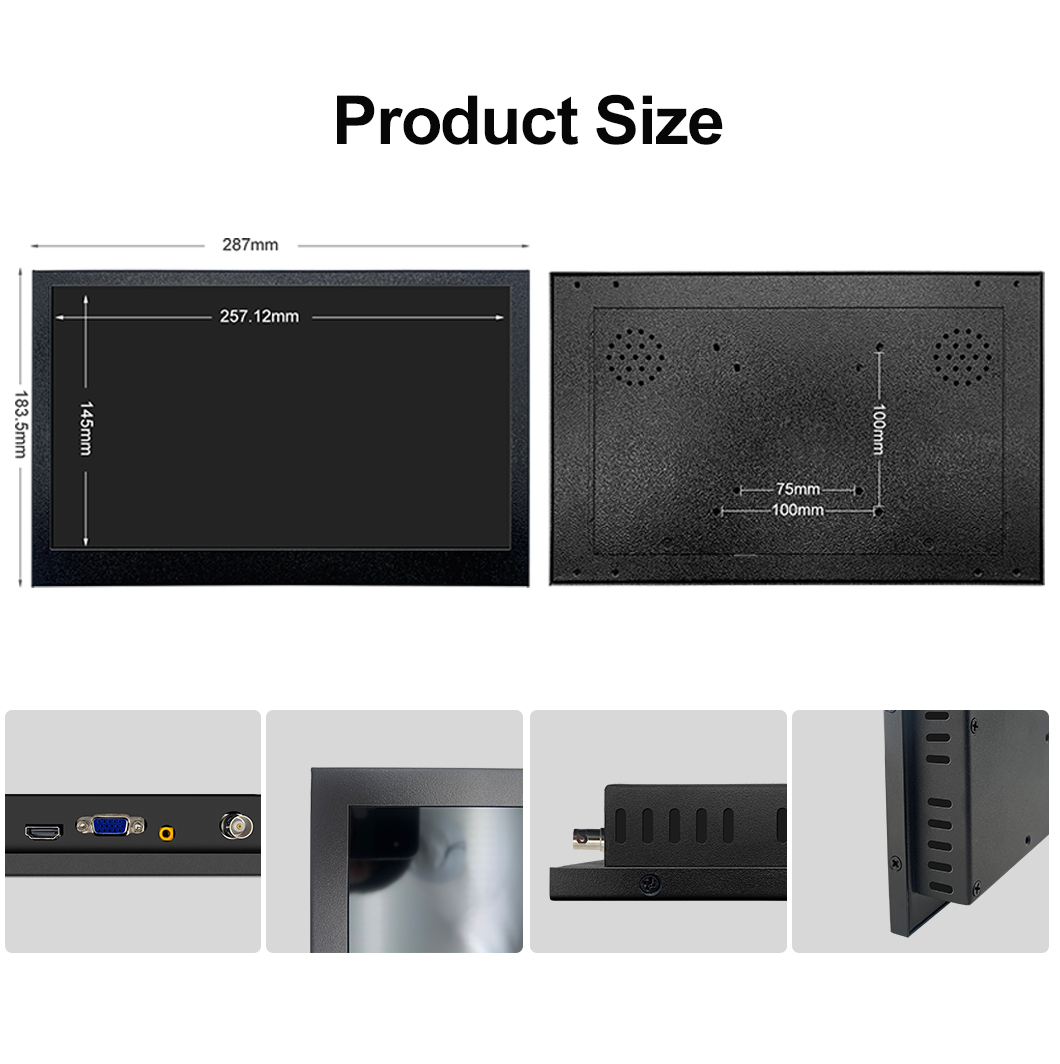

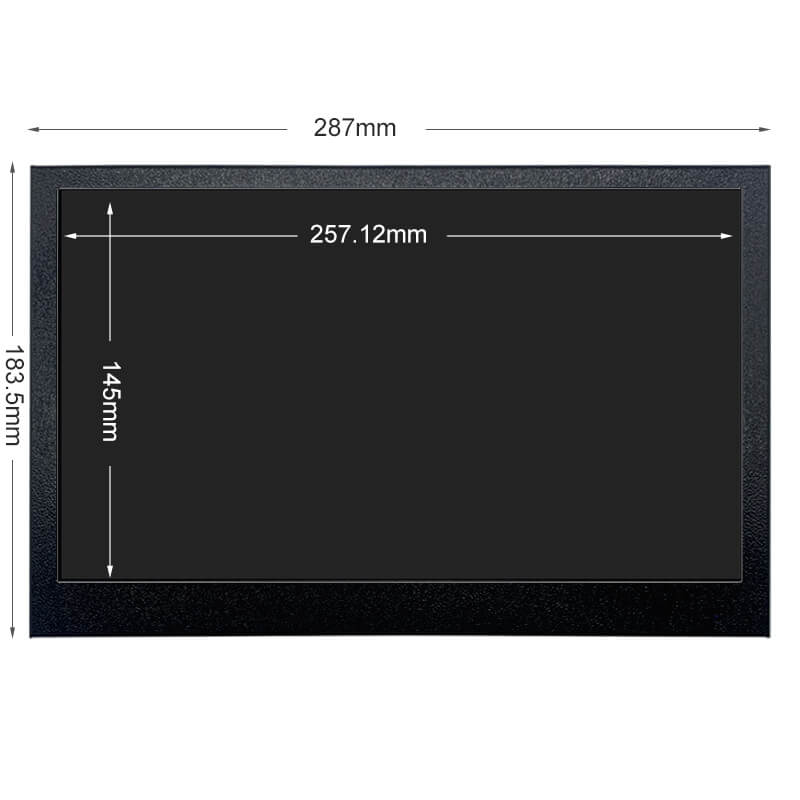

| Dimension (W*H*D) | 315×205×35 mm |
| Net weight | 2.6 kgs |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |

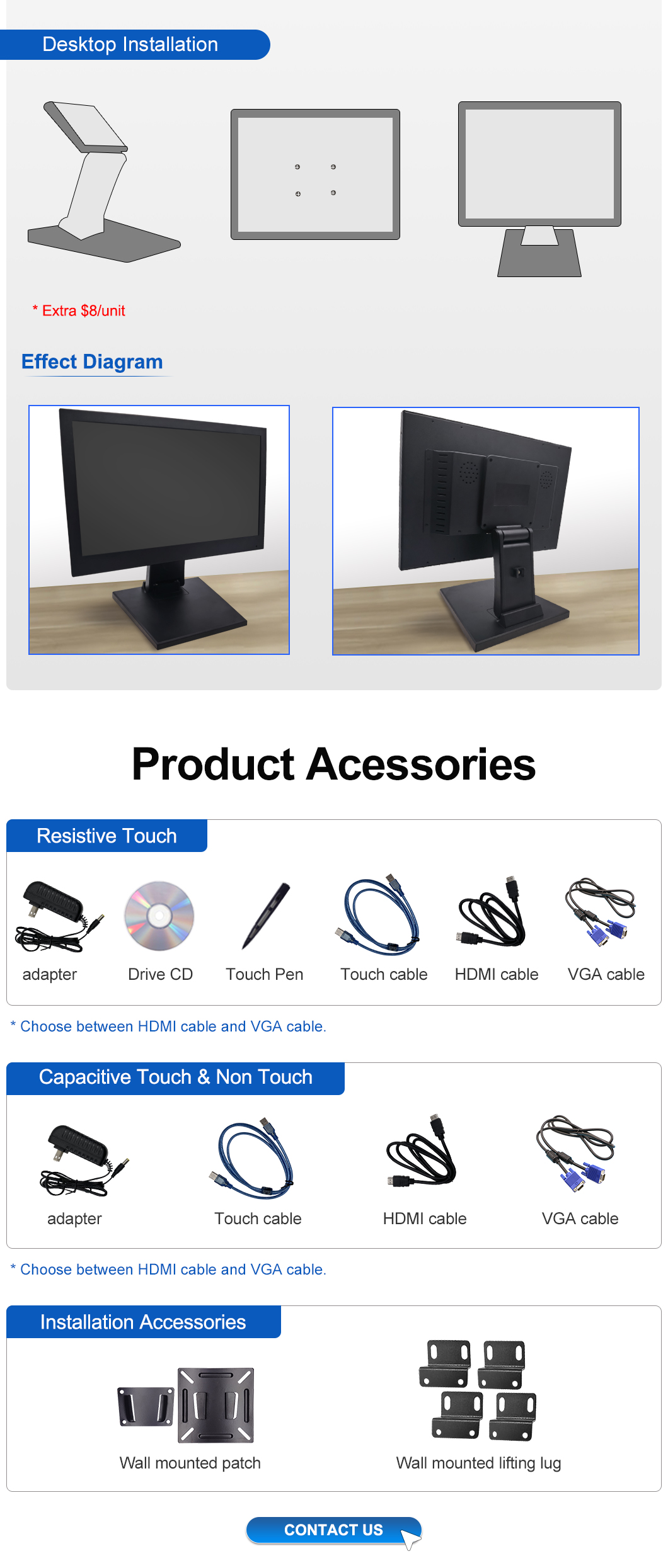

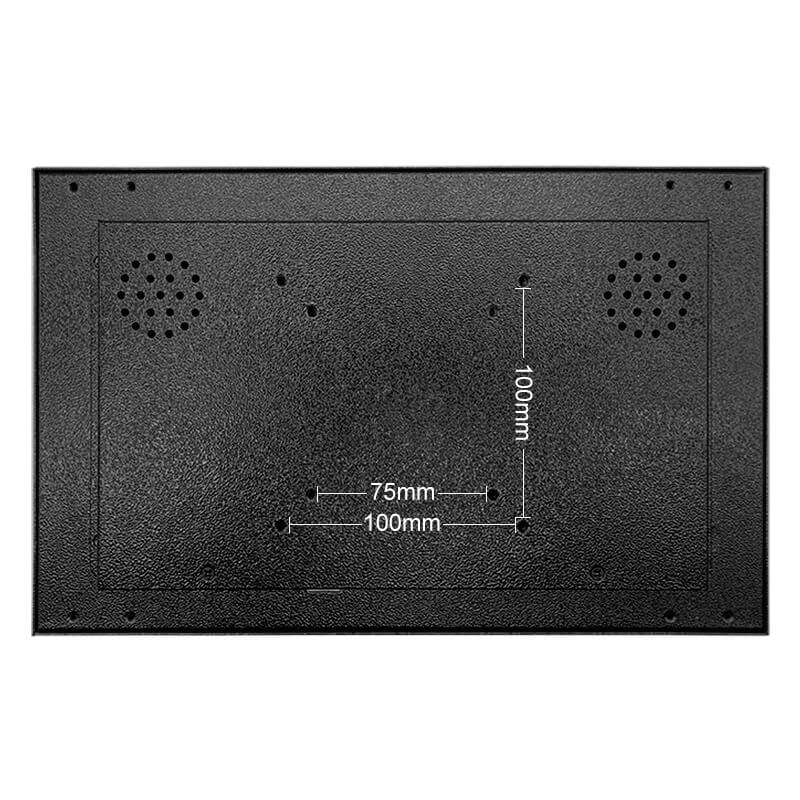

| Accessories: VESA wall mount kit/ Hanging ear / Stand , VGA cable/ HDMI cable , USB touch cable, Touch pen, Flash dirve, 12V DC 1A power adapter, Manual , Warranty card | |
-
