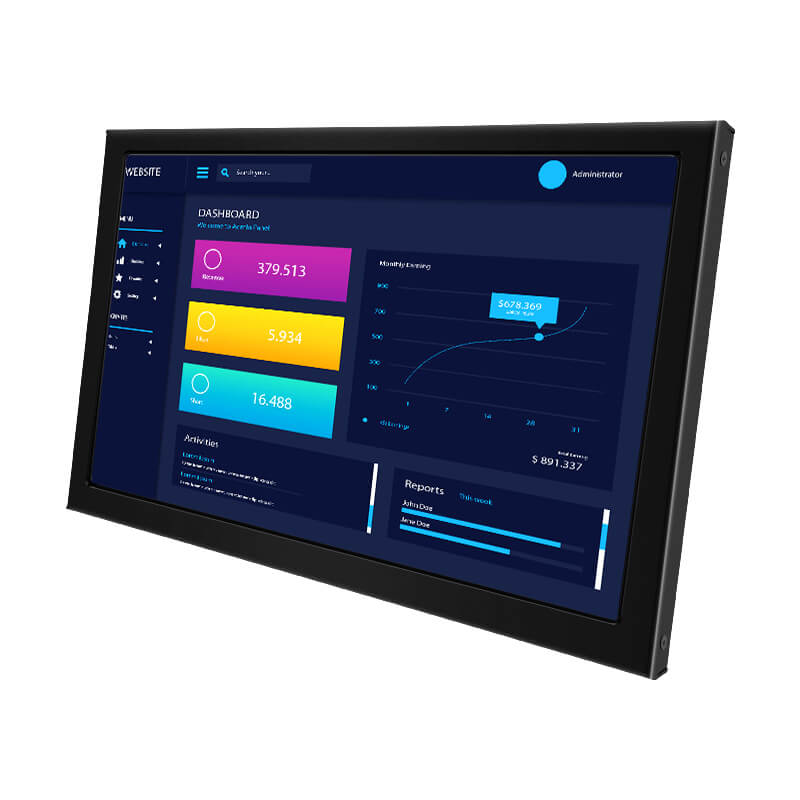

12 Inch 800*600 & 1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B120-ZT
| Datasheet | |
| Mould | B120-ZT |
| Size | 12" metal touch |

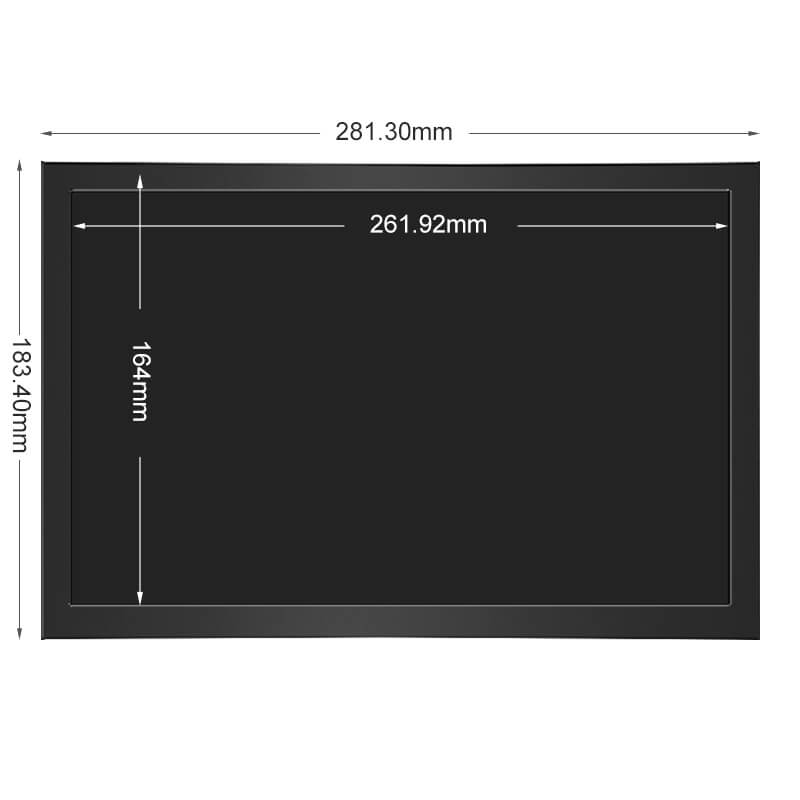

| Active Area | 246*184.5 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 800*600 & 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 350:1 |
| Brightness | 400 NITS |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 12 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

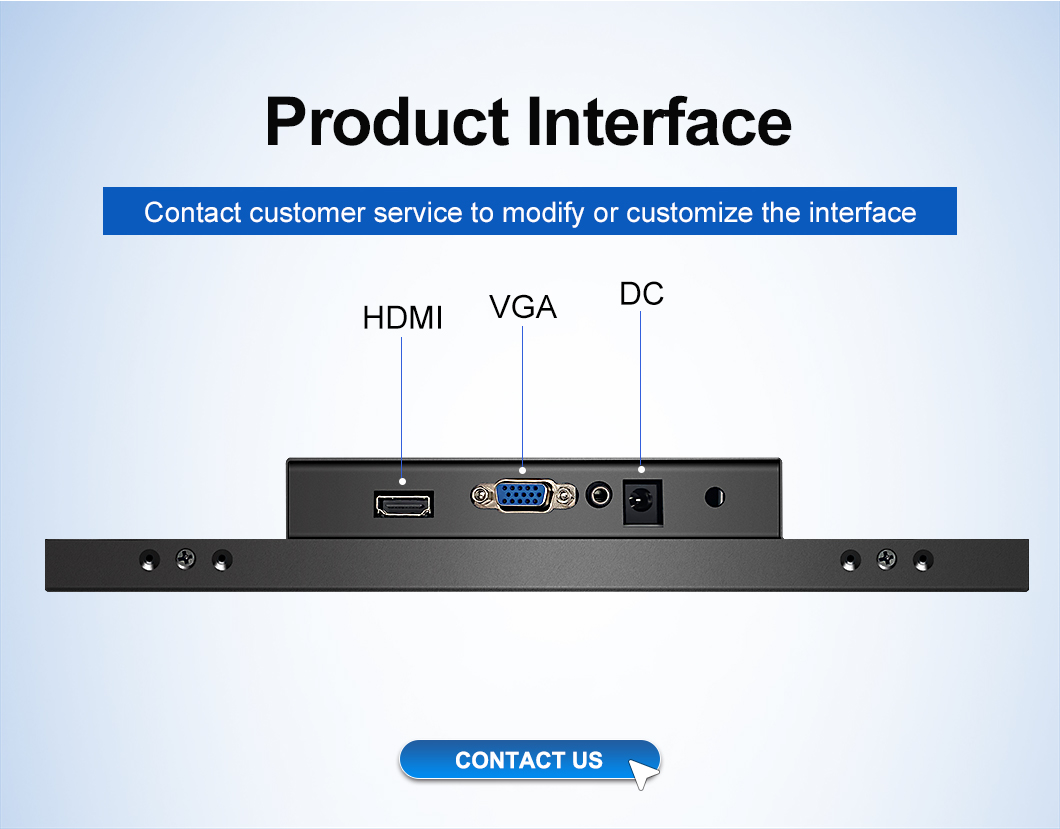

| Video Inputs/Outputs | VGA(15 PIN)+AV+BNC+HDMI+USB |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

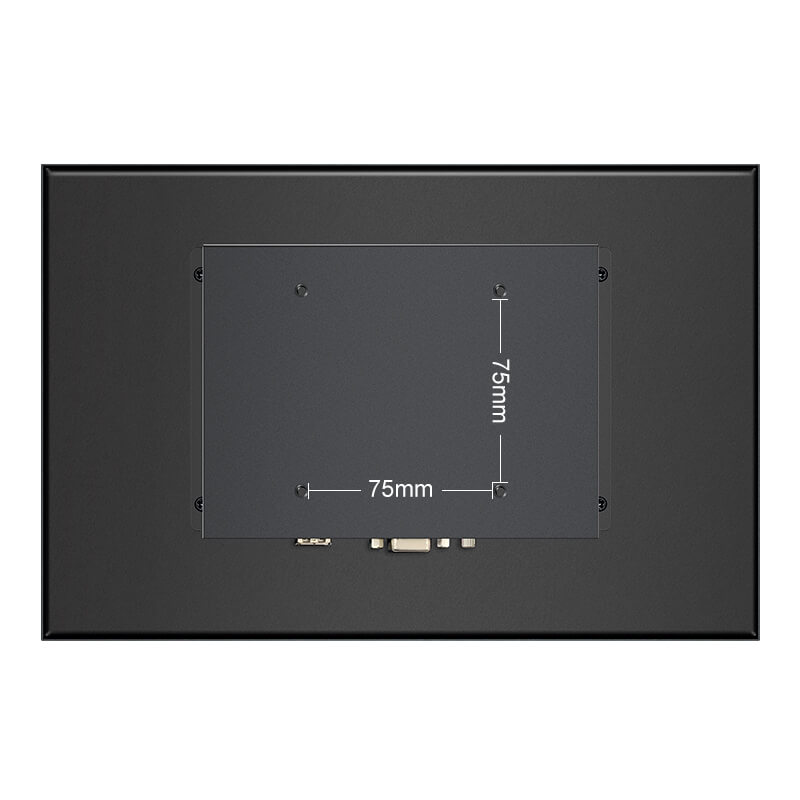

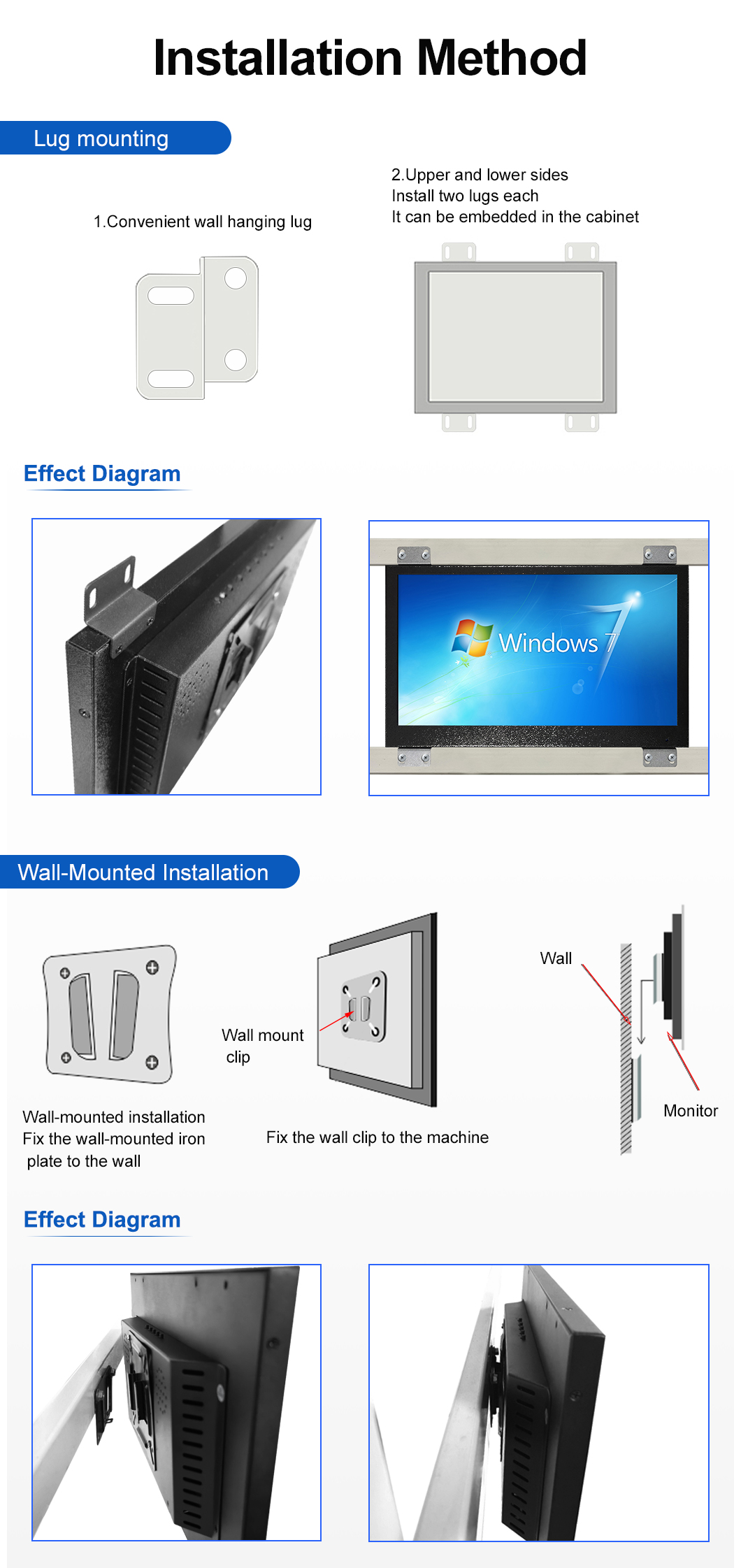

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

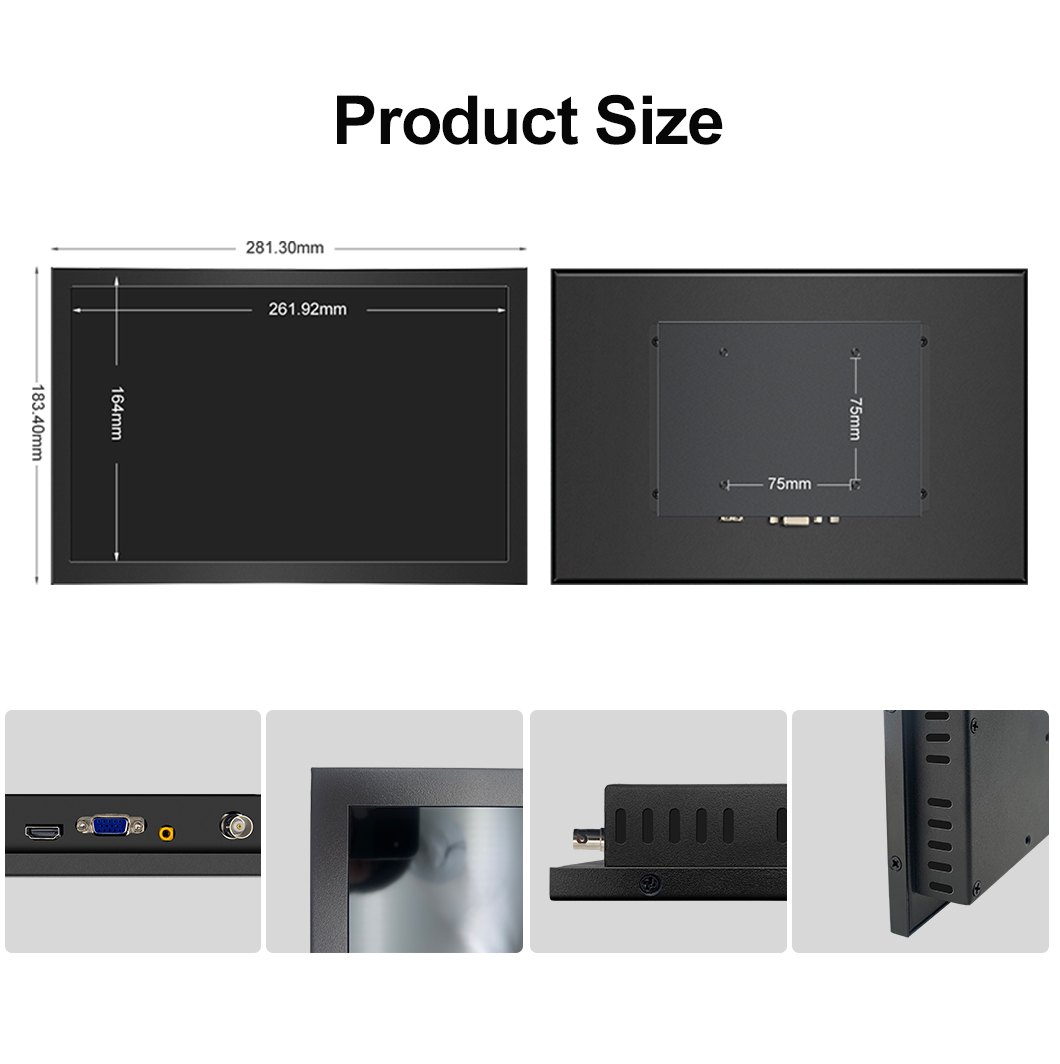

| Product Size | 300*240*60 MM |
| Net Weight | 3.2 KG |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit/ Hanging ear / Stand , VGA cable/ HDMI cable , USB touch cable, Touch pen, Flash dirve, 12V DC 1A power adapter, Manual , Warranty card | |
