10 Inch 800*600 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B100-ZT
| Datasheet | |
| Mould | B100-ZT |
| Size | 10" |

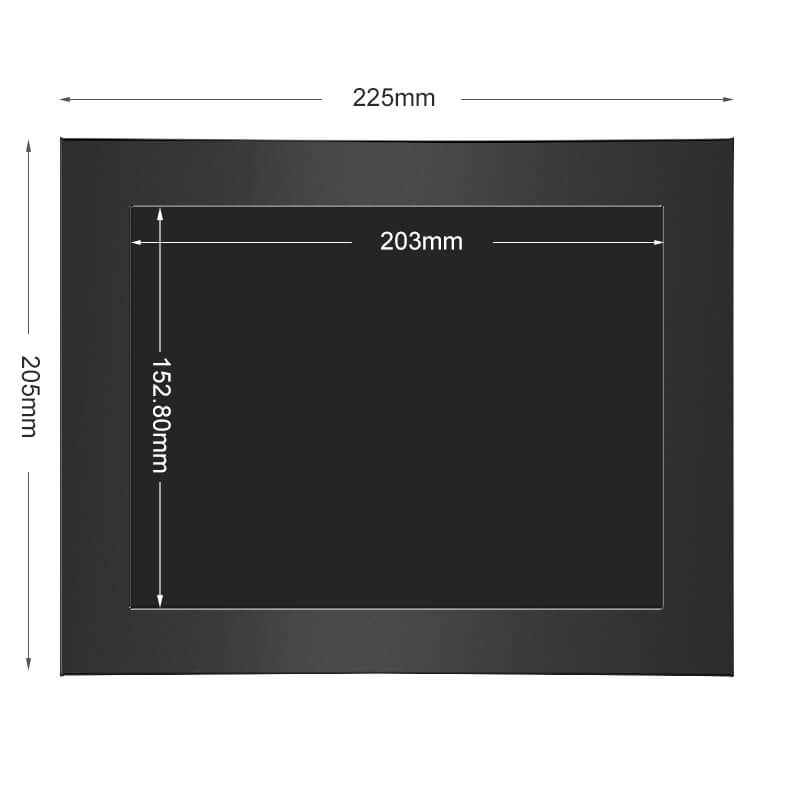

| Active Area | 202.8*152.1 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800*600 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

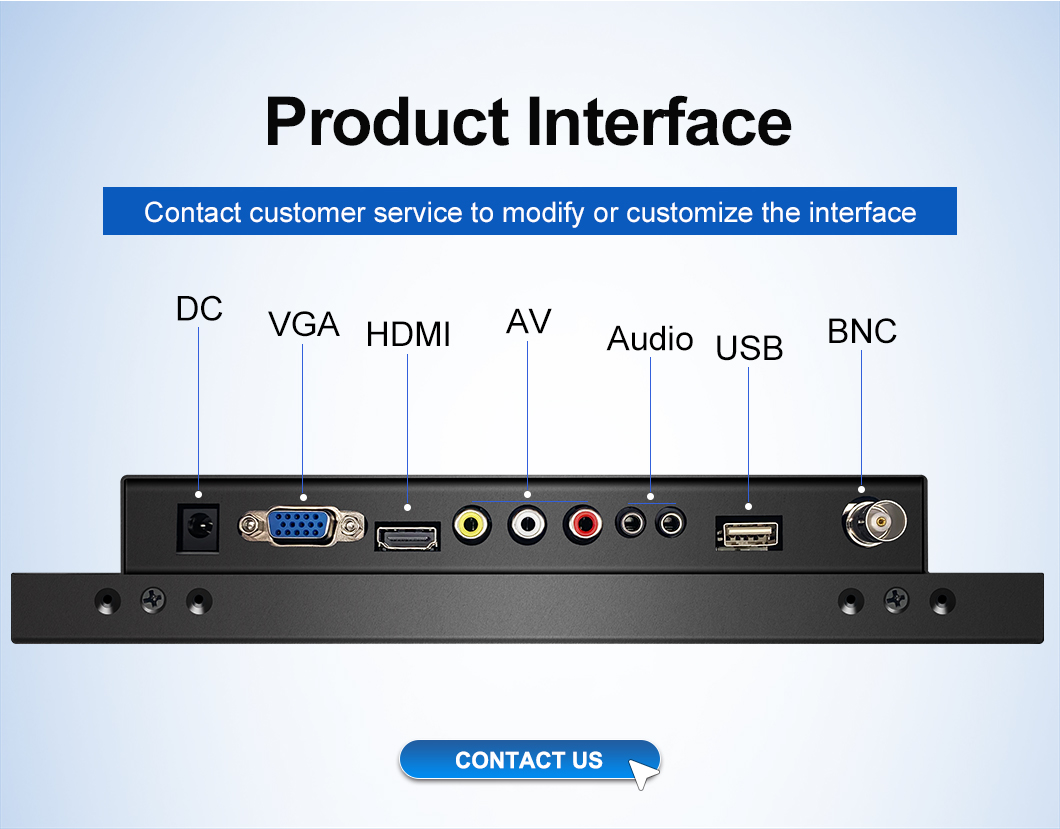

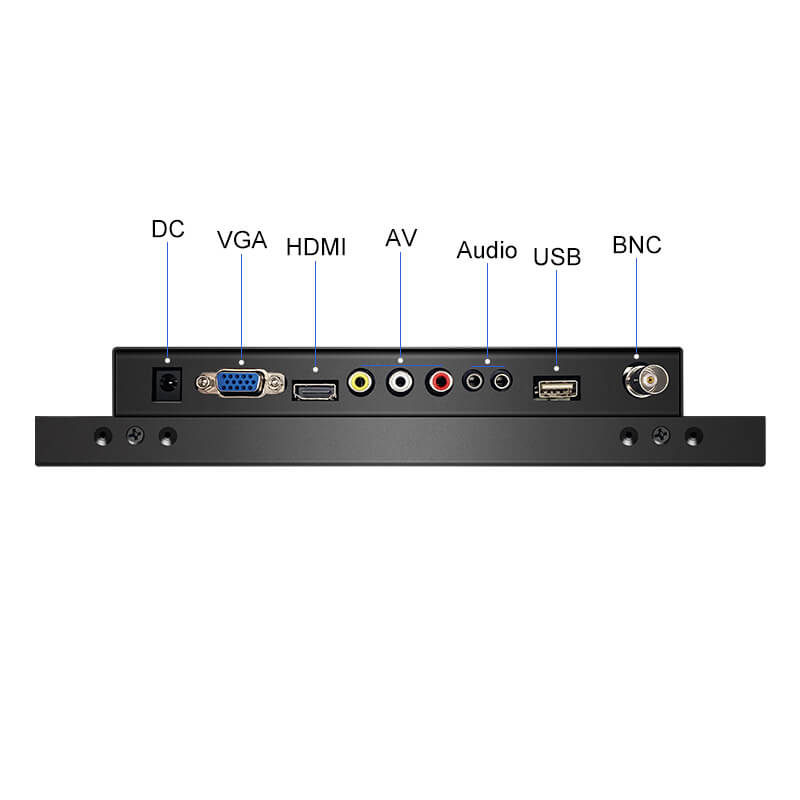

| Video Inputs/Outputs | VGA(15 PIN)+AV+BNC+HDMI+USB |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

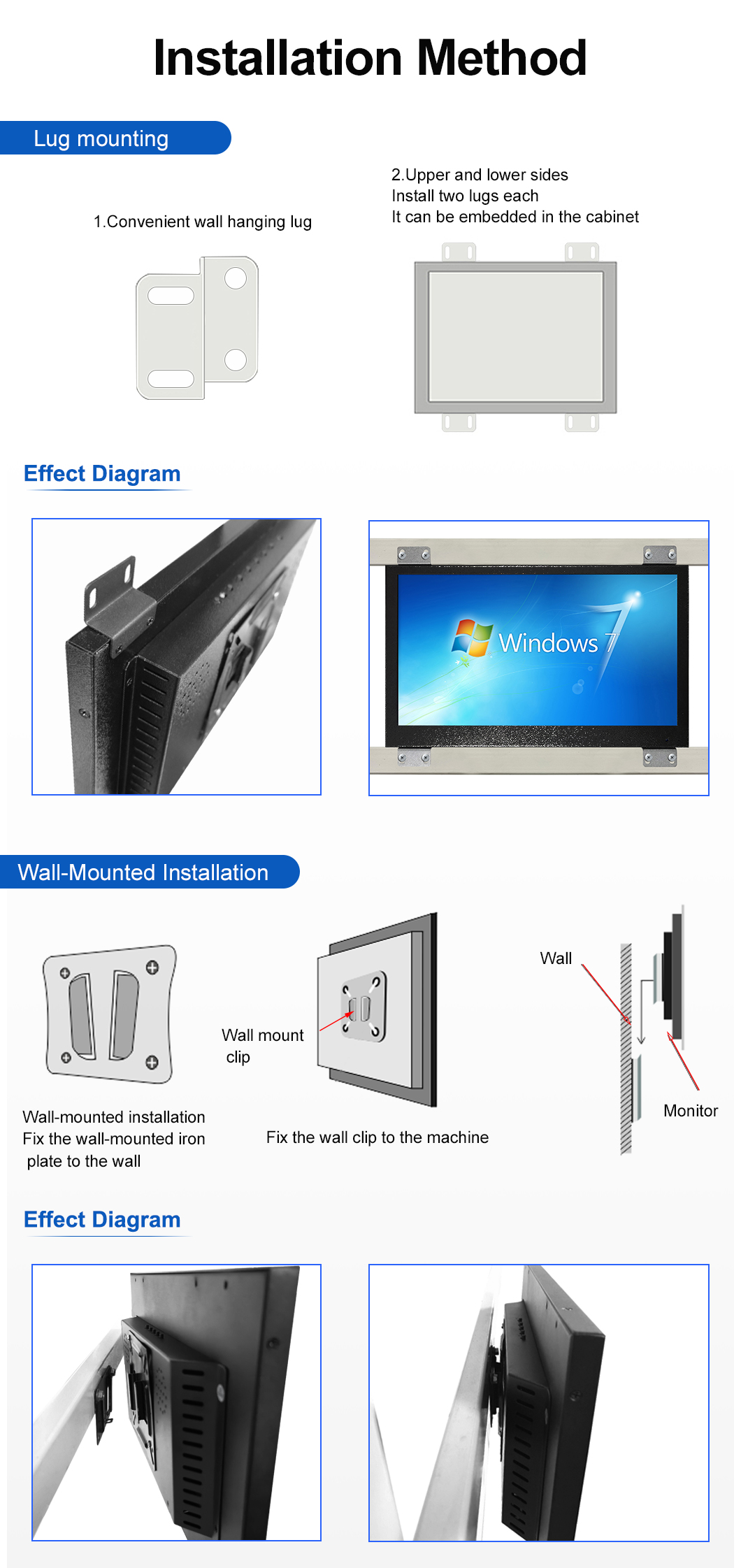

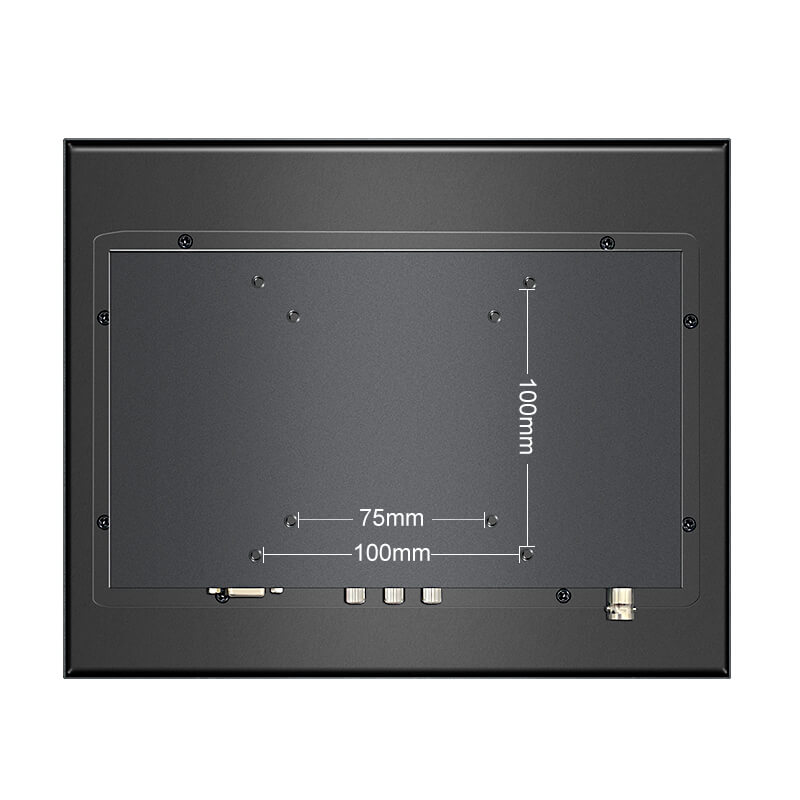

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

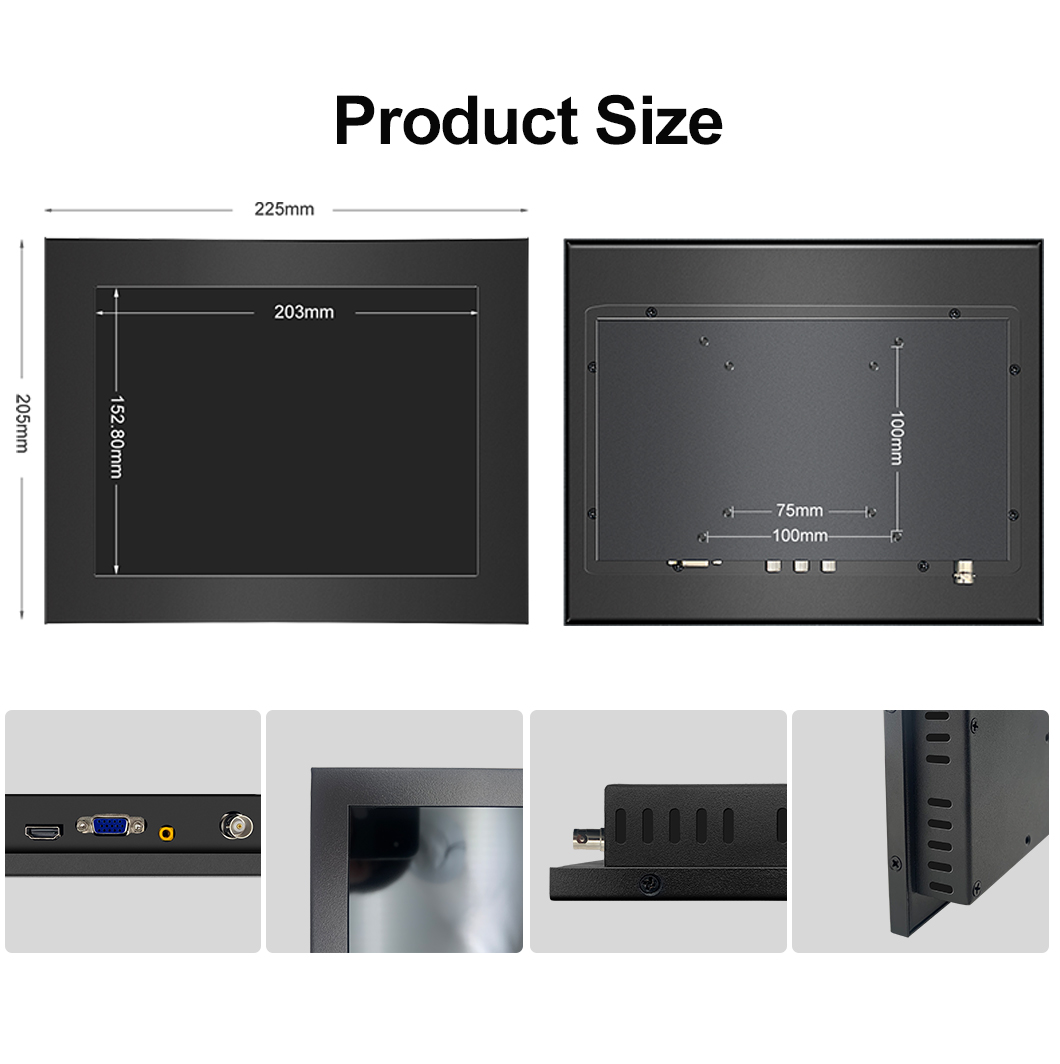

| Product Size | 230*205*45 MM |
| Net Weight | 1.47 KG |
| Certificates | CE/FCC/ROHS/CCC |

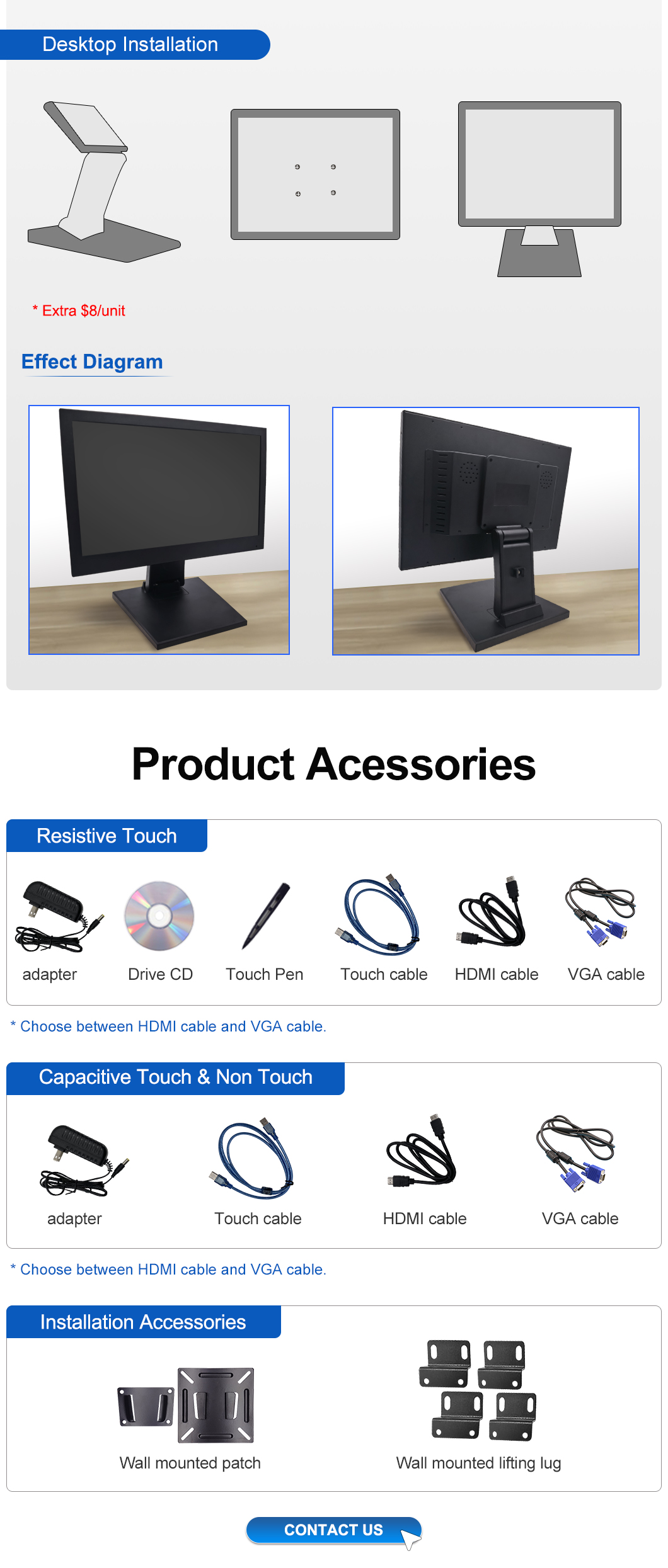

| Accessories: VESA wall mount kit/ Hanging ear / Stand , VGA cable/ HDMI cable , USB touch cable, Touch pen, Flash dirve, 12V DC 1A power adapter, Manual , Warranty card | |
