10 Inch 800*600 HDMI VGA BNC BNC Capacitive Touch Screen Metal Aluminum Frame TFT Embedded Pure Flat OEM ODM Industrial LCD LED Monitor
Model No :B100-QRL-RT
| Datasheet | |
| Size | 10" |
| Touch Panel | G+G |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 800*600 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 16 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

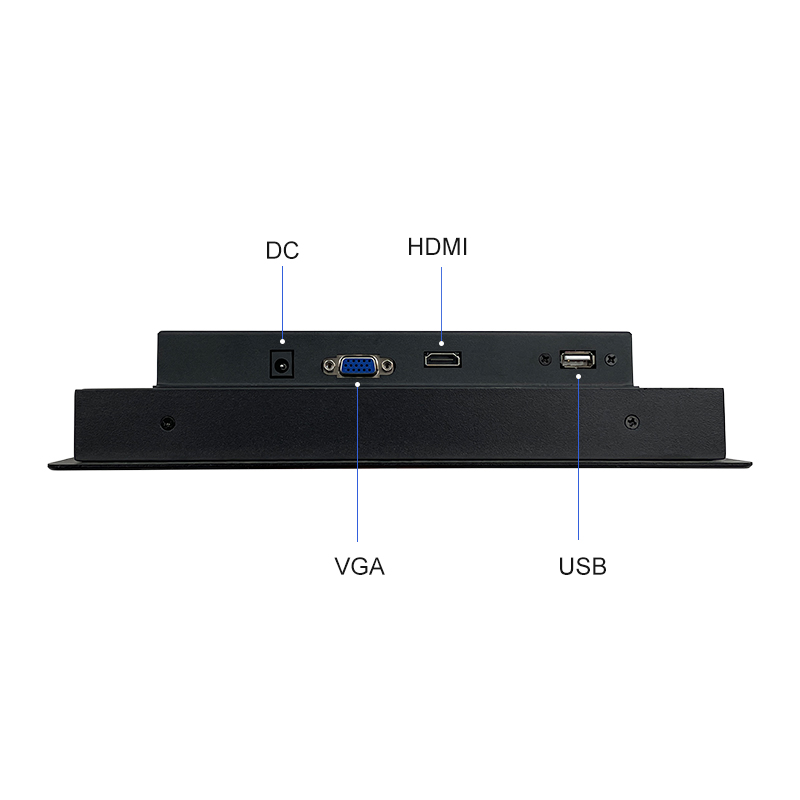

| Video Inputs/Outputs | VGA+DVI+BNC+HDMI+Audio+USB+DC+USB for touch |
| Audio Inputs/Outputs | N/A |
| Touch | Project capacitive touch |
| Touch control | Industrial EETI touch |

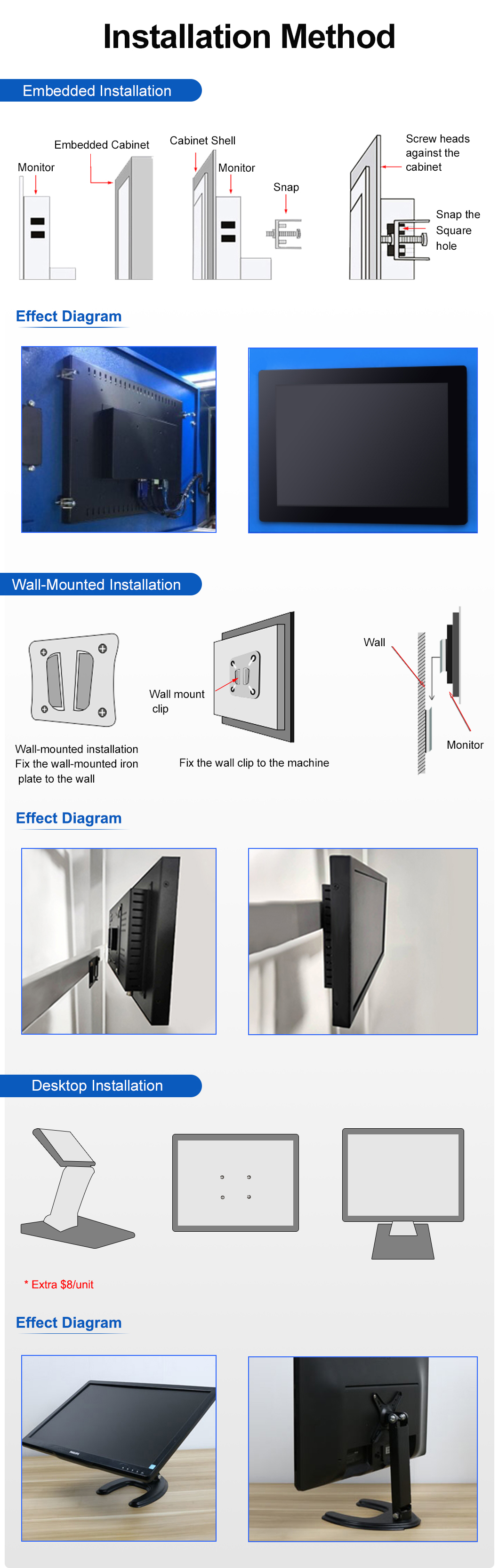

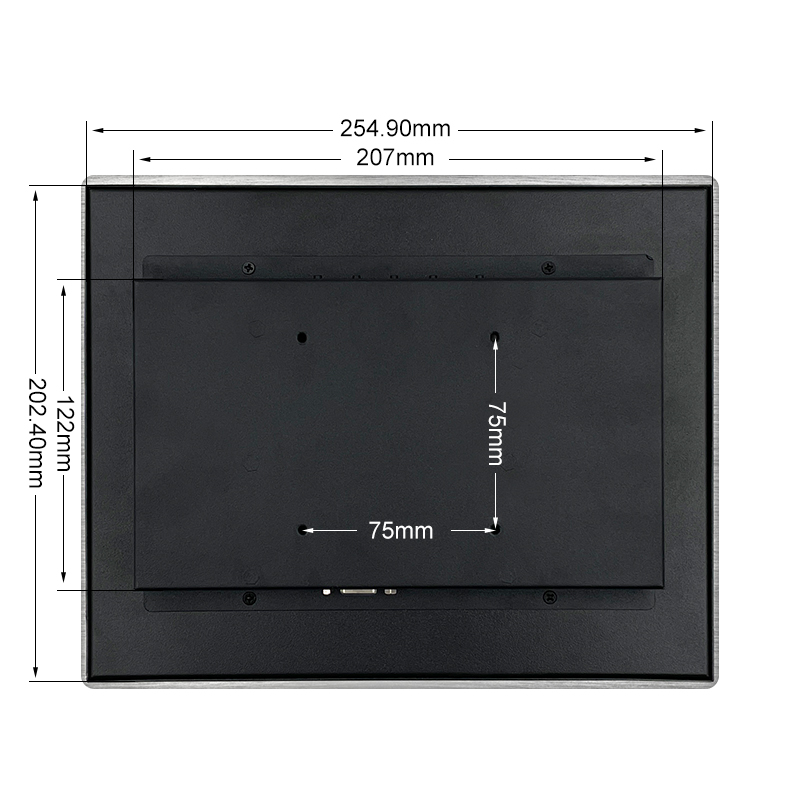

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |

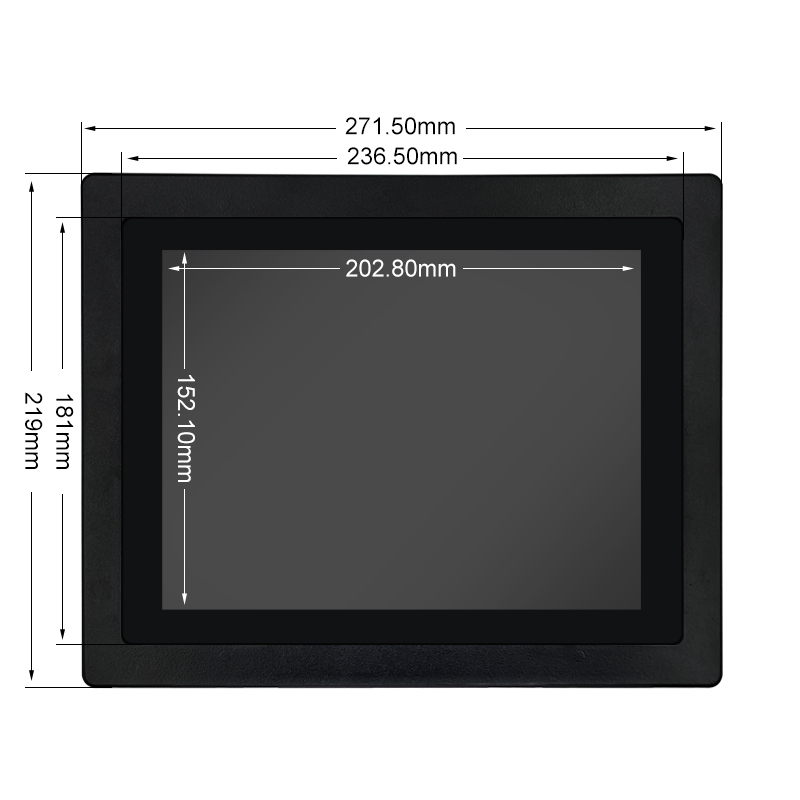

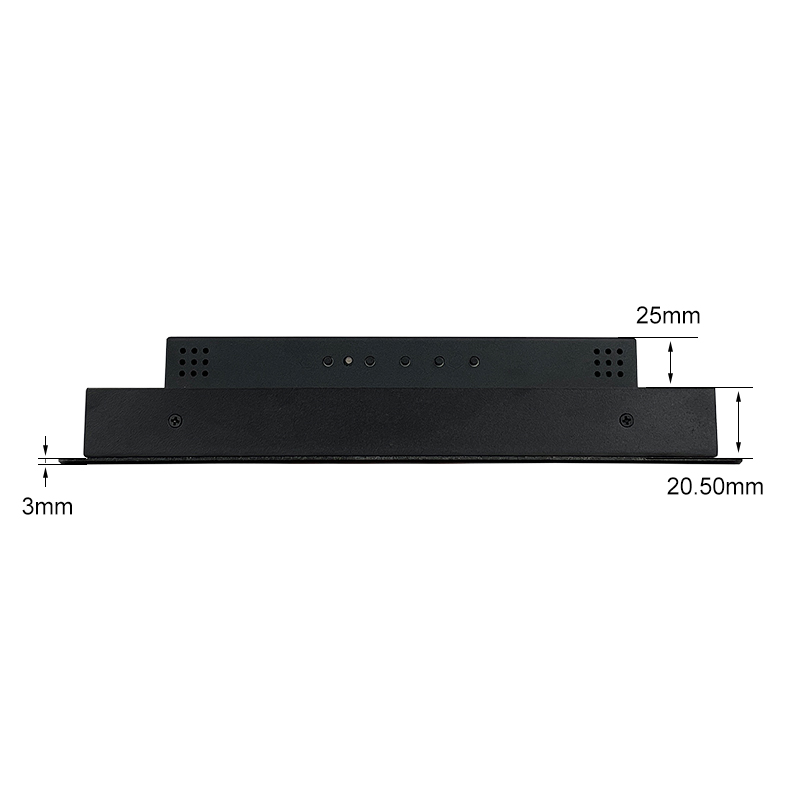

| Dimension (W*H*D) | 286*230*38 mm |
| Weight | 1.78 kg |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, USB touch cable, power adapter, warranty card and manual. | |
