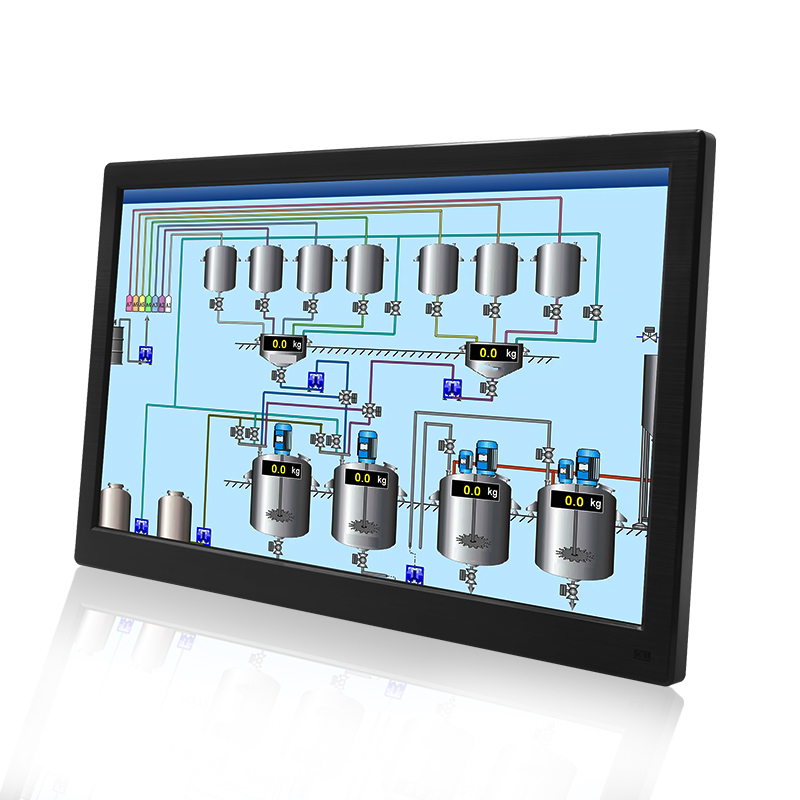

15.6 Inch 1366*768 HDMI VGA AV BNC USB Non Screen Speaker Remote TFT Gaming IPS OEM ODM Industrial Factory Game Monitor
Model No :B156-GM
| Datasheet | |
| Model | B156-GM |
| Size | 15.6" |
| Active Area | 340*190.2 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 16 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |
| Video Inputs/Outputs | HDMI,VGA,DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |
| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |
| Dimension (W*H*D) | 380*280.8*30.5 mm |
| Weight | 1.88 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |
| Accessories: stand/ VESA mount kit, warranty card, VGA/HDMI/BNC cable , power adapter, manual | |
