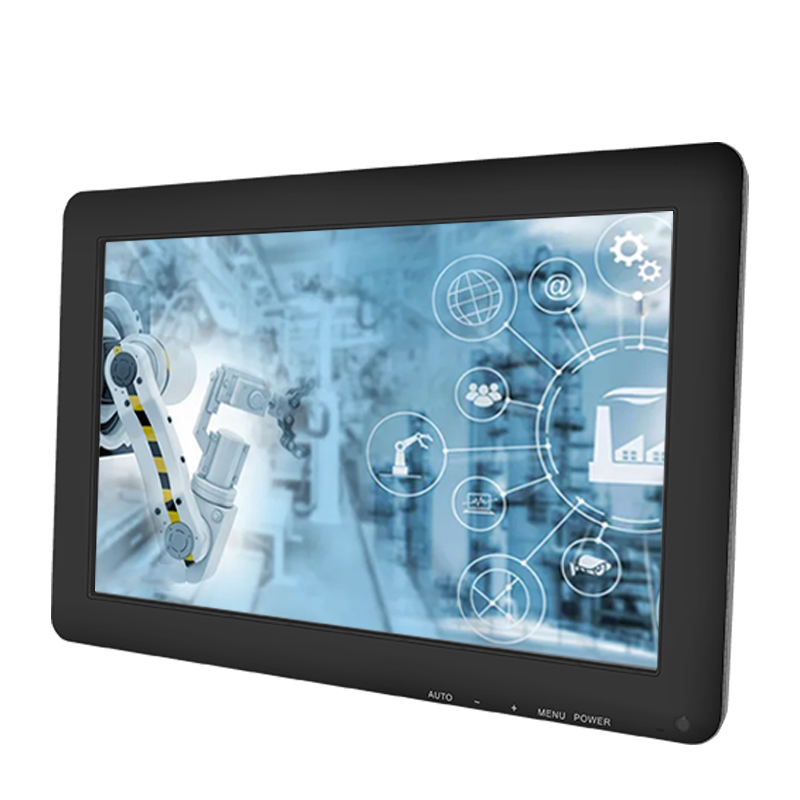

12.1 Inch 1280*800 HDMI VGA AV BNC USB Non Screen Speaker Remote TFT Gaming IPS OEM ODM Industrial Factory Game Monitor
Model No :B121-GM
| Datasheet | |
| Model | B121-GM |
| Size | 12.1" |
| Active Area | 260*165 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1280*800 |
| Acpect Ratio | 16:10 |
| Contrast | 250:1 |
| Brightness | 330 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

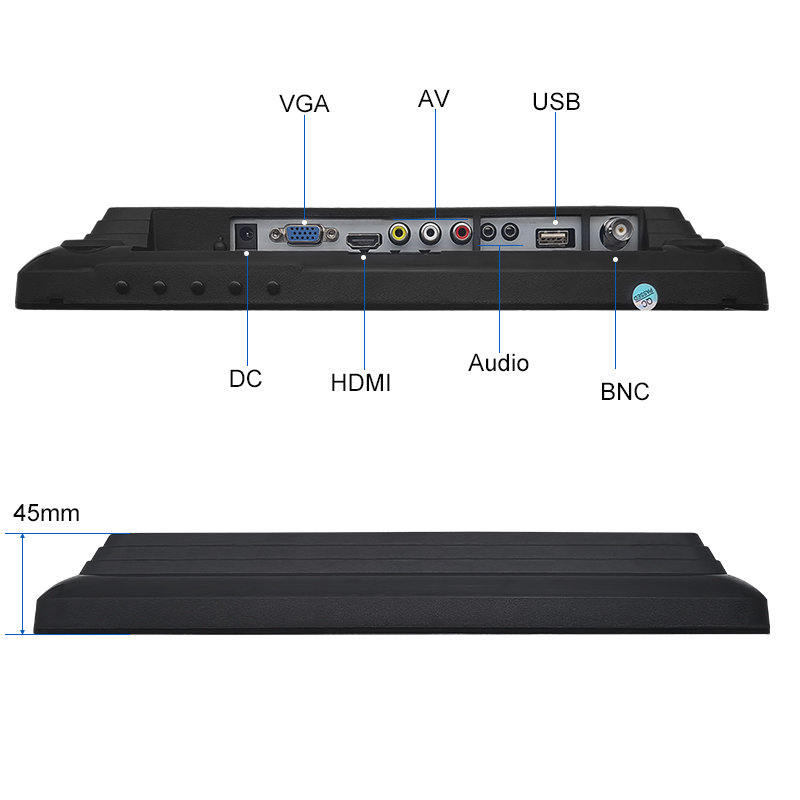

| Video Inputs/Outputs | VGA/HDMI/BNC/AV/USB/Audio input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

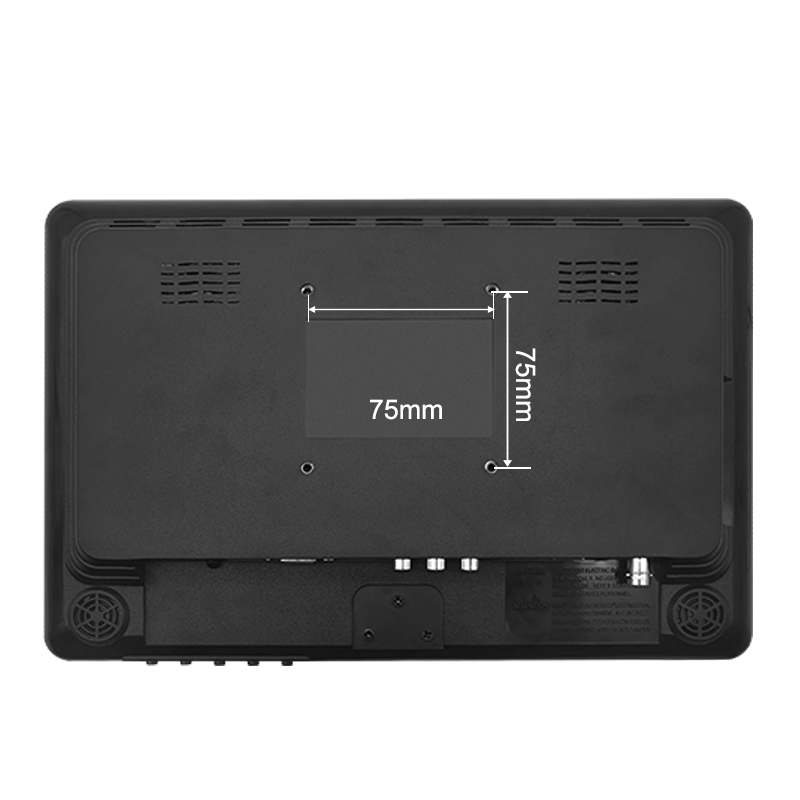

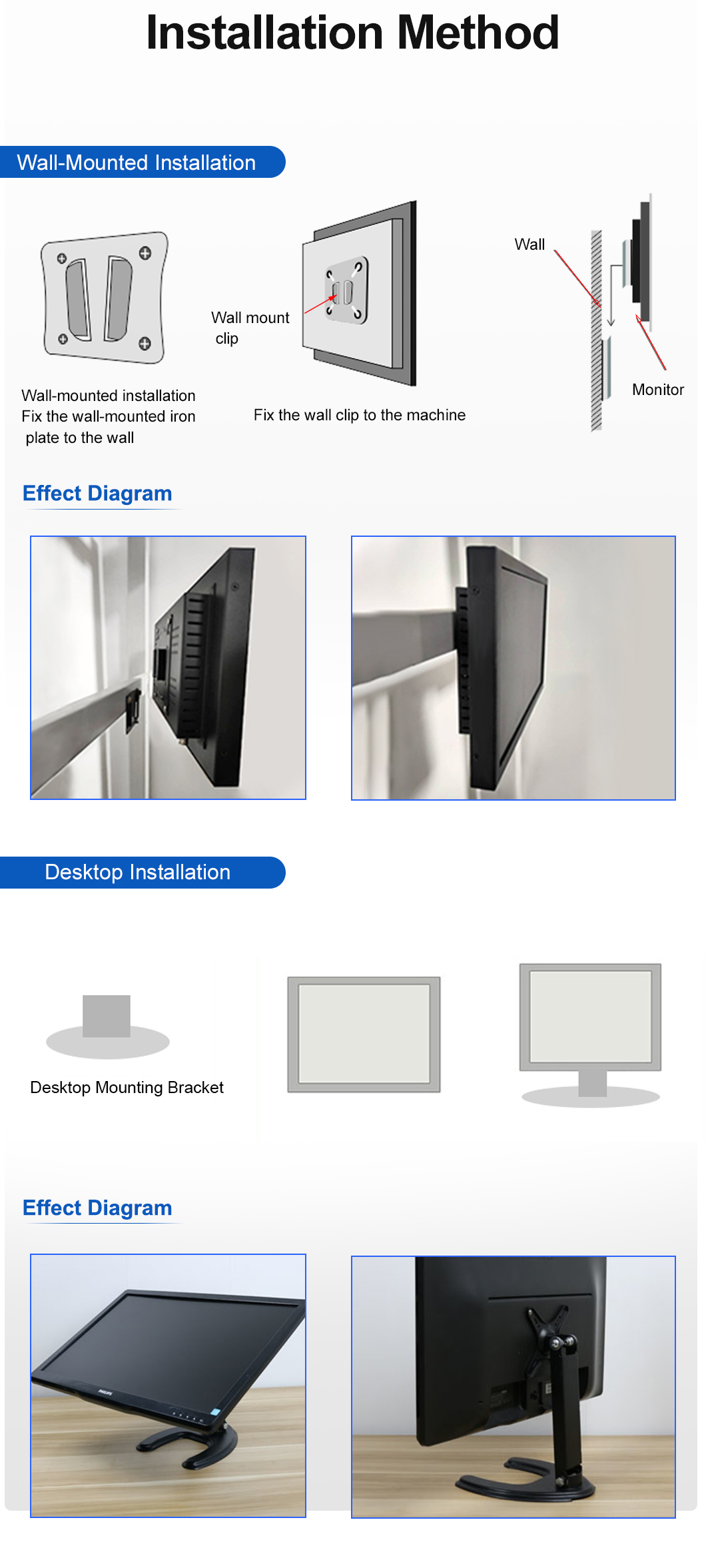

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

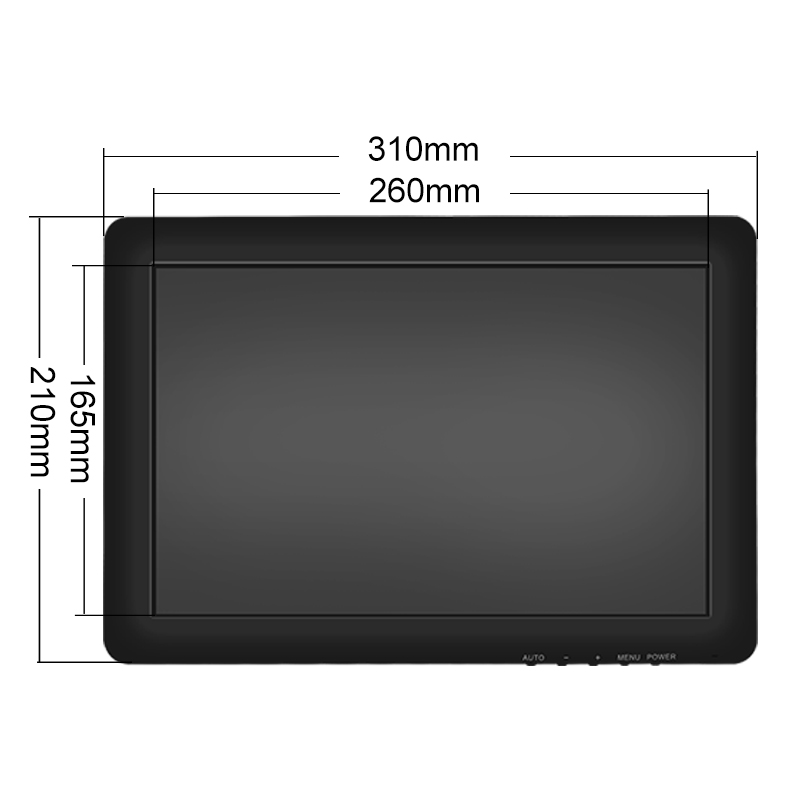

| Dimension (W*H*D) | 310*210*45 mm |
| Weight | 1.77 kg |
| Control | OSD Control |
| Accessories | Power Adatper, HDMI/VGA cable, stand / wall mount kit, manual warranty card |
| Certificates | CE/FCC/ROHS |
