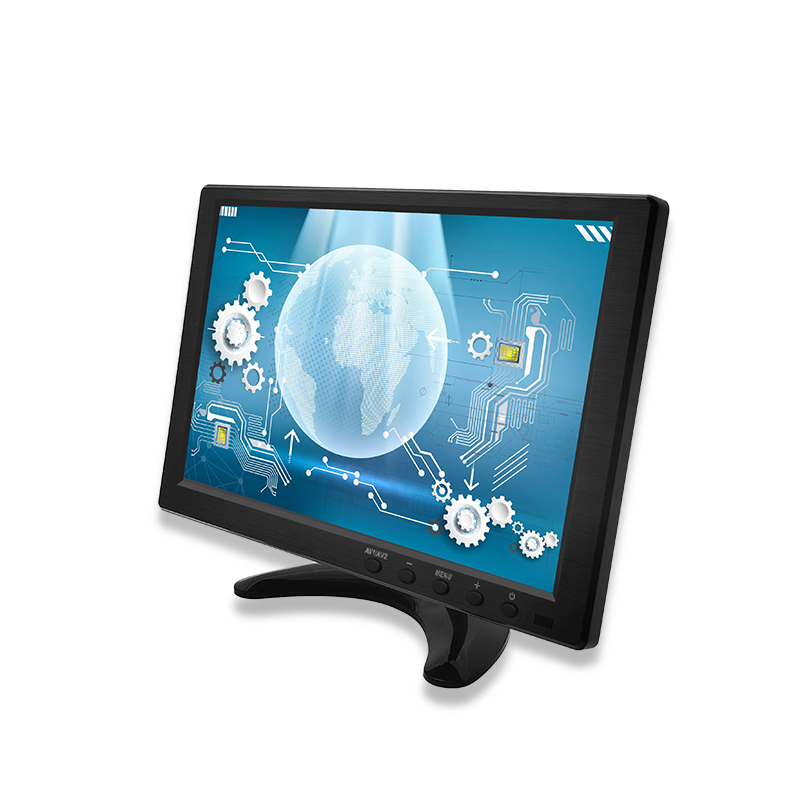

10.1 Inch 1024*600 & IPS1280*800 HDMI VGA AV BNC USB Non Screen Speaker Remote TFT Gaming IPS OEM ODM Industrial Factory Game Monitor
Model No :B101-GM
| Datasheet | |
| Model | B101-GM |
| Size | 10.1" |
| Active Area | 202.8*152.1 mm |
| Panel Type | TFT-LCD & IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024x600 & IPS1280*800 |
| Acpect Ratio | 16:9 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

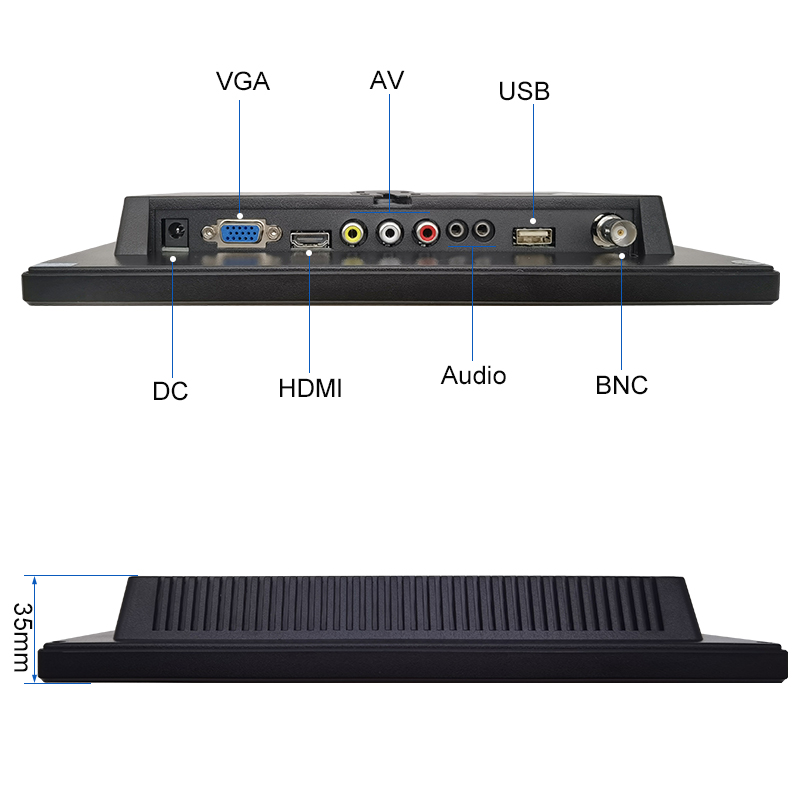

| Video Inputs/Outputs | VGA/AV/BNC/HDMI/ USB/RLV input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

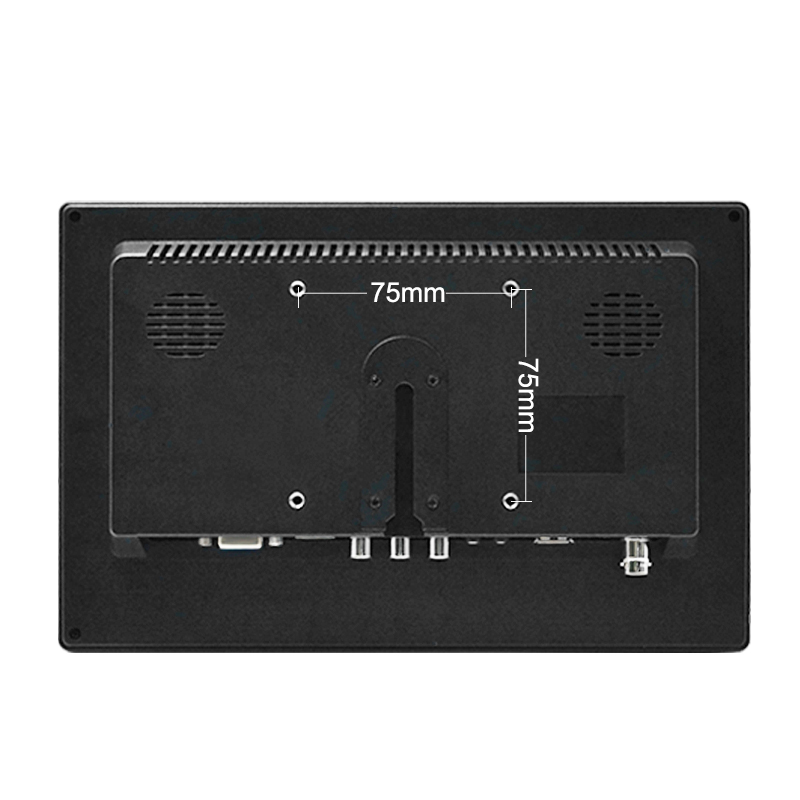

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

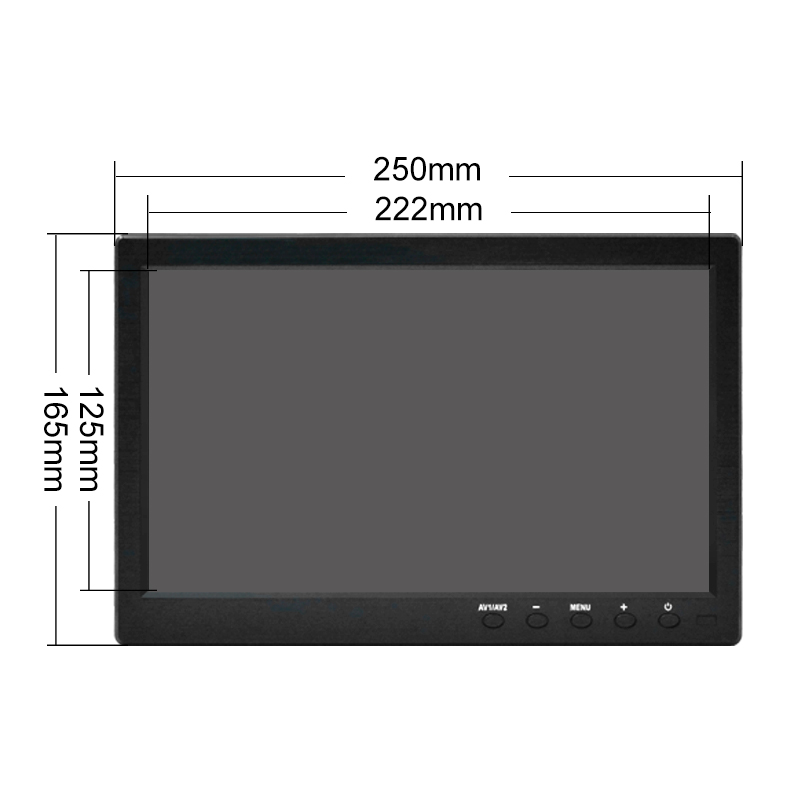

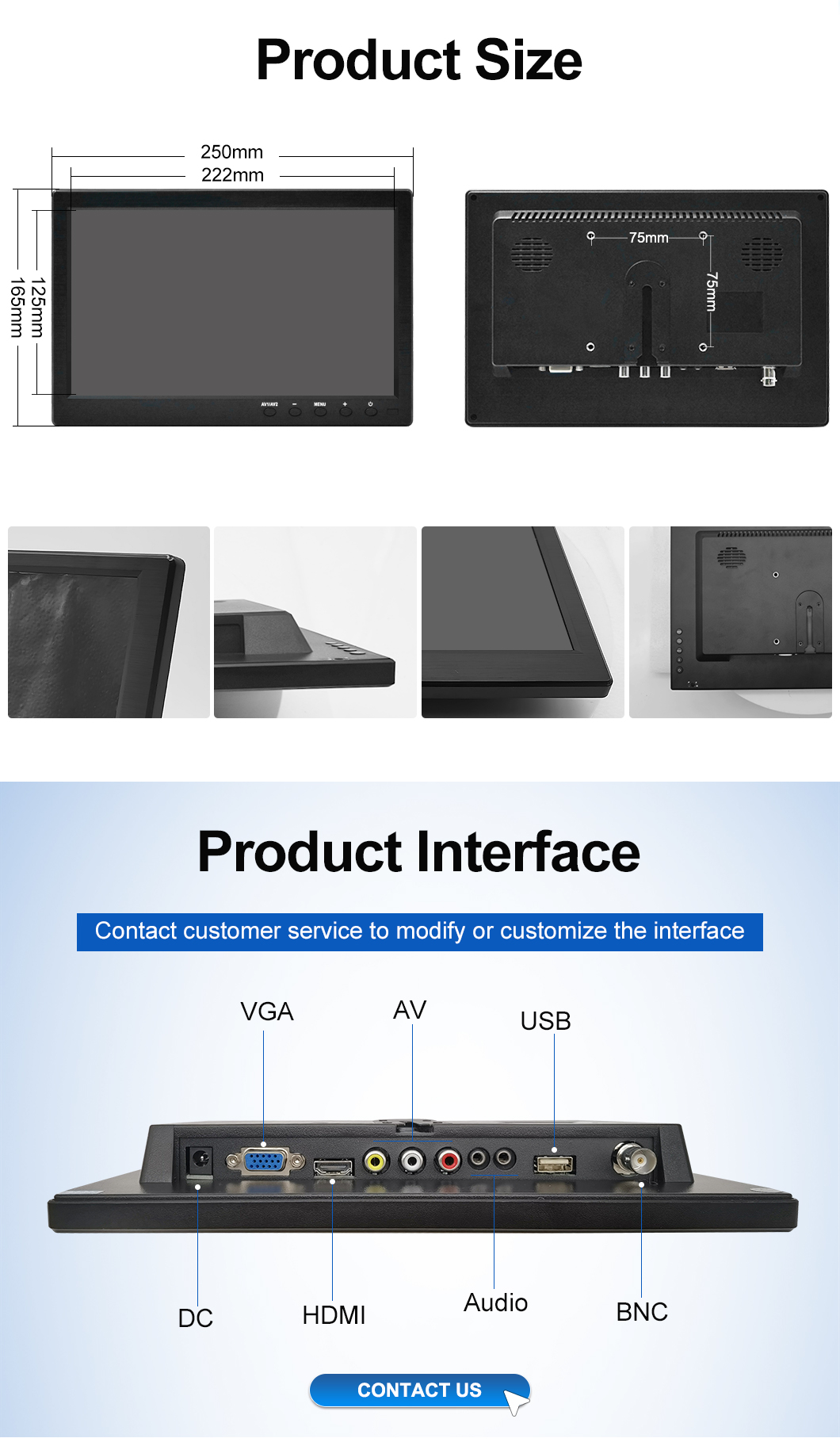

| Dimension (W*H*D) | 26.8*18.1*4CM |
| Weight | 0.66 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS |
| Accessories: stand/ VESA mount kit, warranty card, VGA/HDMI/BNC cable , power adapter, manual | |
