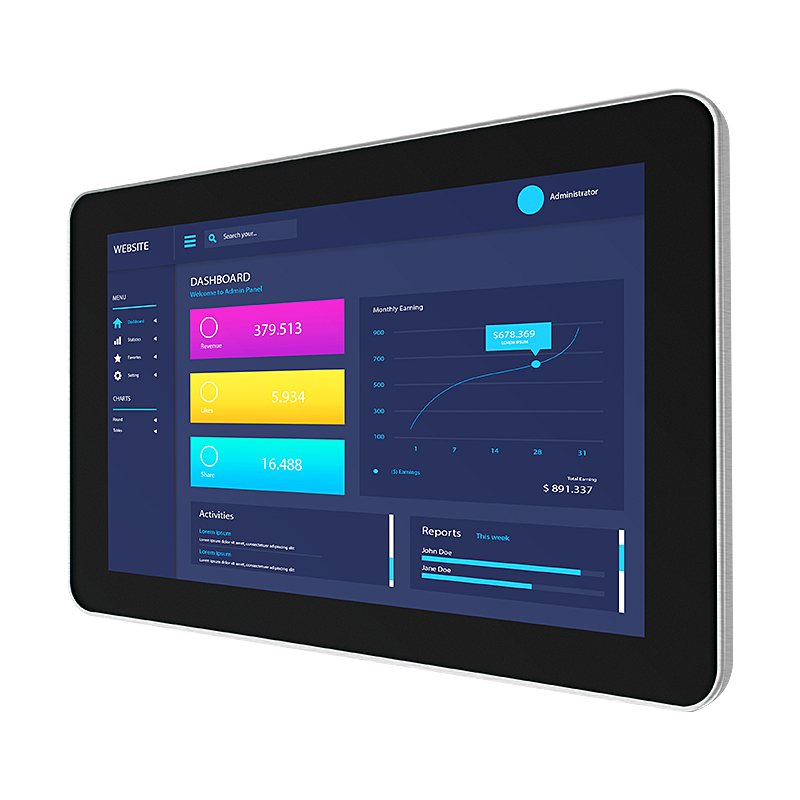

11.6 Inch 1366*768 & IPS1920*1080 HDMI VGA AV BNC Non Touch Screen Aluminum Frame TFT Wall Mounted OEM ODM Industrial LCD Monitor
Model No :B116-R
| Datasheet | |
| Size | 11.6" |
| Touch Panel | G+G |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 & IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 700:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

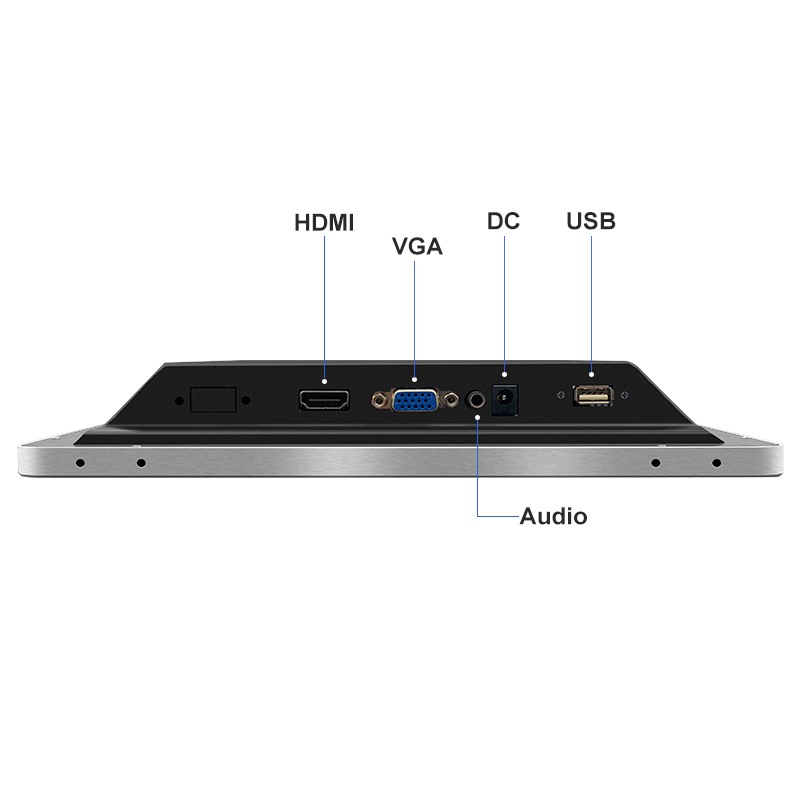

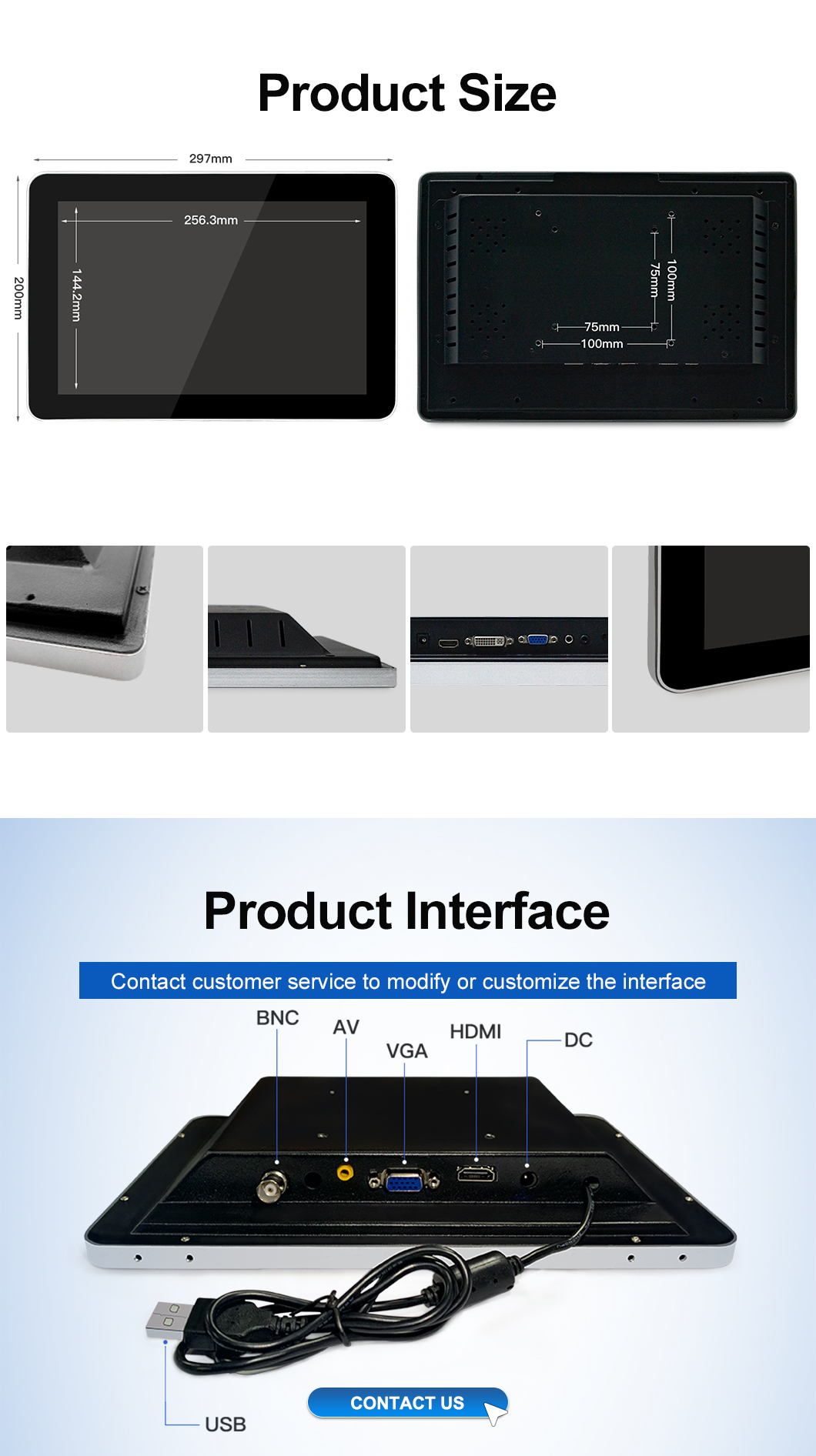

| Video Inputs/Outputs | VGA+HDMI |
| Audio Inputs/Outputs | N/A |
| Touch | Non touch |

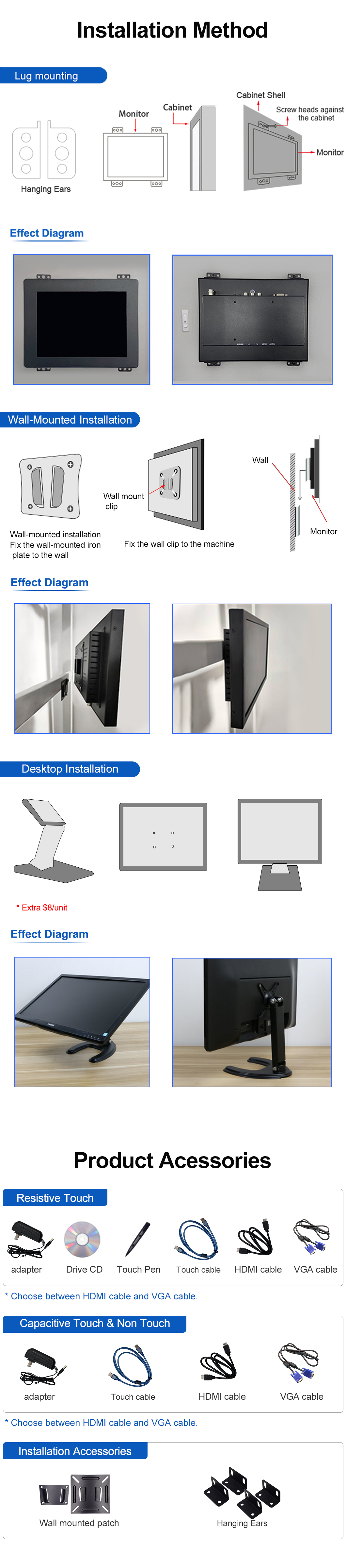

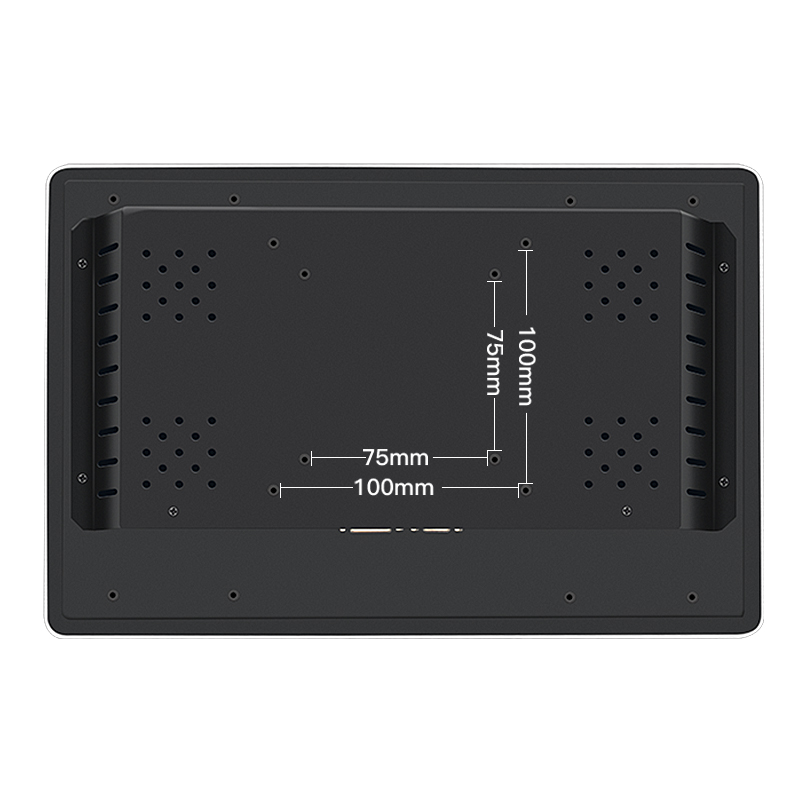

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Max Touch Points | 10 |

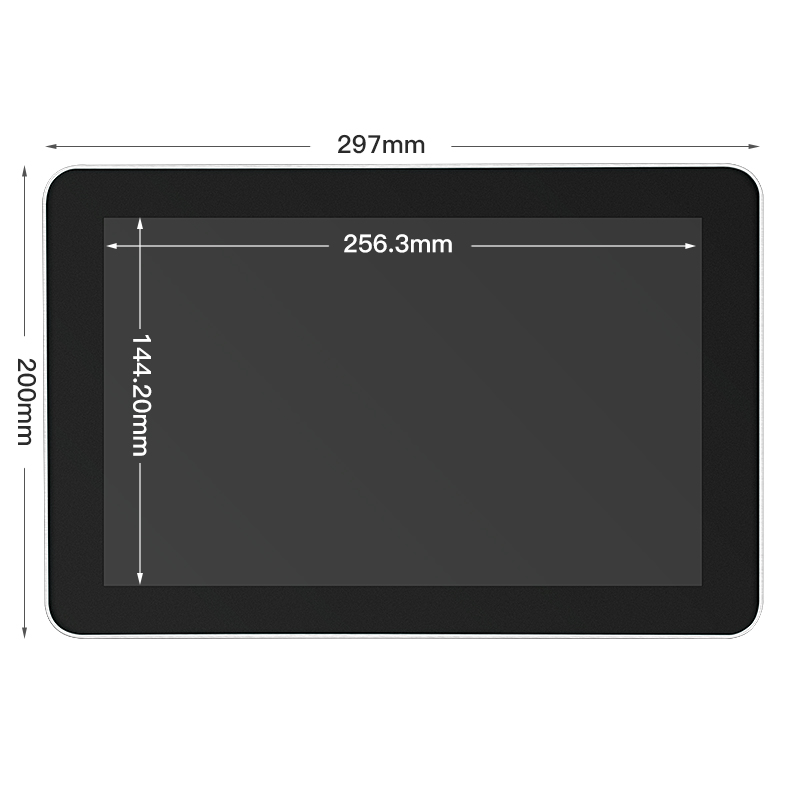

| Dimension (W*H*D) | 297*200*42.6 mm |
| Weight | 1.56 kg |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, power adapter, warranty card and manual. | |
