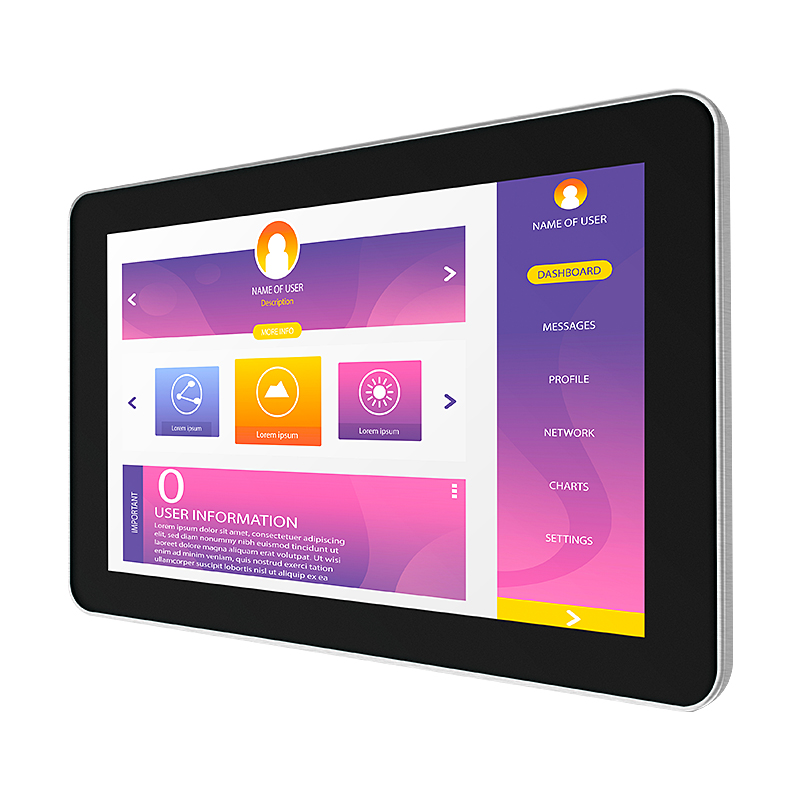

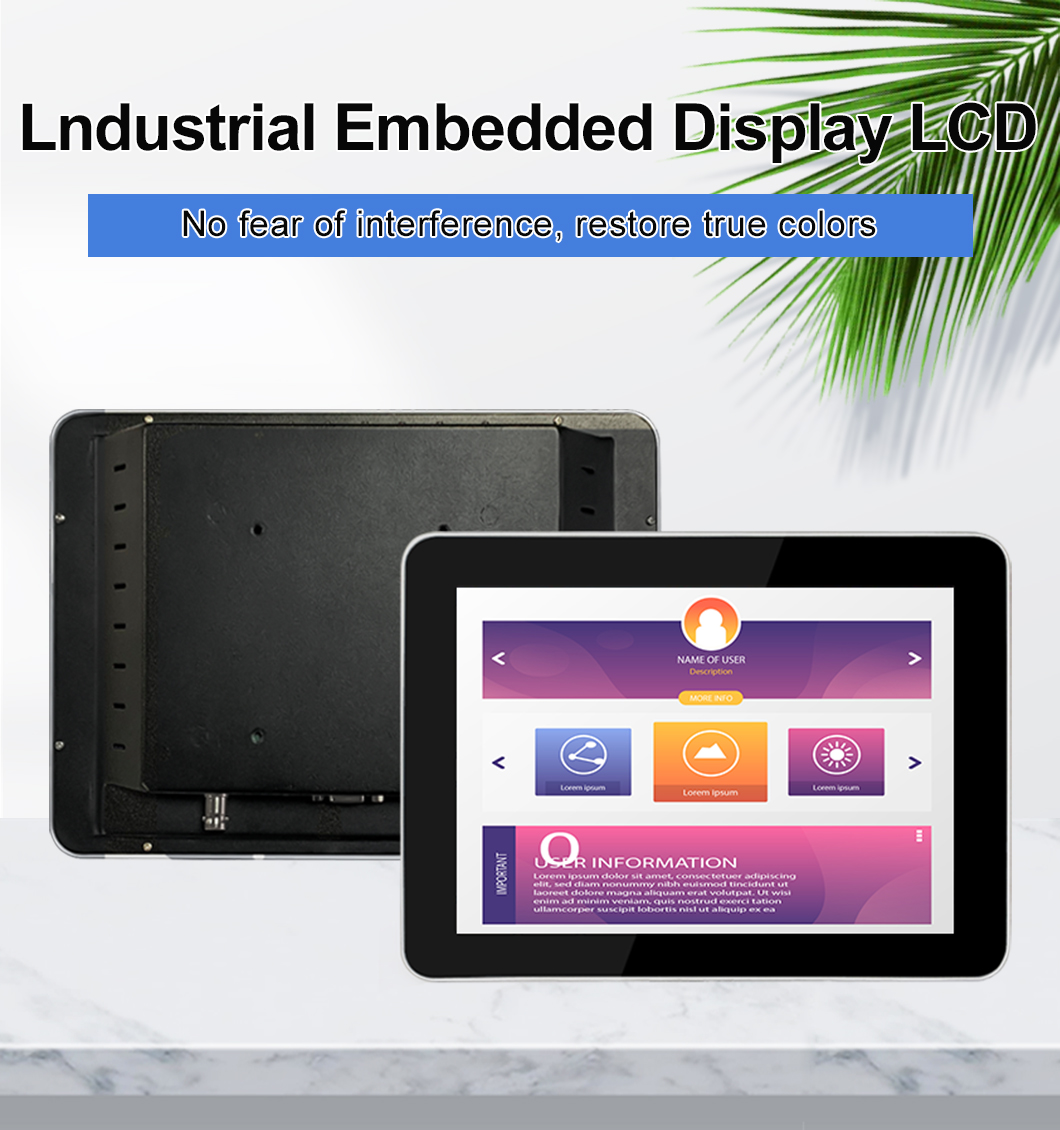

9.7 Inch IPS 1024*768 HDMI VGA AV BNC Capacitive Touch Screen Aluminum Frame TFT Wall Mounted OEM ODM Industrial LCD Monitor
Model No :B97-RT-A
| Datasheet | |
| Size | 9.7" |
| Touch Panel | G+G |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 500:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 8 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

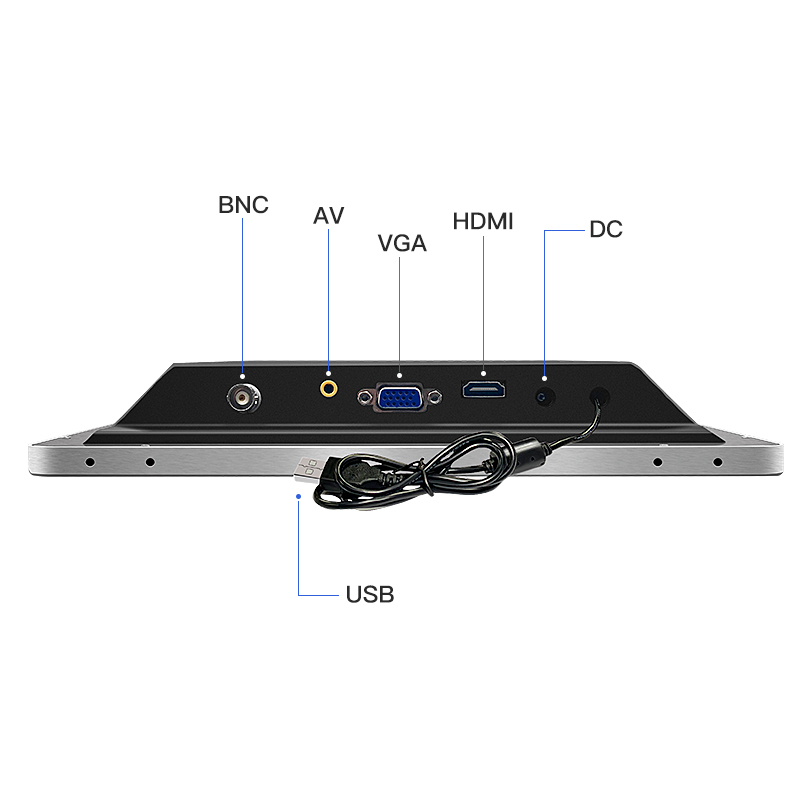

| Video Inputs/Outputs | VGA,AV,BNC,HDMI input*1; USB2.0 port; DC 12 V; USB for touch |
| Audio Inputs/Outputs | N/A |
| Touch | Project capacitive touch |
| Touch control | Industrial EETI touch |

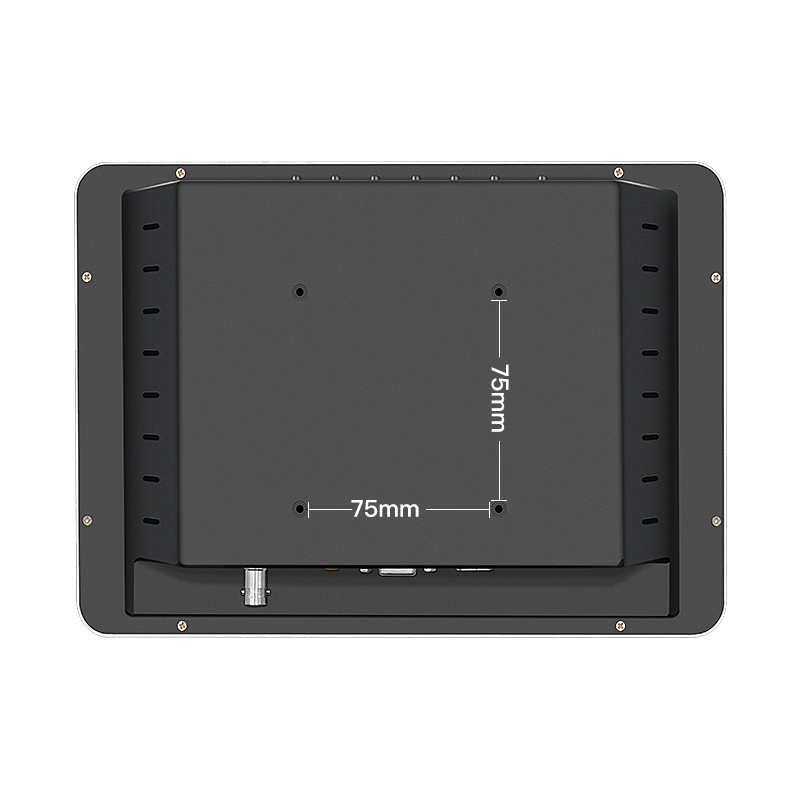

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |

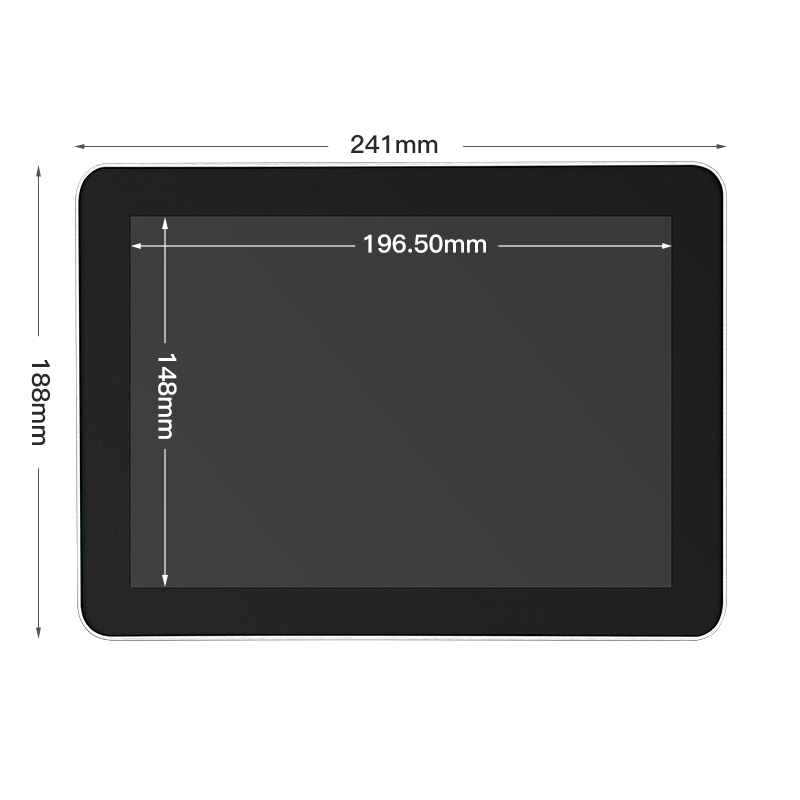

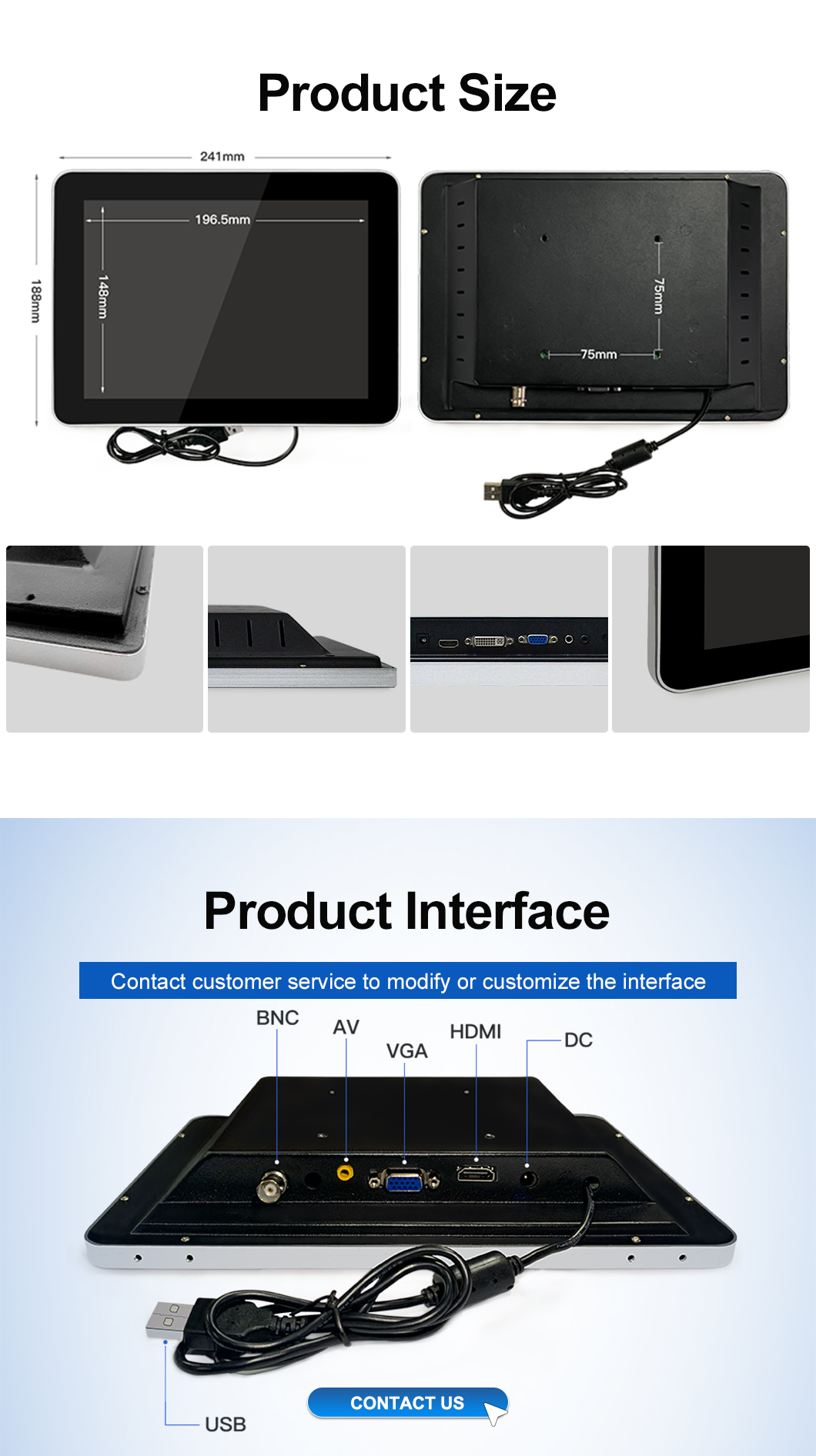

| Dimension (W*H*D) | 230*181*34 mm |
| Weight | 1.5 kg |
| Certificates | CE/FCC/ROHS/CCC |

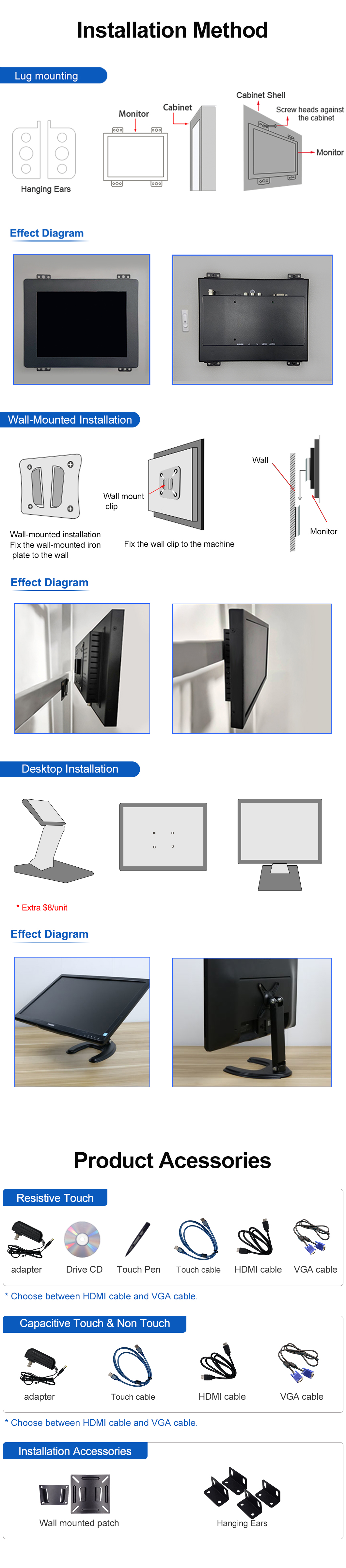

| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, USB touch cable, power adapter, warranty card and manual. | |
