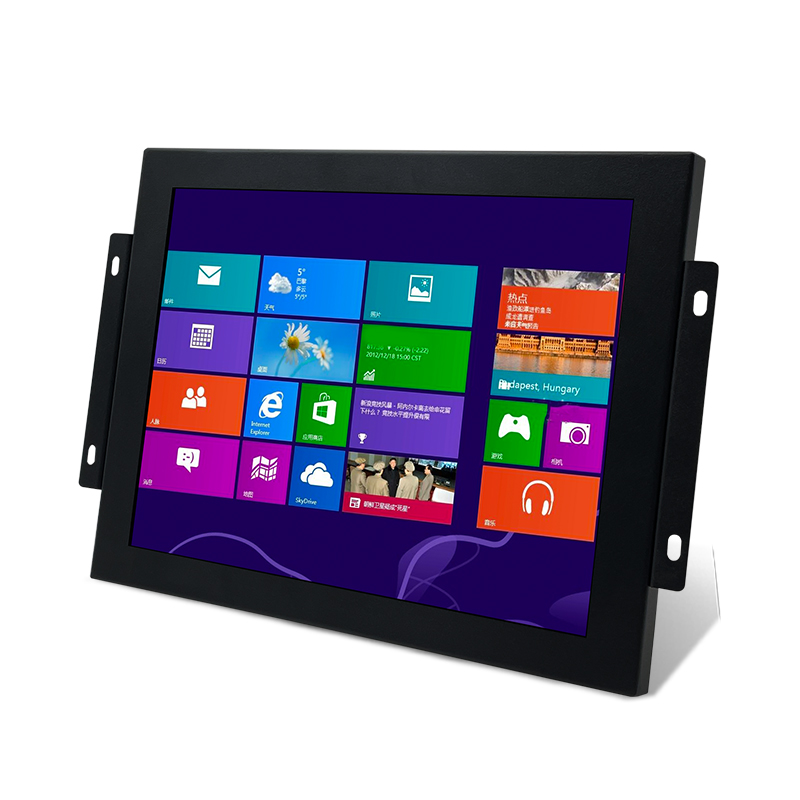

21.5 Inch 1920*1080 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B215-JJS-ZT
| Datasheet | |
| Size | 21.5" metal touch |
| Active Area | 476*268 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 6ms |
| Display Color | 262K |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |

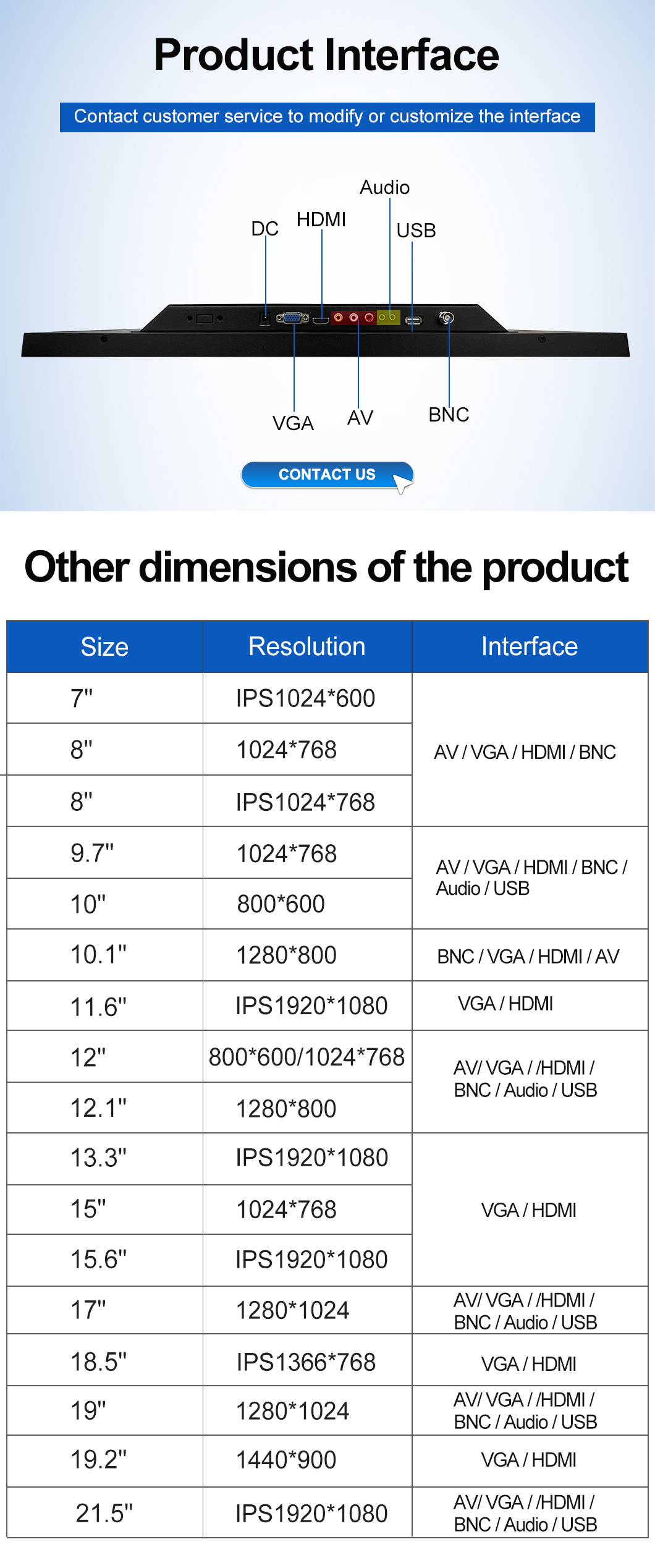

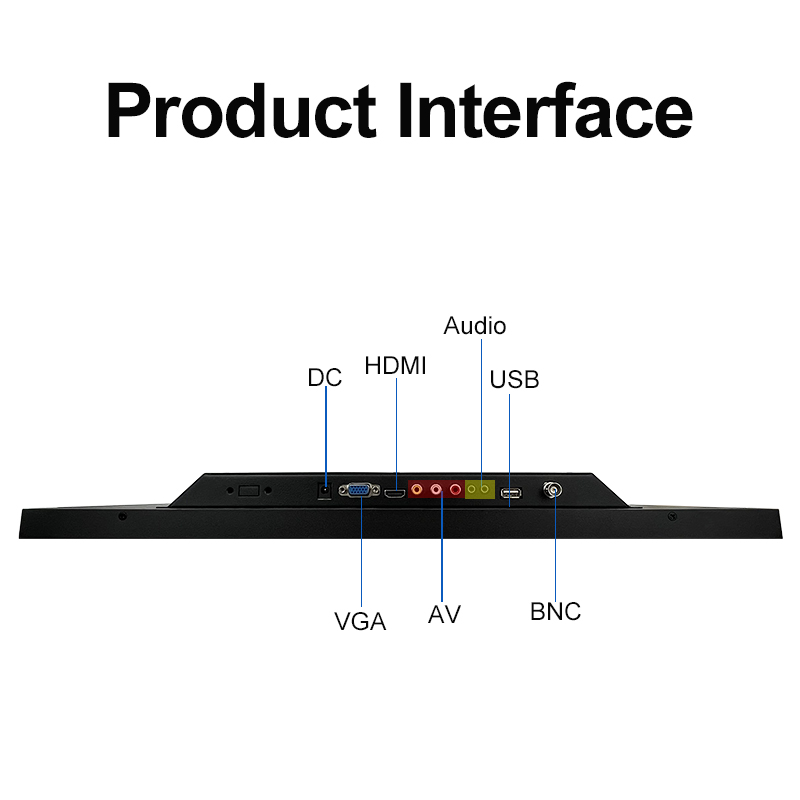

| Video Inputs/Outputs | HDMI+VGA+BNC+USB+RLV+DC |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

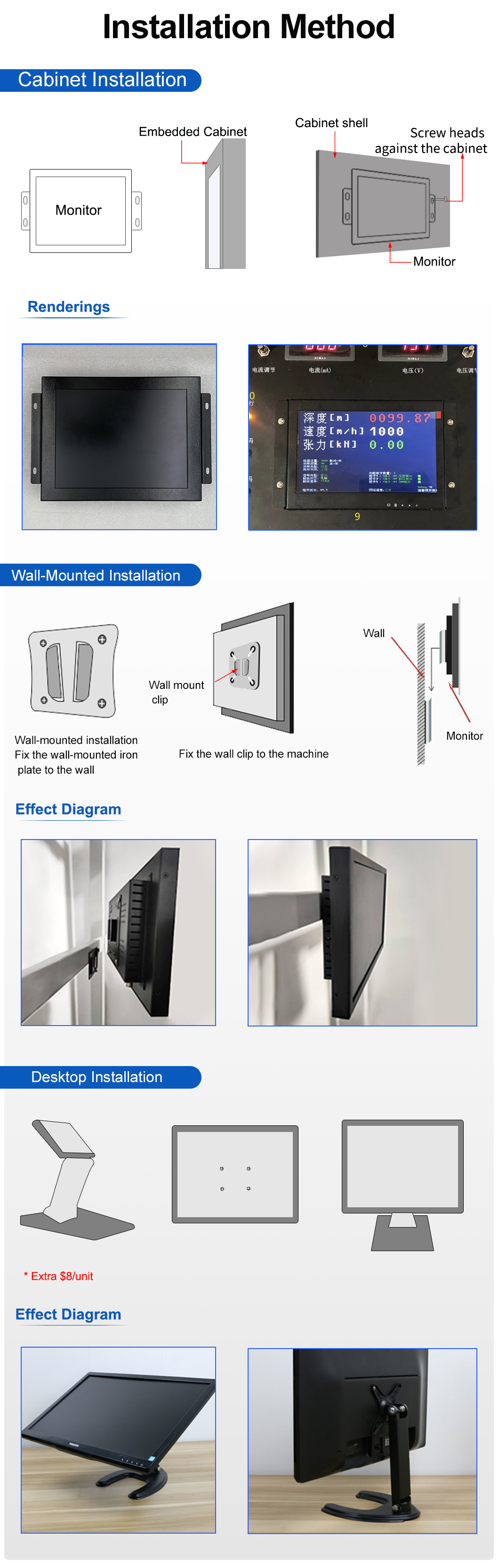

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

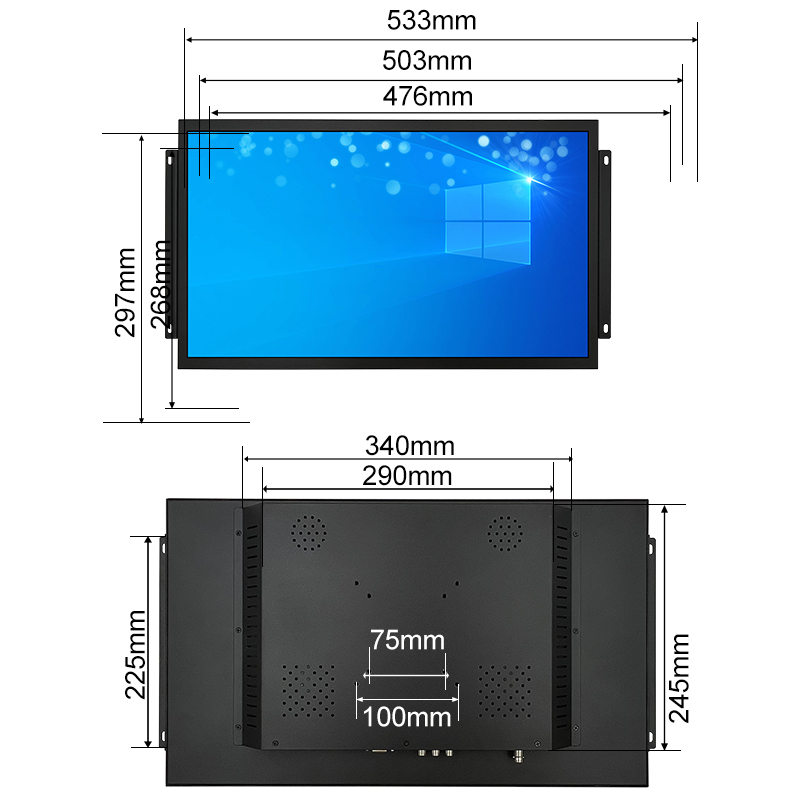

| Product Size | 533*297*46 mm |
| Net Weight | 5.85 KGS |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/ Long Hanging ears , VGA cable/HDMI cable , USB cable, touch pen, flash drive, 12V DC 1A power adapter, manual, warranty card | |
