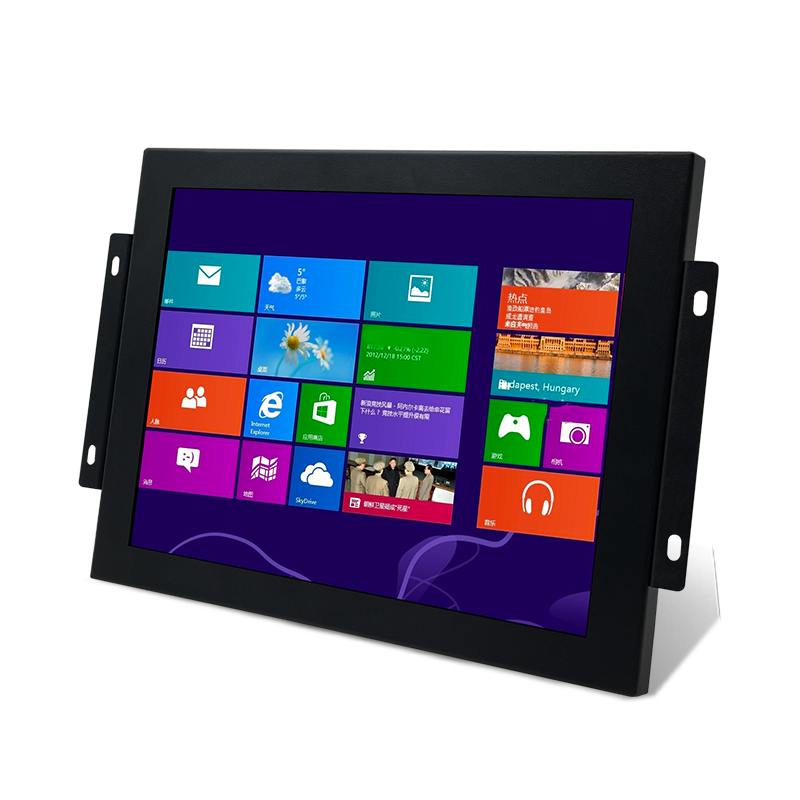

19.2 Inch 1440*900 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B192-JJS
| Datasheet | |
| Model | B192-JJS |
| Size | 19.2" |
| Active Area | 410*231 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1440*900 |
| Acpect Ratio | 16:10 |
| Contrast | 800:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 160/160 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

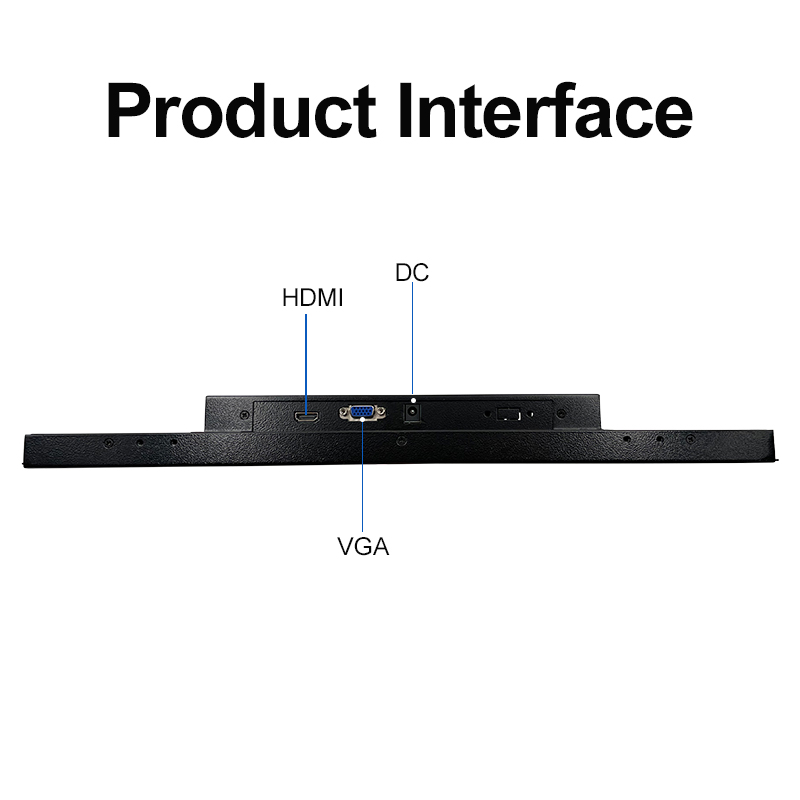

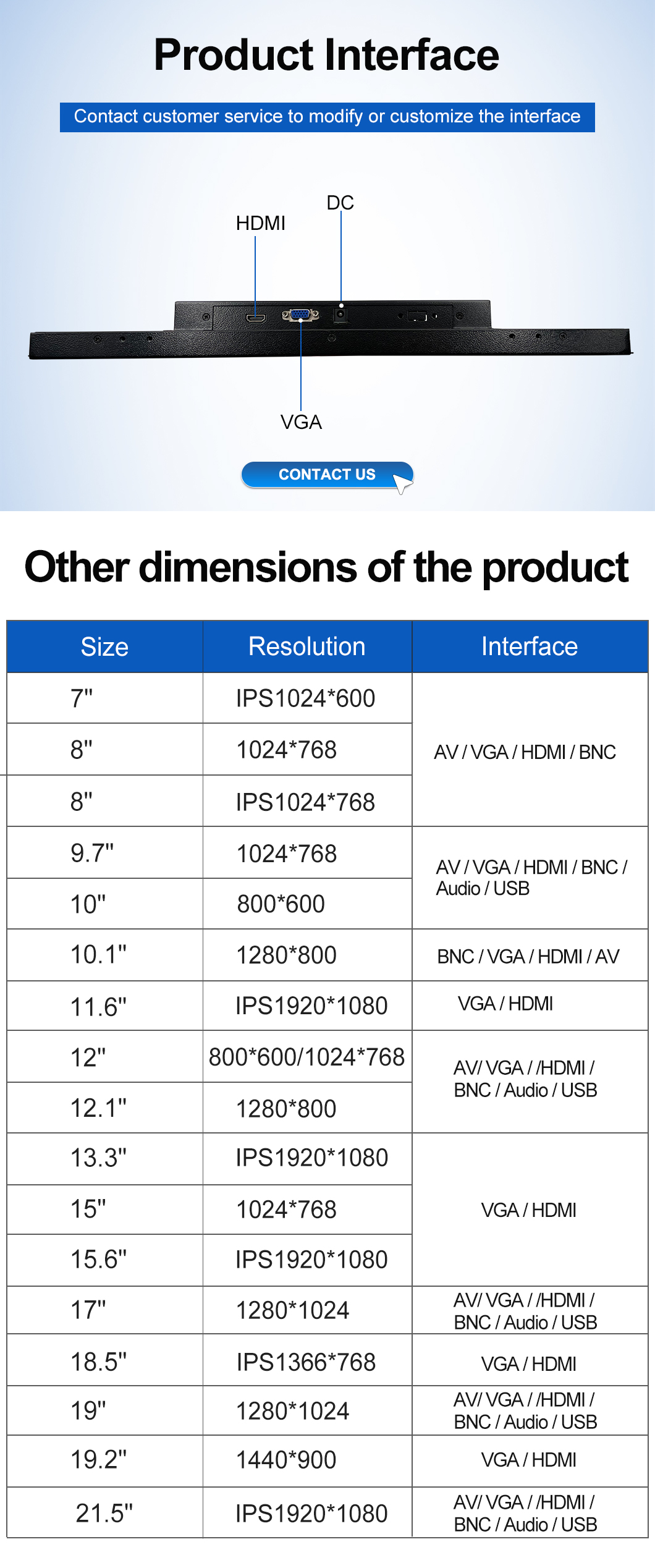

| Video Inputs/Outputs | VGA/HDMI/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

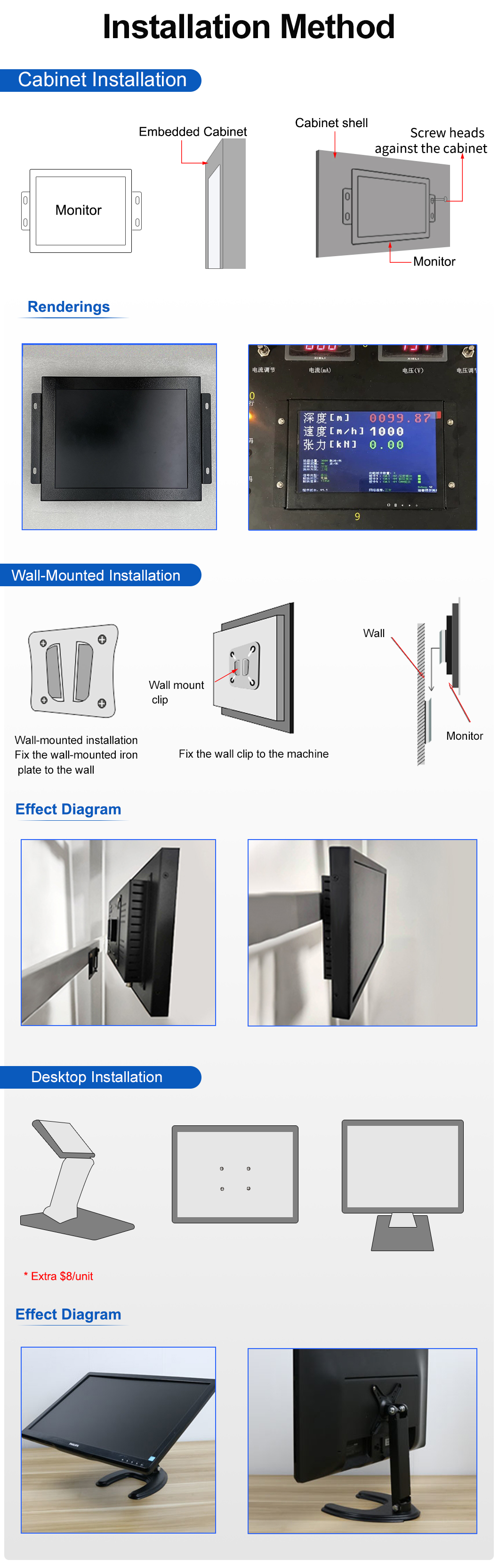

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

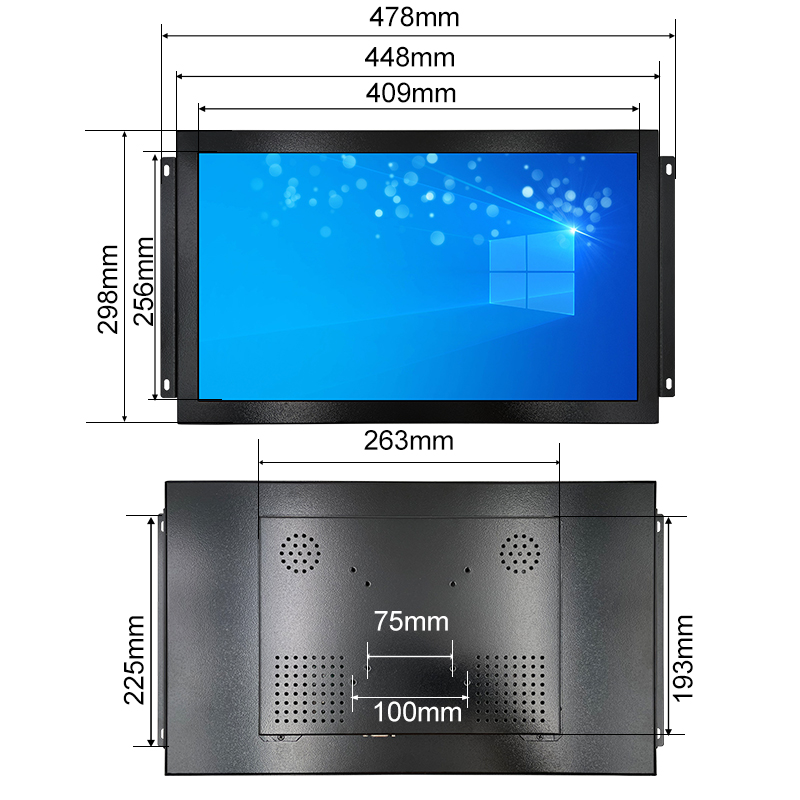

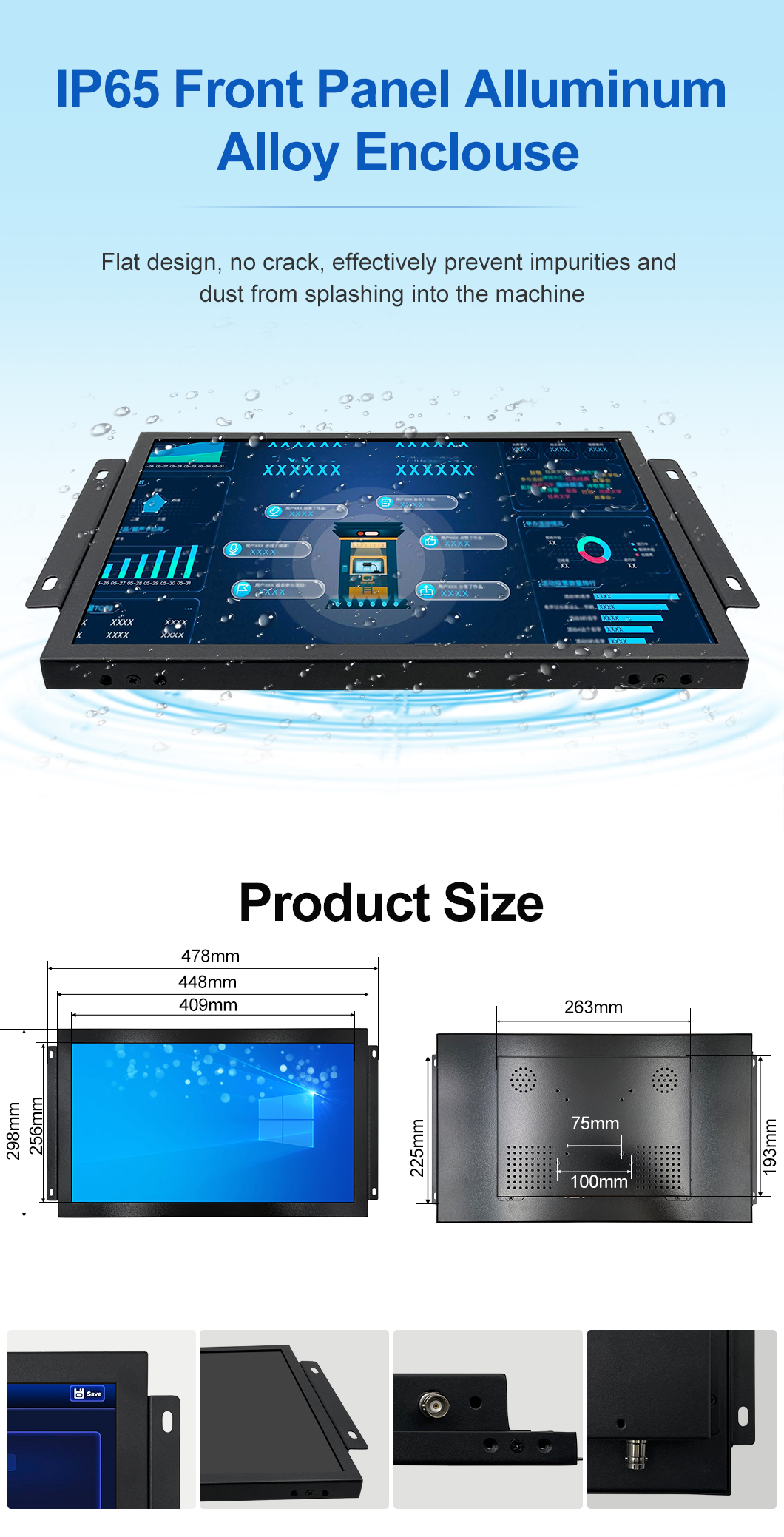

| Dimension (W*H*D) | 483*275*45 mm |
| Weight | 2.55kg |
| Control | OSD Control |
| Accessories | Power Adatper/VGA cable |
| Certificates | CE/FCC/ROHS |
| Accessories:VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
