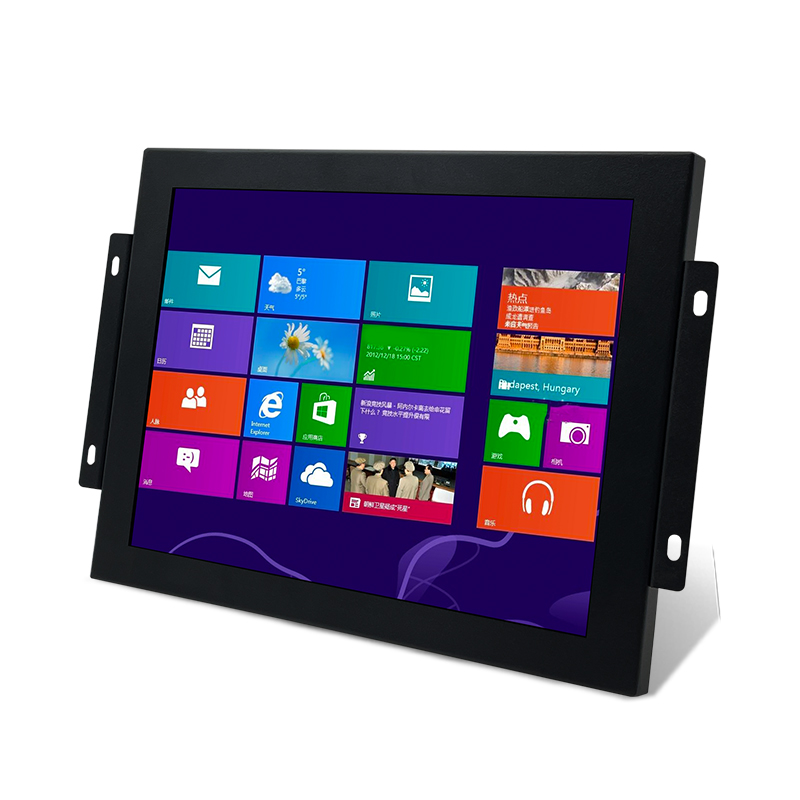

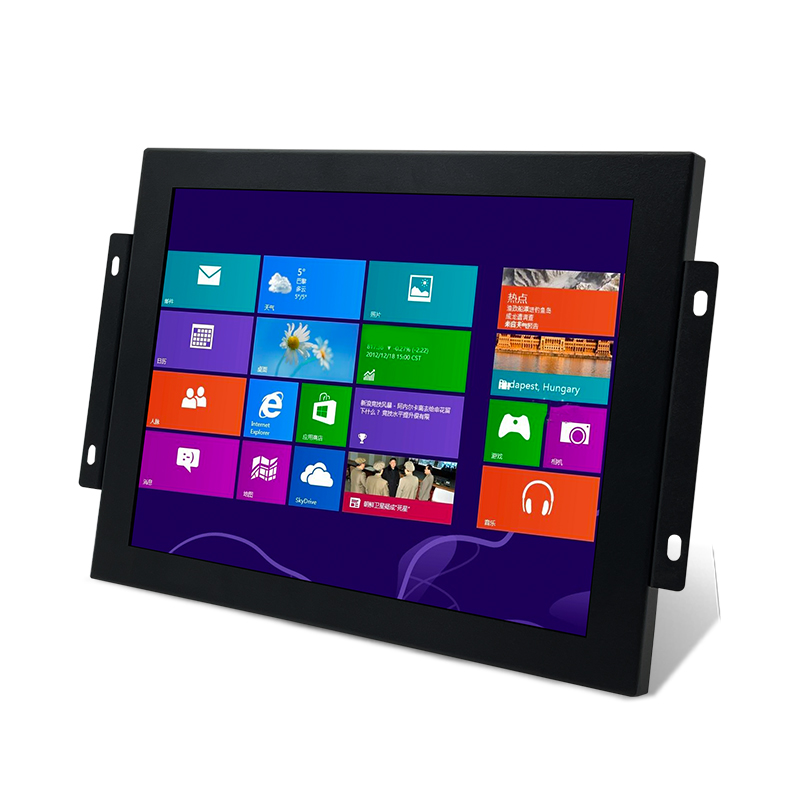

18.5 Inch IPS1366*768 & IPS1920*1080 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B185-JJS
| Datasheet | |
| Model | B185-JJS |
| Size | 18.5" |
| Active Area | 409.8*230.4 mm |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | IPS1366*768 & IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

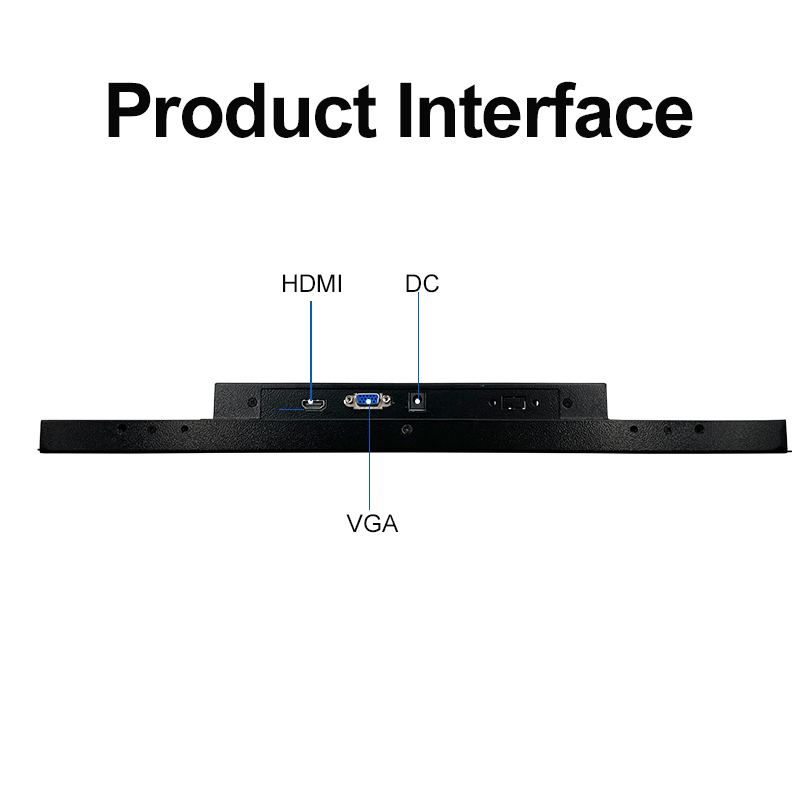

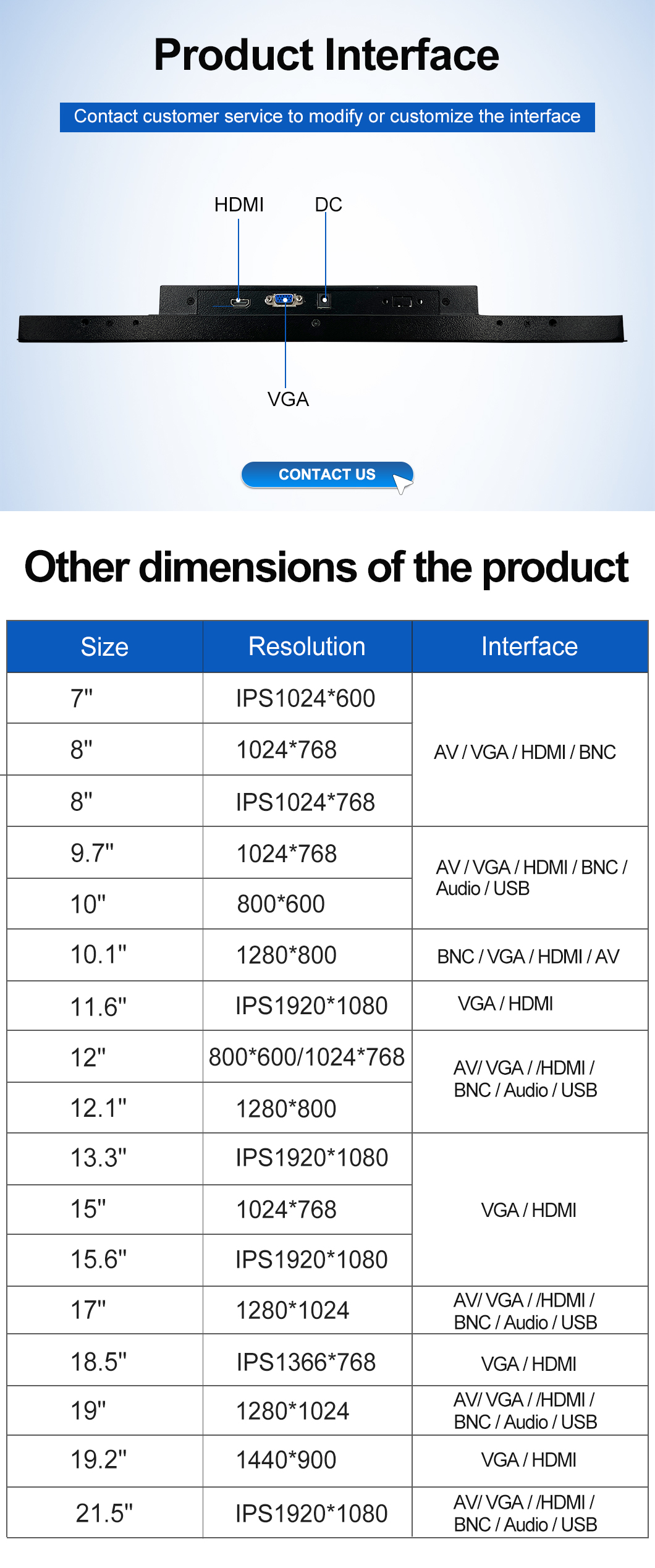

| Video Inputs/Outputs | HDMI/VGA/BNC/Audio/RLV/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

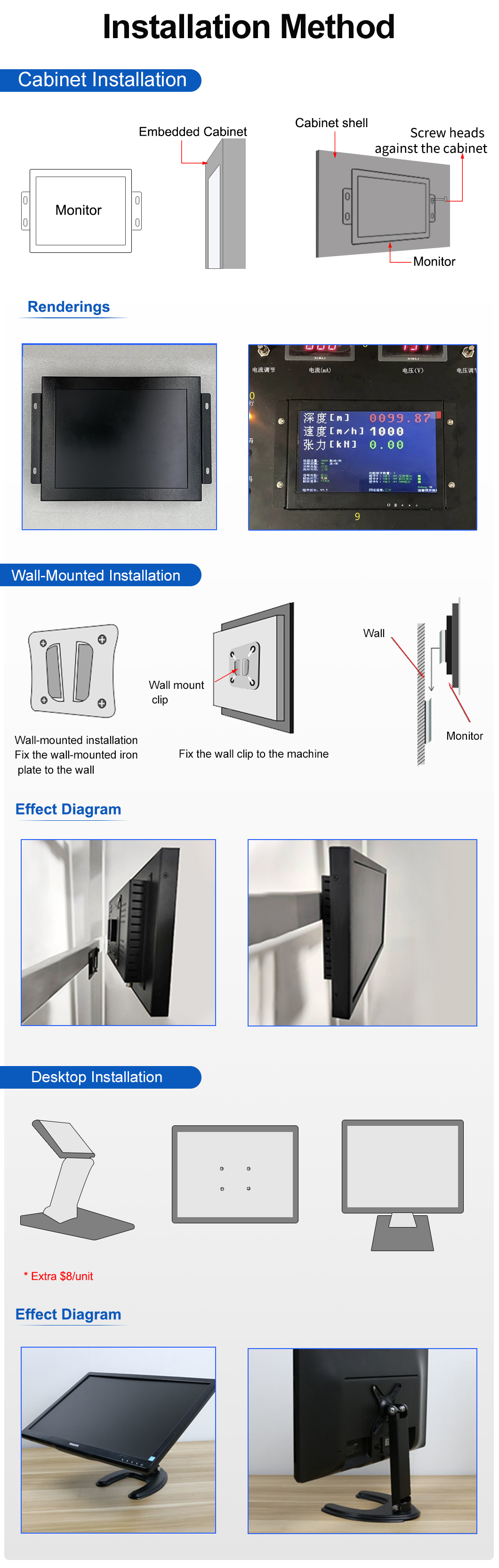

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

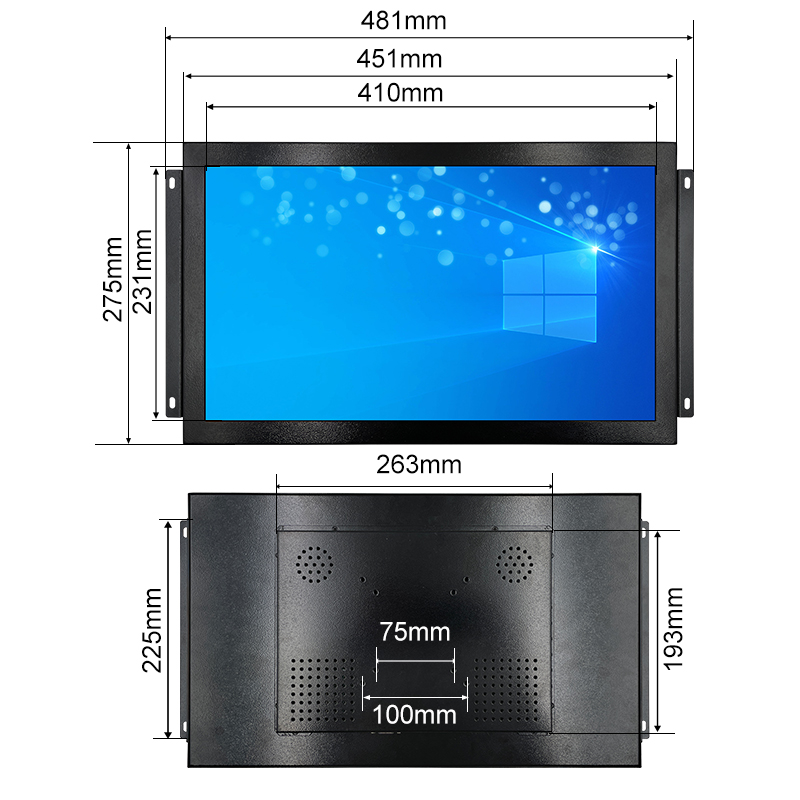

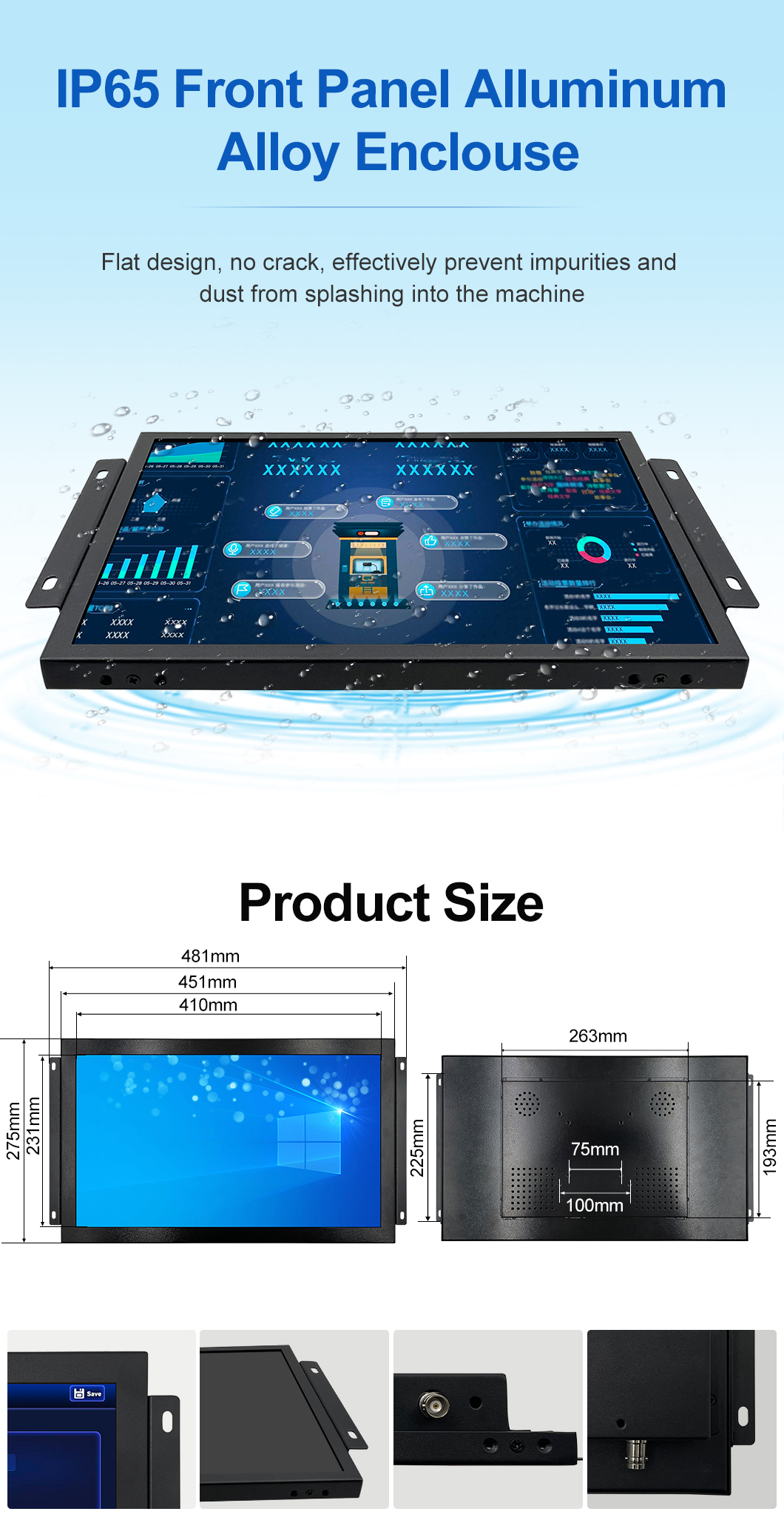

| Dimension (W*H*D) | 454*284*40 mm |
| Weight | 4.85kg |
| Control | OSD Control |
| Accessories | Power Adatper/VGA cable |
| Certificates | CE/FCC/ROHS |
| Accessories:VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
