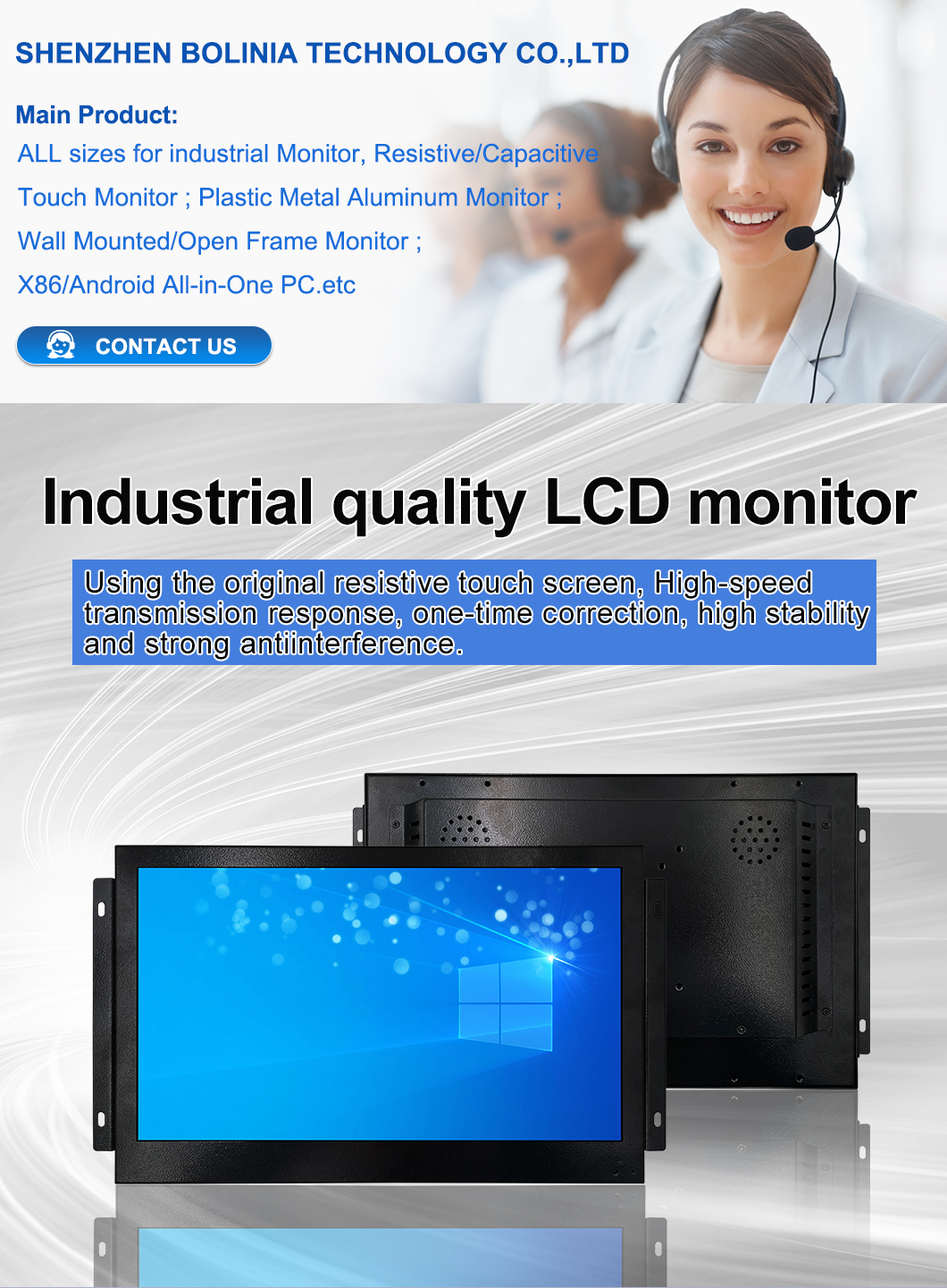

15.6 Inch 1366*768 *IPS1920*1080 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B156-JJS
| Datasheet | |
| Model | B156-JJS |
| Size | 15.6" |
| Active Area | 347*195 mm |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 & IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 500:1 |
| Brightness | 200 cd/m |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

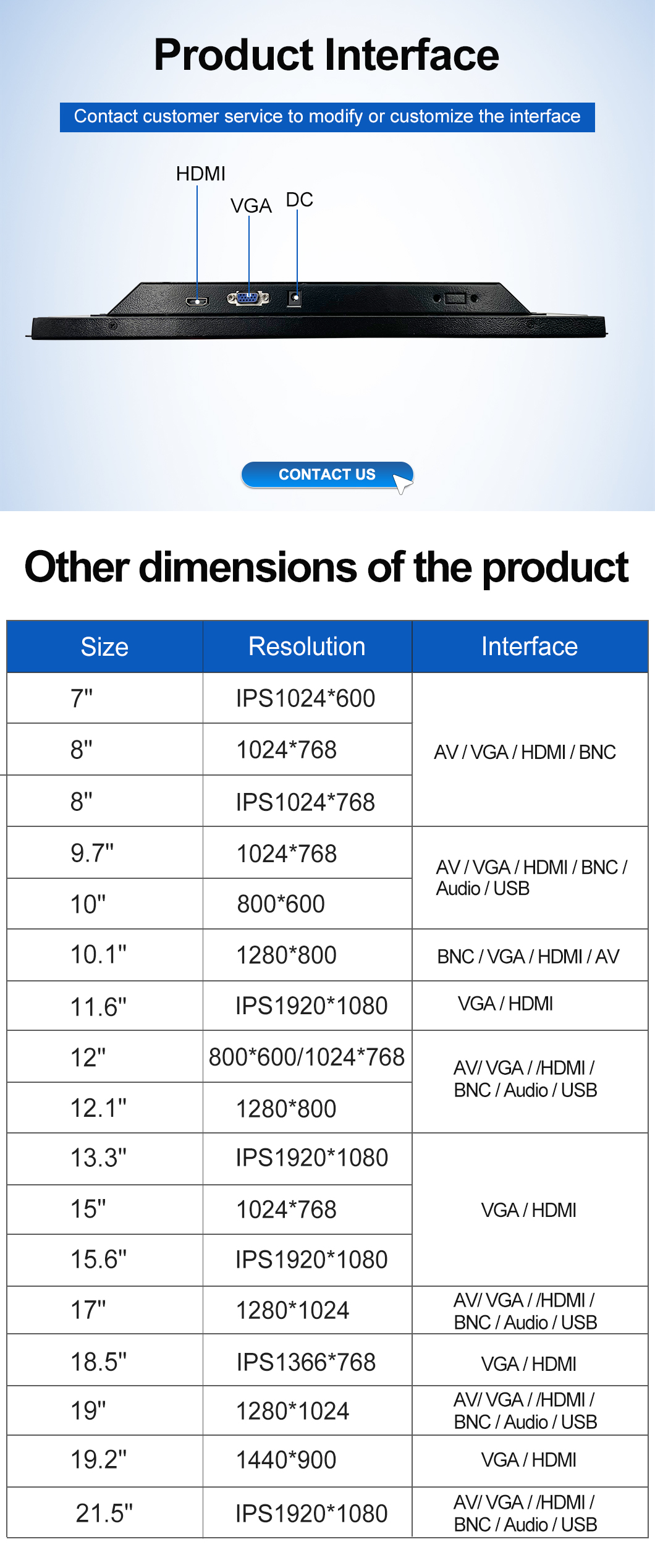

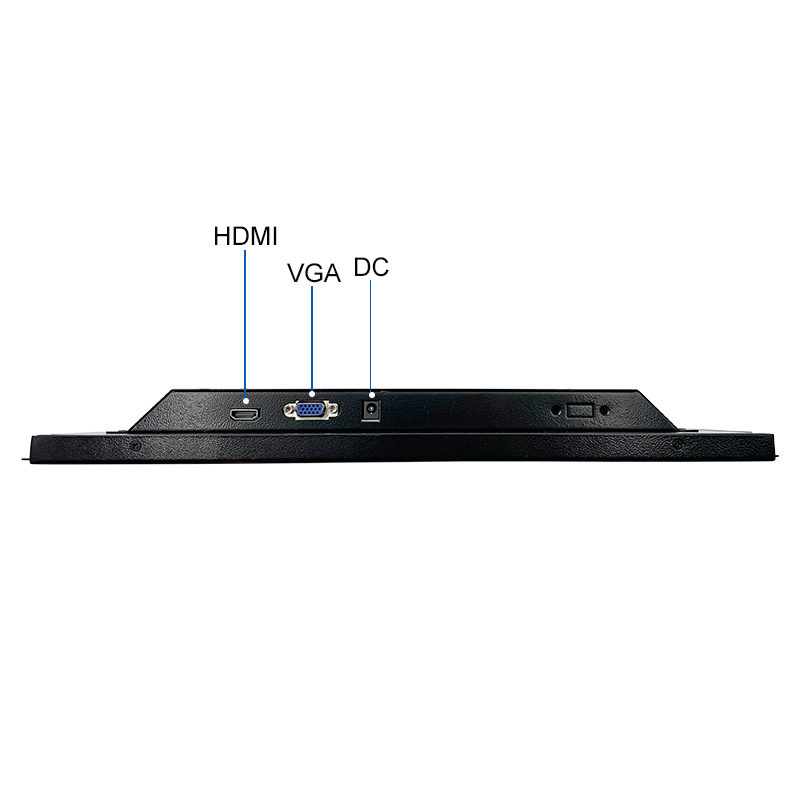

| Video Inputs/Outputs | VGA/HDMI/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

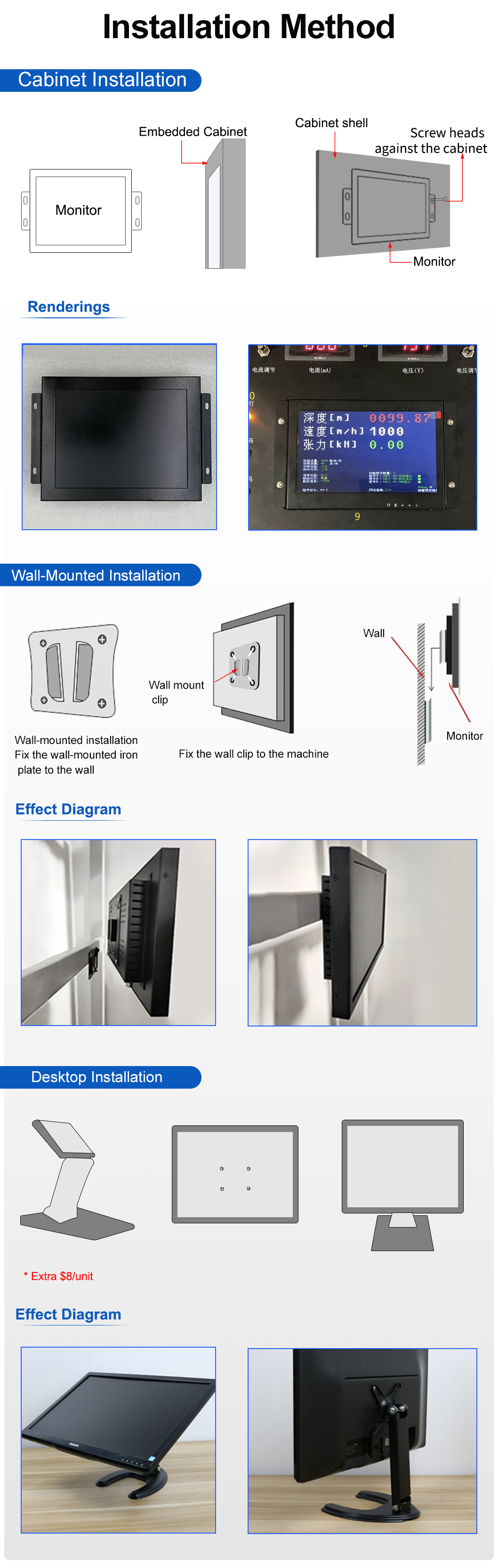

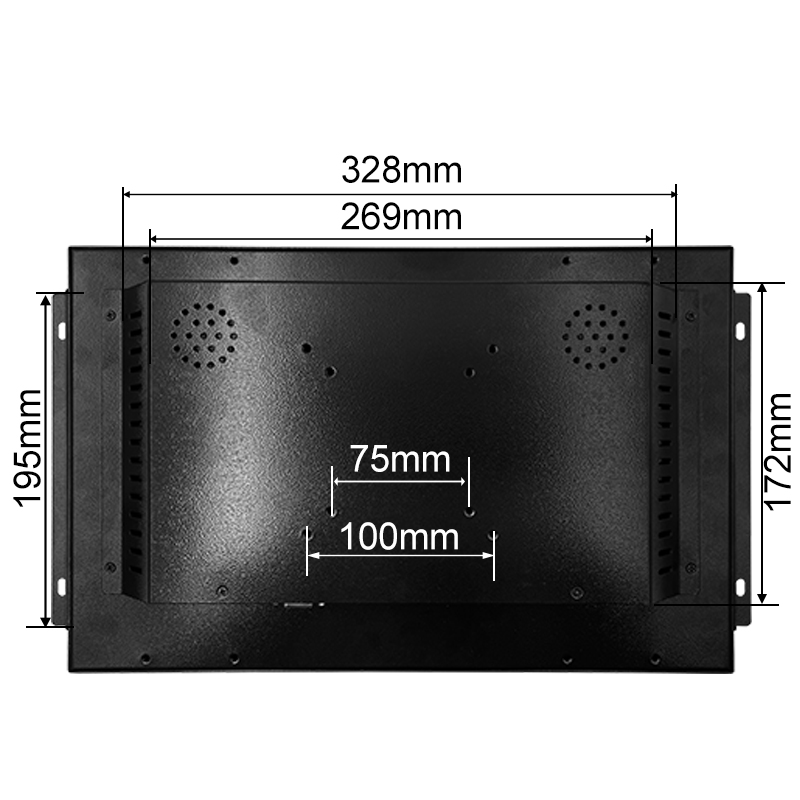

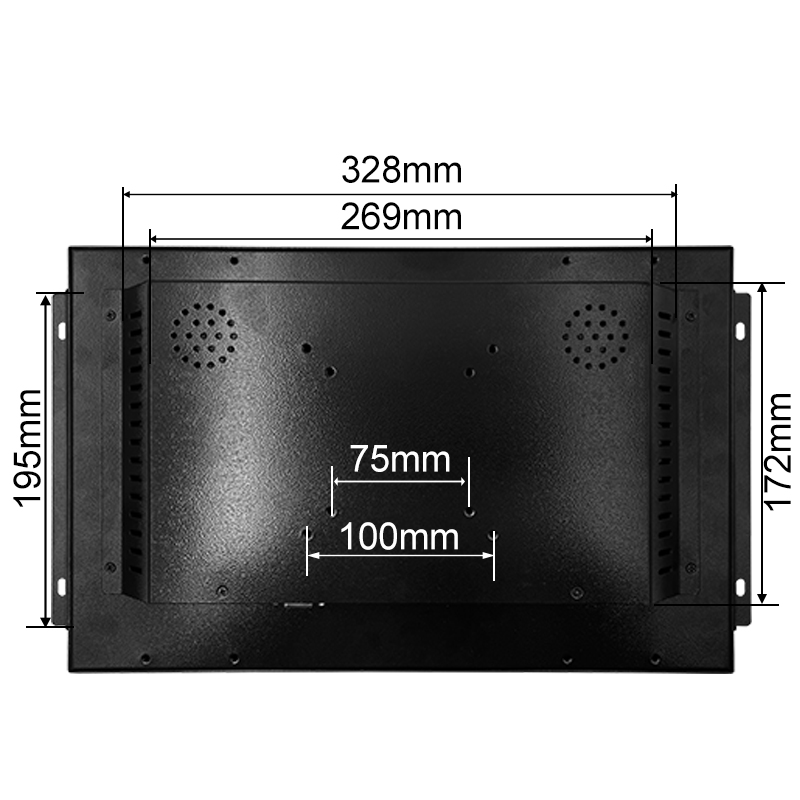

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

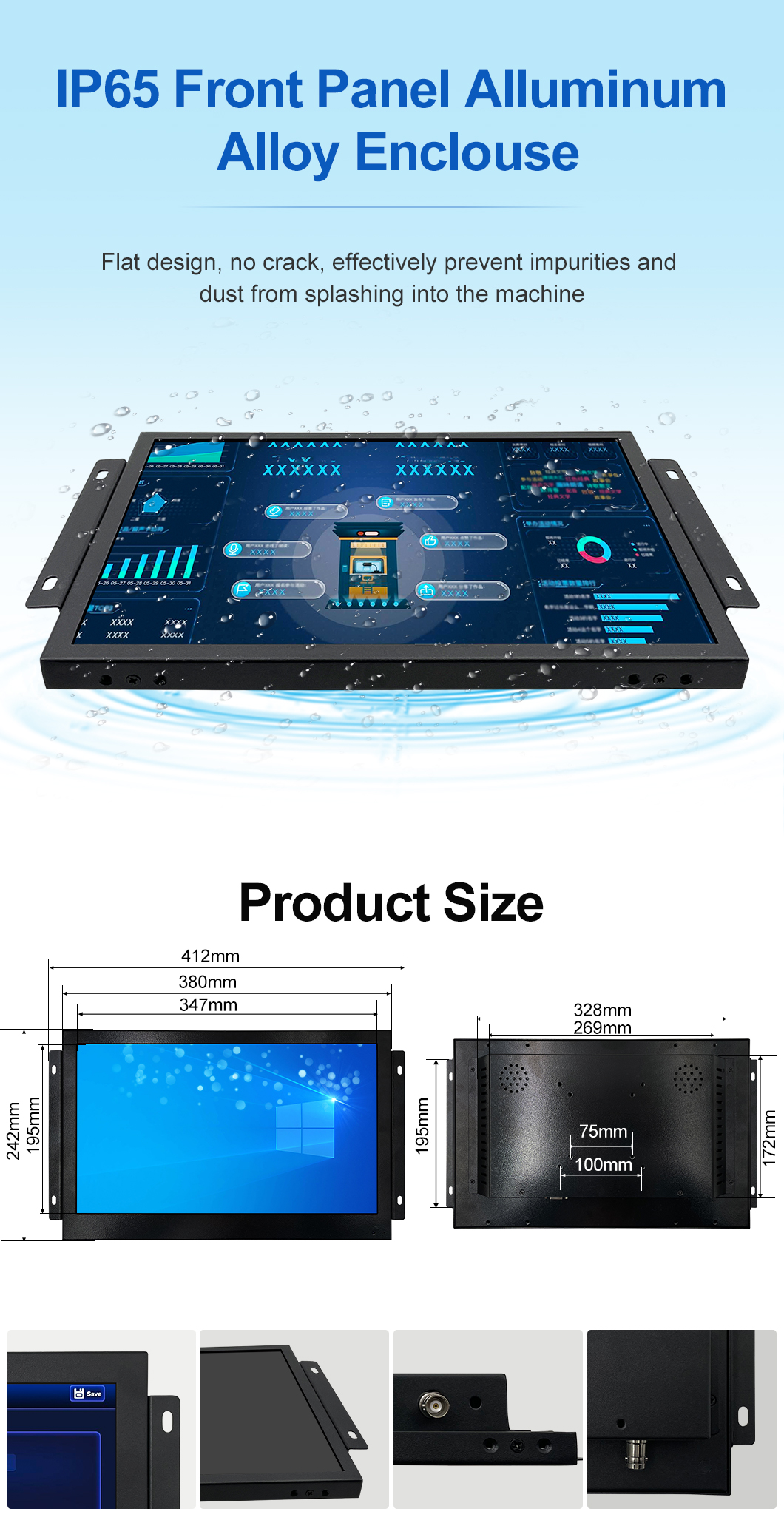

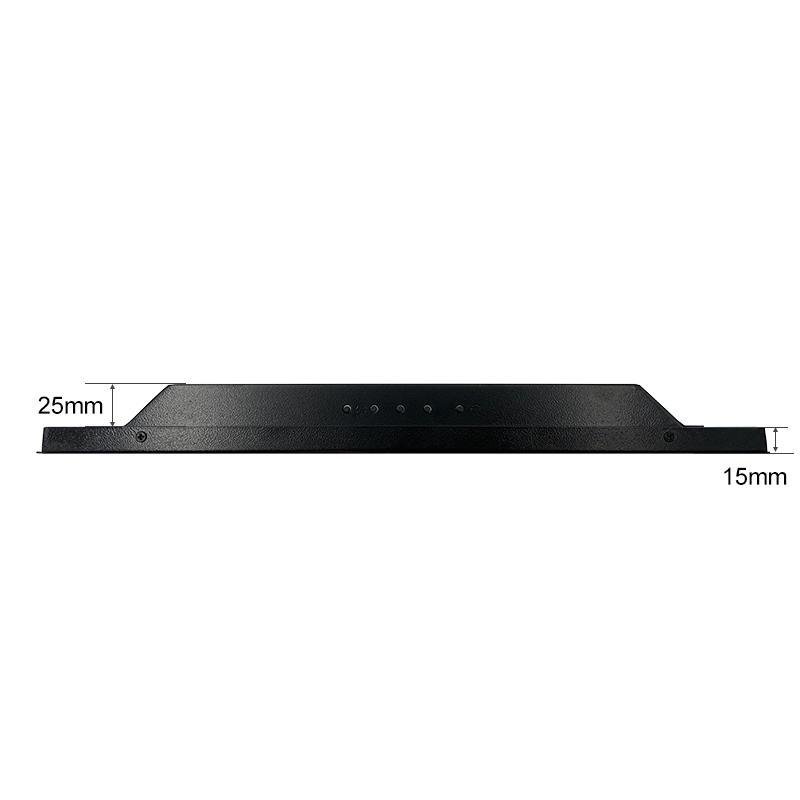

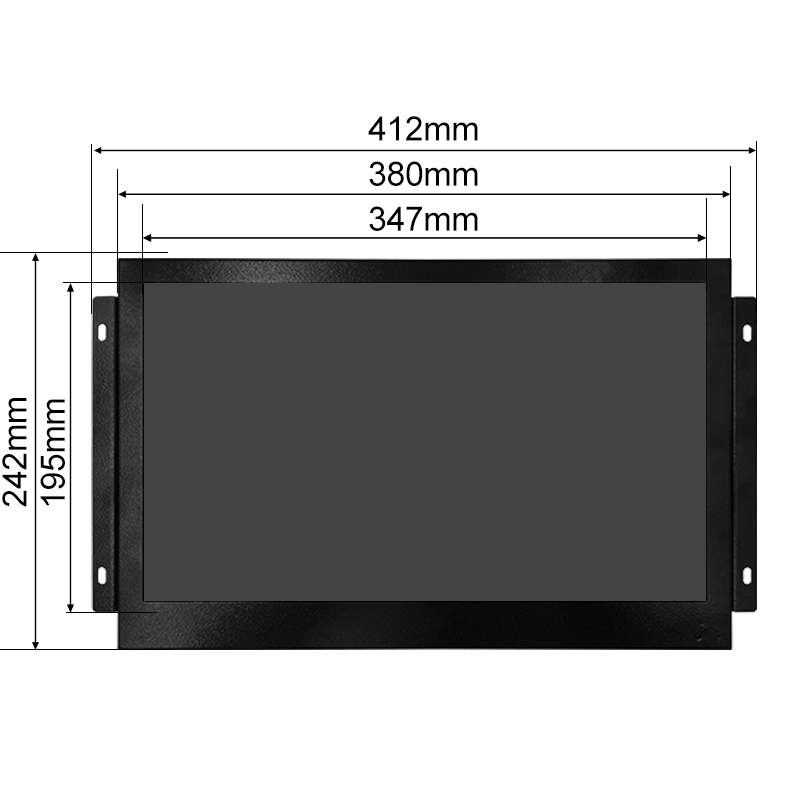

| Dimension (W*H*D) | 412*242*40 mm |
| Weight | 3.5 kg |
| Control | OSD Control |
| Accessories | Power Adatper/VGA cable |
| Certificates | CE/FCC/ROHS |
| Accessories:VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
