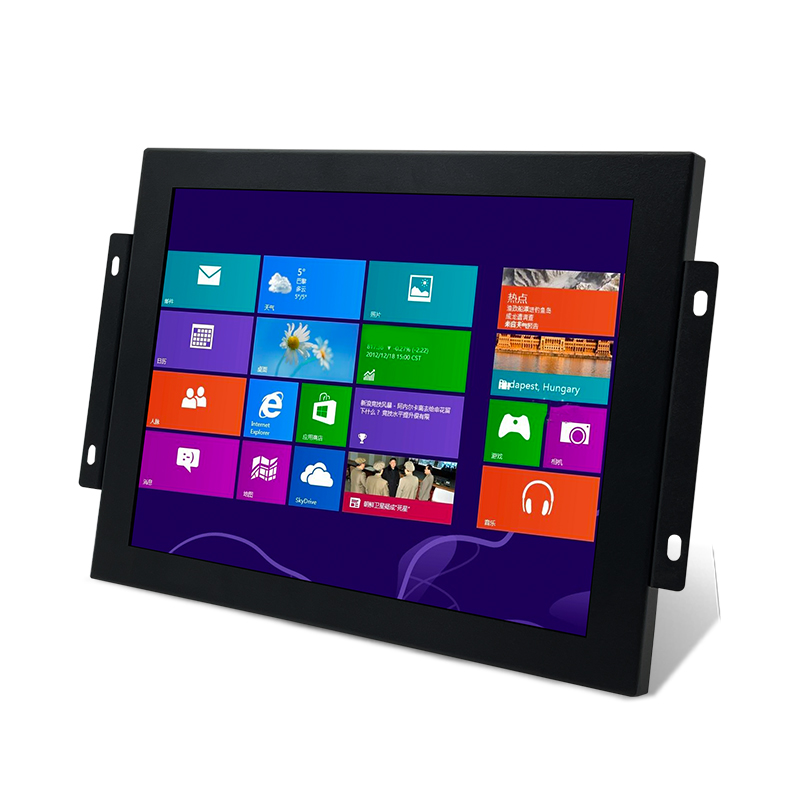

12.1 Inch 1280*800 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B121-JJS
| Datasheet | |
| Size | 12.1" metal Non-touch |
| Active Area | 261.1*163.2 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1280*800 |
| Acpect Ratio | 16:10 |
| Contrast | 250:1 |
| Brightness | 330 NITS |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

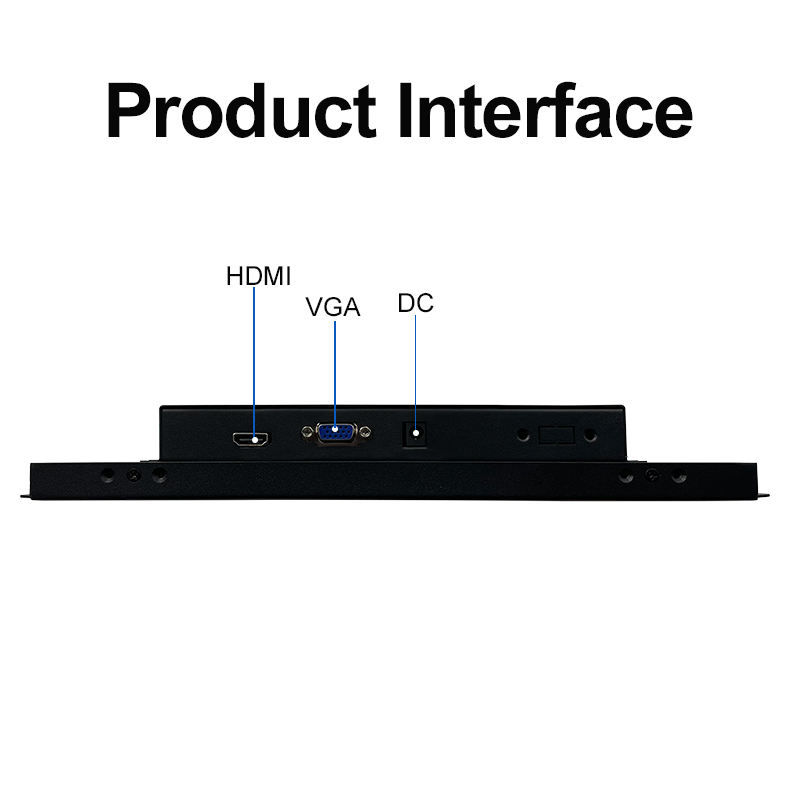

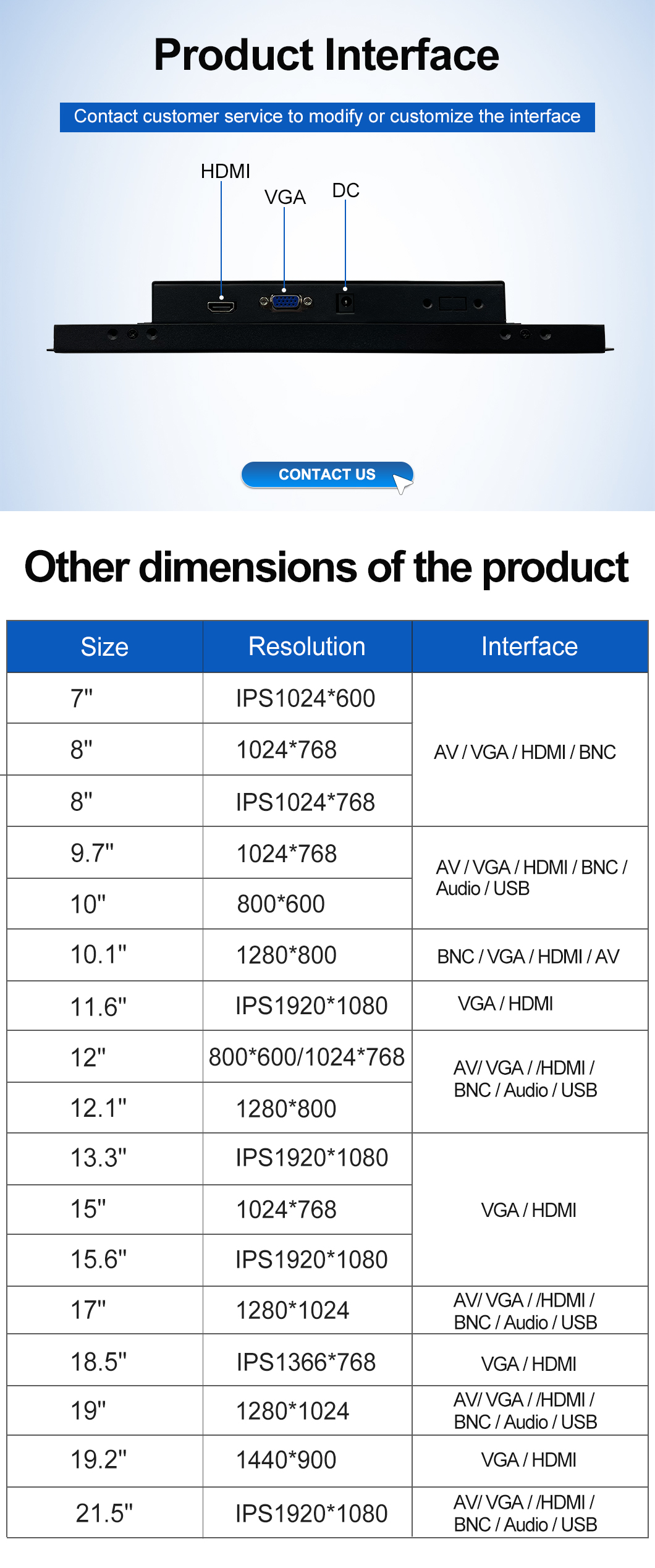

| Video Inputs/Outputs | VGA(15 PIN)+AV+BNC+HDMI+USB+RLV+DC |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

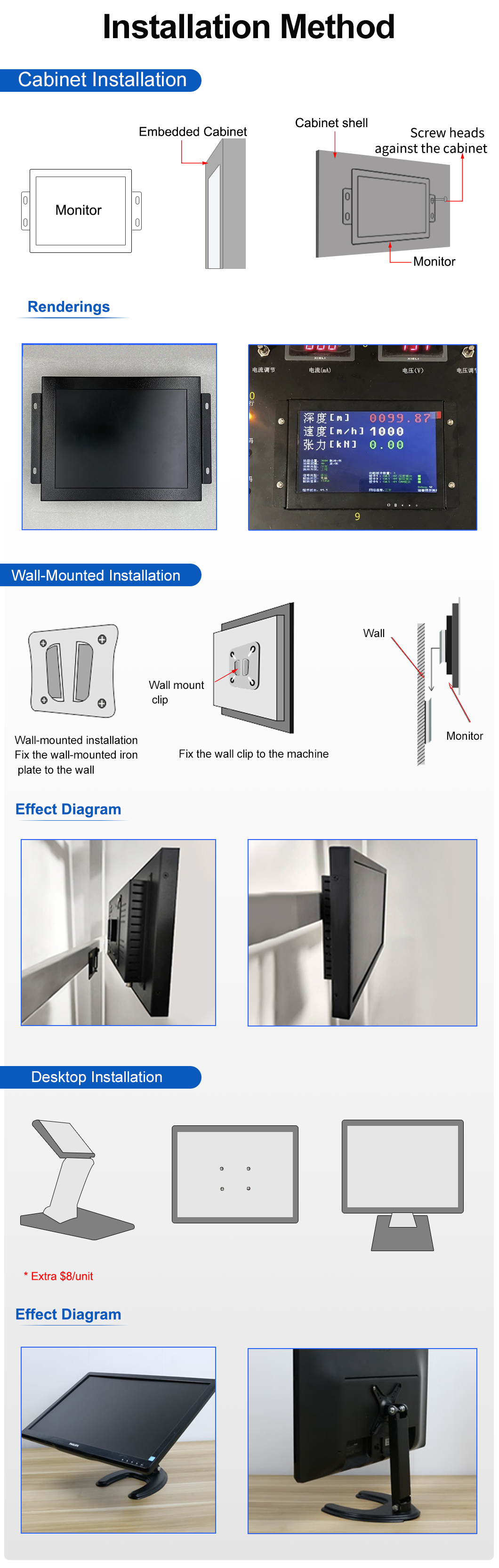

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

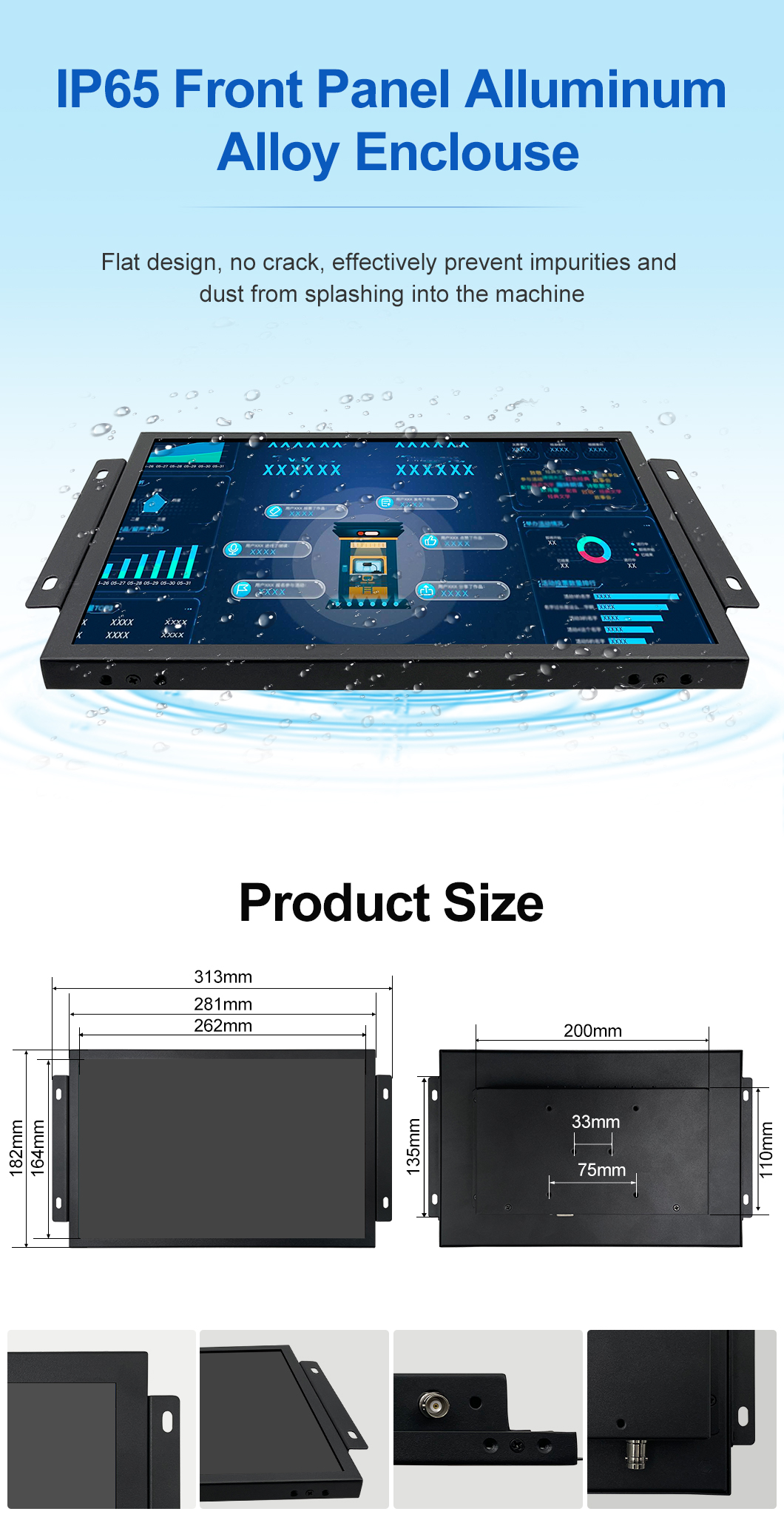

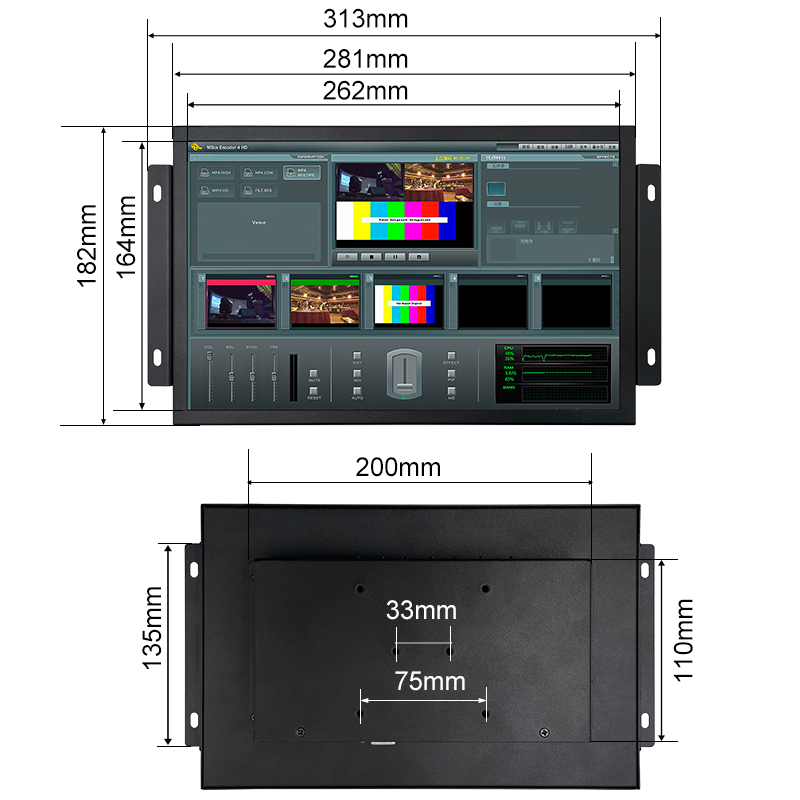

| Product Size | 296*203*40 mm |
| Net Weight | 2.05 KGS |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter.. | |
