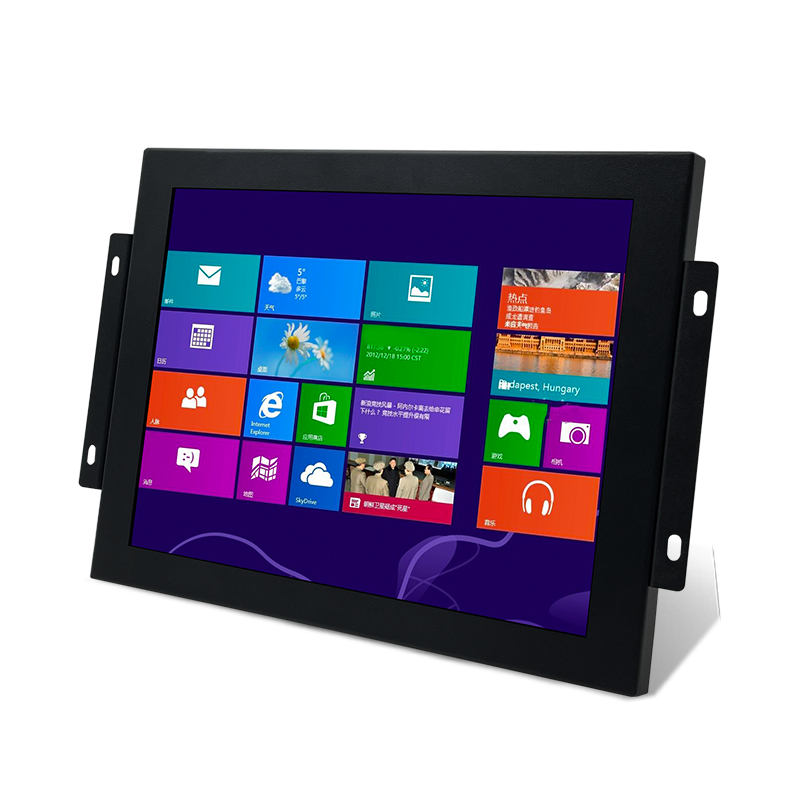

11.6 Inch 1366*768 & IPS1920*1080 HDMI VGA Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B116-JJS
| Datasheet | |
| Size | 11.6" metal Non-touch |
| Active Area | 256(H) × 145(V) |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 & IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 700:1 |
| Brightness | 350 NITS |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

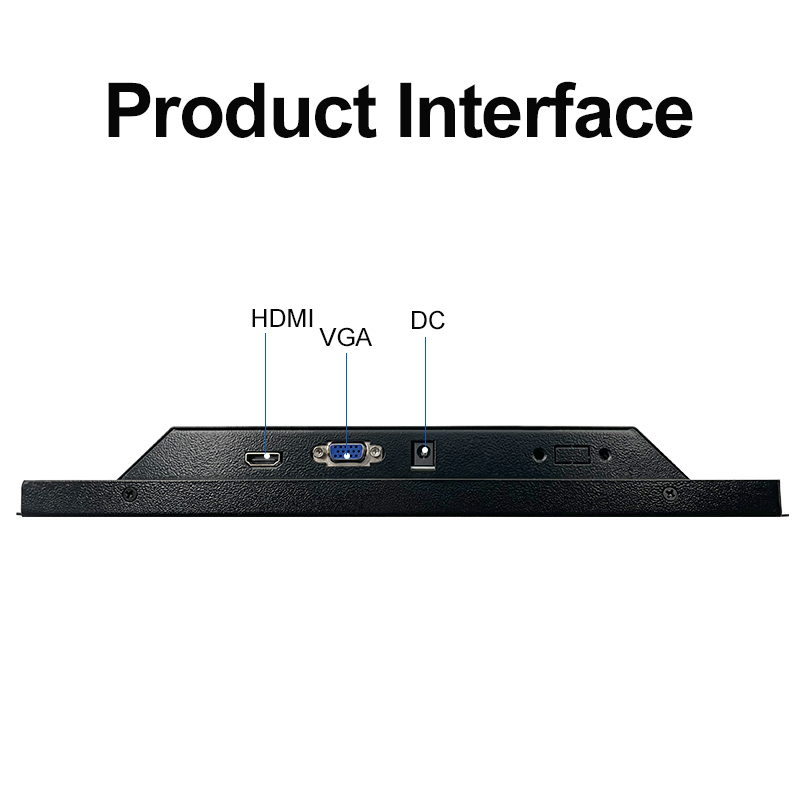

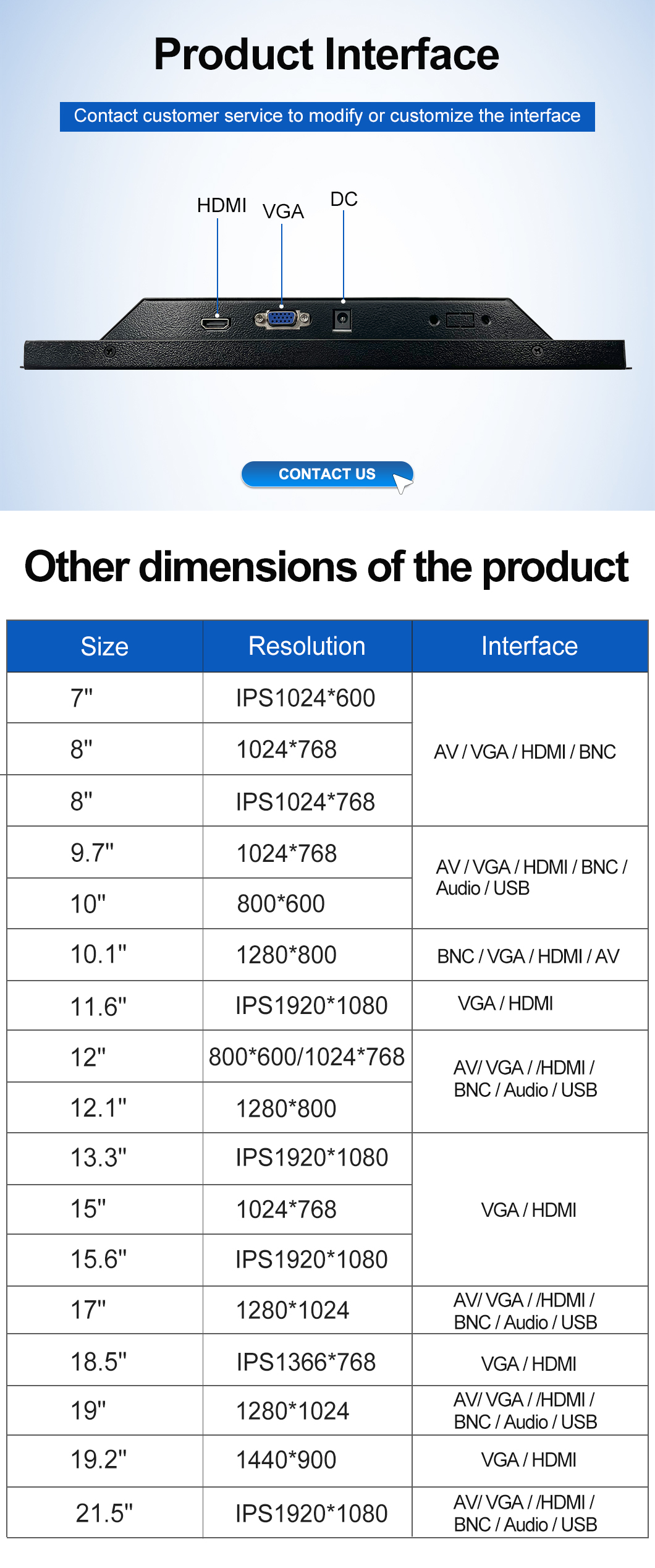

| Video Inputs/Outputs | VGA+ HDMI+DC |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

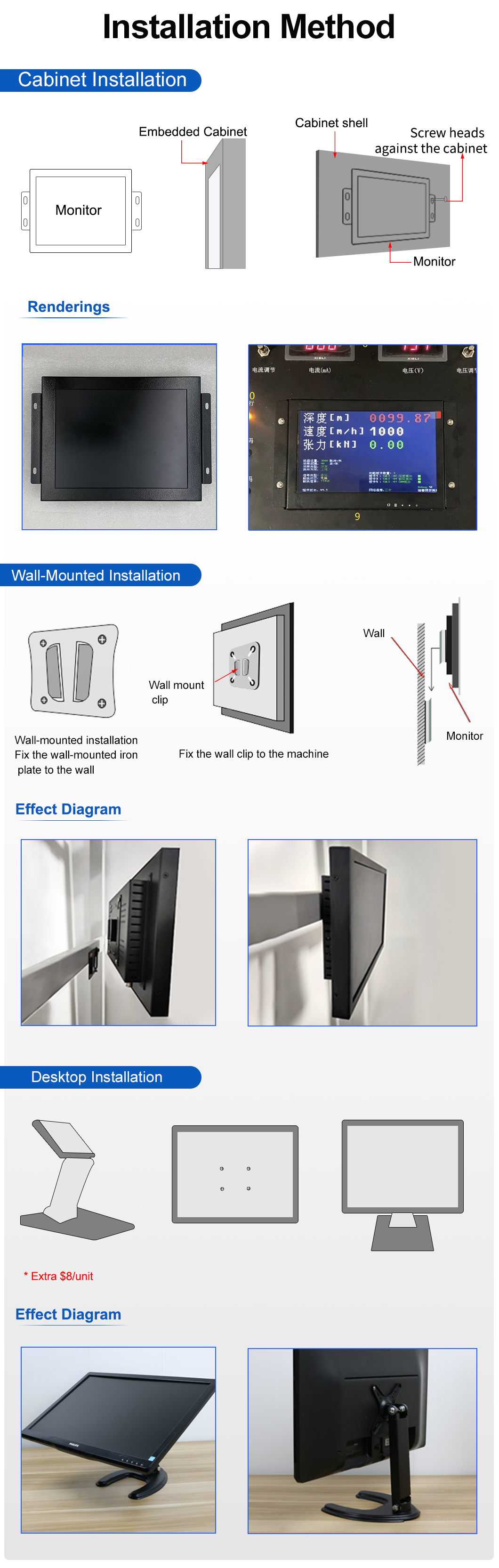

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

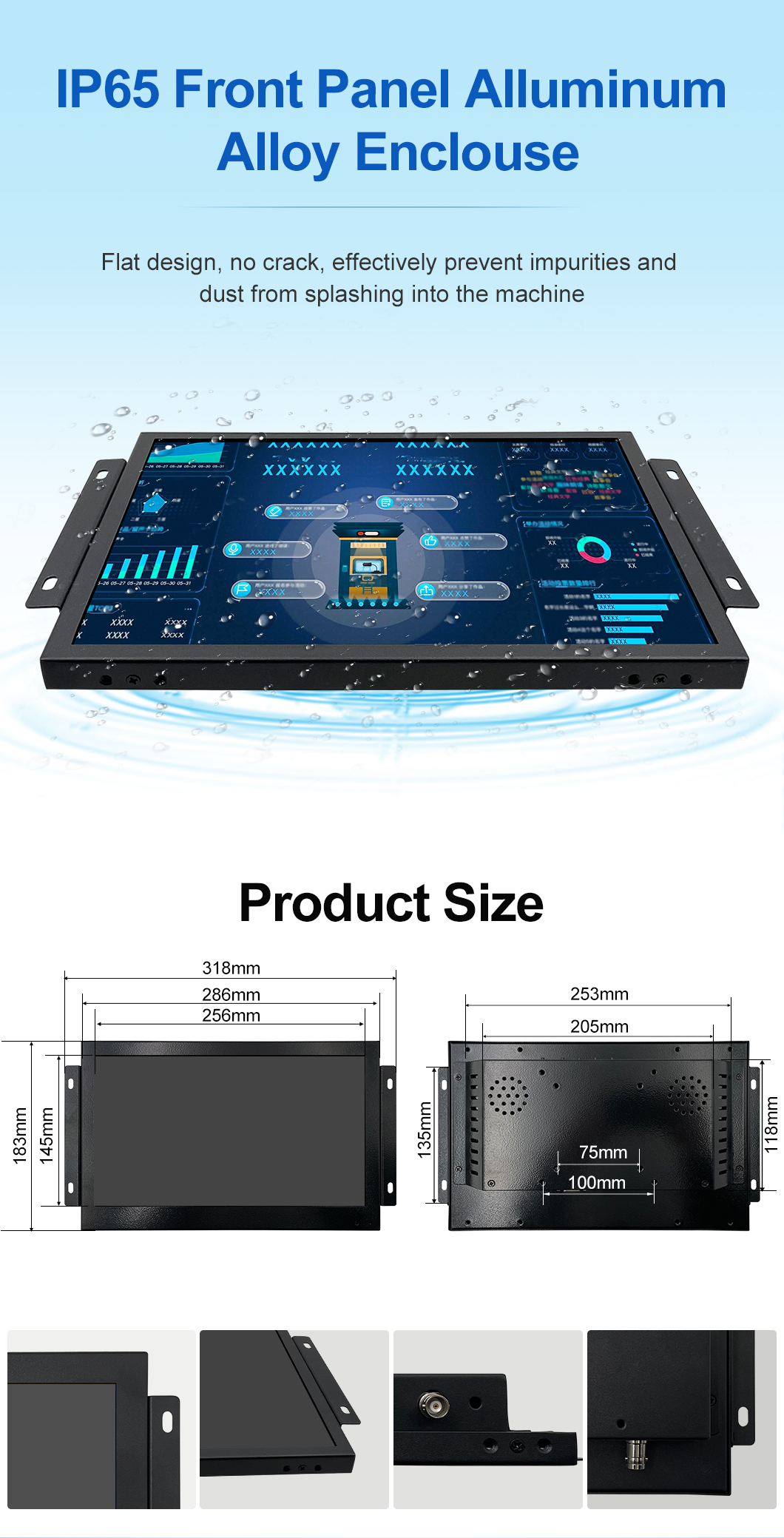

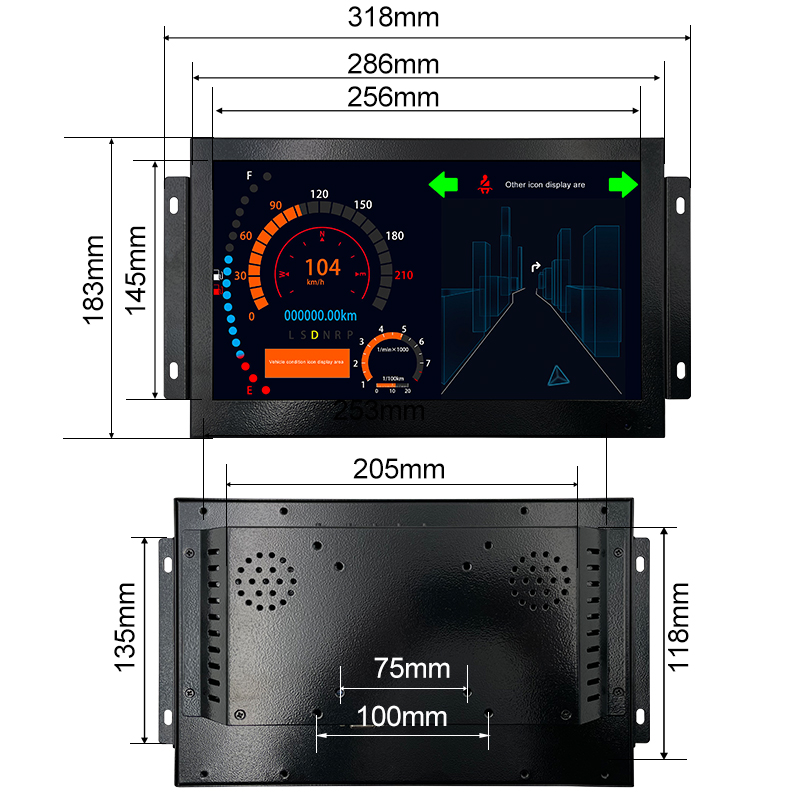

| Product Size | 318×183×40 mm |
| Net Weight | 1.9 KGS |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/Long Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
