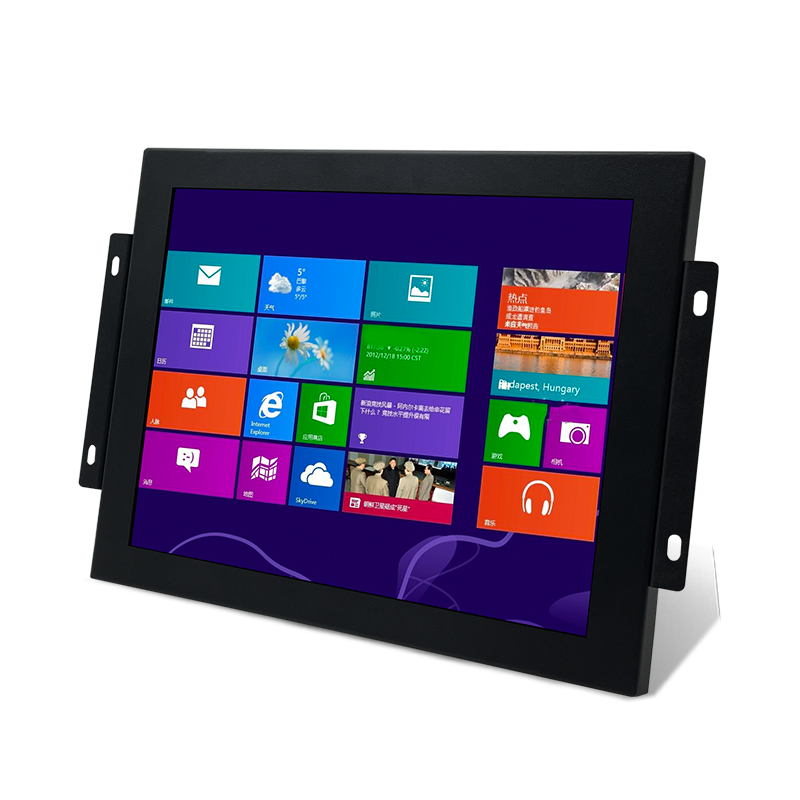

10 Inch 800*600 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B100-JJS-ZT
| Datasheet | |
| Size | 10" metal touch |
| Active Area | 205*154 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800*600 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

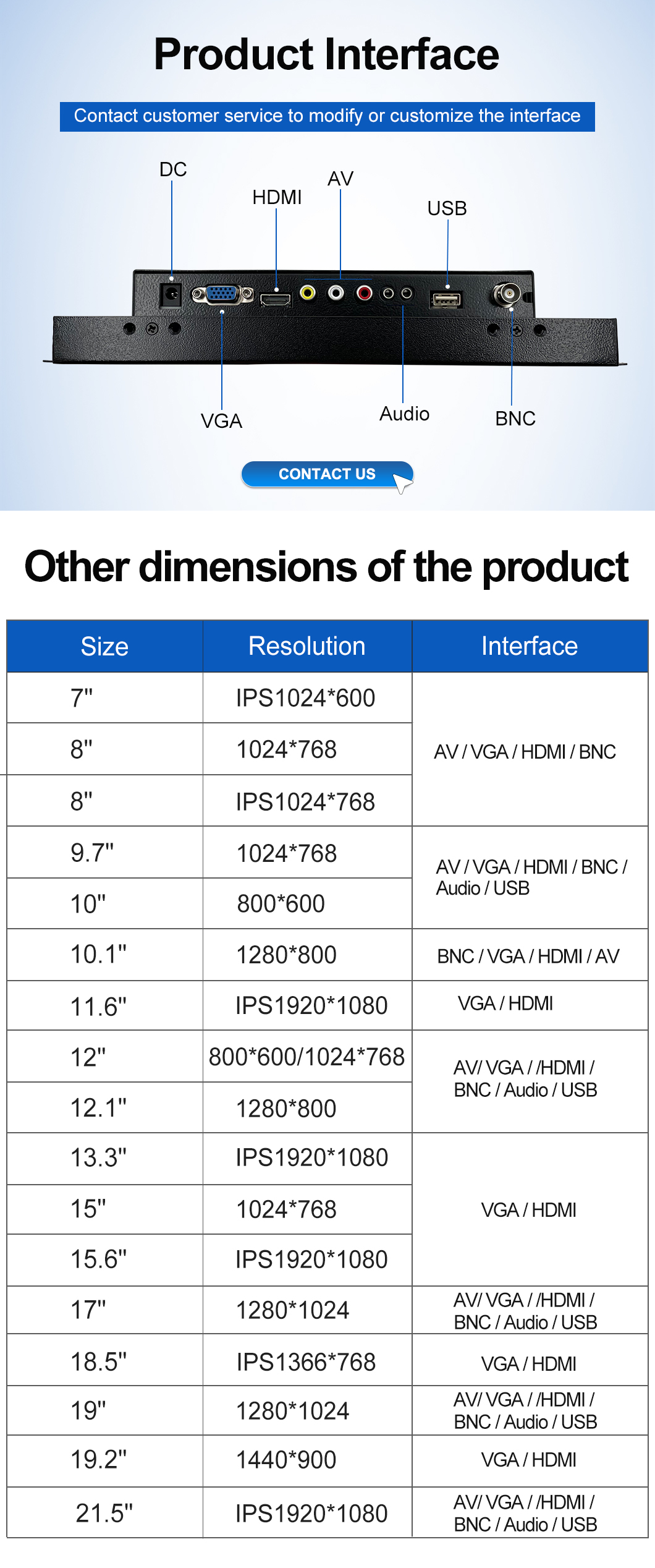

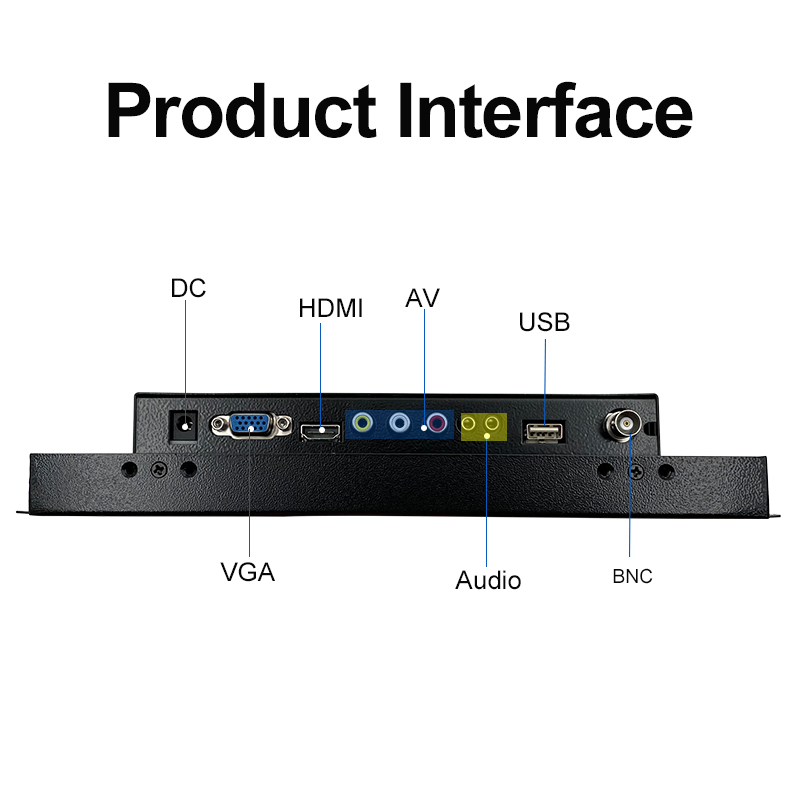

| Video Inputs/Outputs | VGA+AV+BNC+HDMI+USB+RLV |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

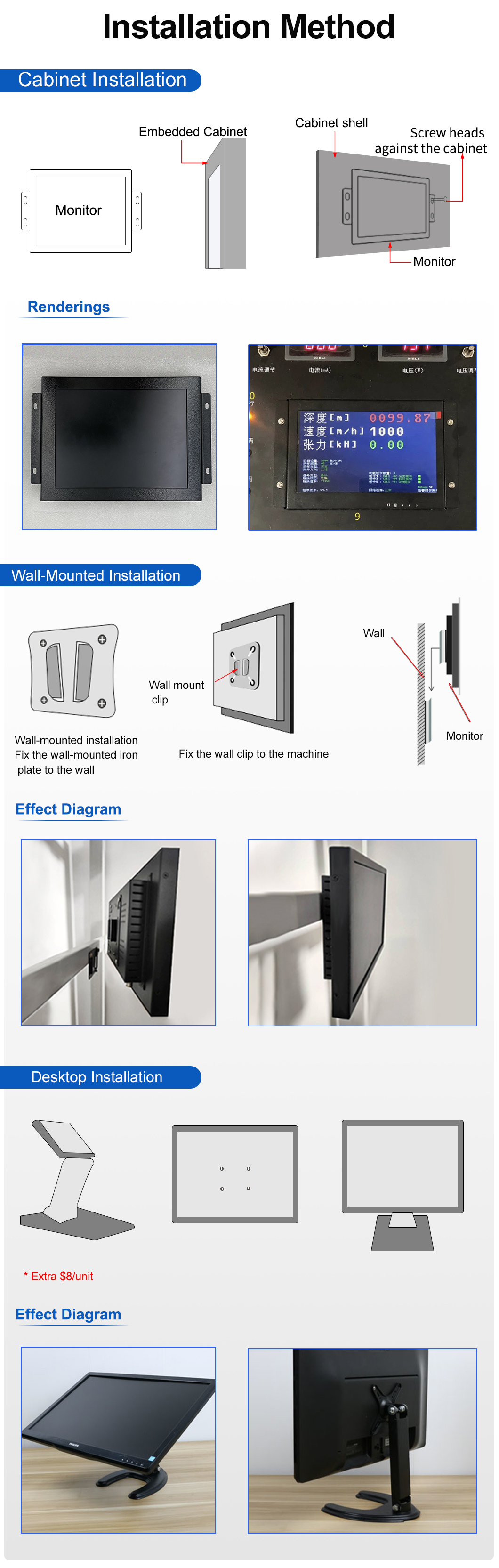

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

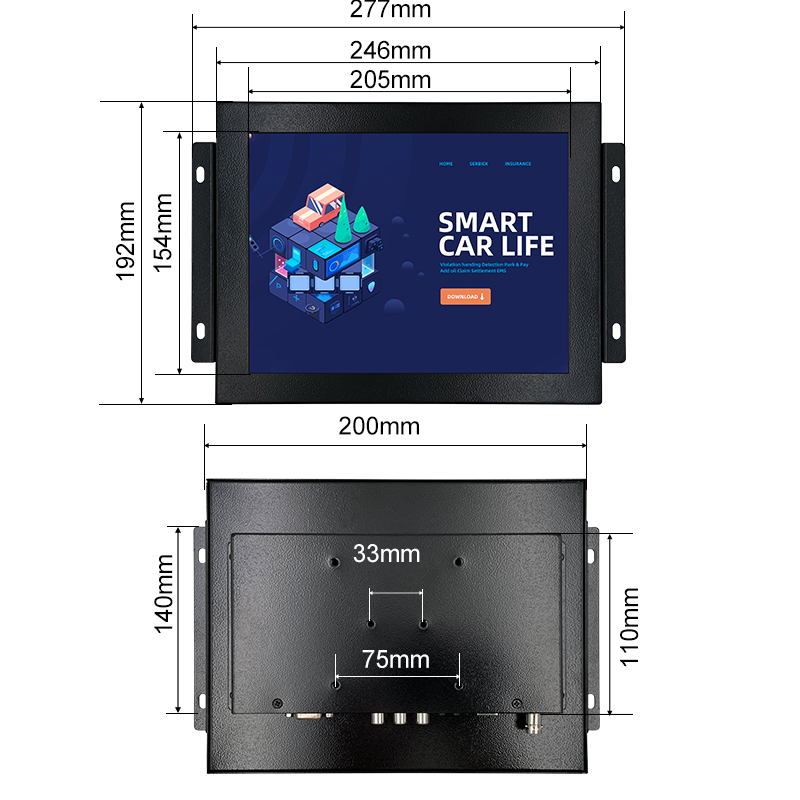

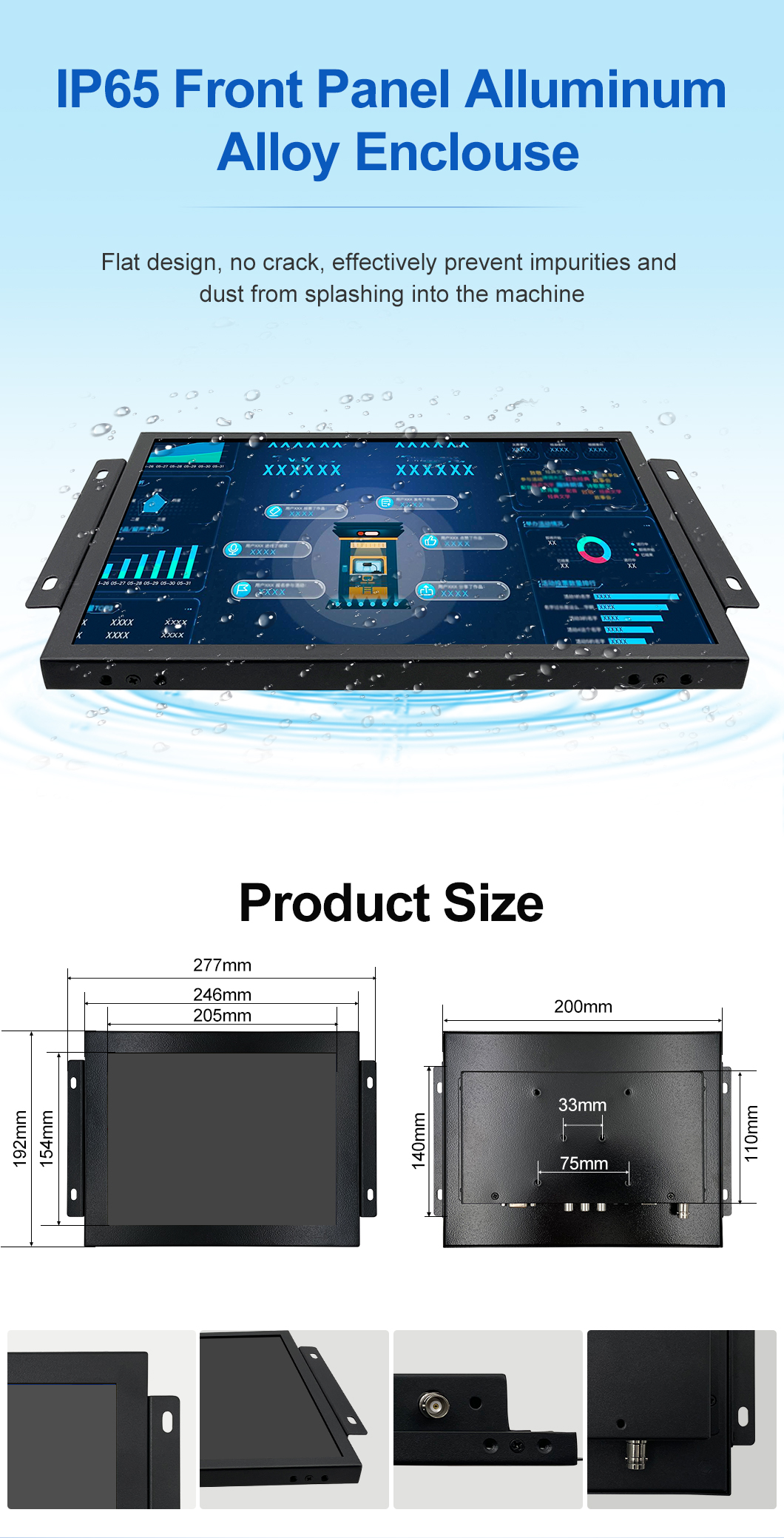

| Product Size | 277*192*47 MM |
| Net Weight | 1.47 KG |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/ Long Hanging ears , VGA cable/HDMI cable , USB cable, touch pen, flash drive, 12V DC 1A power adapter, manual, warranty card | |
