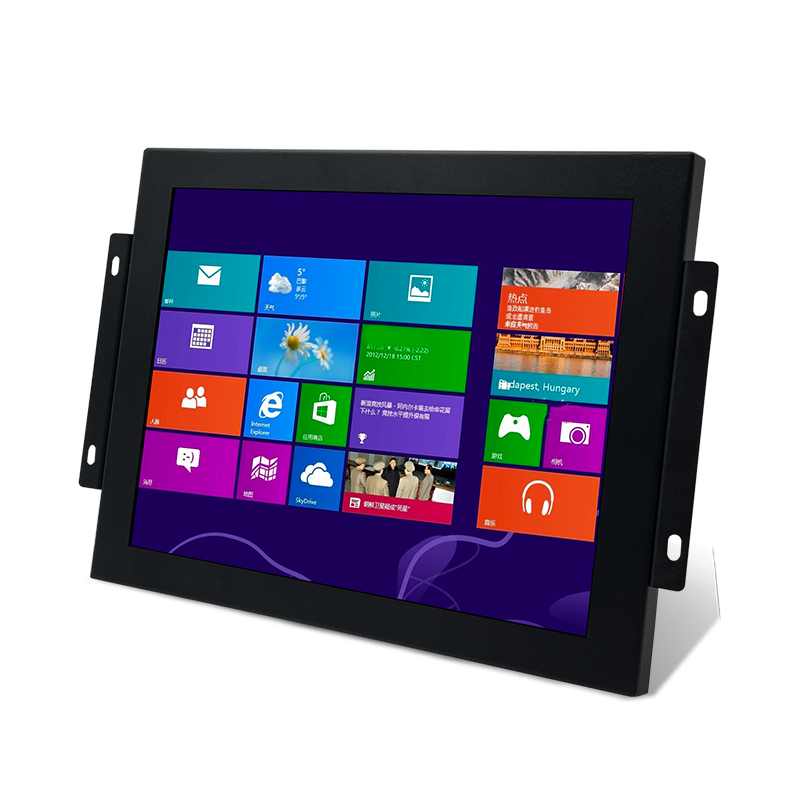

10.1 Inch IPS 1280*800 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B101-JJS-ZT
| Size | 10.1" |
| Panel Type | IPS Panel |
| Active Area | 219*136 mm |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | IPS1280*800 |
| Acpect Ratio | 16:10 |
| Contrast | 300:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 16.7M |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

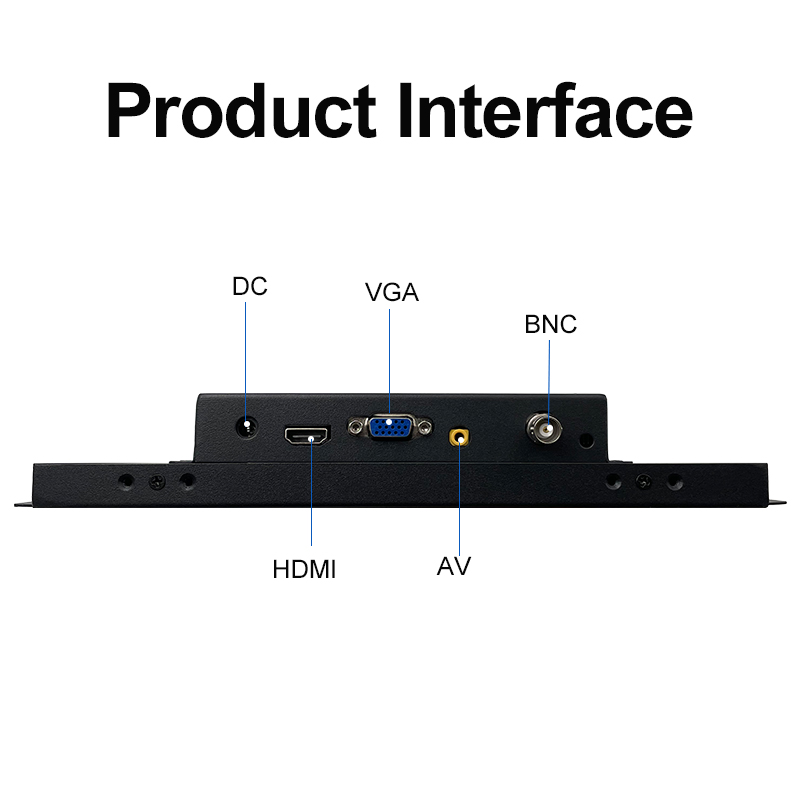

| Video Inputs/Outputs | PC+Audio+BNC+HDMI+VGA+DC |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

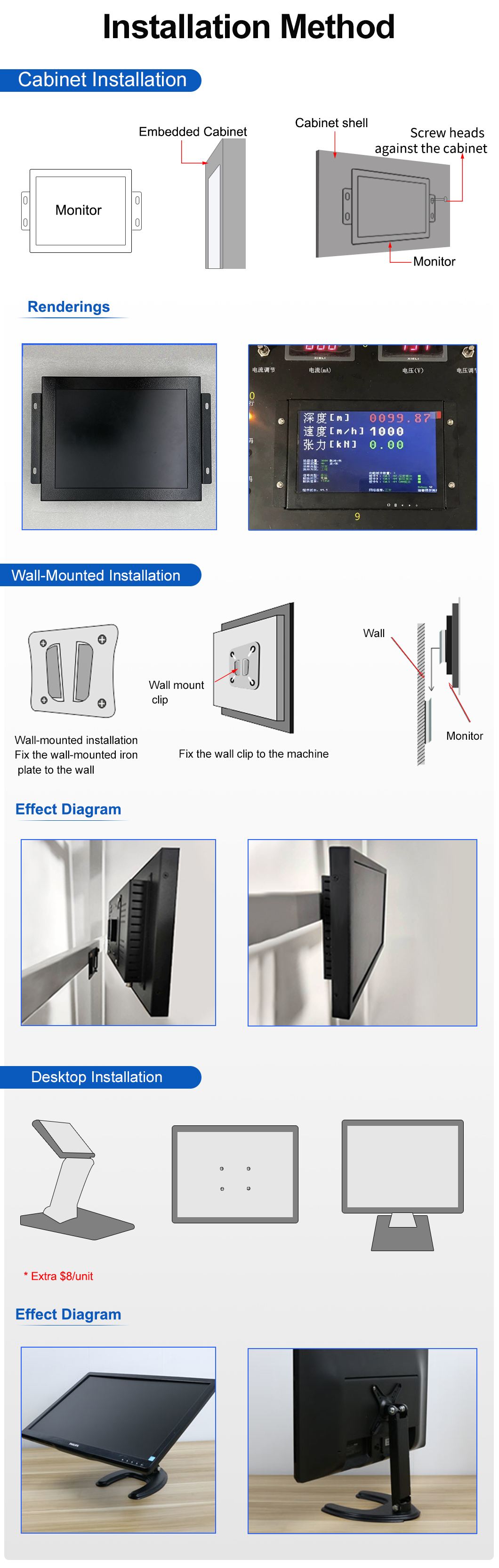

| Installation | VESA mount |
| Power Requirement | DC 12V |

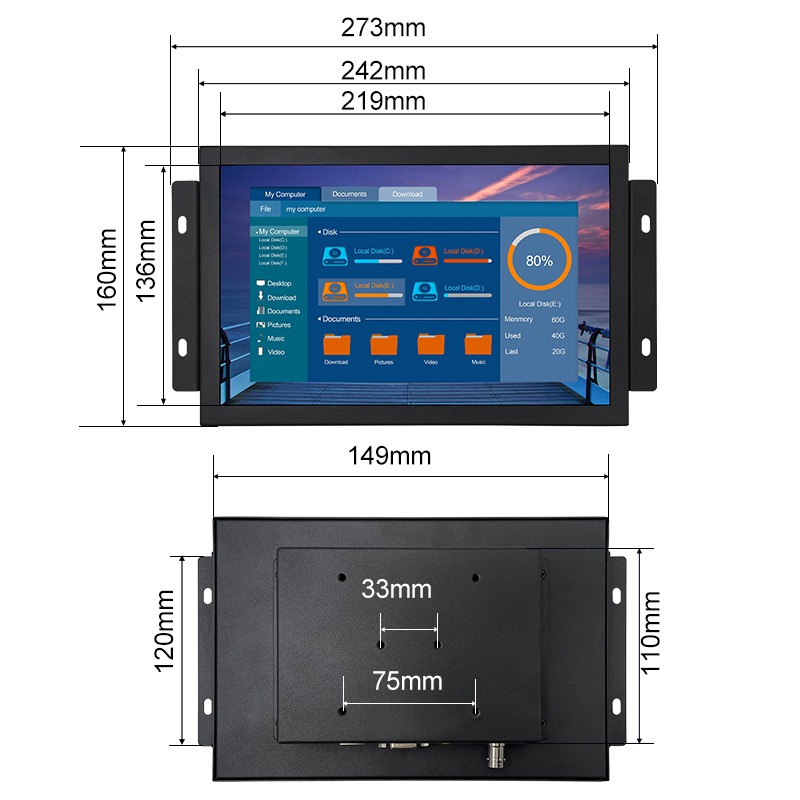

| Dimension (W*H*D) | 273*160*40 mm |
| Net Weight | 1.5 kg |
| Control | OSD Control or Remote Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/ Long Hanging ears , VGA cable/HDMI cable , USB cable, touch pen, flash drive, 12V DC 1A power adapter, manual, warranty card | |
