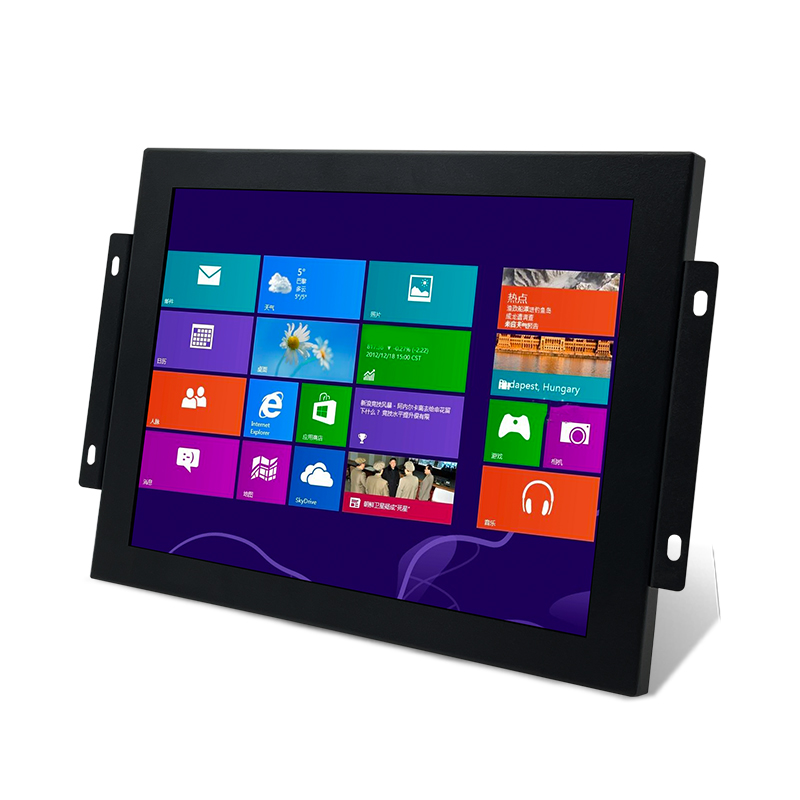

8 Inch 1024*768 & IPS1024*768 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B8009-JJS & B8010-JJS
| Mould | B8009-JJS & B8010-JJS |
| Size | 8" |
| Active Area | 164*123 mm |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1024*768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 300:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

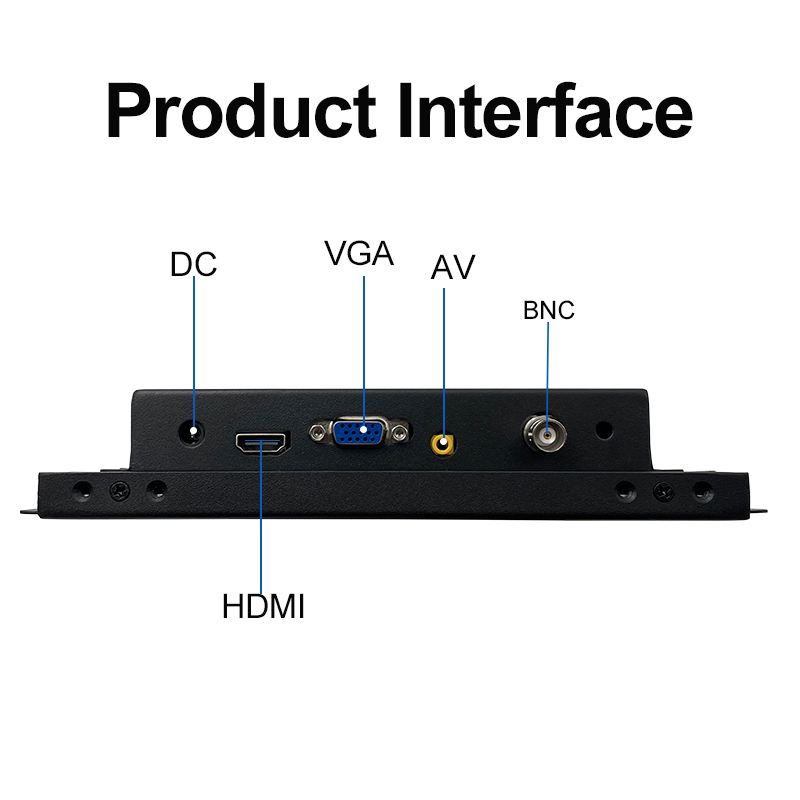

| Video Inputs/Outputs | DC+AV+BNC+HDMI+VGA |
| Touch | 4-wire Resistive/5-wire Resistive |
| Audio Inputs/Outputs | Earphone Jack 35mm |

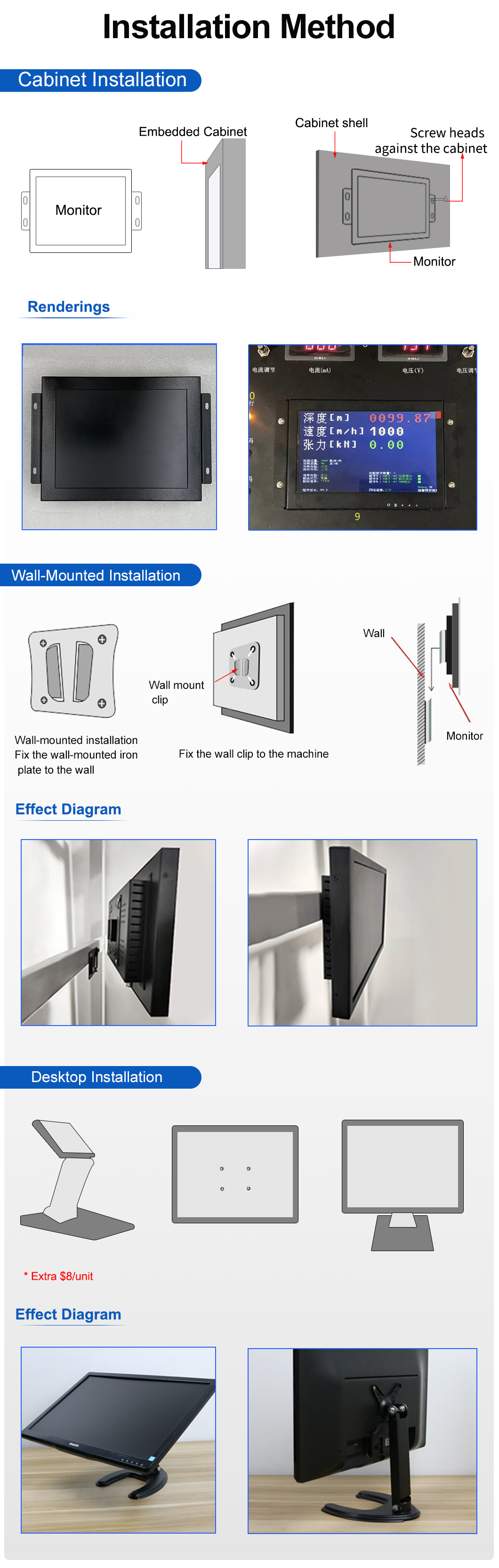

| Installation | VESA mount |
| Power Requirement | DC 12V |

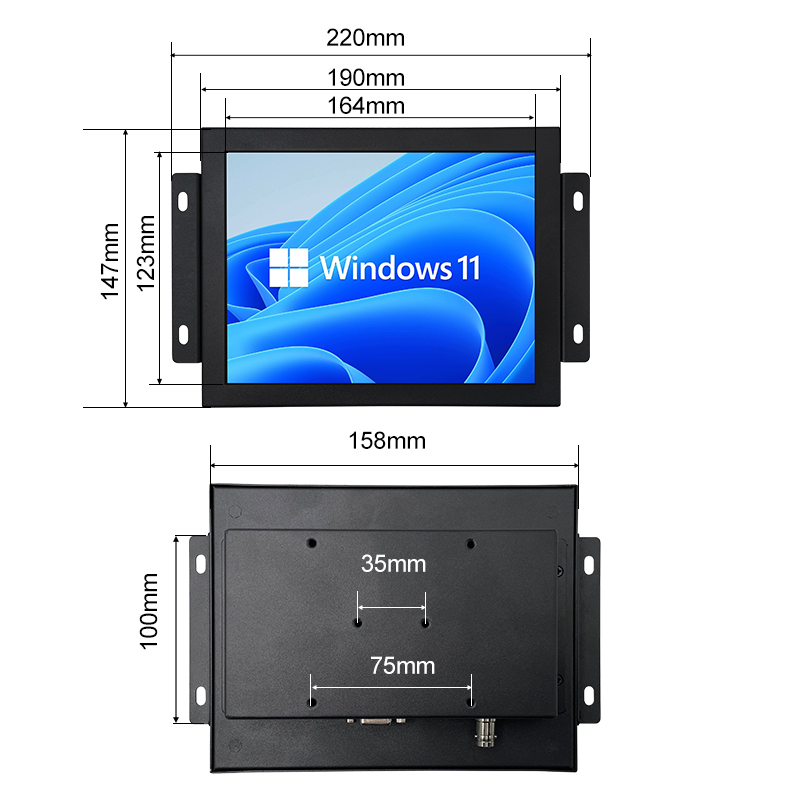

| Dimension (W*H*D) | 220*147*37 mm |
| Weight | 0.81 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit / stand/ Long Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
