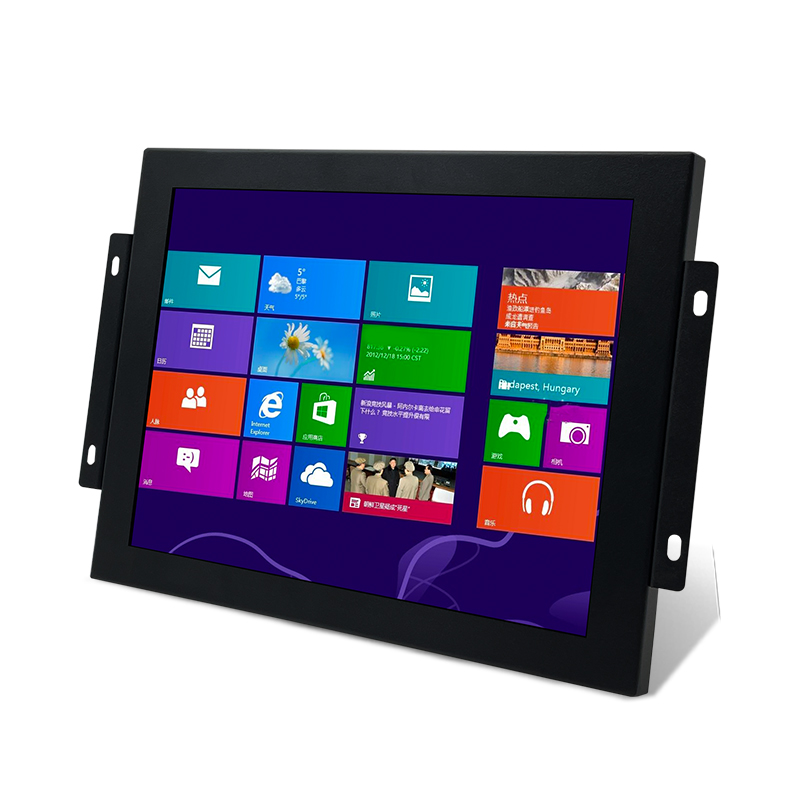

7 Inch 800*480 & IPS1024*600 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
Model No :B700-JJS & B701-JJS-ZT
| Datasheet | |
| Size | 7" |
| Active Area | 155*87 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800*480 & IPS1024*600 |
| Acpect Ratio | 16:10 |
| Contrast | 500:1 |
| Brightness | 300 nits |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | '-10~60ºC |

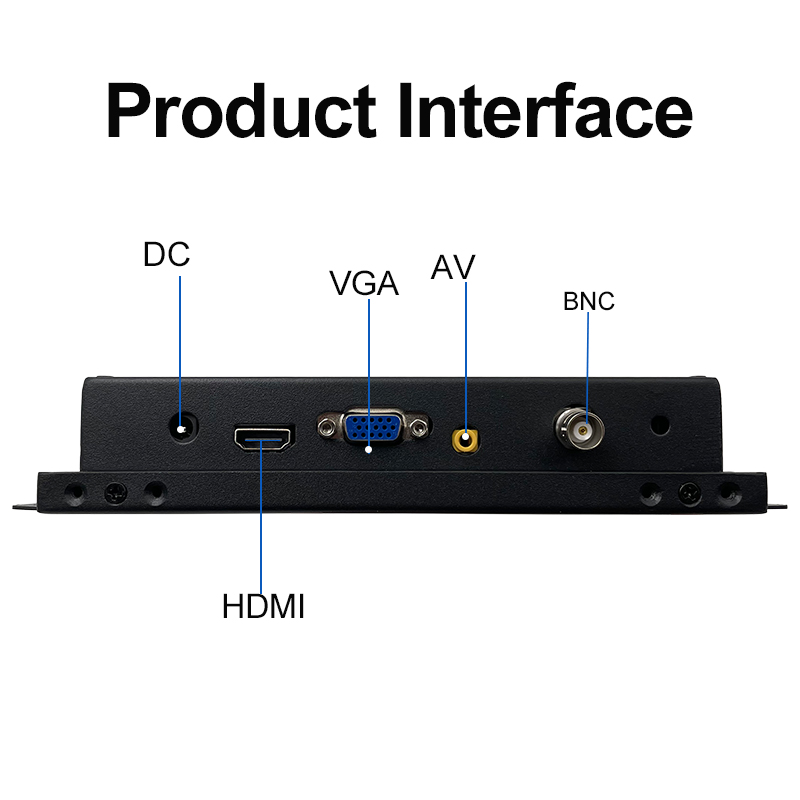

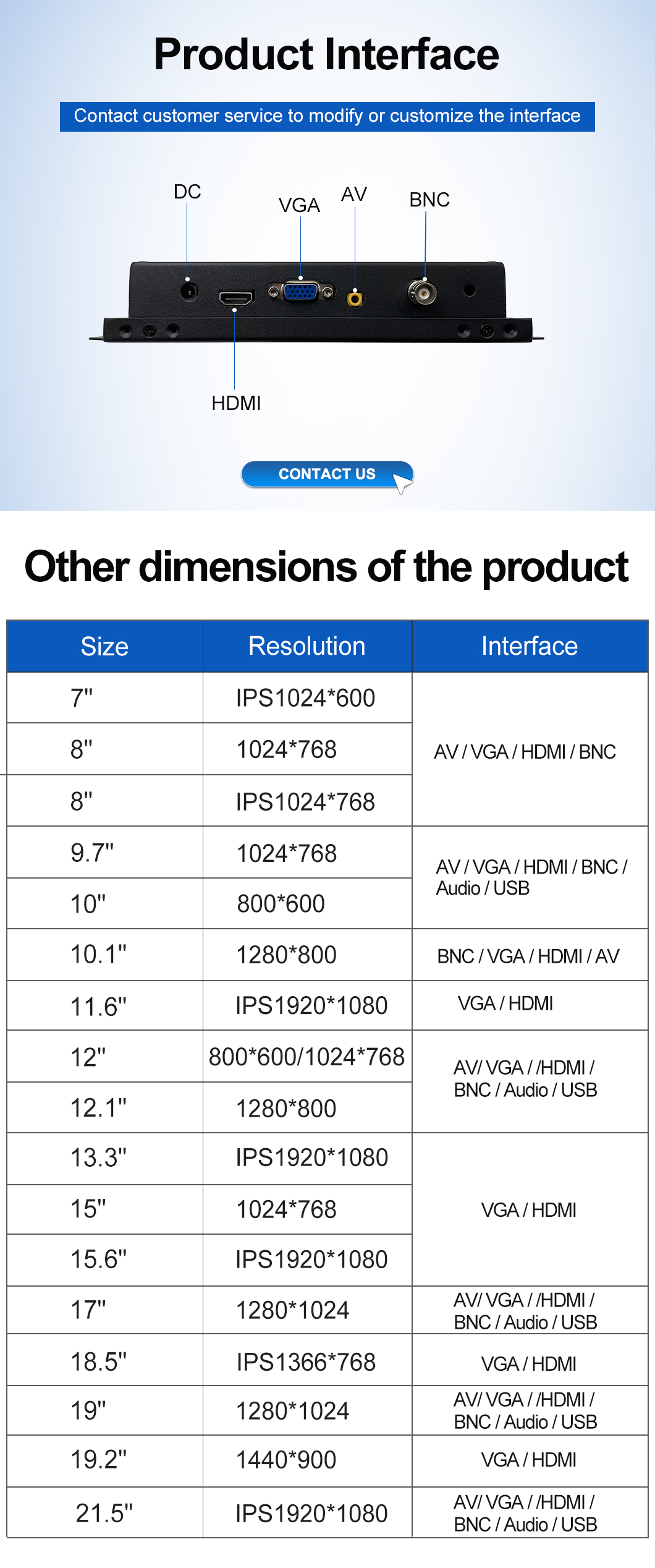

| Video Inputs/Outputs | VGA+AV+BNC+HDMI+DC |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

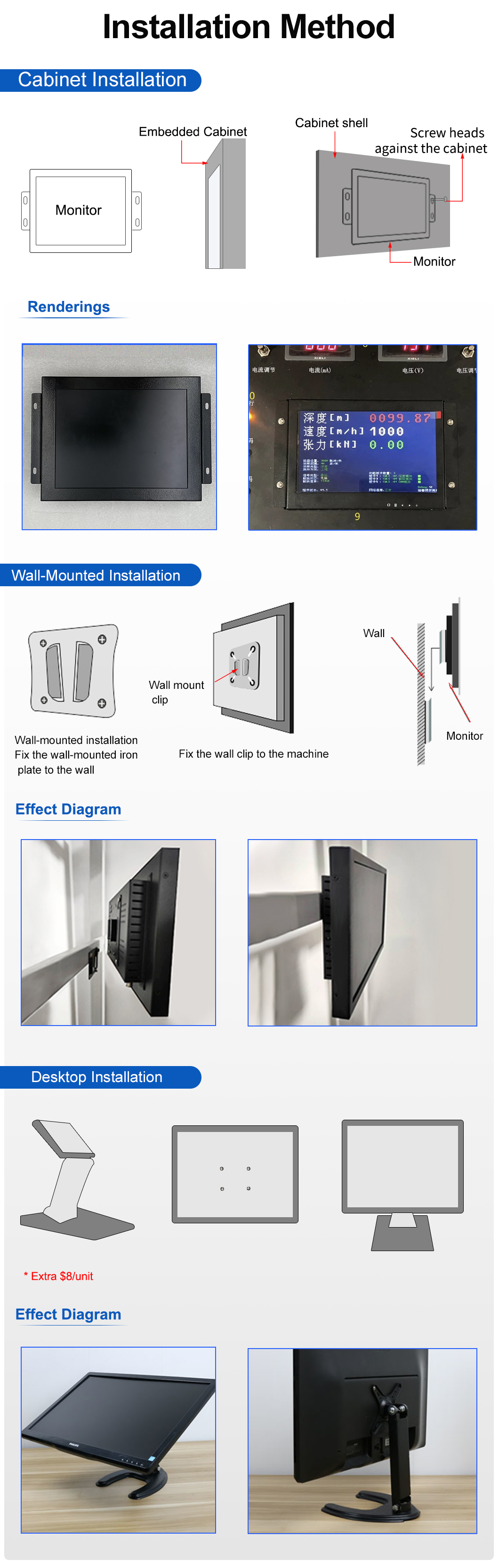

| Installation | VESA mount |
| Power Requirement | DC 12V |

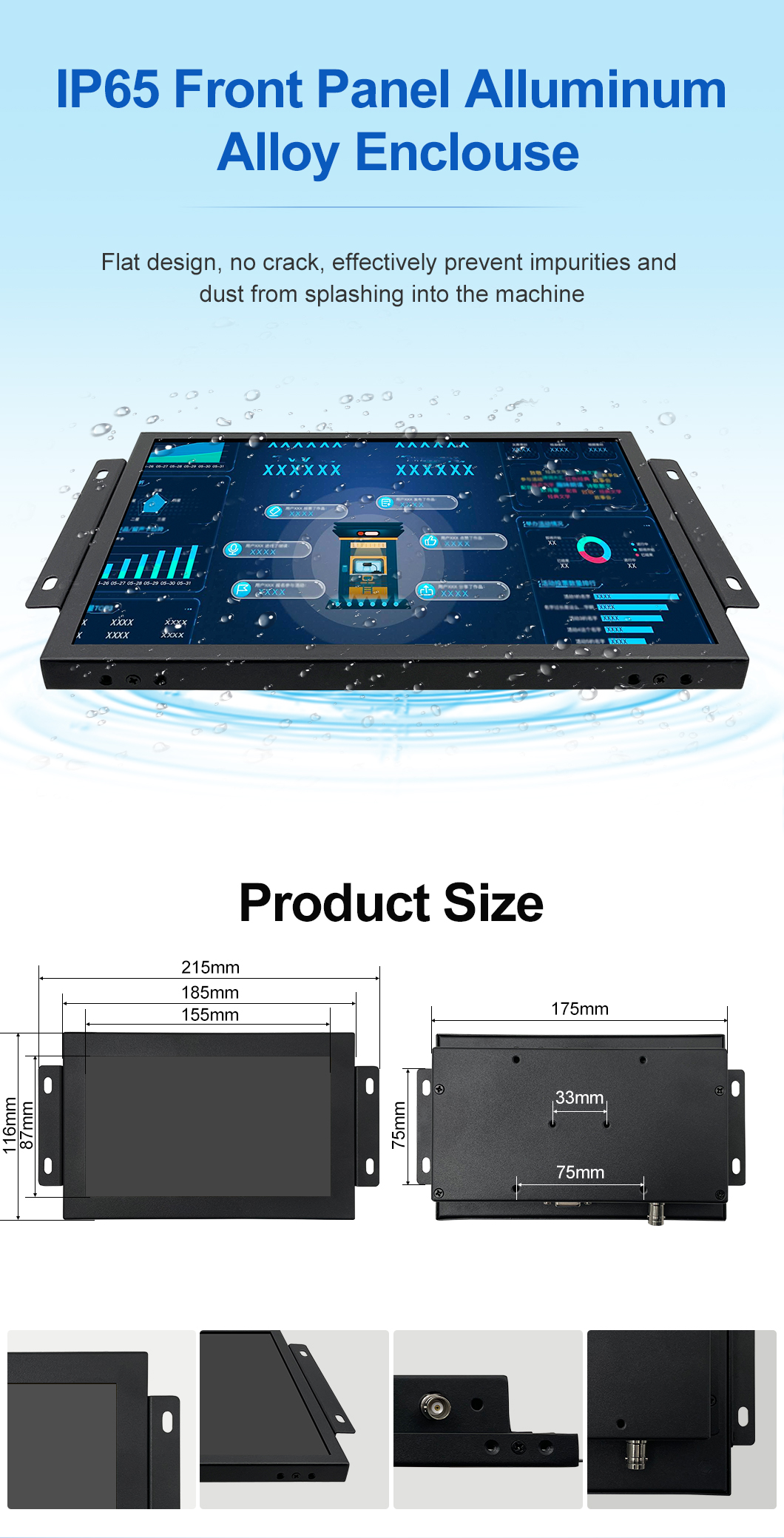

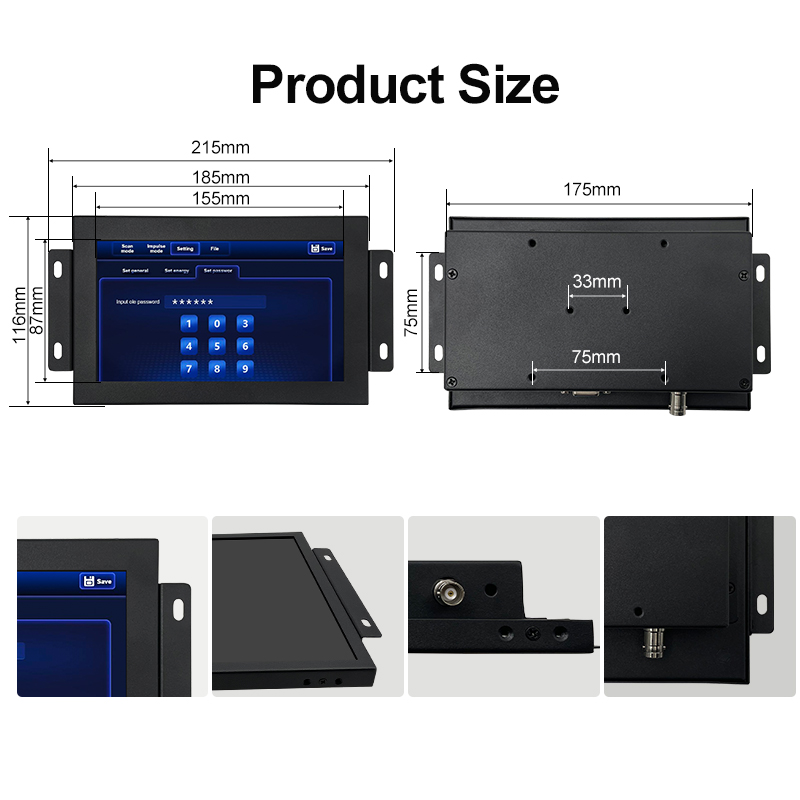

| Dimension (W*H*D) | 215*116*35 mm |
| Weight | 0.75 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |

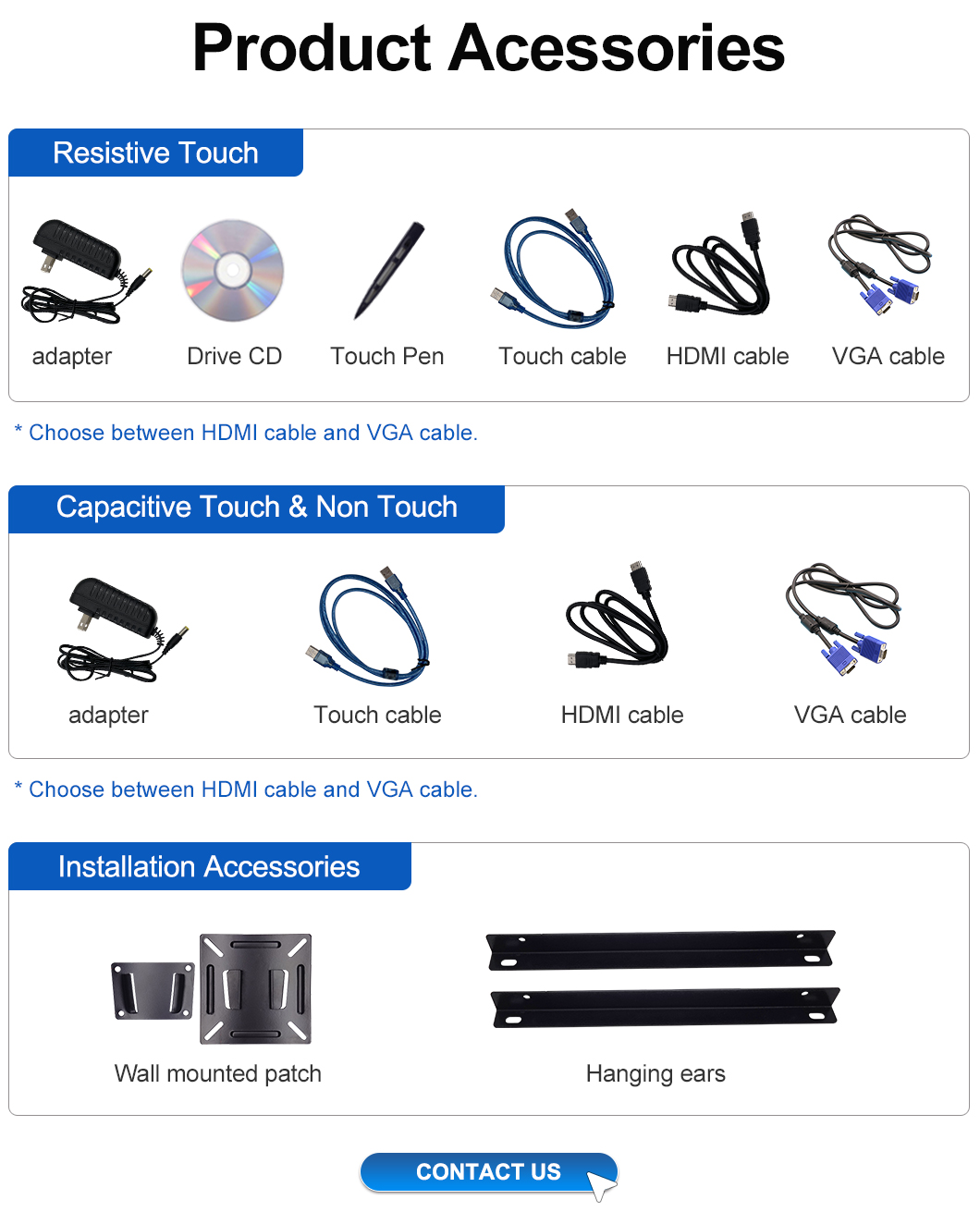

| Accessories:VESA wall mount kit / stand/ Long Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapter. | |
-
Model No :B700-JJS-ZT && B701-JJS-ZT
7 Inch 800*480 & IPS 1024*600 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Open Frame Embedded OEM ODM Industrial LCD Monitor
-
