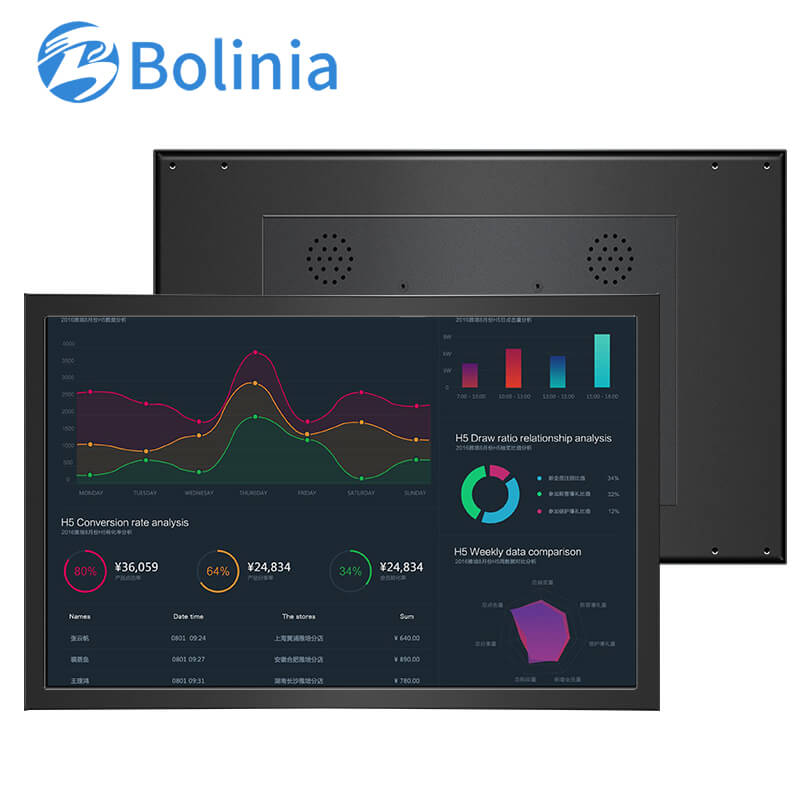

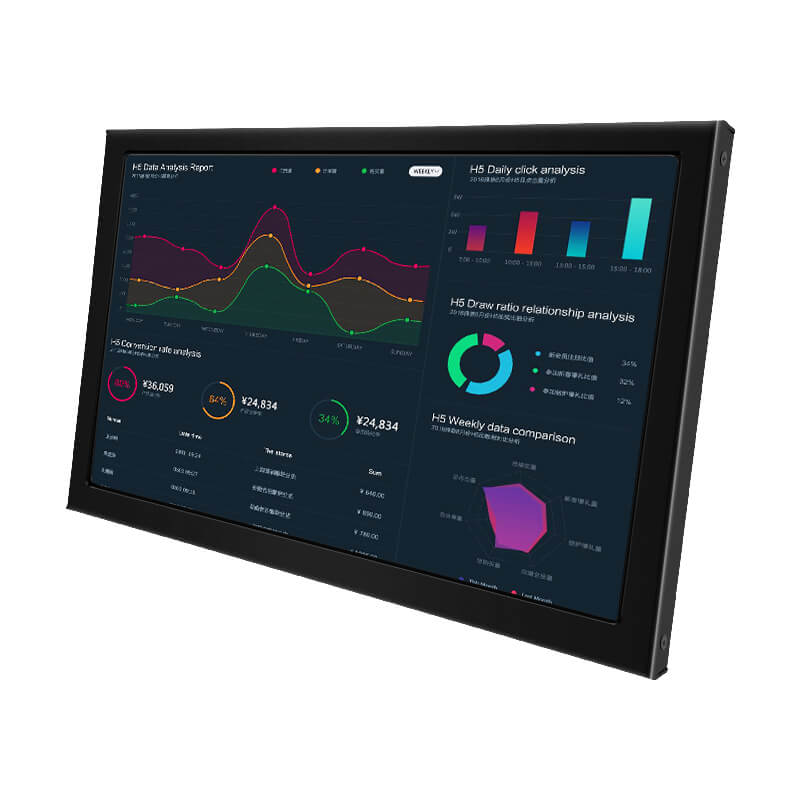

21.5 Inch IPS 1920*1080 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B215-ZT
| Datasheet | |
| Mould | B215-ZT |
| Size | 21.5" |

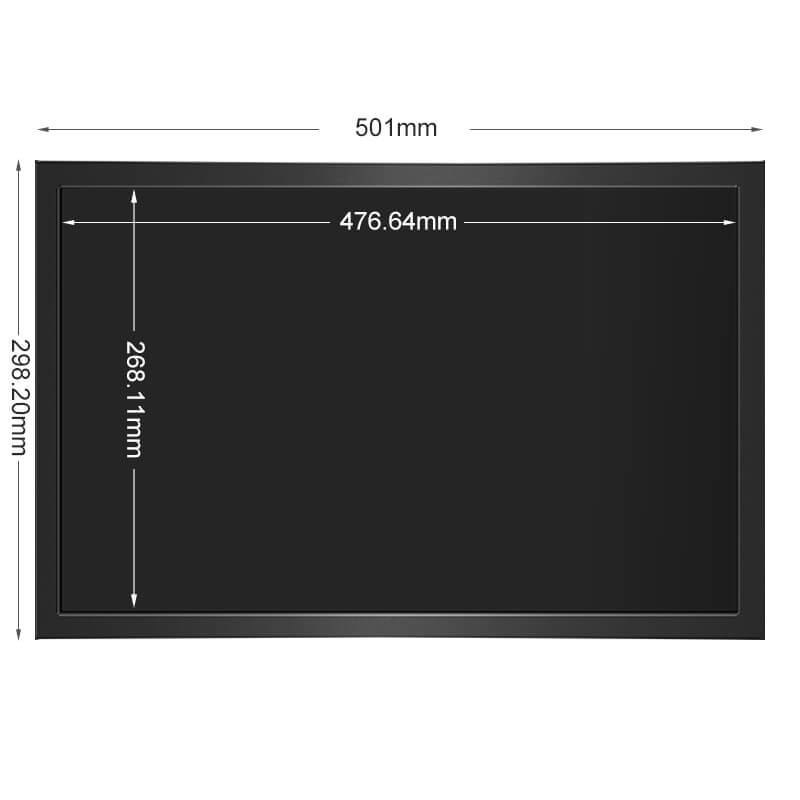

| Active Area | 476.64*268.11 mm |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 170/160 |
| Response Time | 6ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

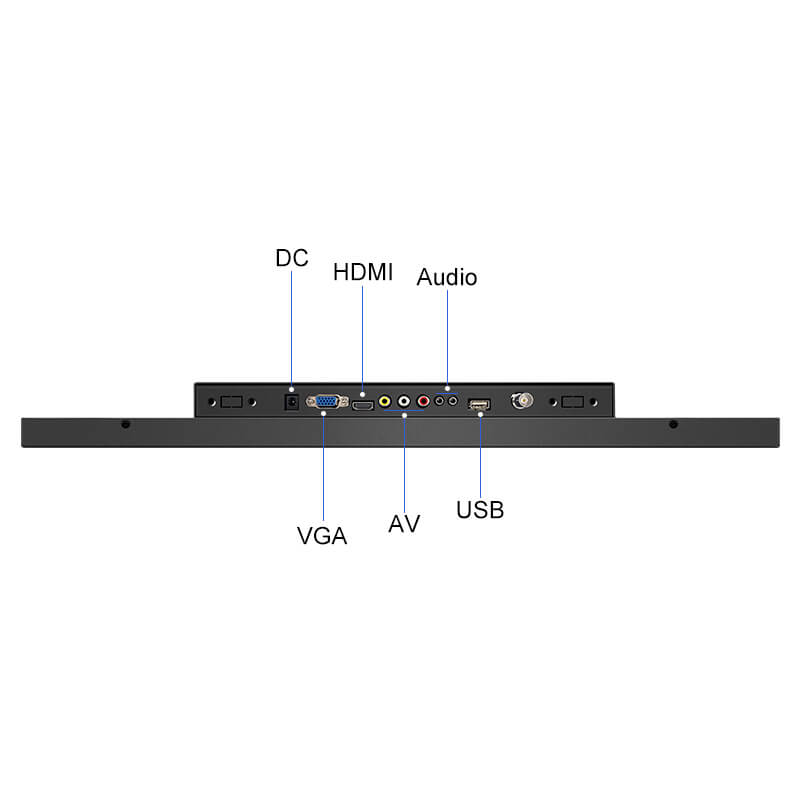

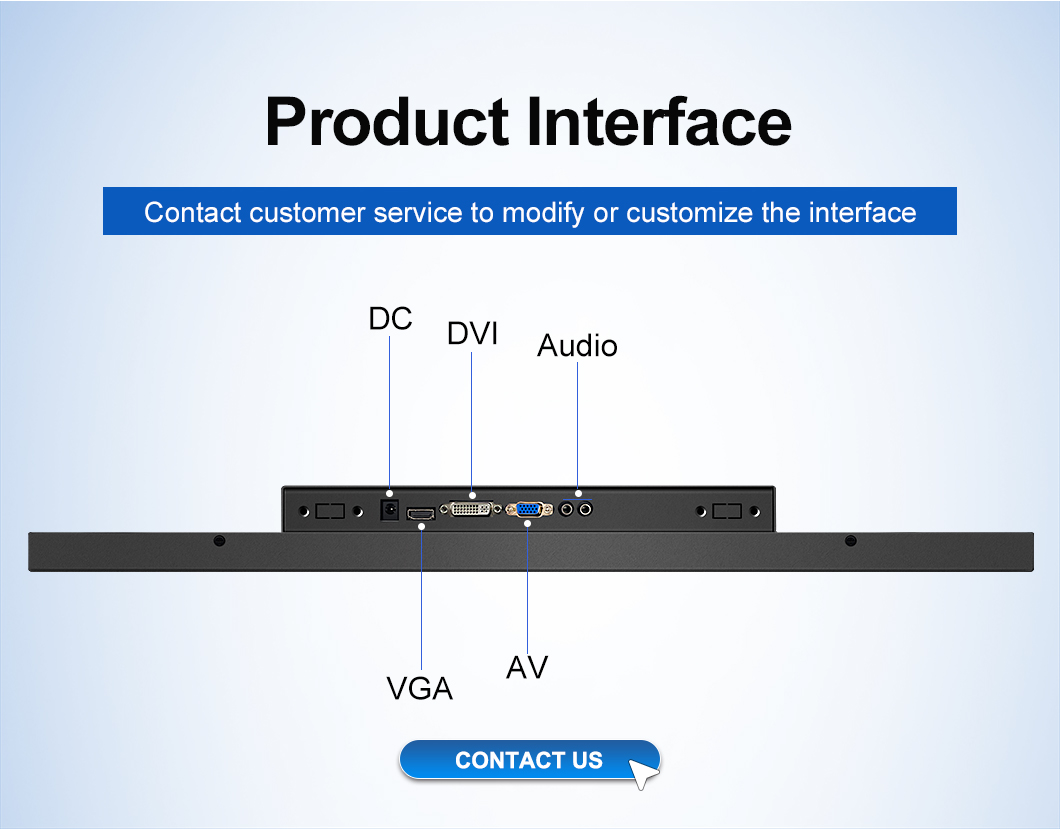

| Video Inputs/Outputs | VGA only or VGA+AV+BNC+HDMI+USB |
| Audio Inputs/Outputs | N/A |
| Touch | 4-wire Resistive |

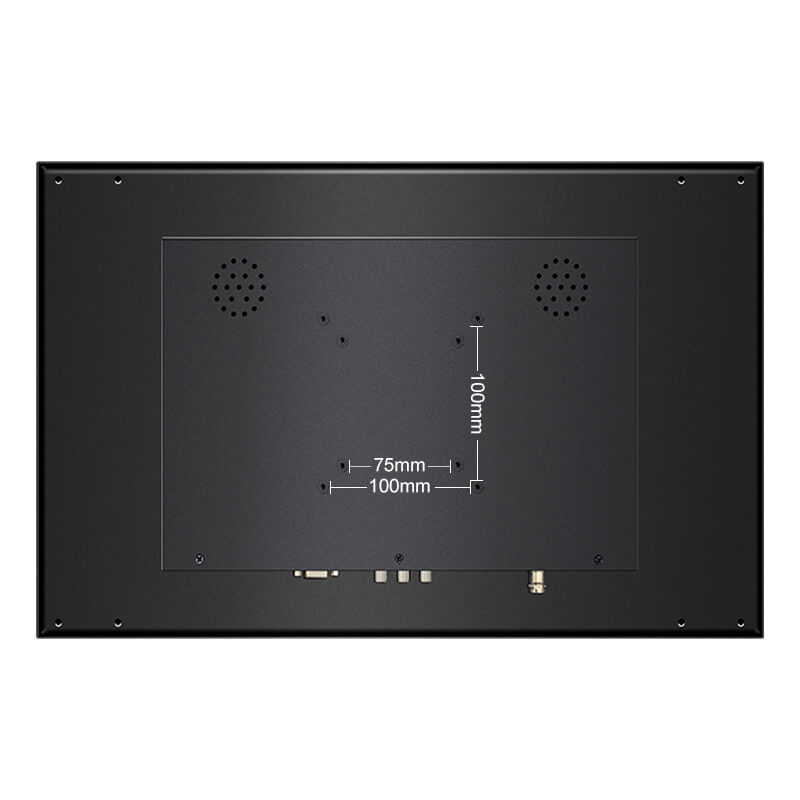

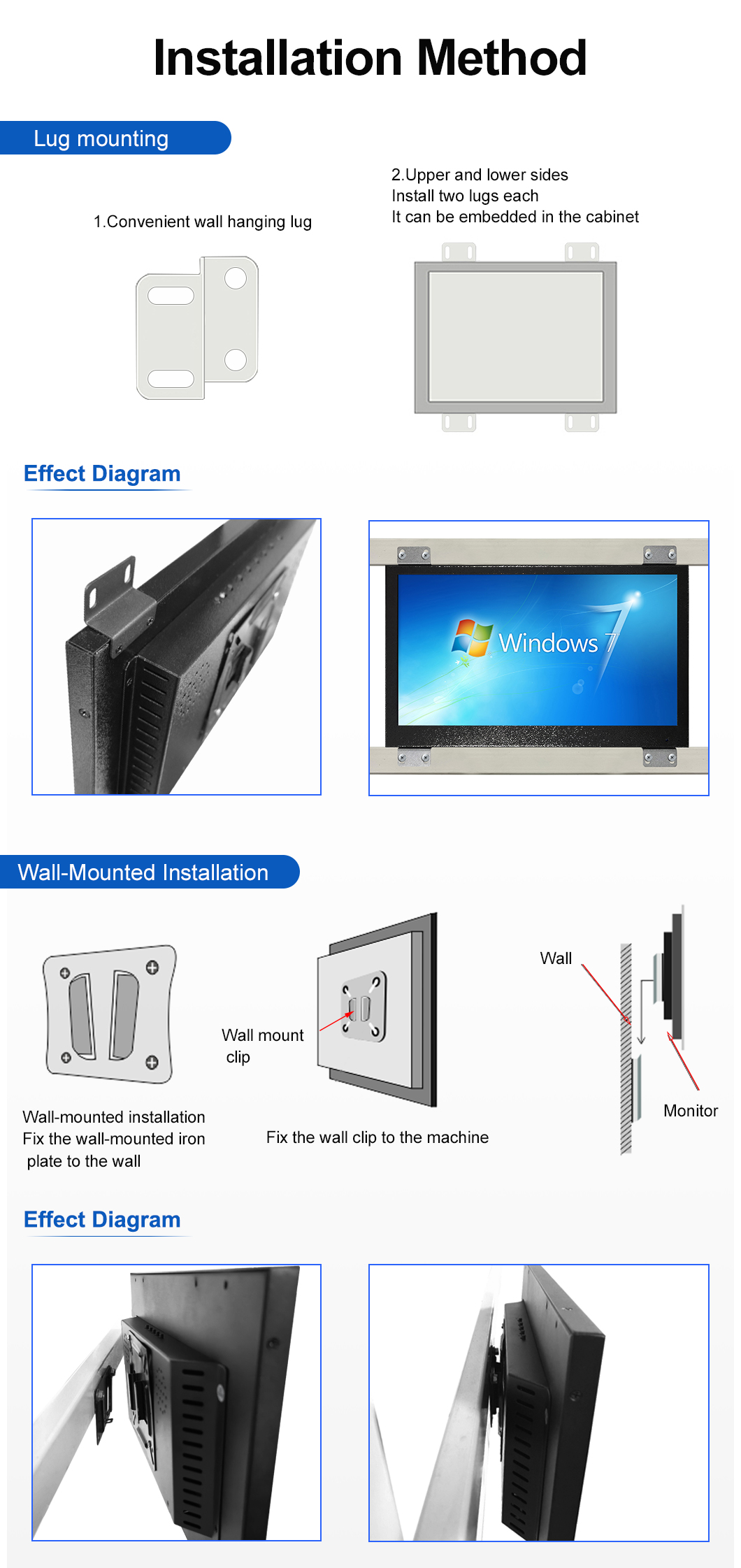

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |
| Product Size | 501*298*57 mm |
| Net Weight | 5.85 KGS |
| Certificates | CE/FCC/ROHS/CCC |

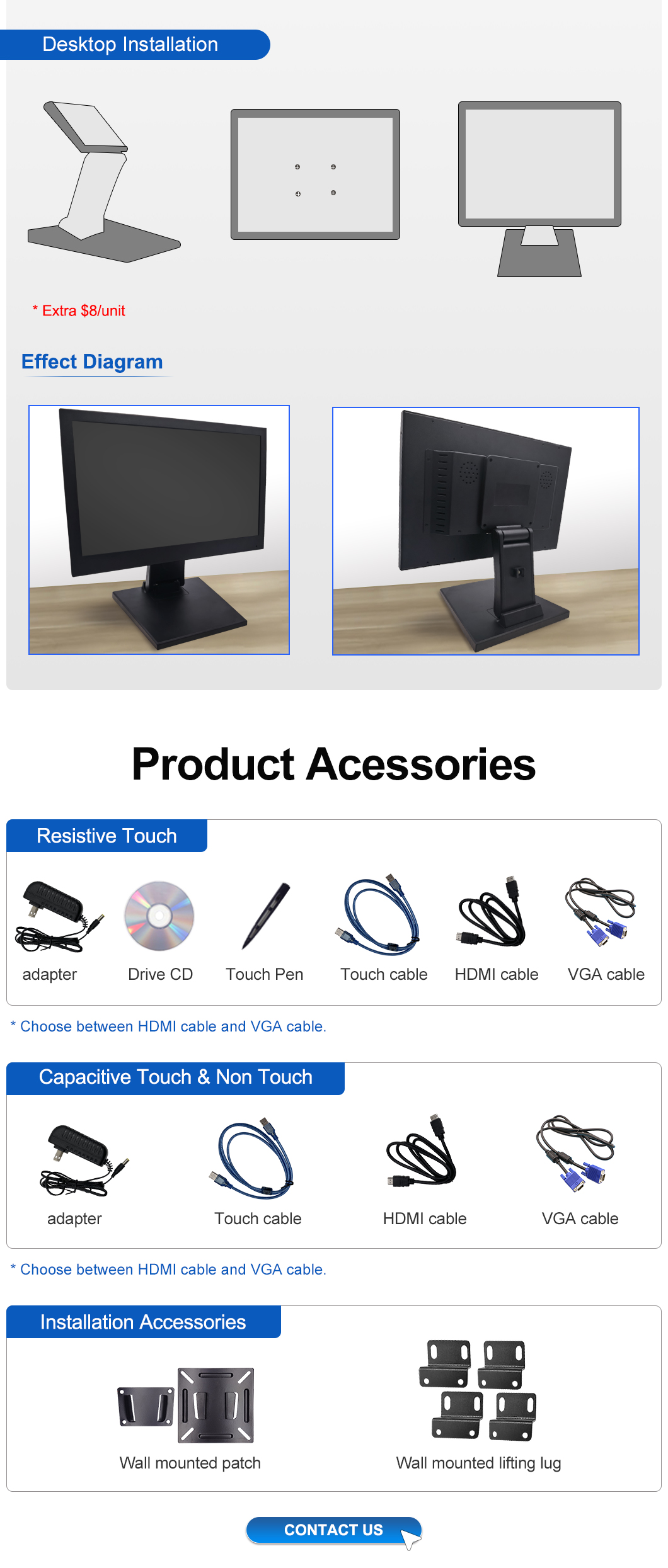

| Accessories: VESA wall mount kit/ Hanging ear / Stand , VGA cable/ HDMI cable , USB touch cable, Touch pen, Flash dirve, 12V DC 1A power adapter, Manual , Warranty card | |
