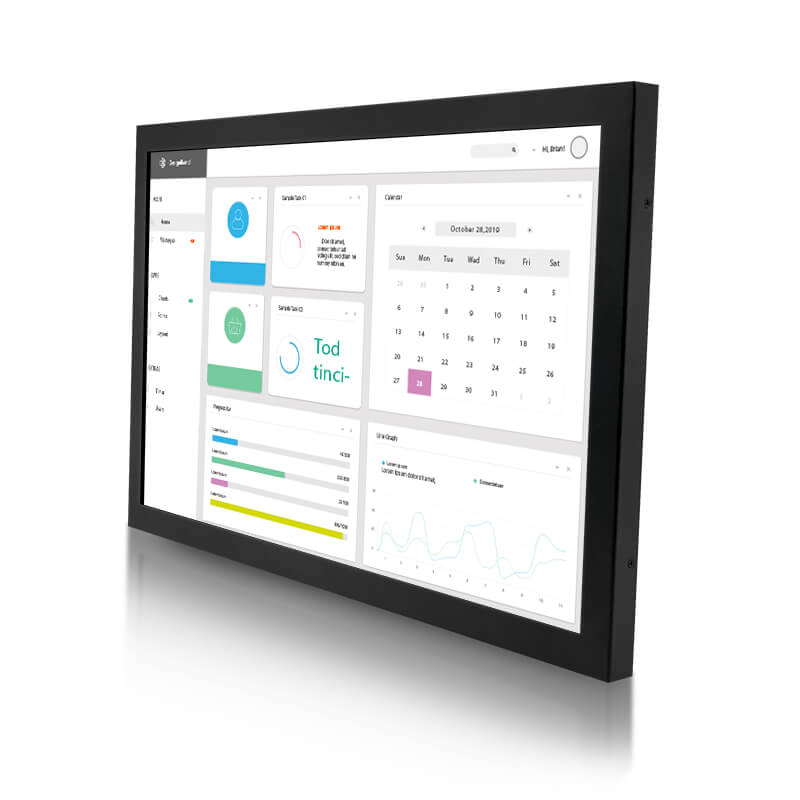

10.8 Inch IPS 1920*1080 HDMI VGA AV BNC Non Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B108-CB
| Datasheet | |
| Size | 10.8" metal Non-touch |
| Active Area | 202.8*152.1 mm |
| Panel Type | IPS Panel |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 300:1 |
| Brightness | 250 NITS |
| Viewing Angle (H/V) | 170/170 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

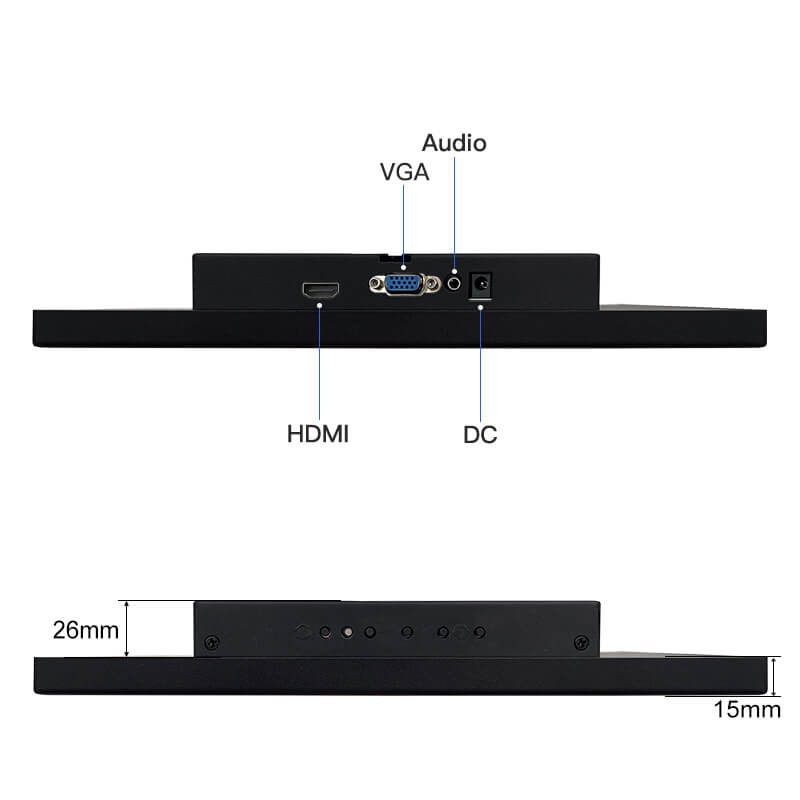

| Video Inputs/Outputs | VGA(15 PIN)+AV+BNC+HDMI+USB |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

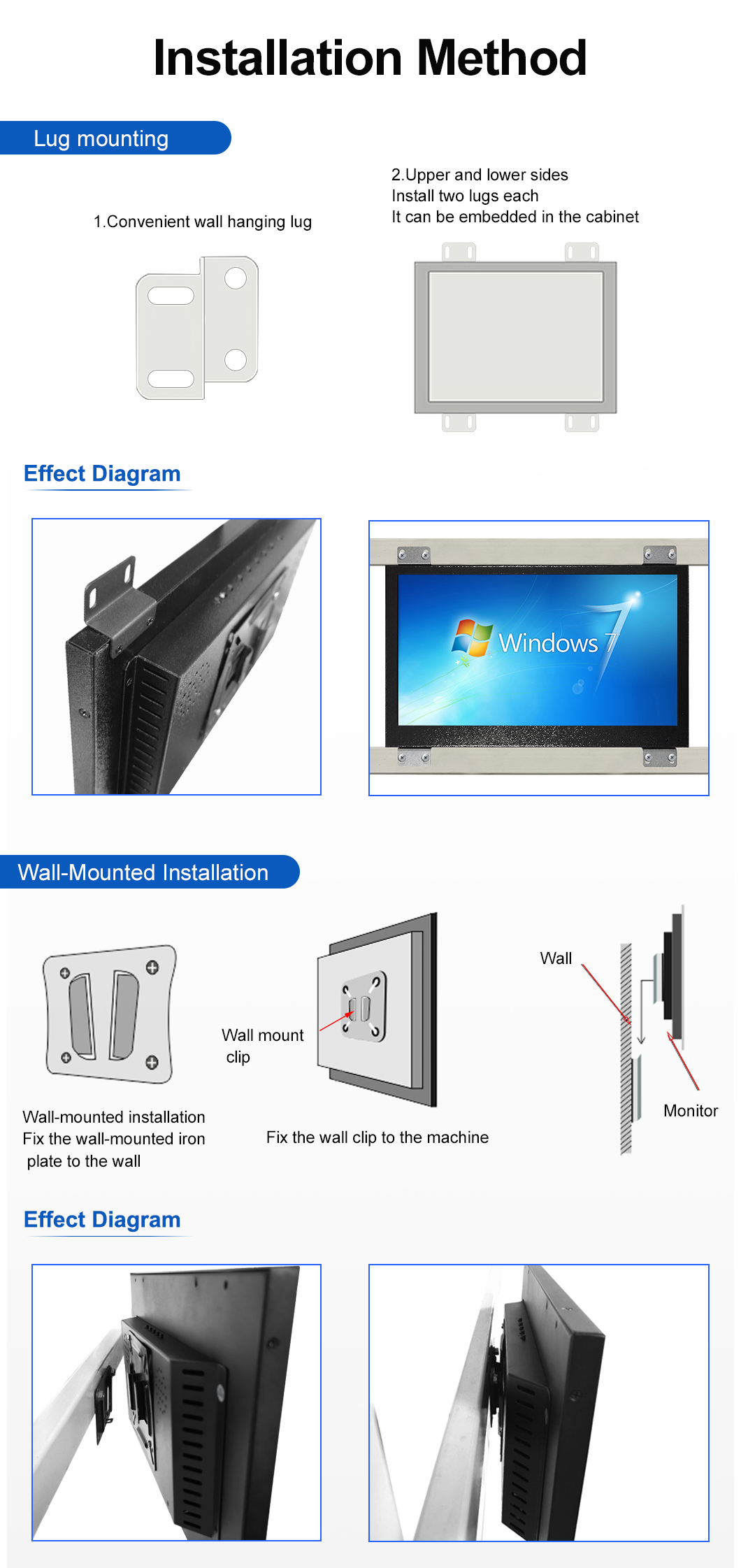

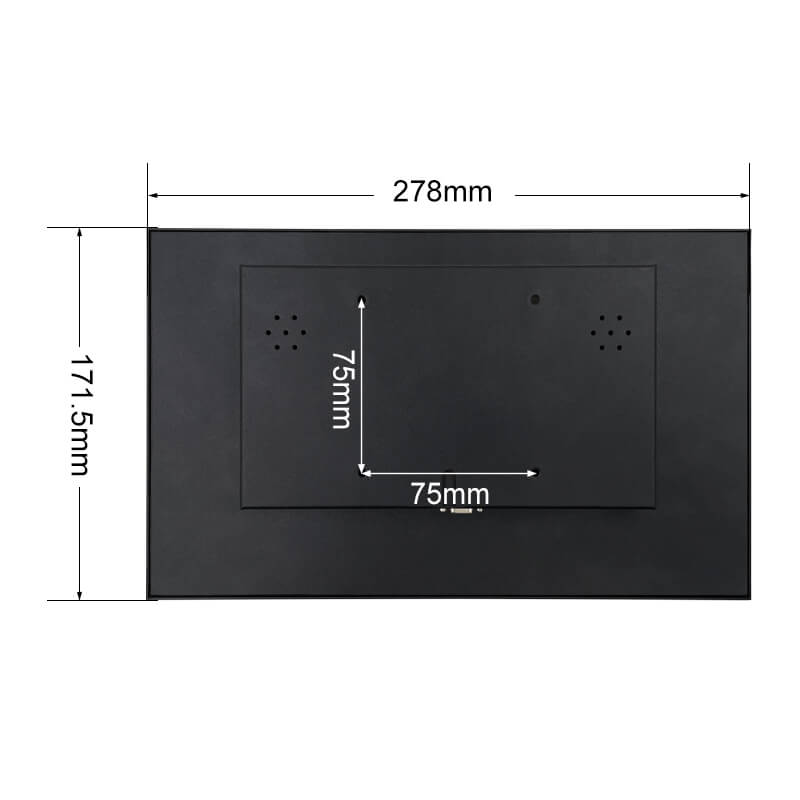

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Control | OSD Control |

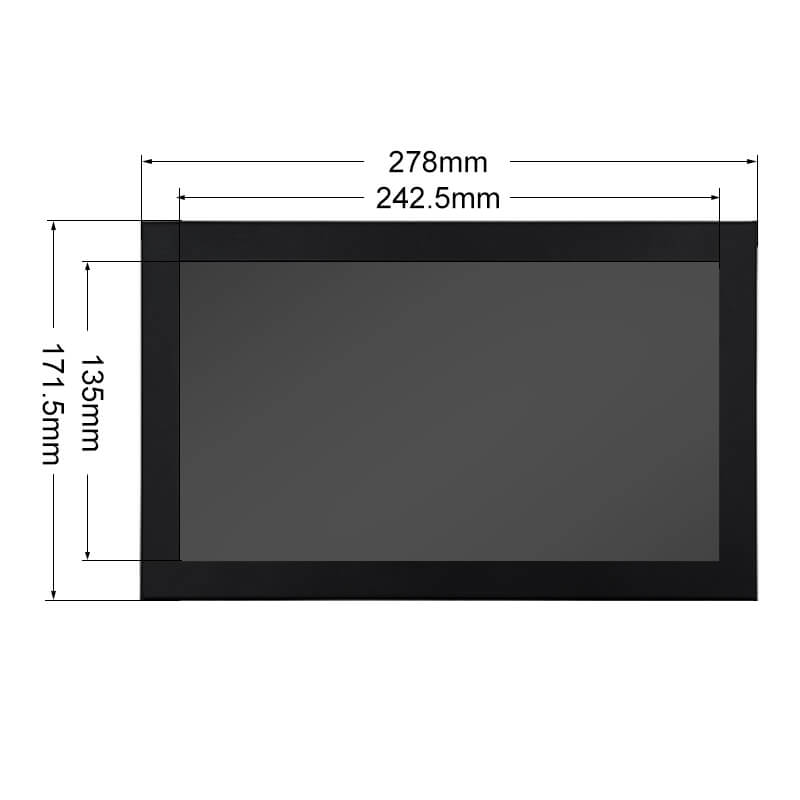

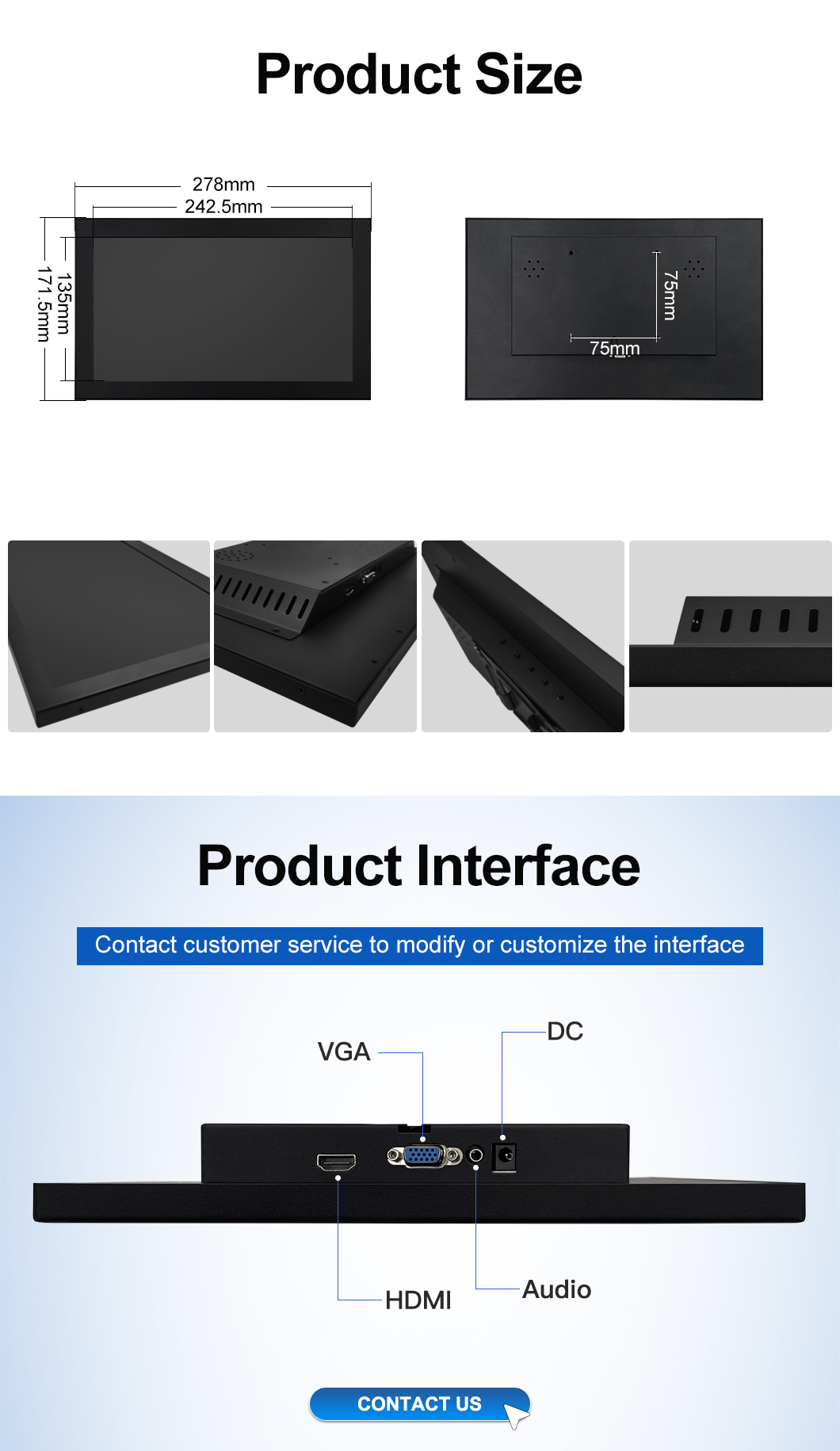

| Product Size | 230*205*45 MM |
| Net Weight | 1.47 KG |
| Certificates | CE/FCC/ROHS/CCC |

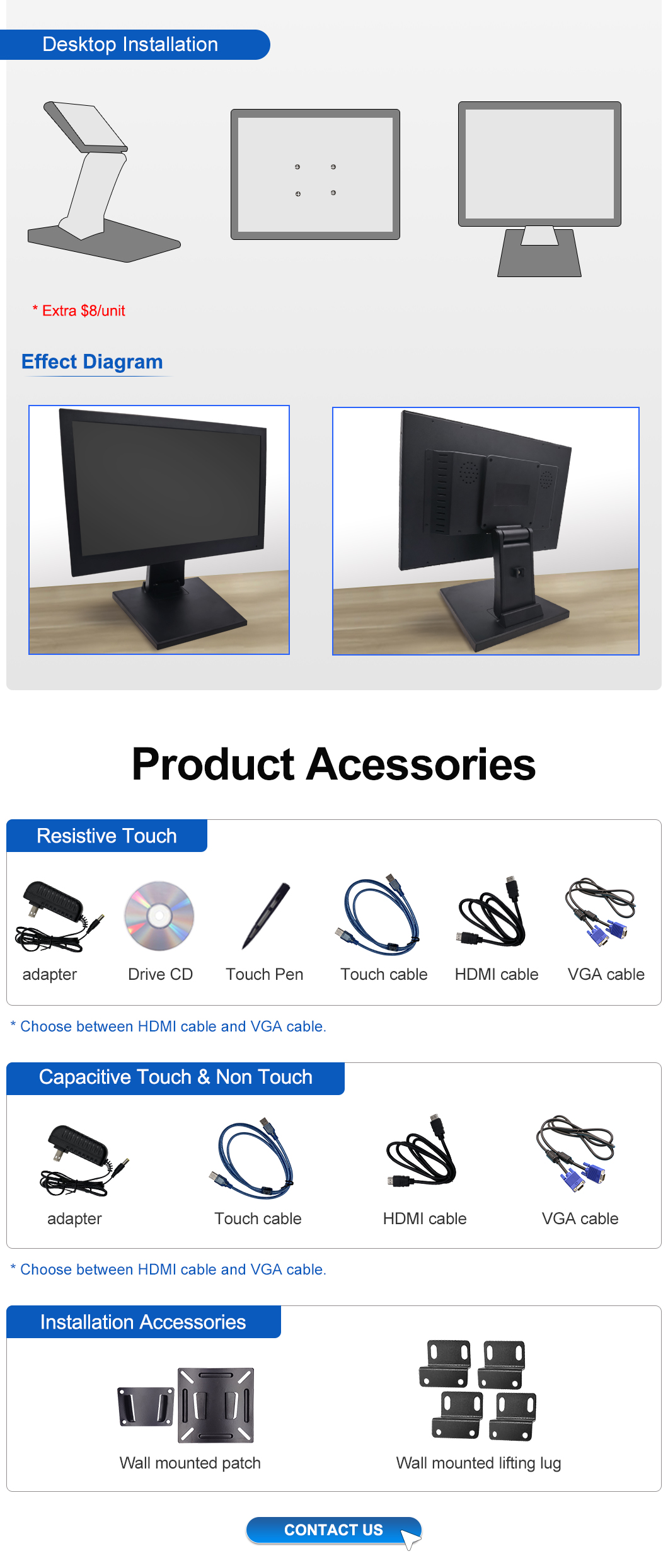

| Accessories: VESA mount kit , warranty card, VGA cable, BNC cable and power adapter. | |
