9.7 Inch 1024*768 & IPS1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Wall Mounted OEM ODM Industrial Factory LCD Monitor
Model No :B97-ZT
| Datasheet | |
| Model | B97-ZT |
| Size | 9.7" |
| Active Area | 194*146 mm |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 600:1 |
| Brightness | 250 cd/m |
| Viewing Angle (H/V) | 160/160 |
| Response Time | 25 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

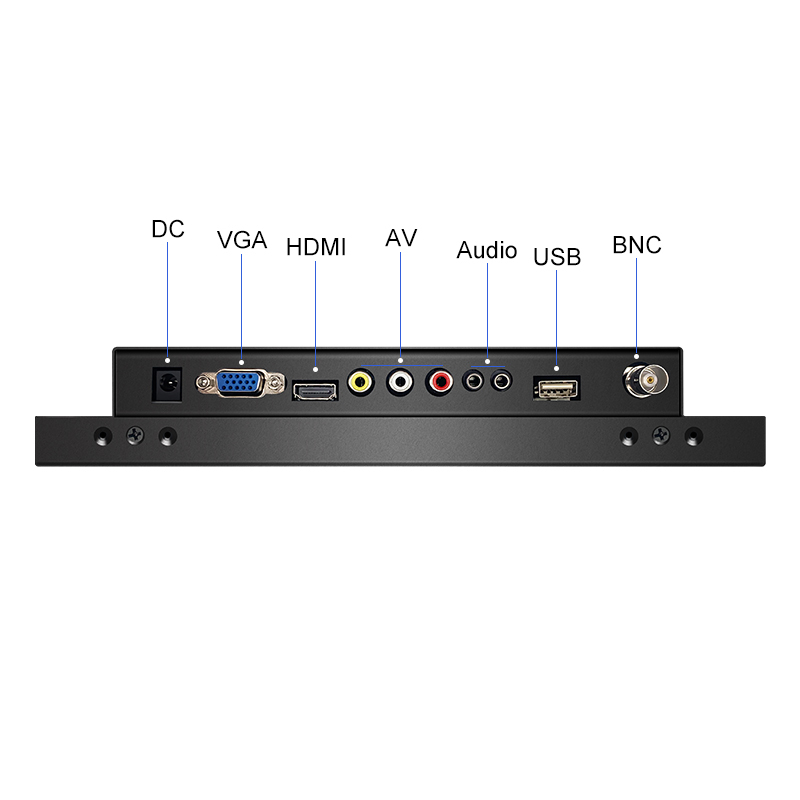

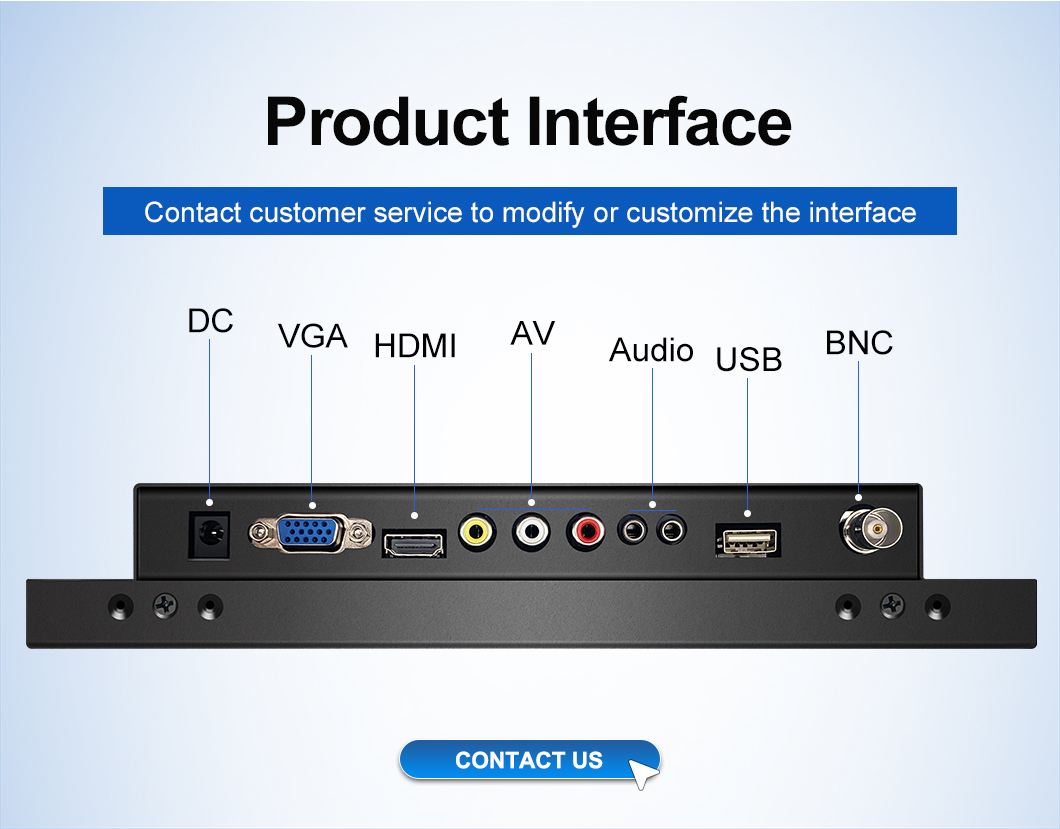

| Video Inputs/Outputs | VGA/AV/BNC/HDMI/USB/ Audio/DC input*1 |
| Audio Inputs/Outputs | N/A |
| Touch | Optional |

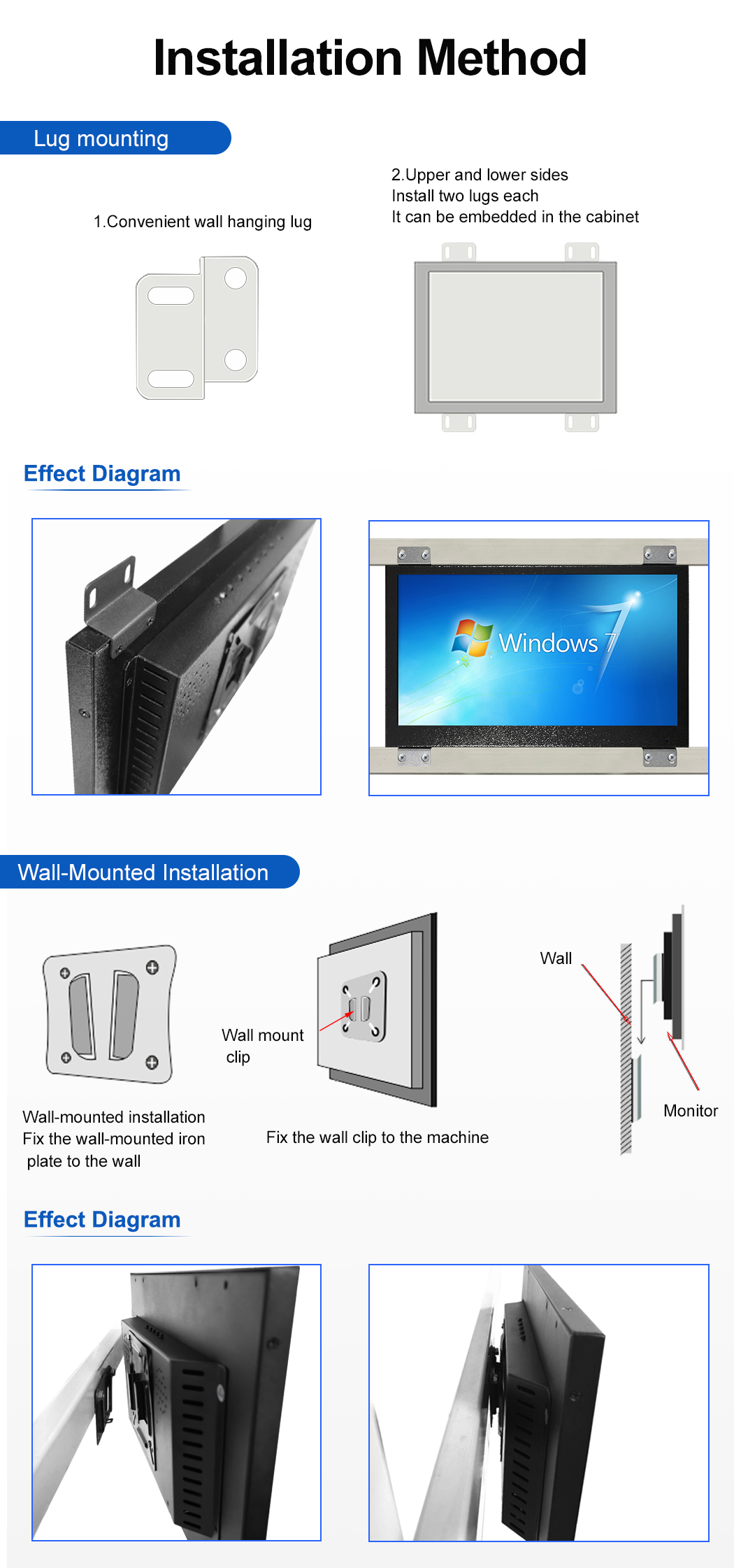

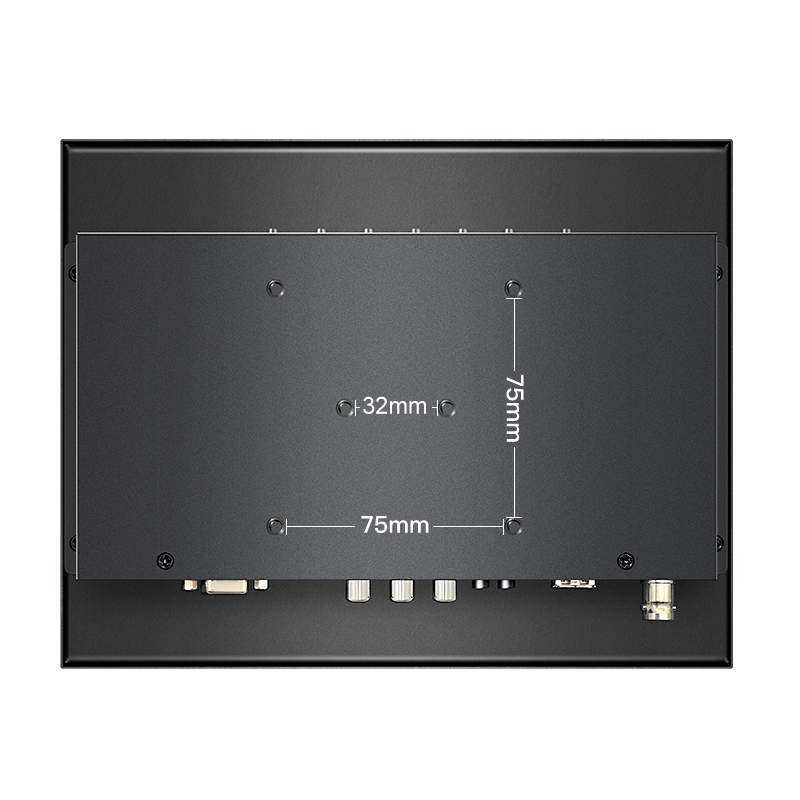

| Installation | Stand base/VESA mount |
| Power Requirement | DC 12V |

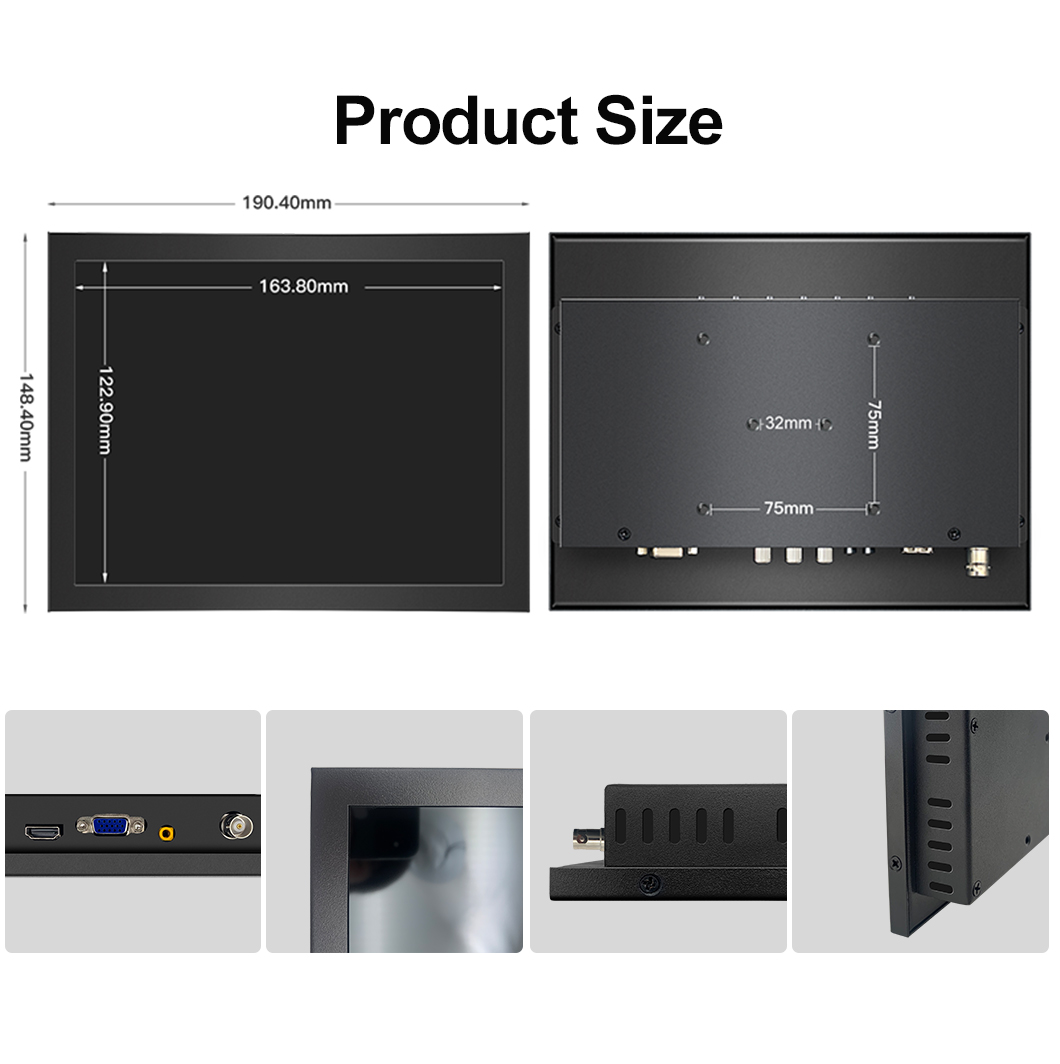

| Dimension (W*H*D) | 224*175*42 mm |
| Weight | 1.65 kg |
| Control | OSD Control |
| Accessories | Power Adatper/VGA cable |
| Certificates | CE/FCC/ROHS |
| Accessories:VESA wall mount kit / stand/ Hanging ears , VGA cable/HDMI cable , 12V DC 1A power adapte | |
-
