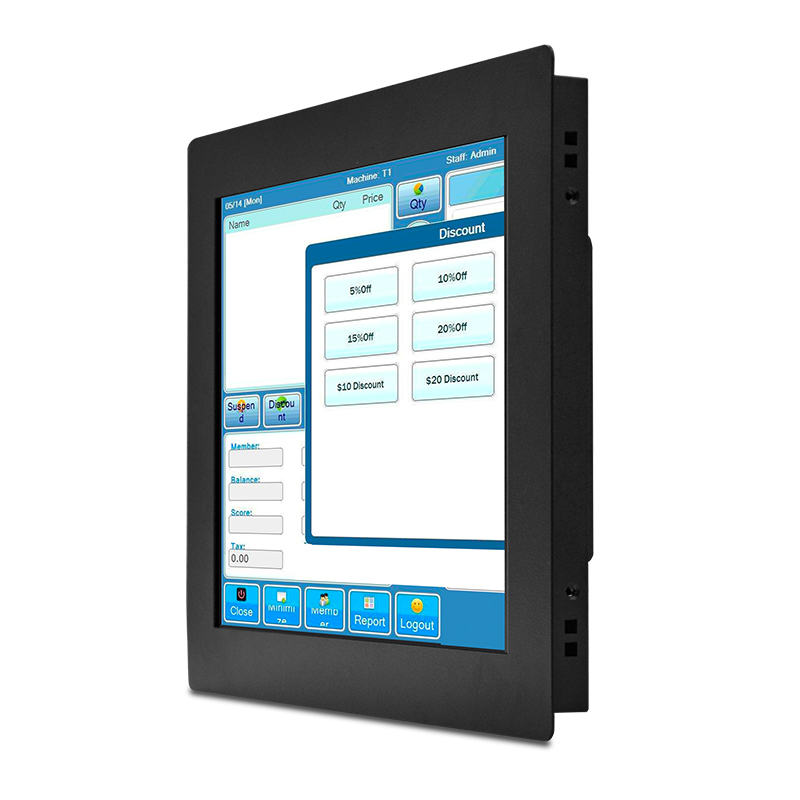

15 Inch 1024*768 HDMI VGA AV BNC Resistive Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B150-QR-ZT
| Mould | B150-QR-ZT |
| Size | 15" |
| Active Area | 305.5*299.5 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 800:1 |
| Brightness | 300 cd/m |
| Viewing Angle (H/V) | 135/140 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

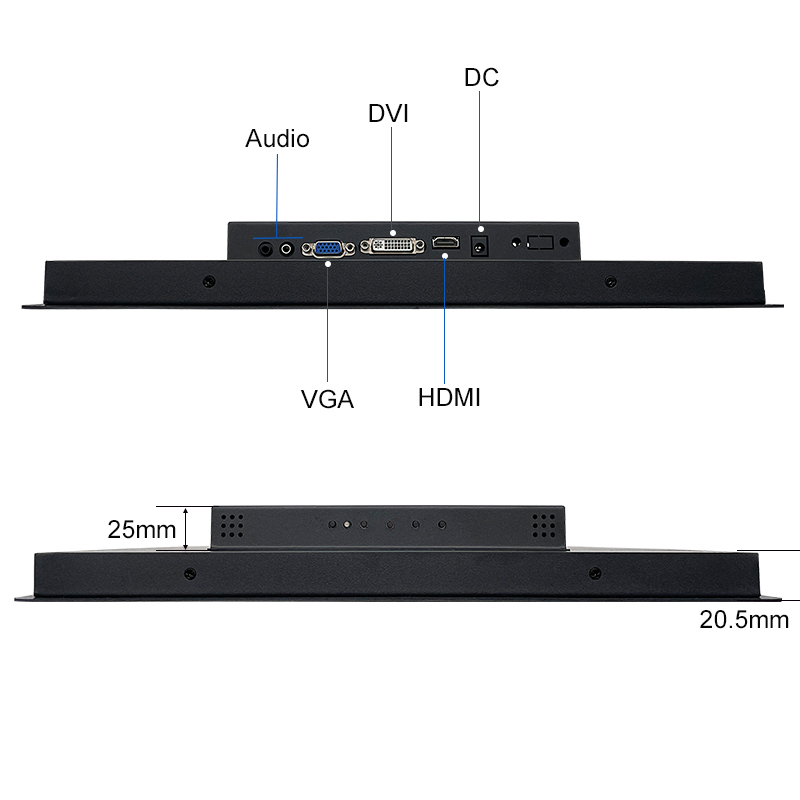

| Video Inputs/Outputs | DC+HDMI+VGA+PC+DVI |
| Touch | Resistive touch |
| Audio Inputs/Outputs | Earphone Jack 35mm |

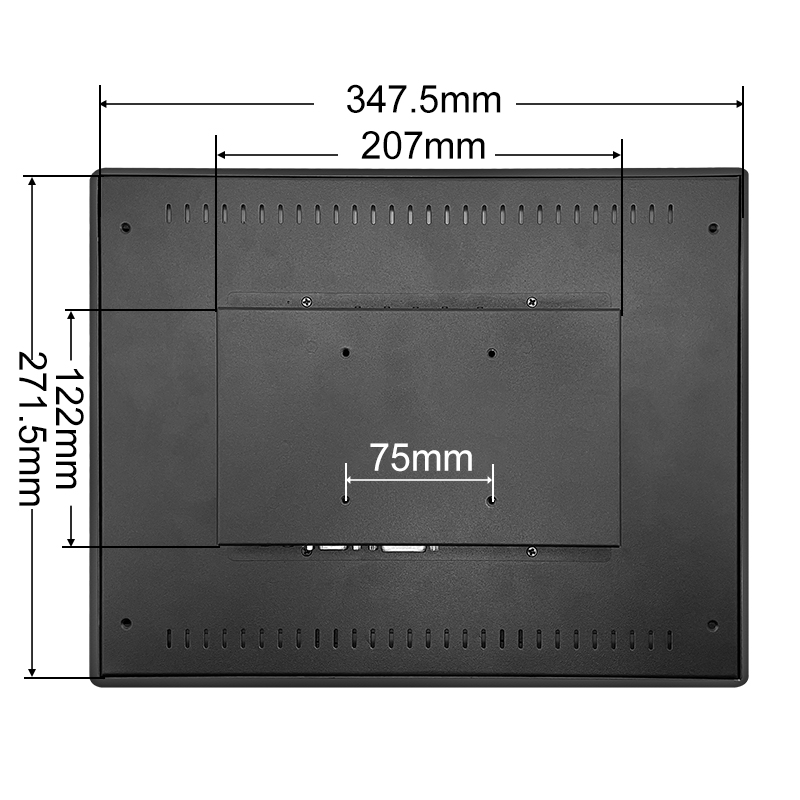

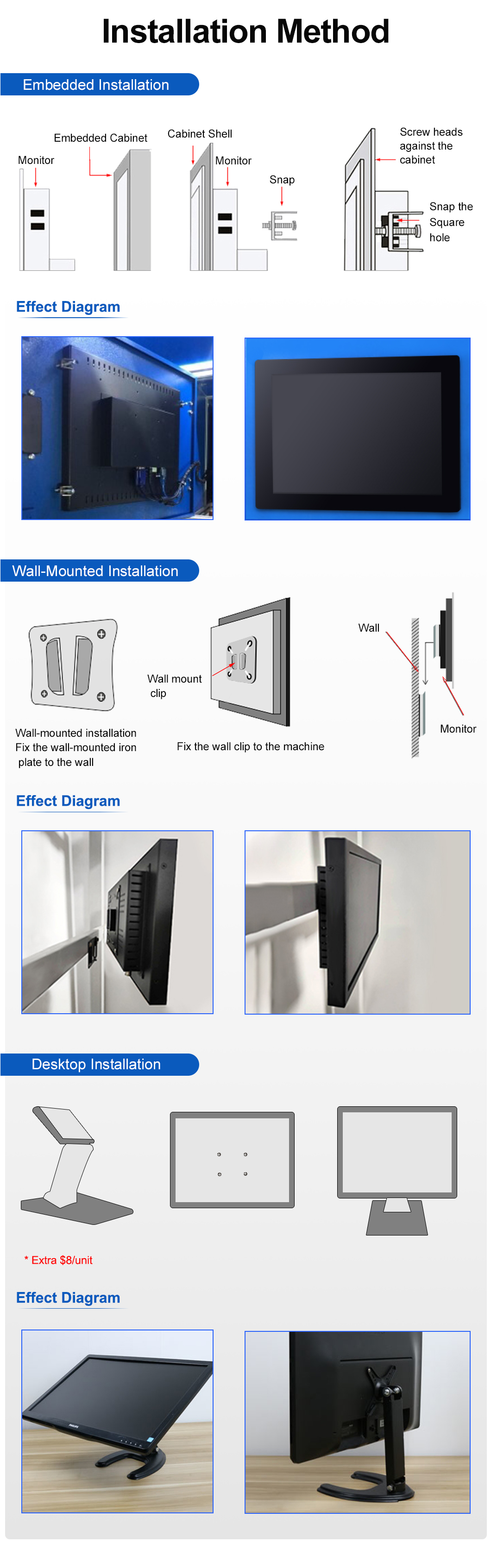

| Installation | VESA mount |
| Power Requirement | DC 12V |

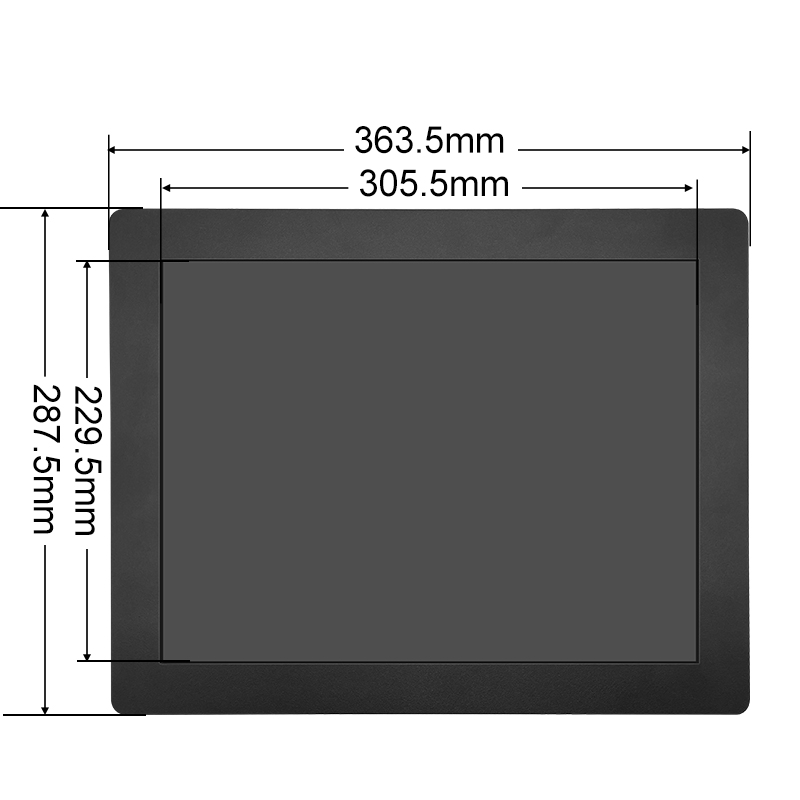

| Dimension (W*H*D) | 363.5*287.5*45.5 mm |
| Weight | 3.08 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount/ stand, VGA cable/HDMI cable/DVI cable, manual book and power adapter. | |
