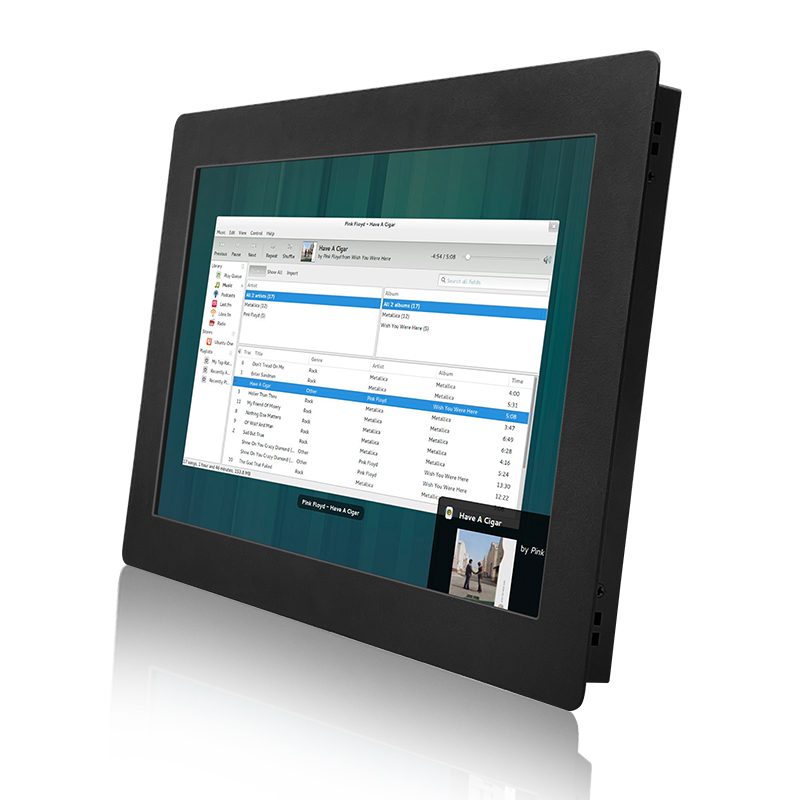

15.6 Inch 1366*768 & IPS1920*1080 HDMI VGA Resistive Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B156-QR-ZT
| Mould | B156-QR-ZT |
| Size | 15.6" |

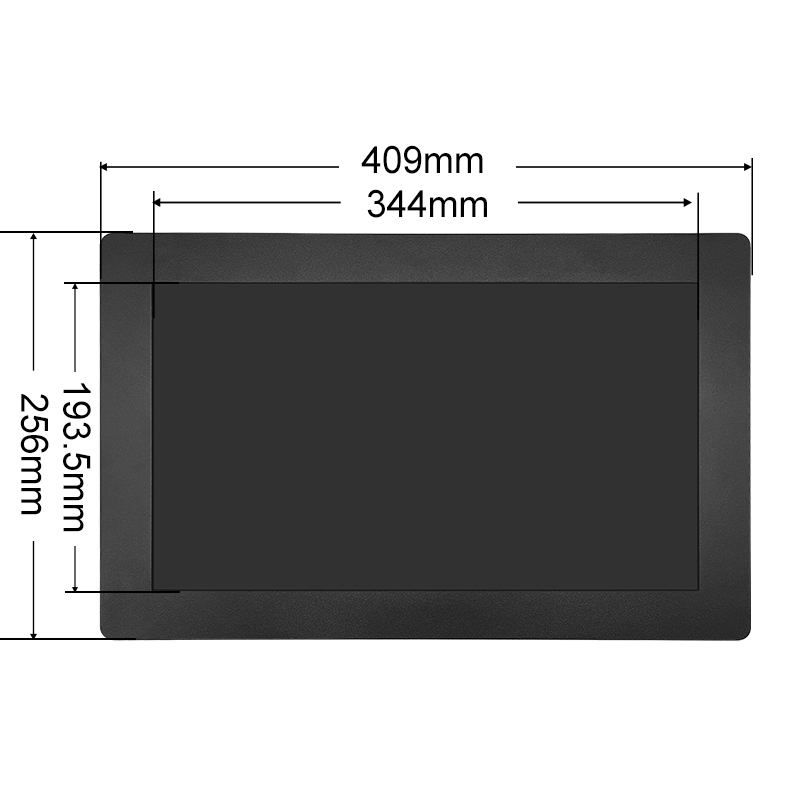

| Active Area | 344*193.5 mm |
| Panel Type | TFT-LCD & IPS Panel |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1366*768 & IPS1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 1000:1 |
| Brightness | 350 cd/m |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

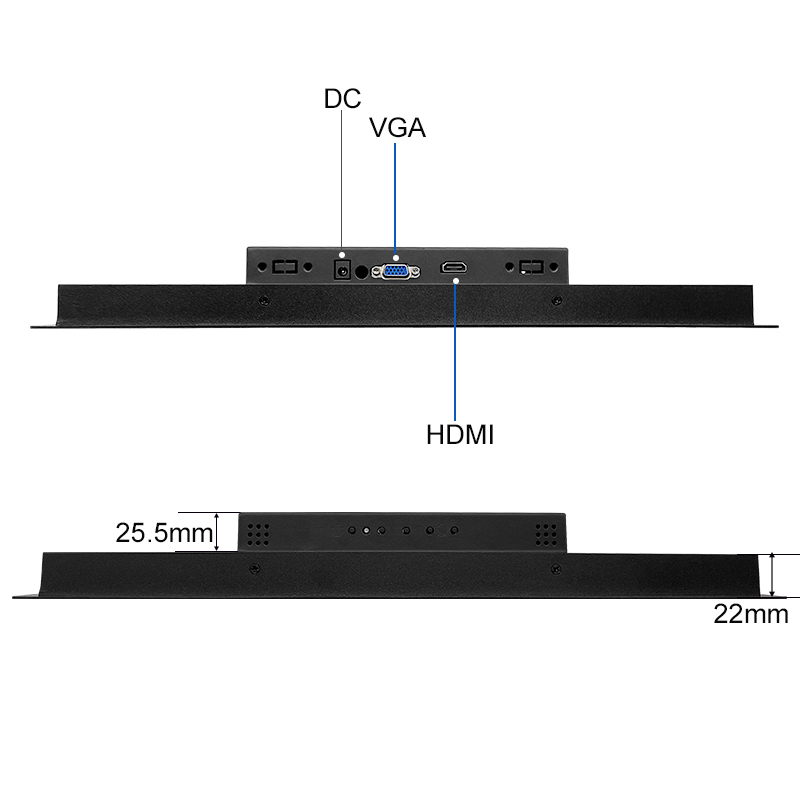

| Video Inputs/Outputs | DC+HDMI+VGA+PC+DVI |
| Touch | Resistive touch |
| Audio Inputs/Outputs | Earphone Jack 35mm |

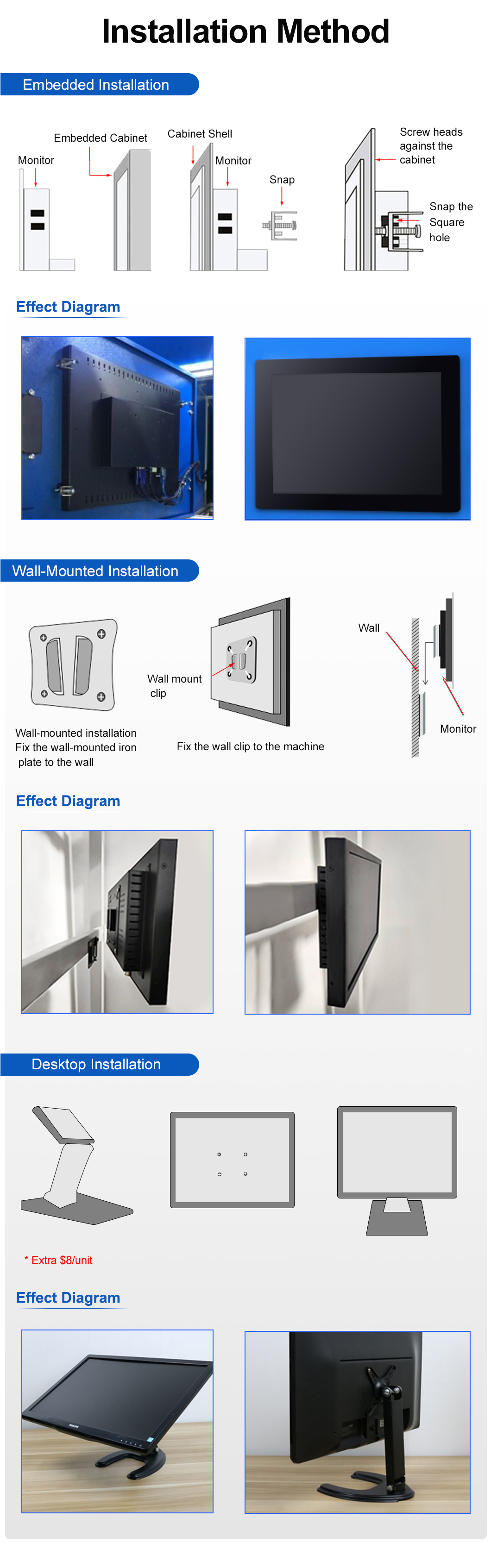

| Installation | VESA mount |
| Power Requirement | DC 12V |

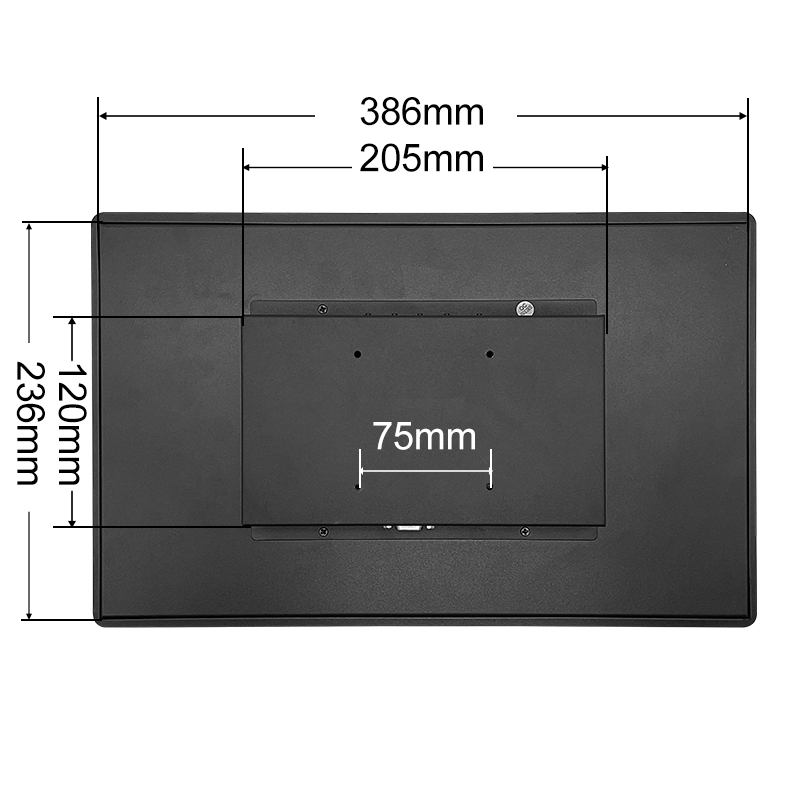

| Dimension (W*H*D) | 409*256*47.5 mm |
| Weight | 2.35 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount/ stand, VGA cable/HDMI cable/DVI cable, manual book and power adapter. | |
