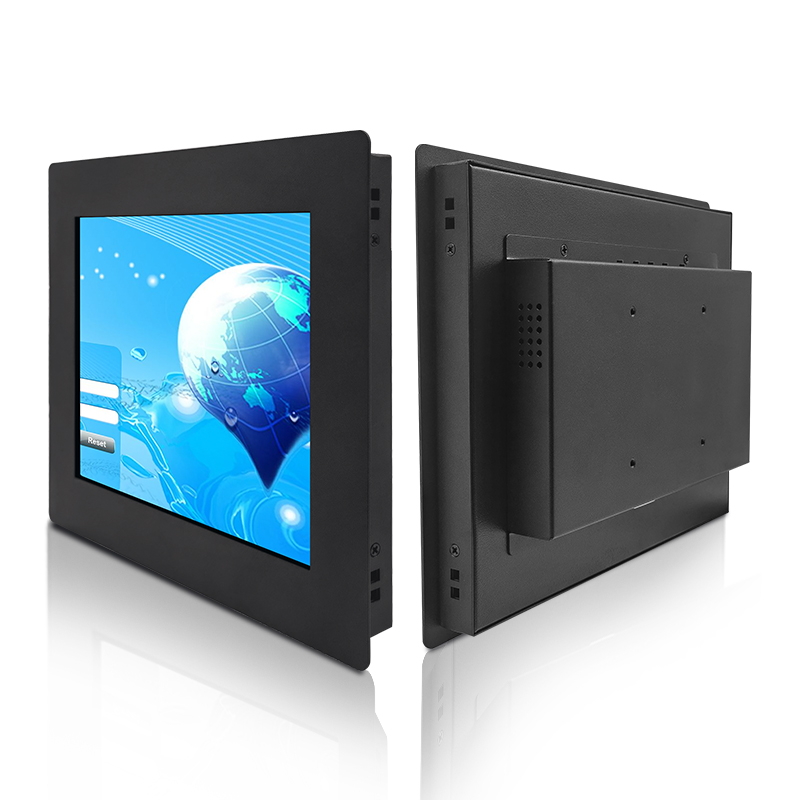

12 Inch 800*600 & 1024*768 HDMI VGA Non Touch Wide Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B120-QR
| Mould | B120-QR |
| Size | 12" |
| Active Area | 264.3*167.2 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 800x600 &1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 350:1 |
| Brightness | 400 cd/m |
| Viewing Angle (H/V) | 150/150 |
| Response Time | 12 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

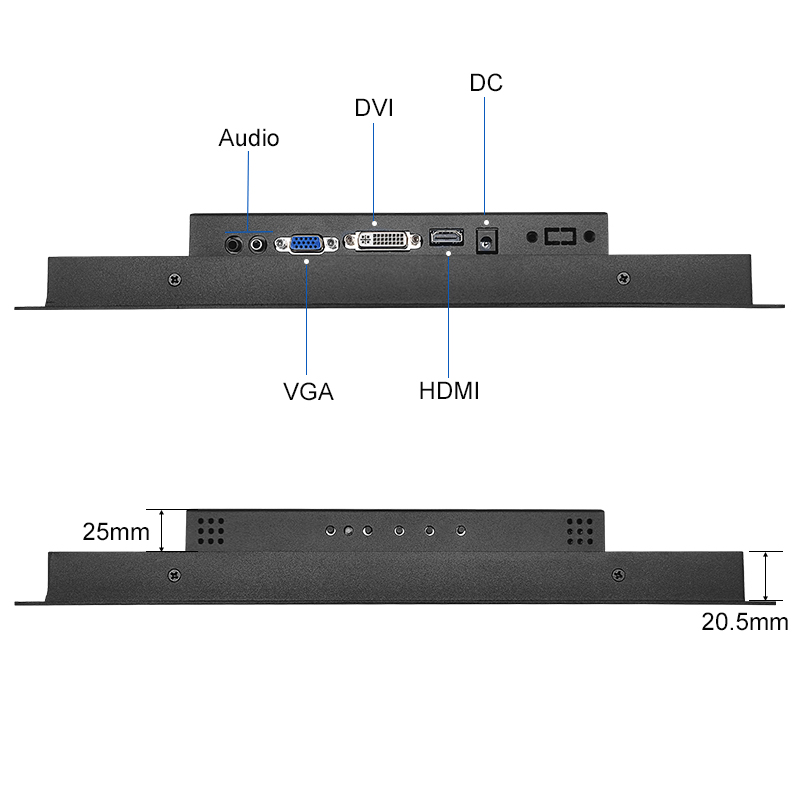

| Video Inputs/Outputs | DC+AV+BNC+HDMI+VGA+PC Audio+Earphone |
| Touch | Non touch |
| Audio Inputs/Outputs | Earphone Jack 35mm |
| Installation | VESA mount |
| Power Requirement | DC 12V |

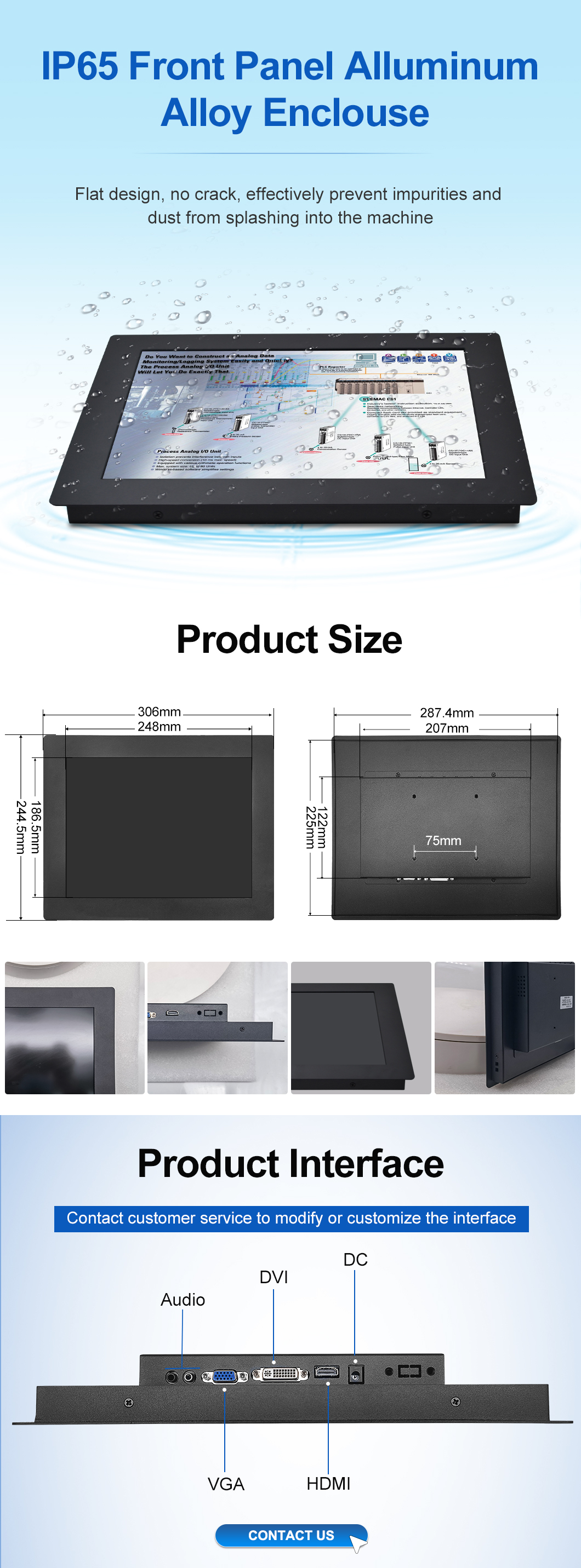

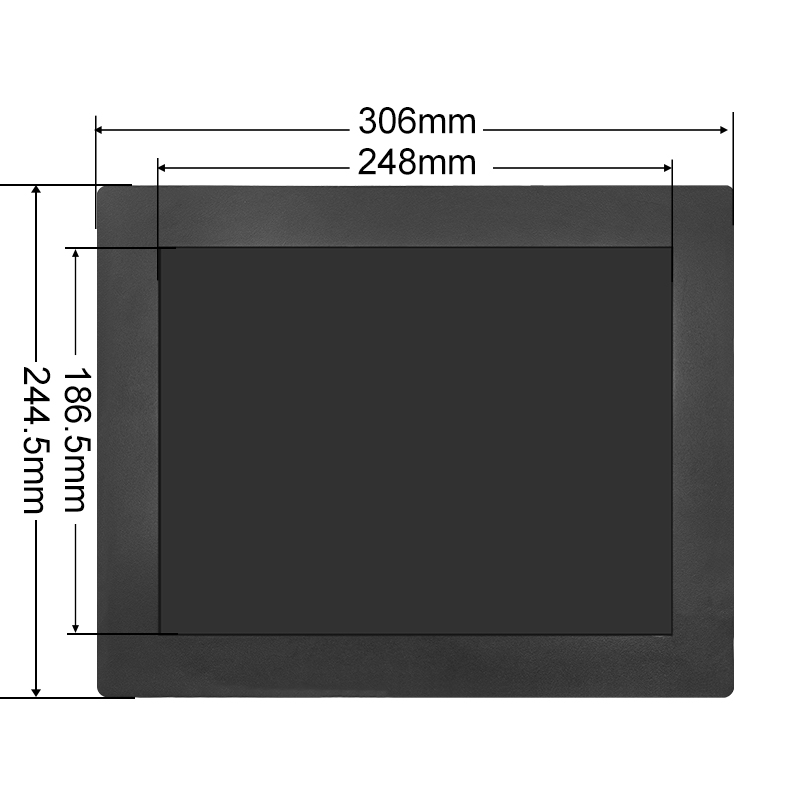

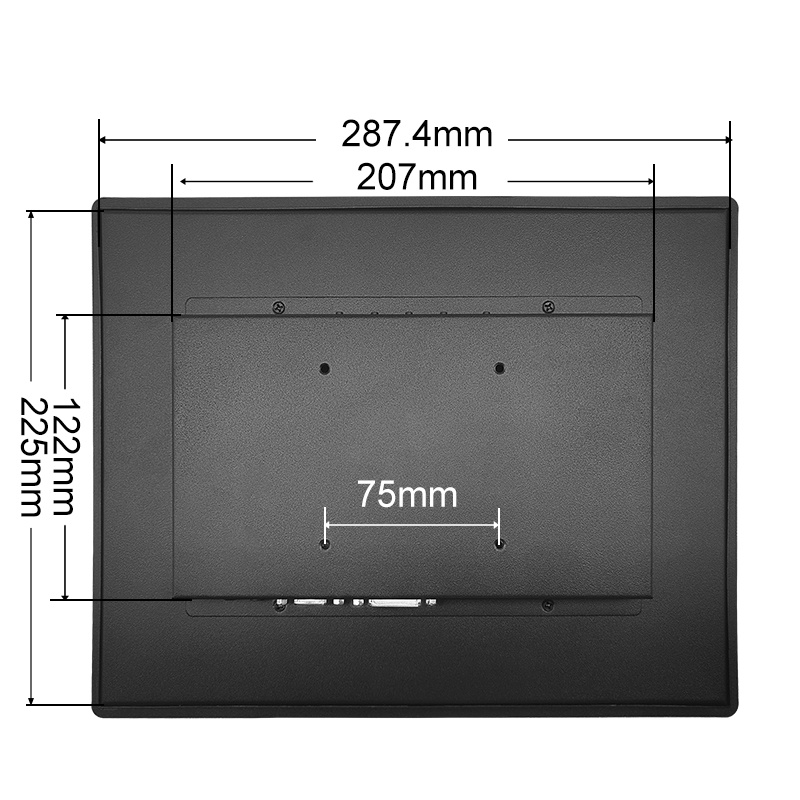

| Dimension (W*H*D) | 306*244.5*45.5 mm |
| Weight | 3.2 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |

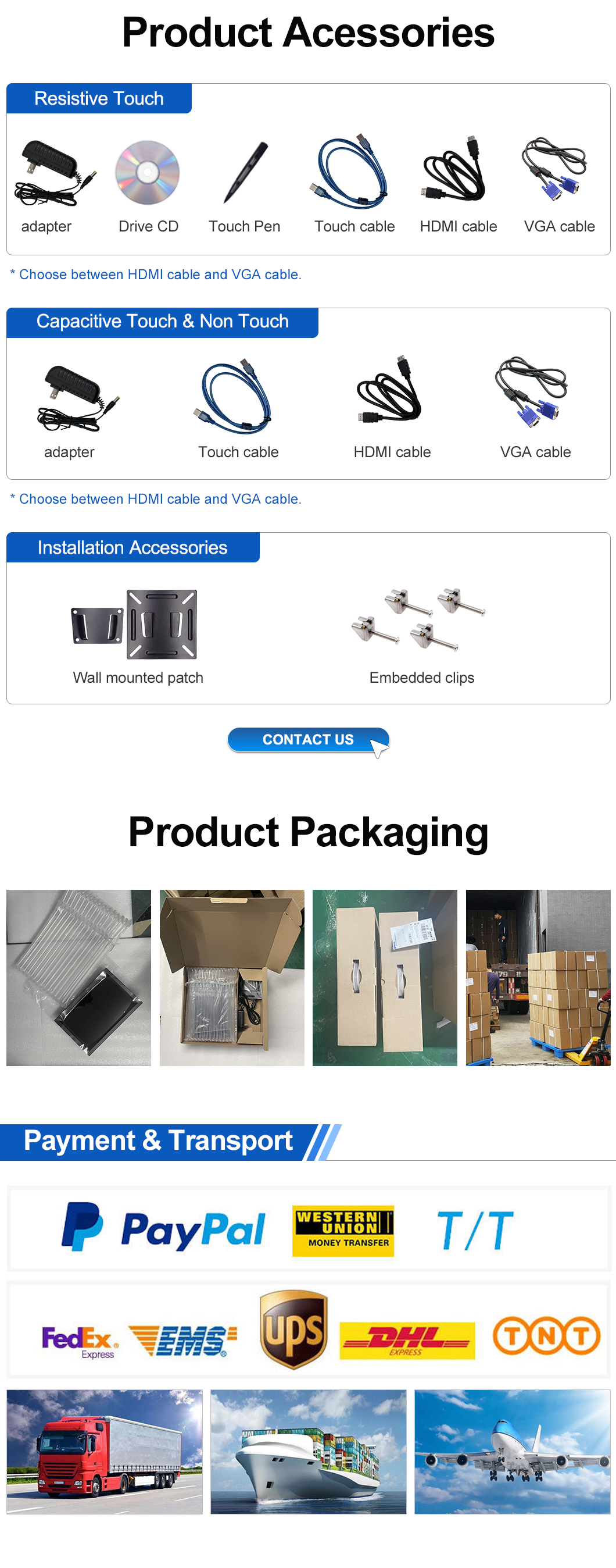

| Accessories:VESA wall mount/ stand, VGA cable/HDMI cable/DVI cable, manual book and power adapter. | |
