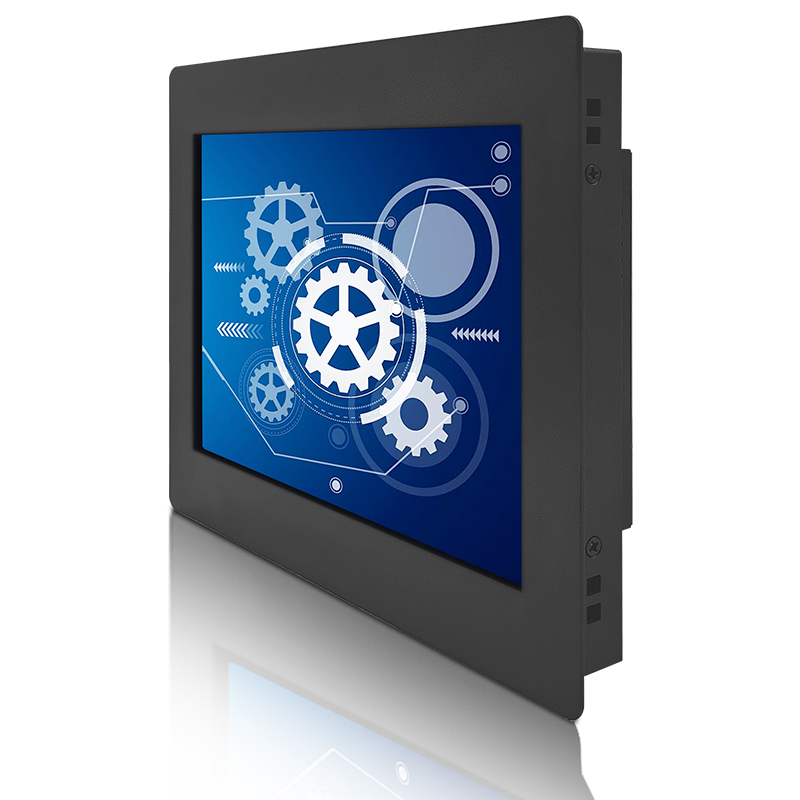

10.1 Inch 1280*800 HDMI VGA DVI Non Touch Screen Metal Case TFT Embedded OEM ODM Industrial LCD Monitor
Model No :B101-QR
| Mould | B101-QR |
| Size | 10.1" |
| Active Area | 216.9*135.6 mm |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 30,000 hrs |
| Resolution | 1280*800 |
| Acpect Ratio | 16:10 |
| Contrast | 300:1 |
| Brightness | 350 cd/m |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -10~60ºC |

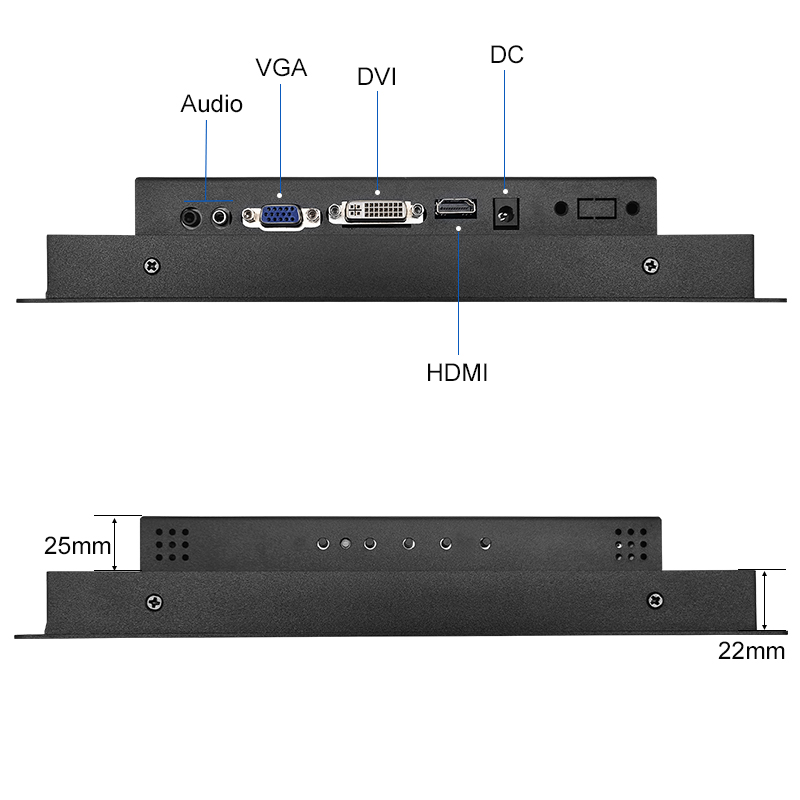

| Video Inputs/Outputs | DC+AV+BNC+HDMI+VGA+PC Audio+Earphone |
| Touch | Non touch |
| Audio Inputs/Outputs | Earphone Jack 35mm |

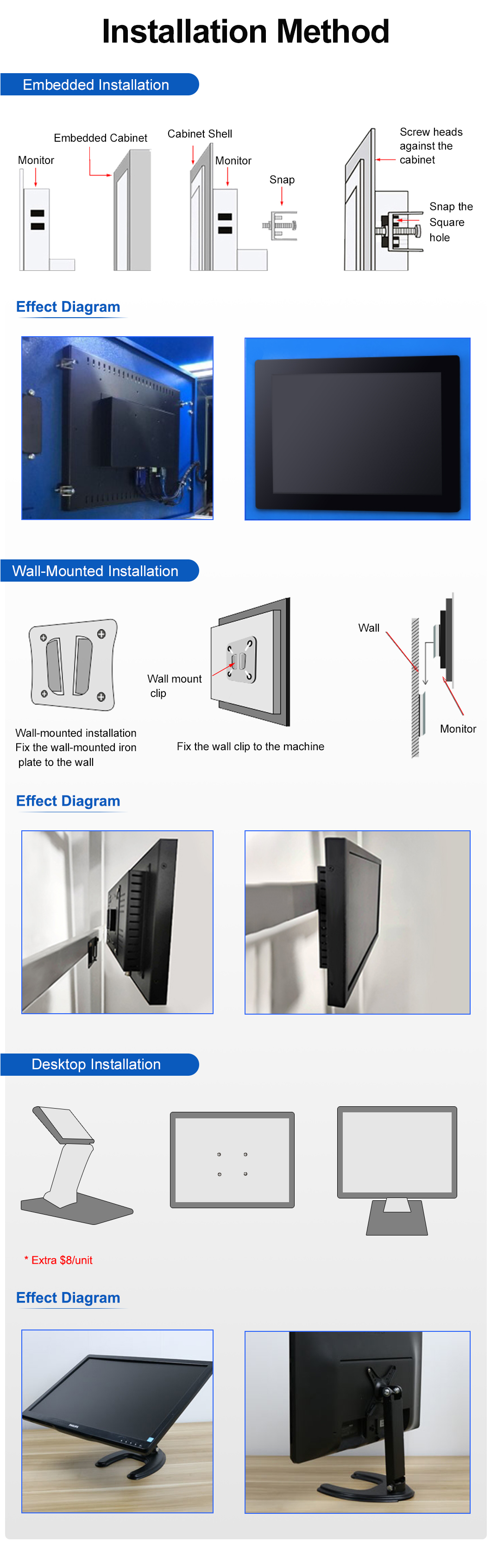

| Installation | VESA mount |
| Power Requirement | DC 12V |

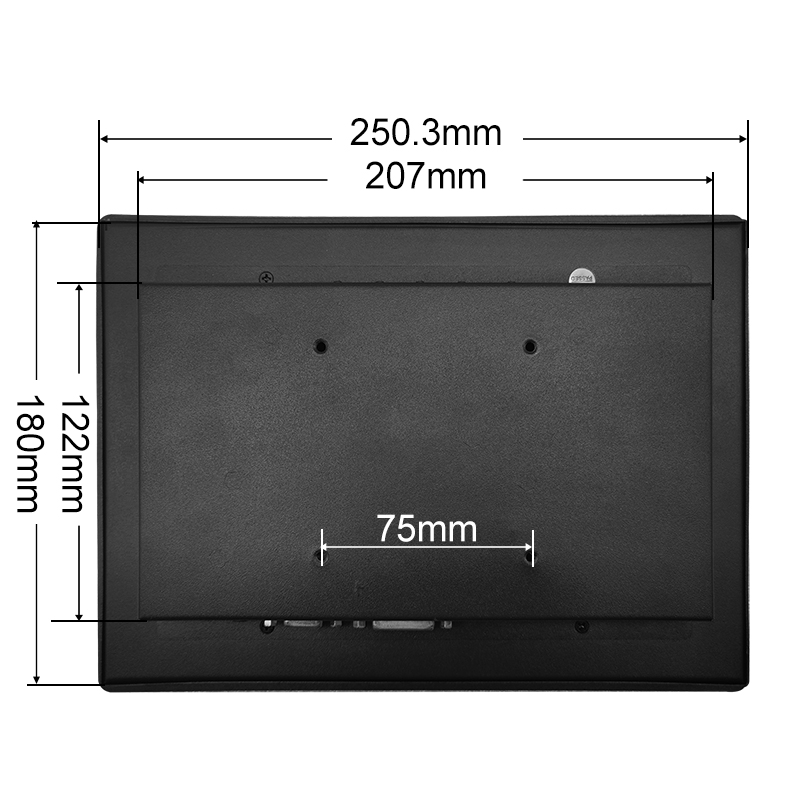

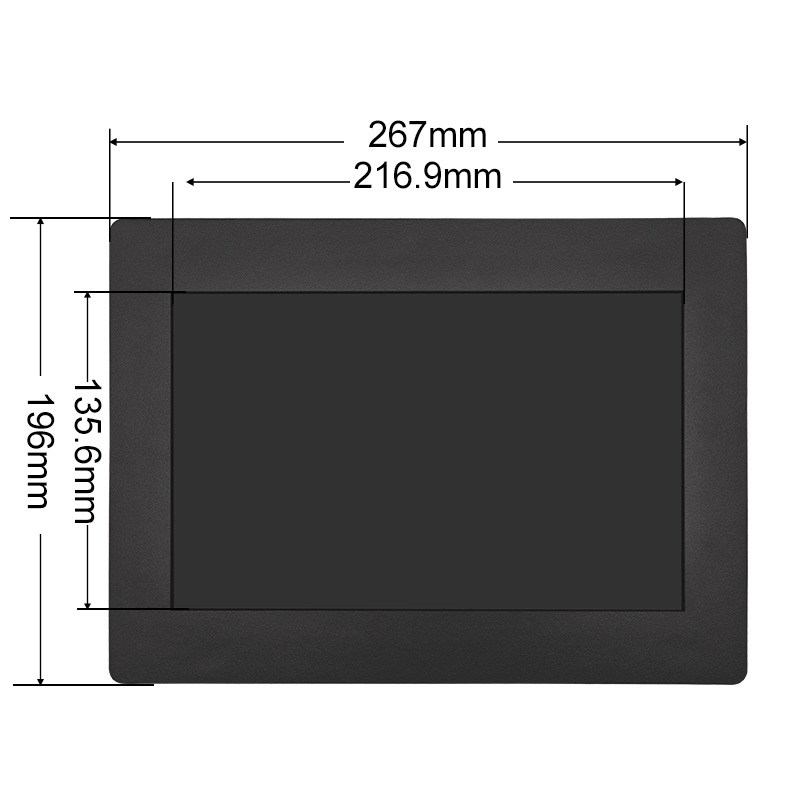

| Dimension (W*H*D) | 267*196*47 mm |
| Weight | 1.5 kg |
| Control | OSD Control |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories:VESA wall mount, VGA cable, BNC cable, manual book and power adapter. | |
