11.6 Inch IPS1920*1080 HDMI VGA Capacitive Touch Screen Metal Aluminum Frame TFT Embedded Pure Flat OEM ODM Industrial LCD LED Monitor
Model No :B116-QRL-RT-A
| Datasheet | |
| Size | 11.6" |
| Touch Panel | G+G |
| Panel Type | IPS |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1920*1080 |
| Acpect Ratio | 16:9 |
| Contrast | 700:1 |
| Brightness | 350 nits |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 6 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

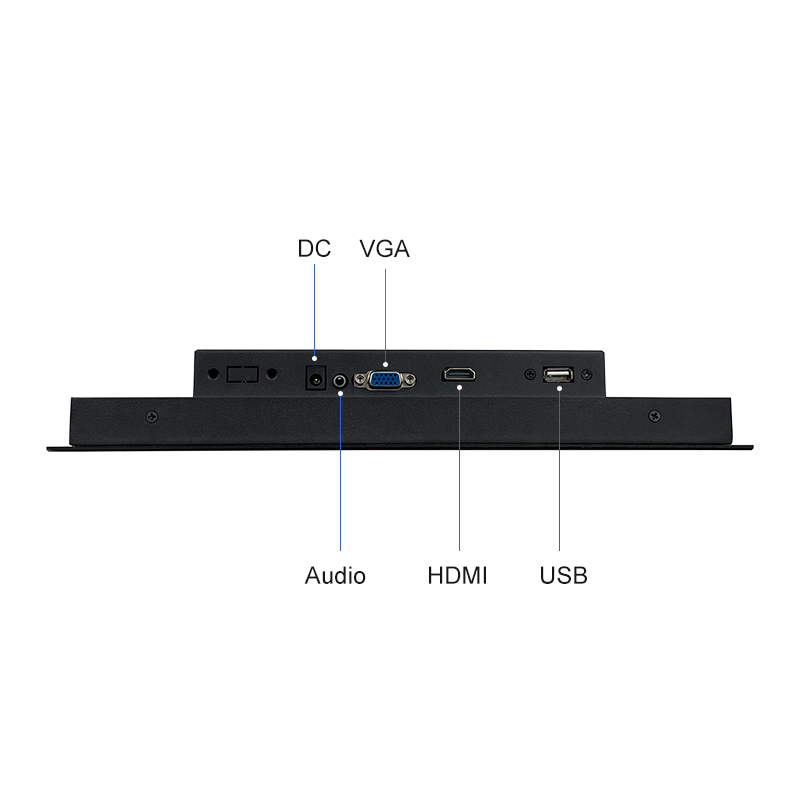

| Video Inputs/Outputs | VGA+AV+HDMI+USB+USB for touch |
| Audio Inputs/Outputs | N/A |
| Touch | Project capacitive touch |
| Touch control | Industrial EETI touch |

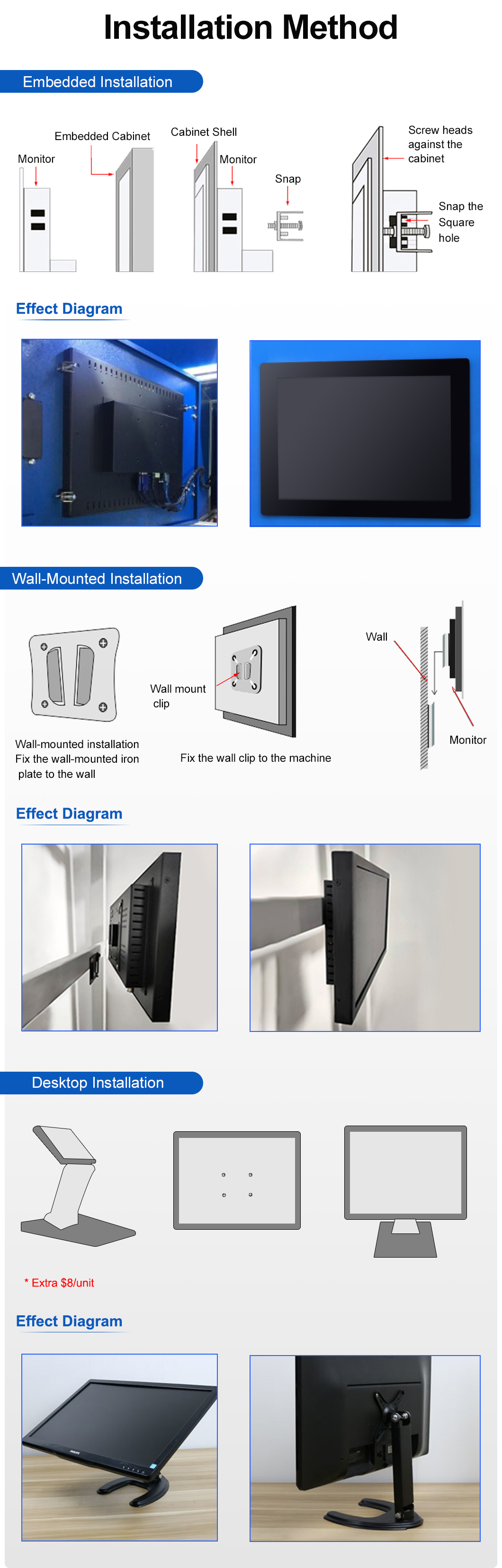

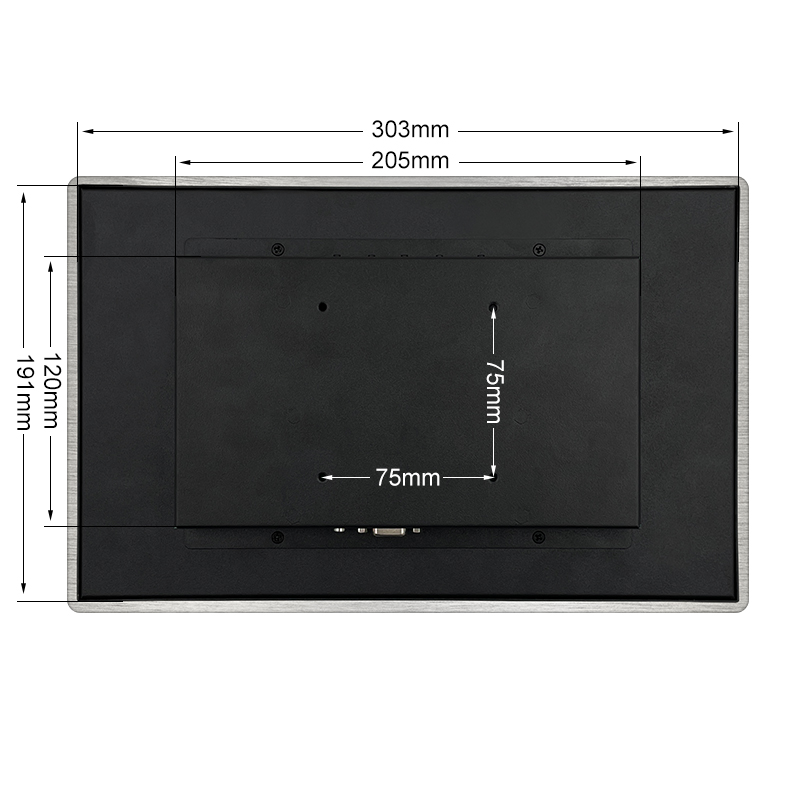

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |

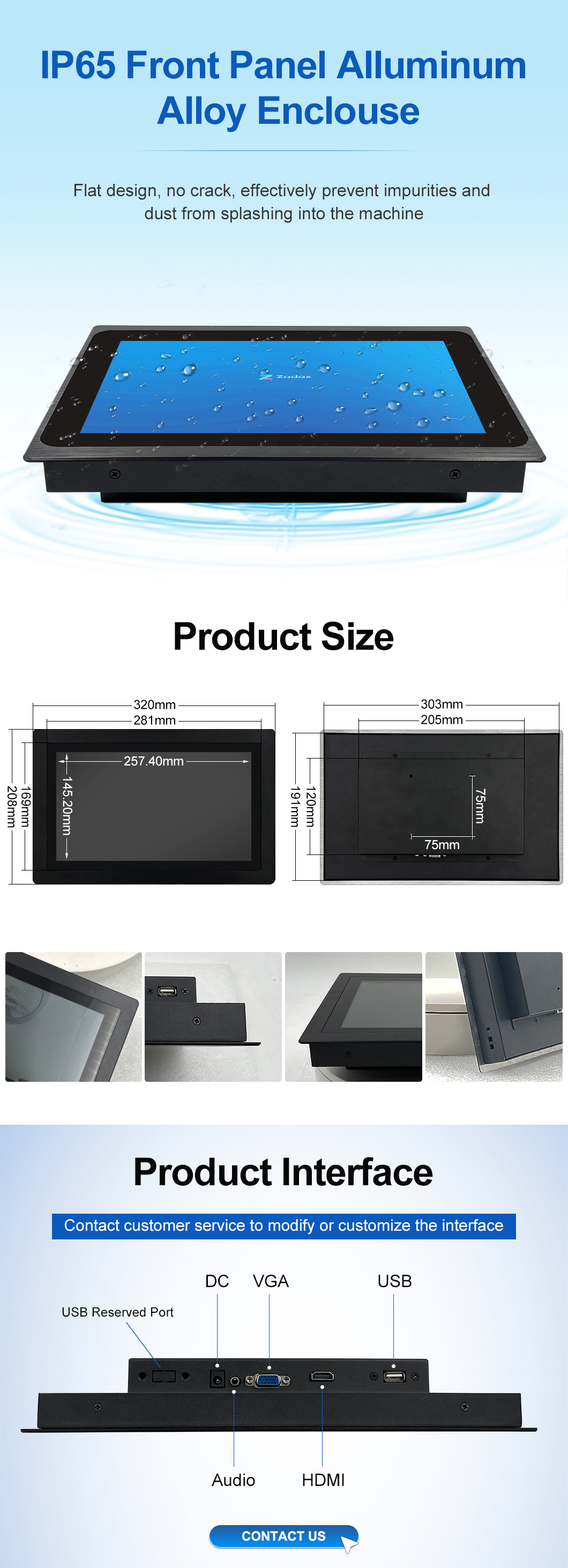

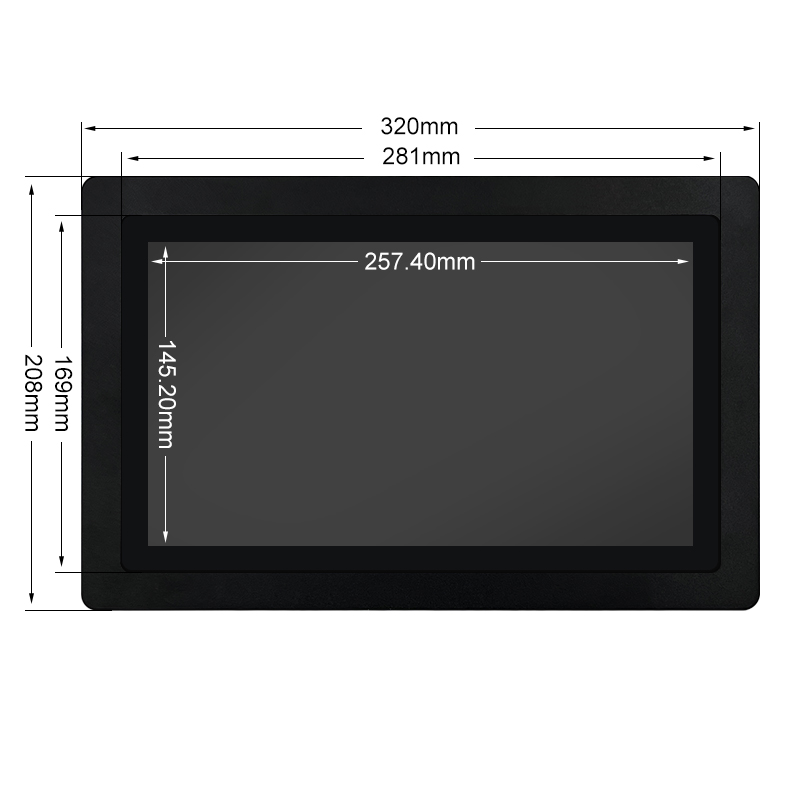

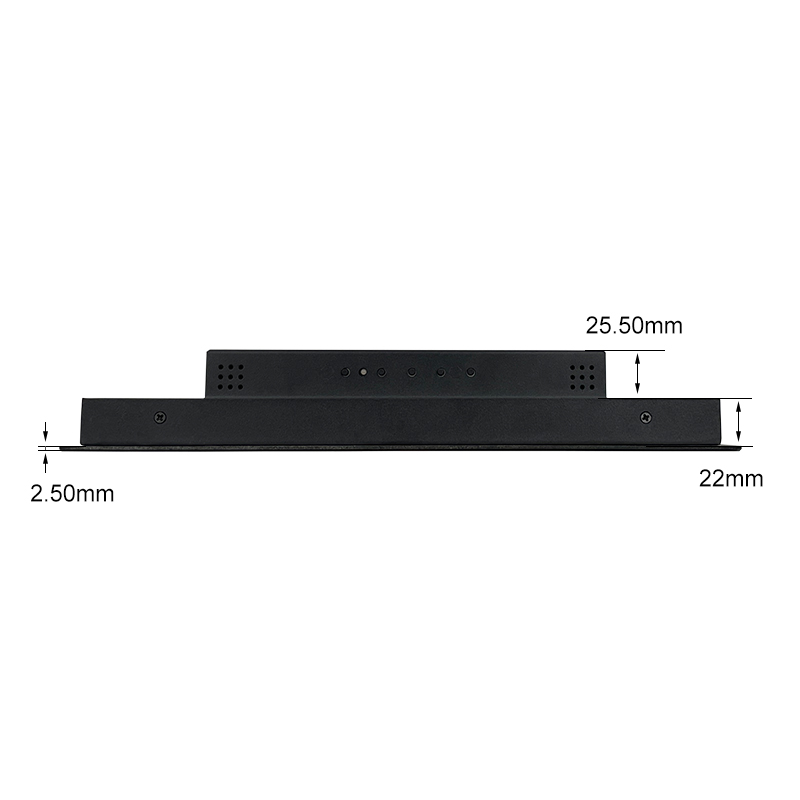

| Dimension (W*H*D) | 297*200*42.6 mm |
| Weight | 1.56 kg |
| Certificates | CE/FCC/ROHS/CCC |

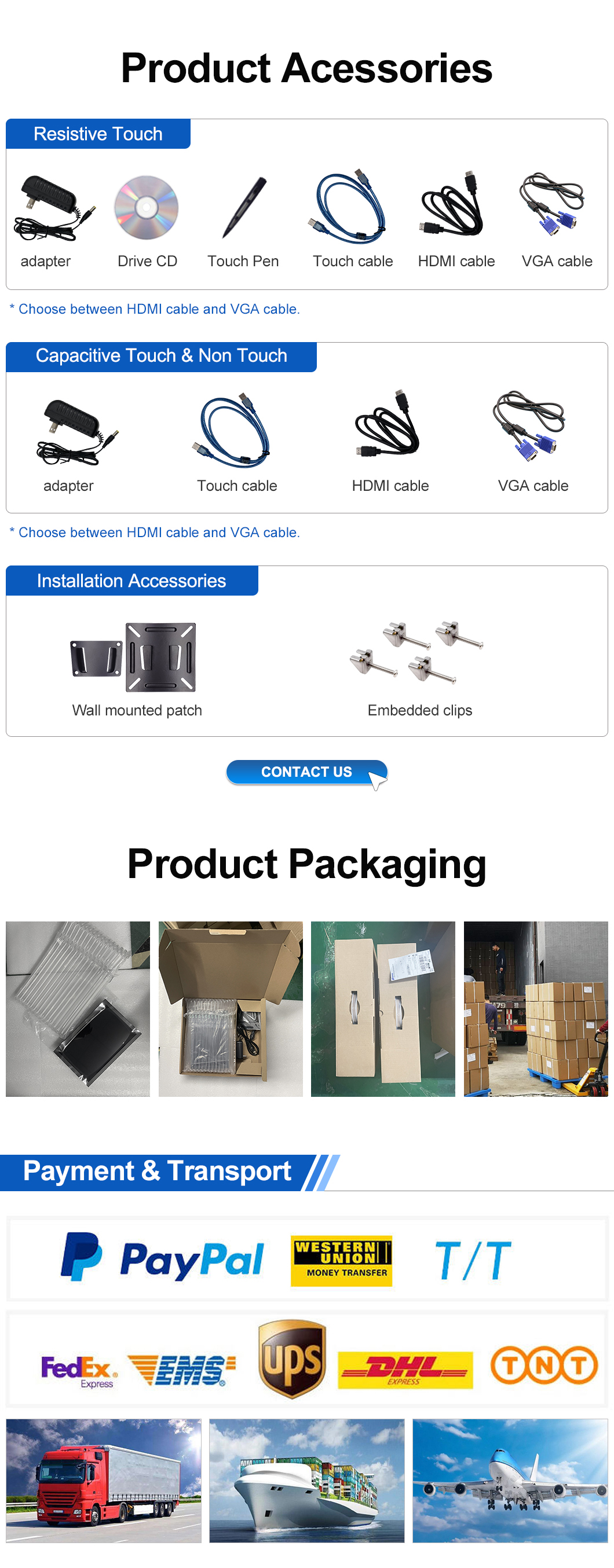

| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, USB touch cable, power adapter, warranty card and manual. | |
-
