Capacitive Touch Screen 8 Inch 1024*768 & IPS1024*768 HDMI VGA BNC BNC Metal Aluminum Frame TFT Embedded Pure Flat OEM ODM Industrial LCD LED Monitor
Model No :B8009-QRL-RT-A & B8010-QRL-RT-A
| Datasheet | |
| Model NO. | B8009-QRL-RT-A & B8010-QRL-RT-A |

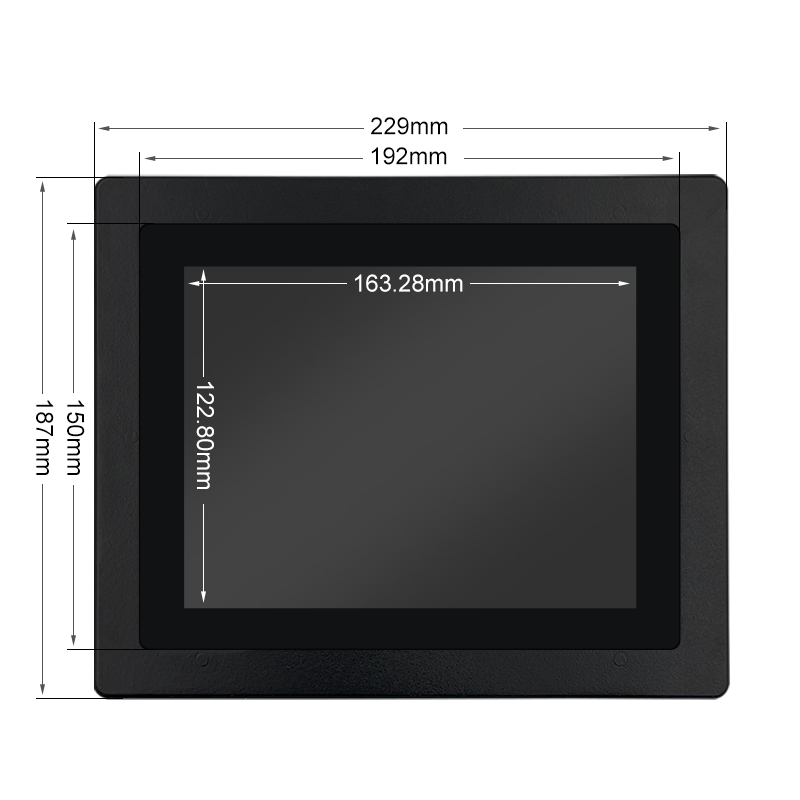

| Size | 8" |
| Touch Panel | G+G |
| Panel Type | TFT-LCD |
| Backlight | LED |
| Backlight Life | 50,000 hrs |
| Resolution | 1024*768 & IPS1024*768 |
| Acpect Ratio | 4:3 |
| Contrast | 500:1 |
| Brightness | 250 nits |
| Viewing Angle (H/V) | 140/120 |
| Response Time | 16 ms |
| Display Color | 262K |
| Operating Temperature | 0~50ºC |
| Storage Temperature | -20~60ºC |

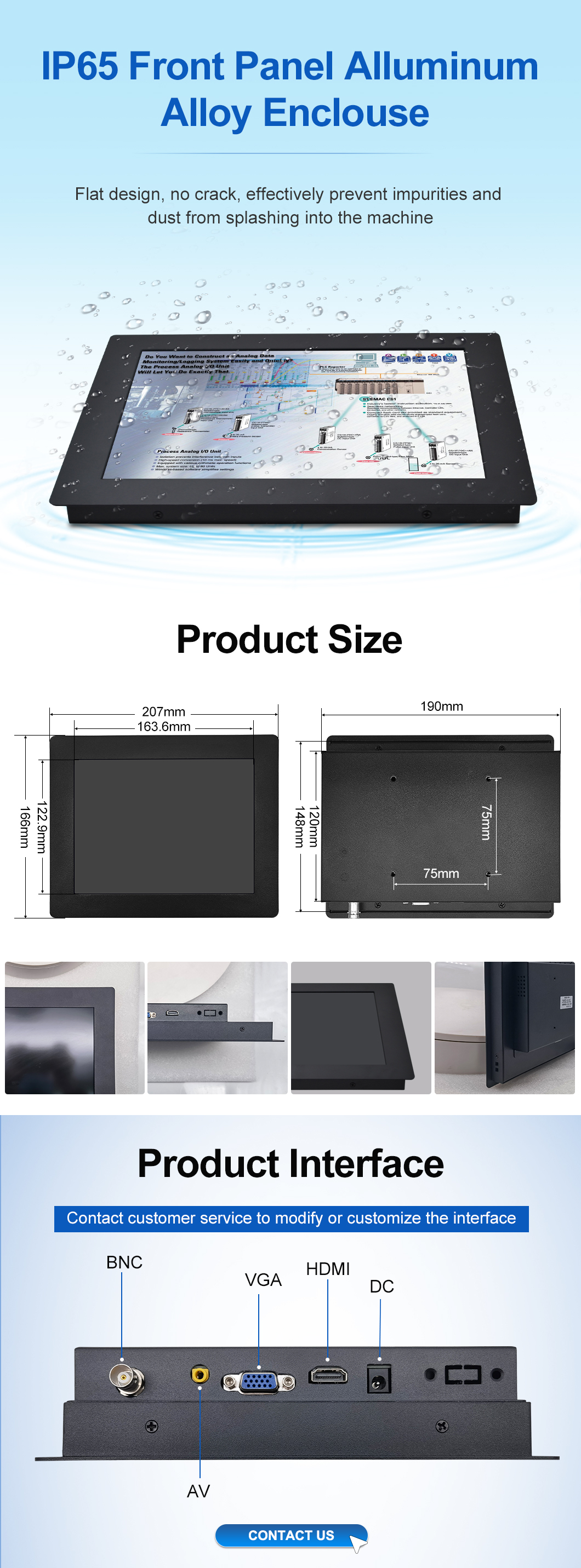

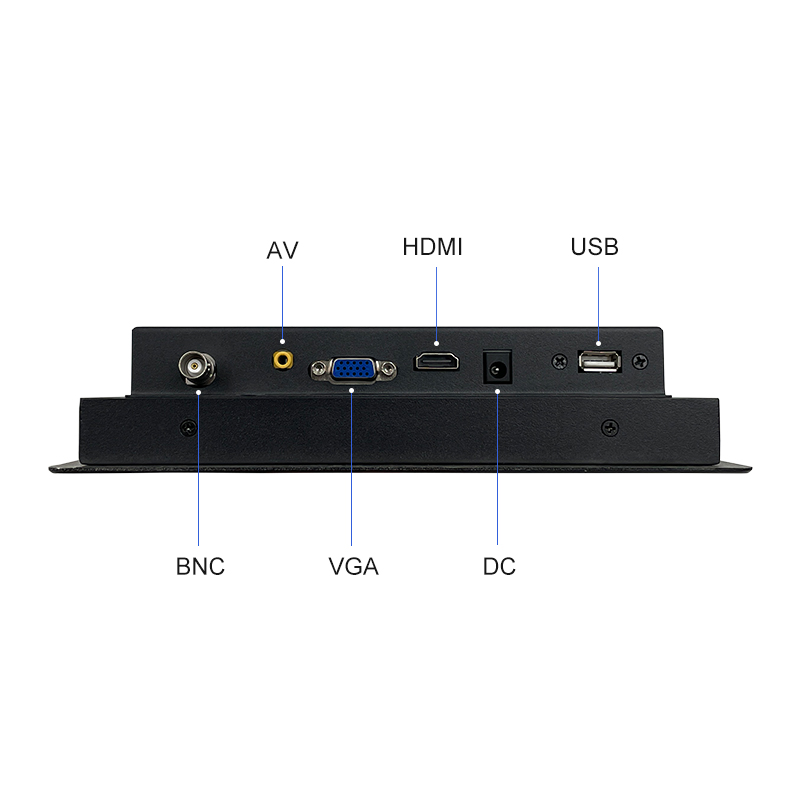

| Video Inputs/Outputs | VGA,AU,AV,BNC,HDMI input*1; USB2.0 port |
| Audio Inputs/Outputs | N/A |
| Touch | Project capacitive touch |
| Touch control | Industrial EETI touch |

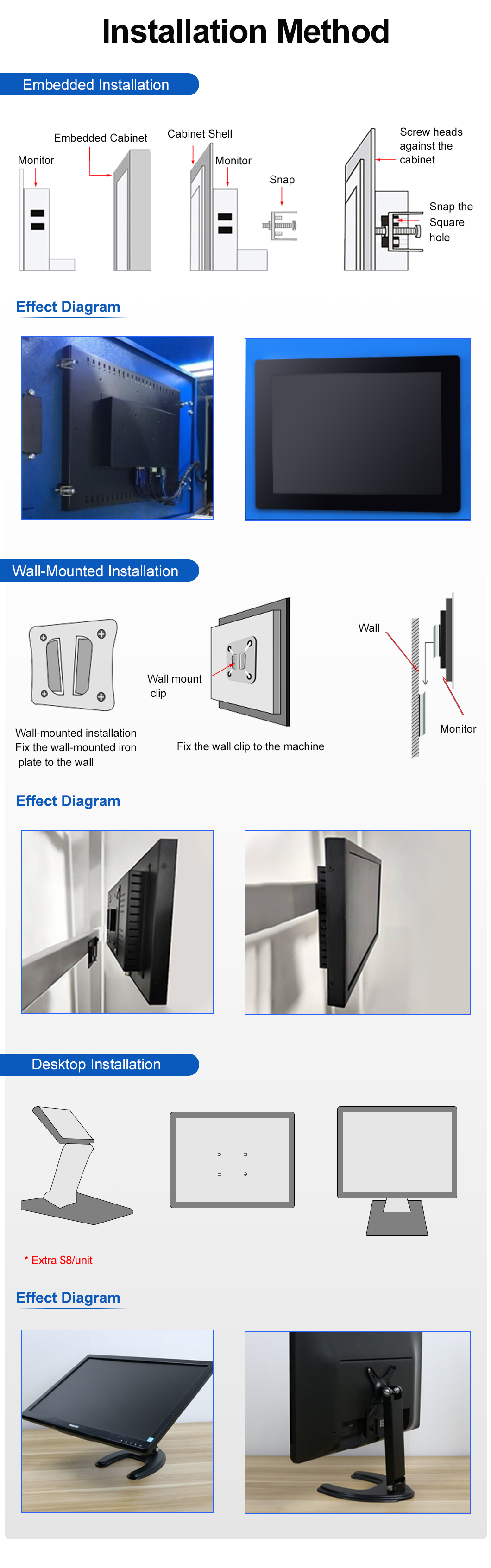

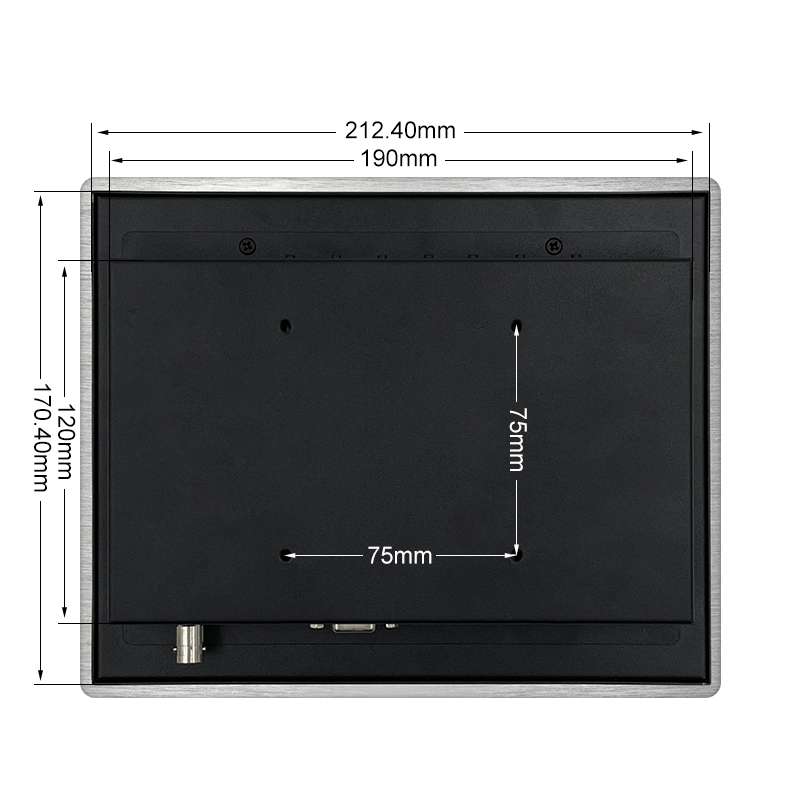

| Installation | VESA mount |
| Power Requirement | DC 12V |
| Systems Supported | Windows XP/7/8/10, Android and Linux |
| Max Touch Points | 10 |
| Certificates | CE/FCC/ROHS/CCC |
| Accessories: VESA wall mount kit/ Hanging ear/ Stand,VGA/HDMI cable, USB touch cable, power adapter, warranty card and manual. | |
-
Model No :B8009-QRL & B8010-QRL
